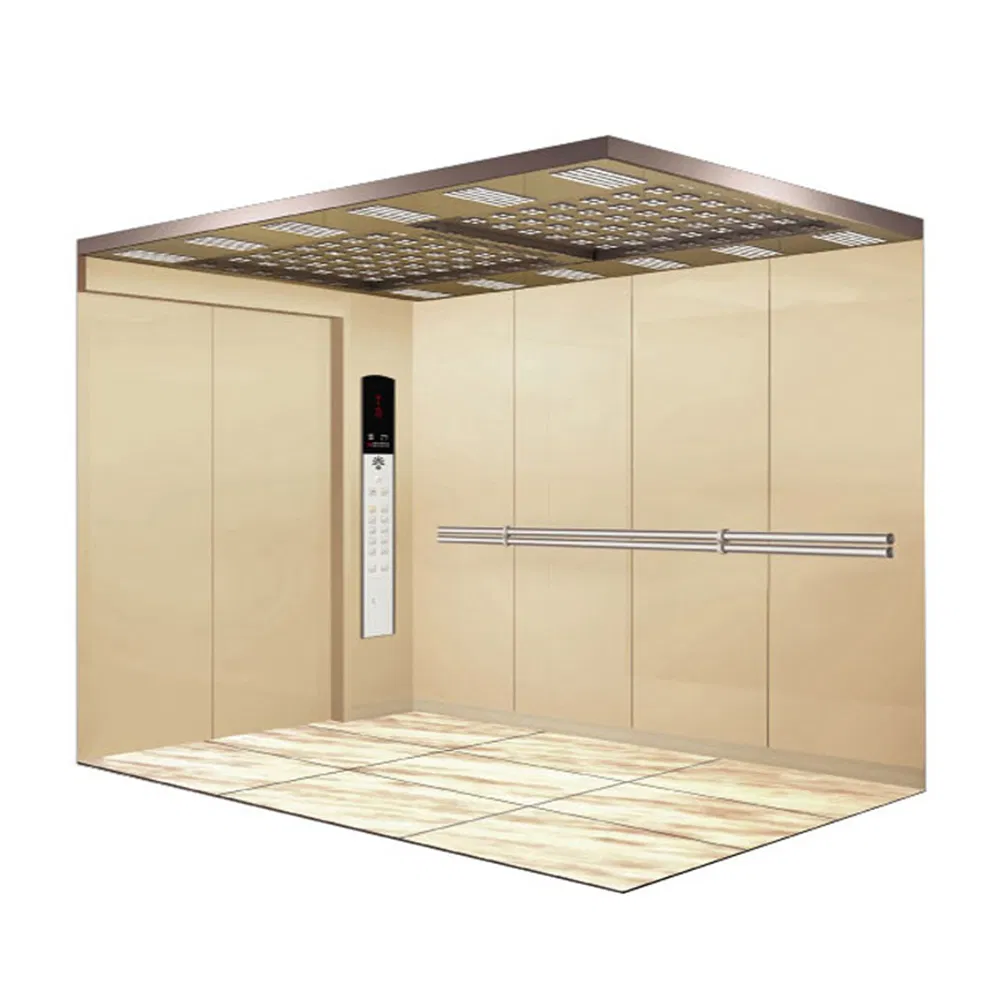

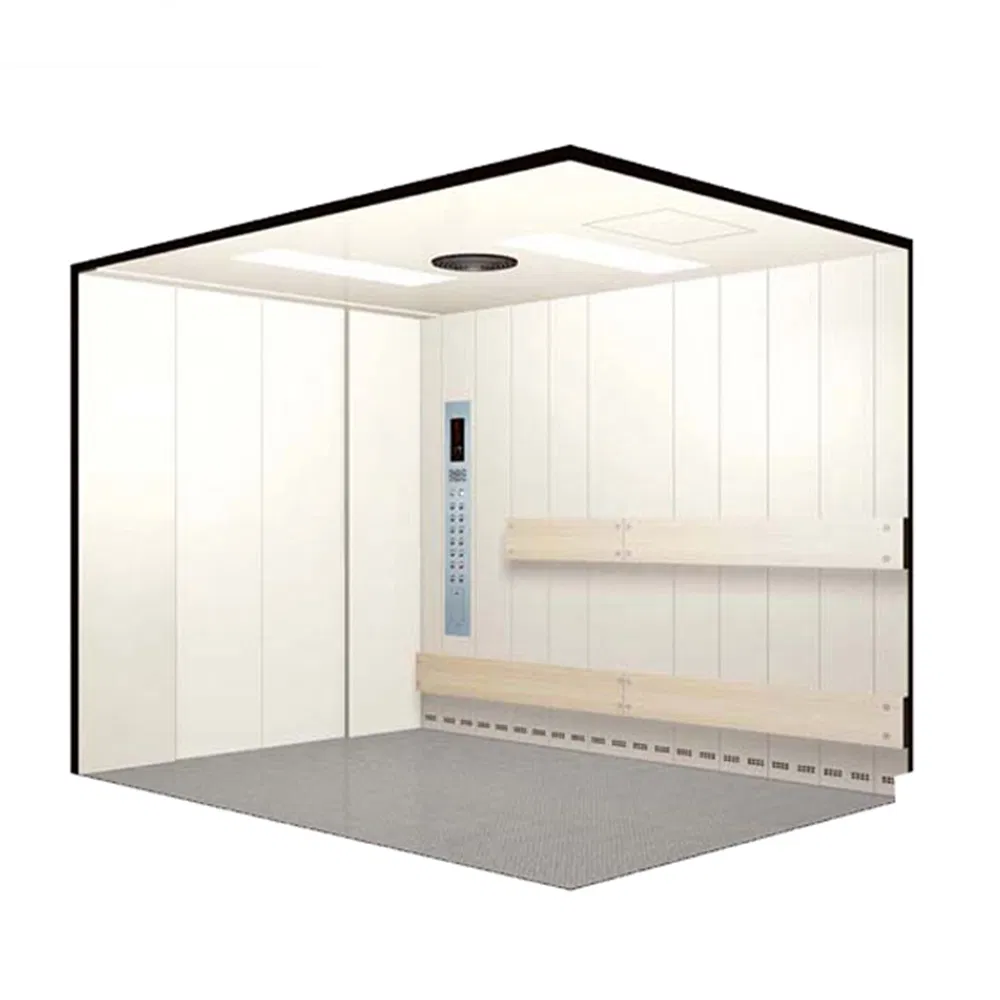

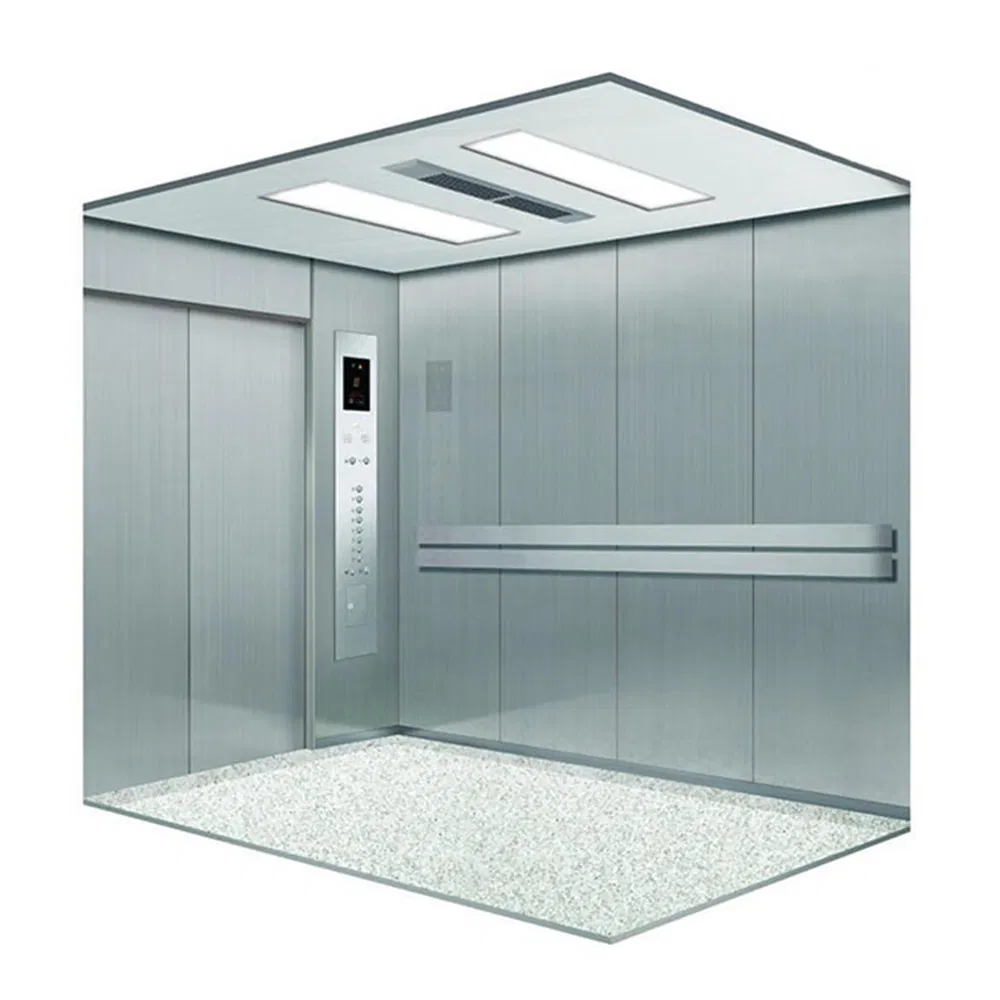

Low Noise Patient Bed Big Size Hospital Elevator

1 / 5

Low Noise Patient Bed Big Size Hospital Elevator

Customization:	Available
Driving Type:	AC Elevator
Capacity:	>1000kg

Send Inquiry

Product Description

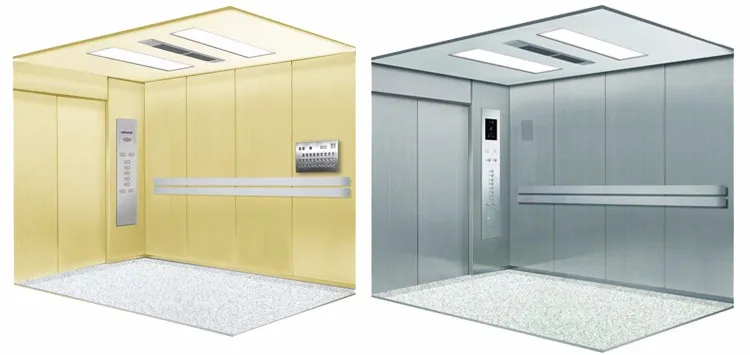

Our hospital elevator is designed not only for transporting passengers but specifically to meet the demanding needs of medical facilities. It offers precise speed control, running smoothly and comfortably to ensure patient safety. With a human-oriented design that fully optimizes the car structure, it creates a tranquil and elegant space for patients and medical staff.

📊 Basic Specifications

Model

Passenger/Hospital Elevator

Capacity

1000kg - 5000kg

Speed

0.25m/s - 1.0m/s

Control Mode

Collective Selective Control

Cabin Material

Hairline Stainless Steel

Traction Machine

Gearless / Geared

Drive System

Step AS380 / Monarch NICE3000

Warranty

18 Months

Drive Type

Package

Standard Export Wooden Case

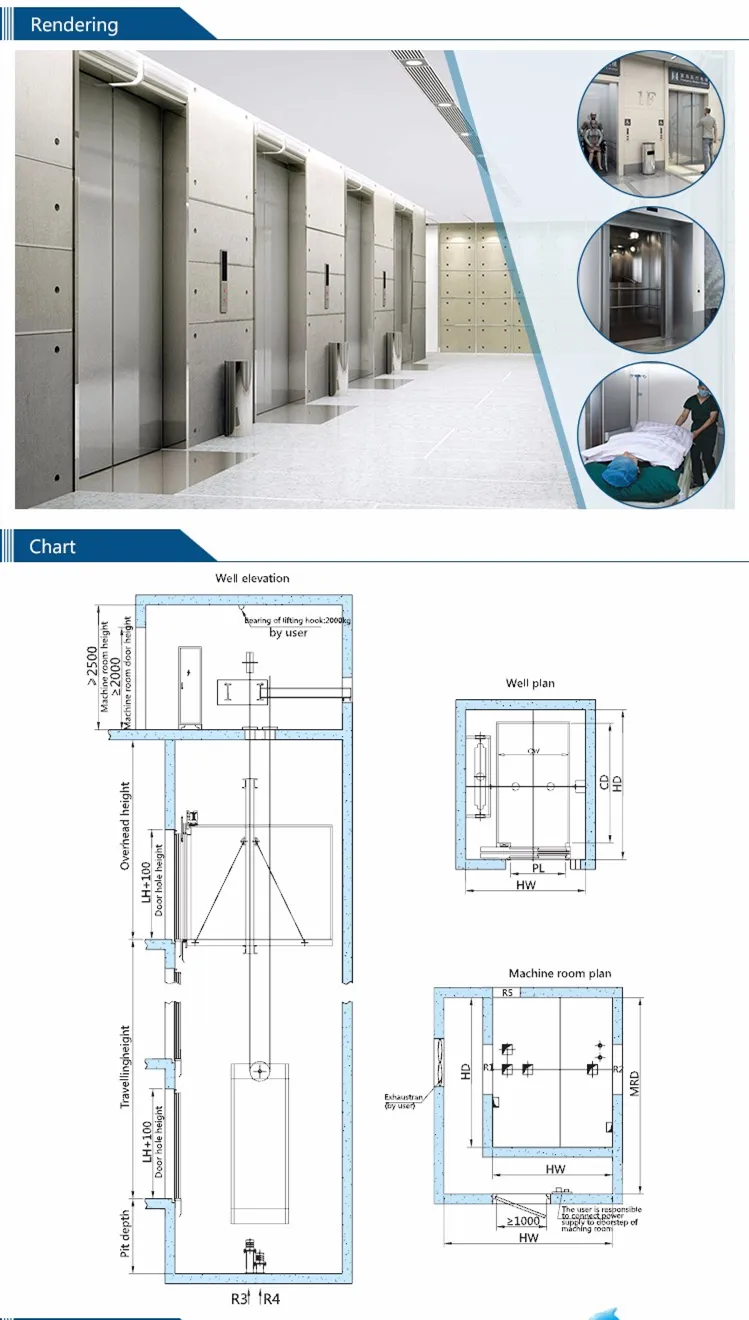

📐 Technical Parameters

Capacity (kg)	Speed (m/s)	Cabin Size (mm)		Opening Size (mm)		Opening Way	Shaft Size (mm)		Overhead (mm)	Pit Depth (mm)
Capacity (kg)	Speed (m/s)	CW	CD	JJ	HH	Opening Way	HW	HD	Overhead (mm)	Pit Depth (mm)
1000	0.5/1.0	1400	1700	1400	2100	2 Panels Side	2500	2200	4200	1400
1600	0.5	1500	2300	1500	2100	2 Panels Side	2650	2800	4200	1400
2000	0.5	1800	2300	1500	2100	2 Panels Side	2650	2800	4200	1400
3000	0.25/0.5	2000	2800	2000	2100	4 Panels Center	3400	3300	4200	1400
5000	0.25/0.5	2400	3600	2000	2100	4 Panels Center	4100	4100	4500	1500

🖼️ Product Gallery

❓ Frequently Asked Questions

What is the load capacity range for your hospital elevators?

Our hospital elevators are designed for heavy-duty medical use, with load capacities ranging from 1000kg up to 5000kg, suitable for patient beds and medical equipment.

What safety features are included for patient transport?

The elevators utilize Collective Selective Control and advanced drive systems (Step AS380 or Monarch NICE3000) to ensure smooth leveling, low noise, and stable operation essential for medical environments.

How long is the standard warranty period?

We provide an 18-month warranty period for our hospital elevators, covering standard components under normal operating conditions.

Can the door opening width accommodate large hospital beds?

Yes, we offer both side-opening and center-opening options with net opening widths up to 2000mm to facilitate easy entry and exit of large patient beds.

Do you provide installation and maintenance support?

Detailed installation and maintenance manuals are provided with every shipment. We recommend hiring a professional local company for installation, and our technical team is available to provide assistance when necessary.

What are the shipping and packaging standards?

All elevator components are packed in standard export wooden cases to ensure maximum protection during sea or land transport under FOB, CIF, or CFR terms.
