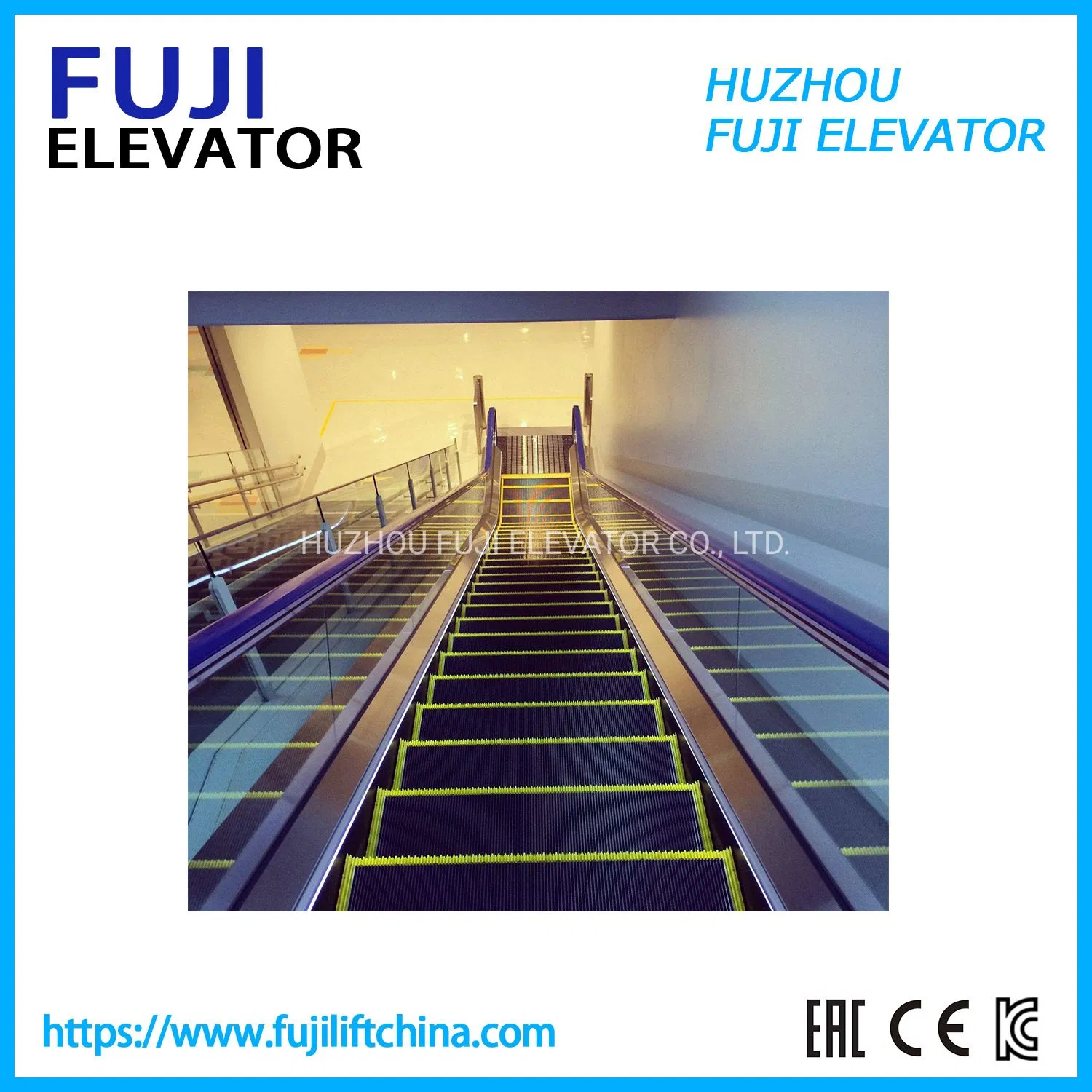

FUJI High Quality Automatic Escalator and Moving Walk for Shopping Malls

Customization:	Available
Type:	Heavy
Load Capacity:	9000 Persons/H

Product Overview

Model:FUJI-G

Speed:0.5M/S

Slope Angle:30° / 35°

Stair Width:600-1200 mm

Driving Type:AC Elevator

Application:Shopping Mall / Airport / Metro Station

Production Time:25-30 Days

Certification:CE

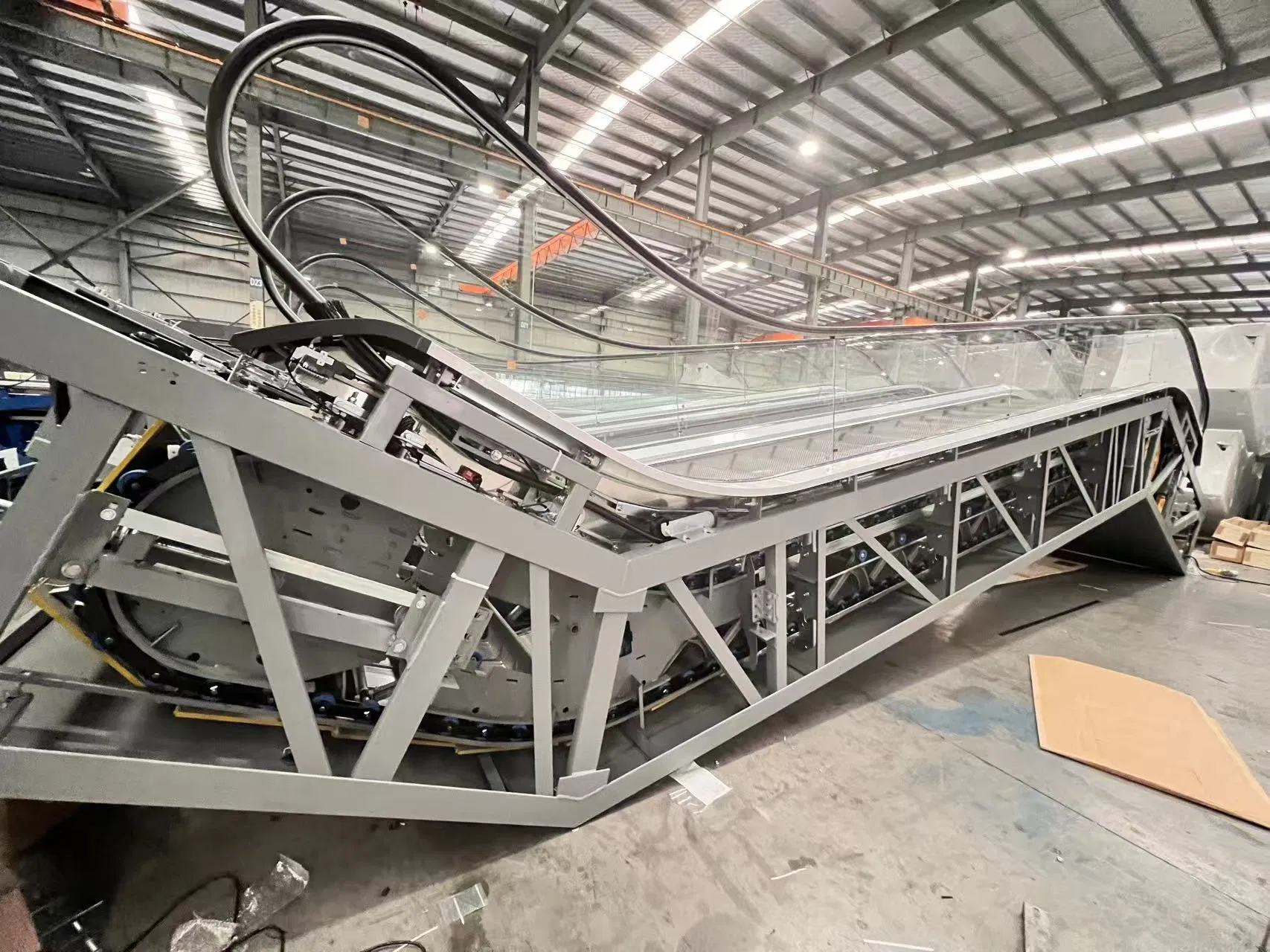

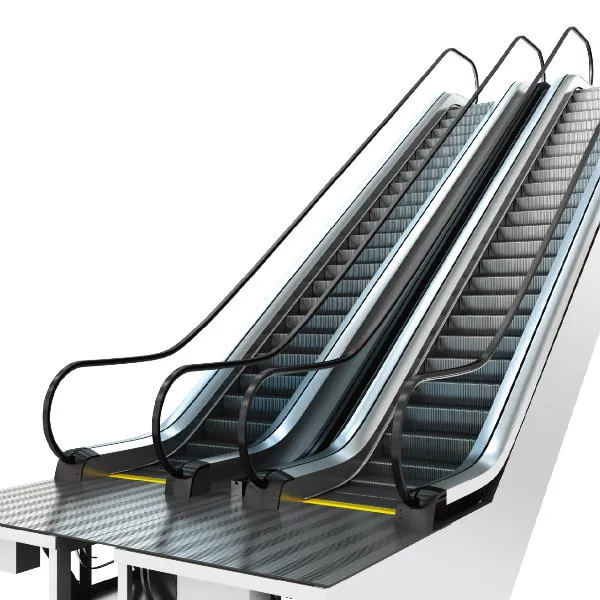

Escalator Introduction

Our modern design automatic mechanical escalators are engineered for high-traffic centers. Combining a specialized structure chain conveyor with circular moving stairways, these systems ensure the seamless and continuous conveyance of passengers between building levels.

Key Applications

Modern Shopping Malls
International Airports & Railway Stations
Metro & Public Transportation Hubs
High-end Office Buildings
Hospitals & Public Facilities

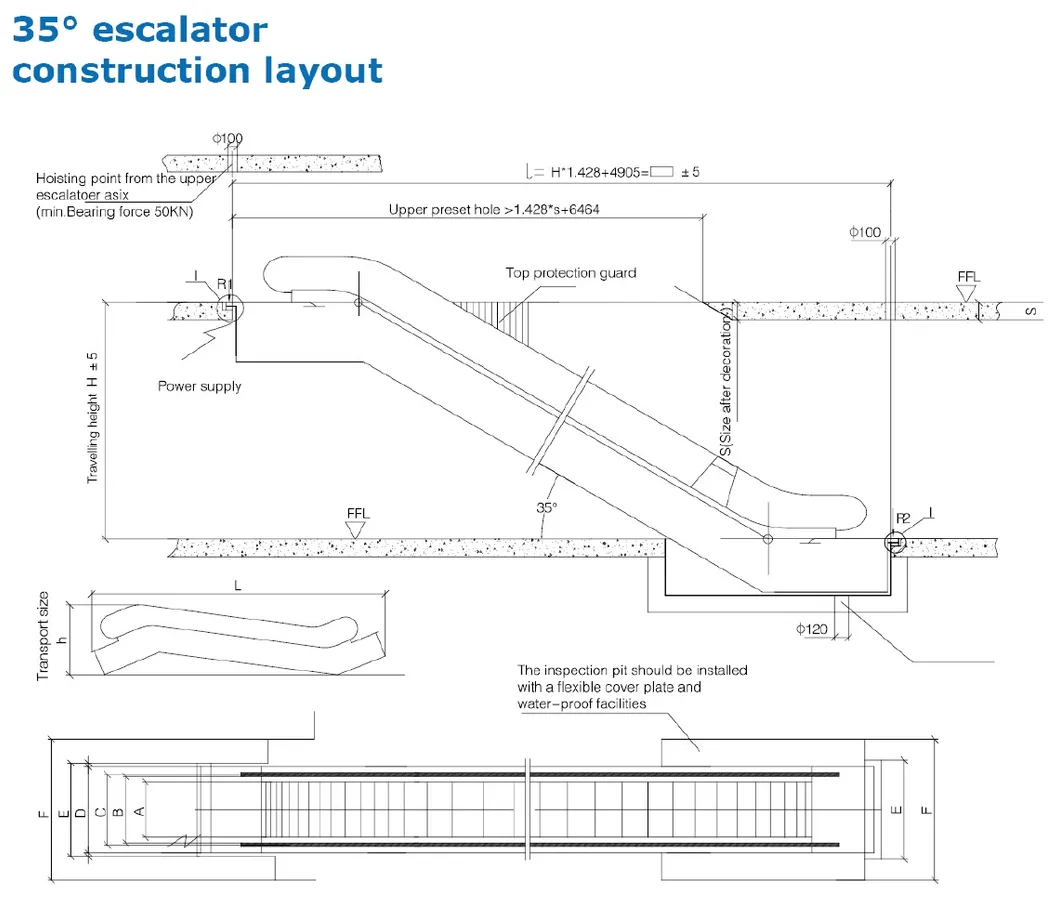

35° Escalator Technical Parameters

Capacity (pers/h)	Travelling Height (mm)	Net Weight (KN)	R1 (KN)	R2 (KN)	Transport Size (H/I)
3600 (0.5m/s)	3000	54	43	39	2850 / 10180
4800 (0.5m/s)	4000	63	56	50	2920 / 11890
6000 (0.5m/s)	6000	85	81	72	3000 / 15330

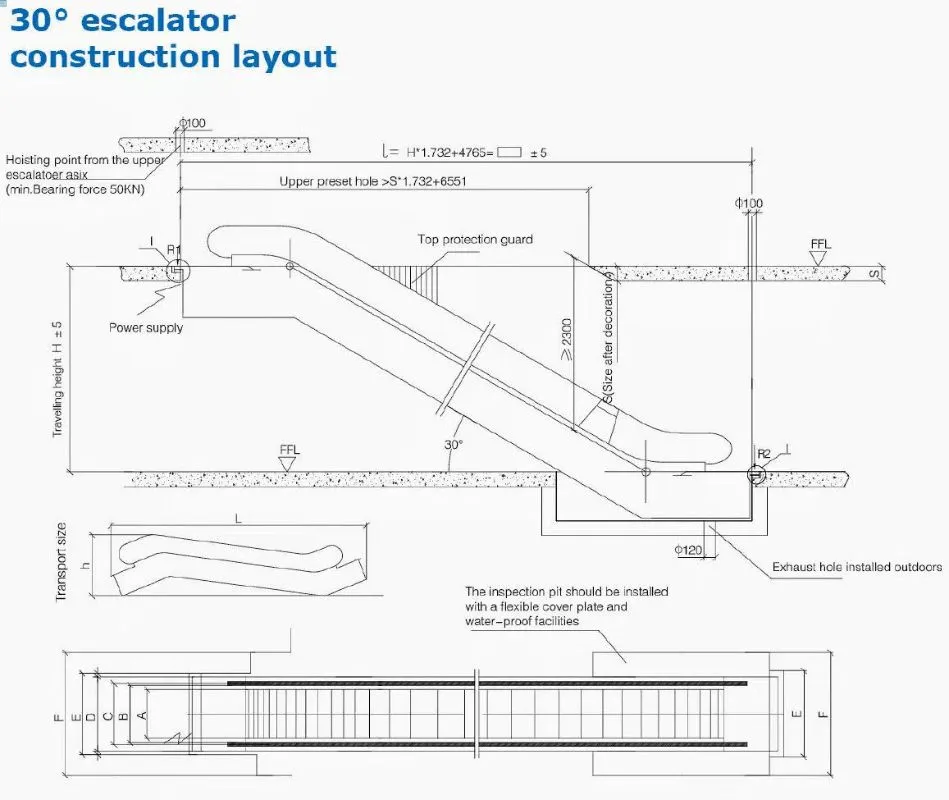

30° Escalator Technical Parameters

Capacity (pers/h)	Travelling Height (mm)	Net Weight (KN)	R1 (KN)	R2 (KN)	Transport Size (H/I)
3600 (0.5m/s)	3000	57	46	41	2750 / 10900
4800 (0.5m/s)	4500	71	64	57	2830 / 13870
6000 (0.5m/s)	6000	92	88	79	2870 / 16860

Generalized Specifications

Environment	Indoor & Outdoor
Step Width	600, 800, 1000, 1200 mm
Horizontal Step	2/2 (35°), 3/3 (30°)
Operating Speed	0.5m/s, 1.0m/s
Start Method	VVVF / VVVF + Autostart
Power Supply	380V±7%, 50Hz (3 Phase 5 Wire)
Protection Level	IP 21 / IP 54

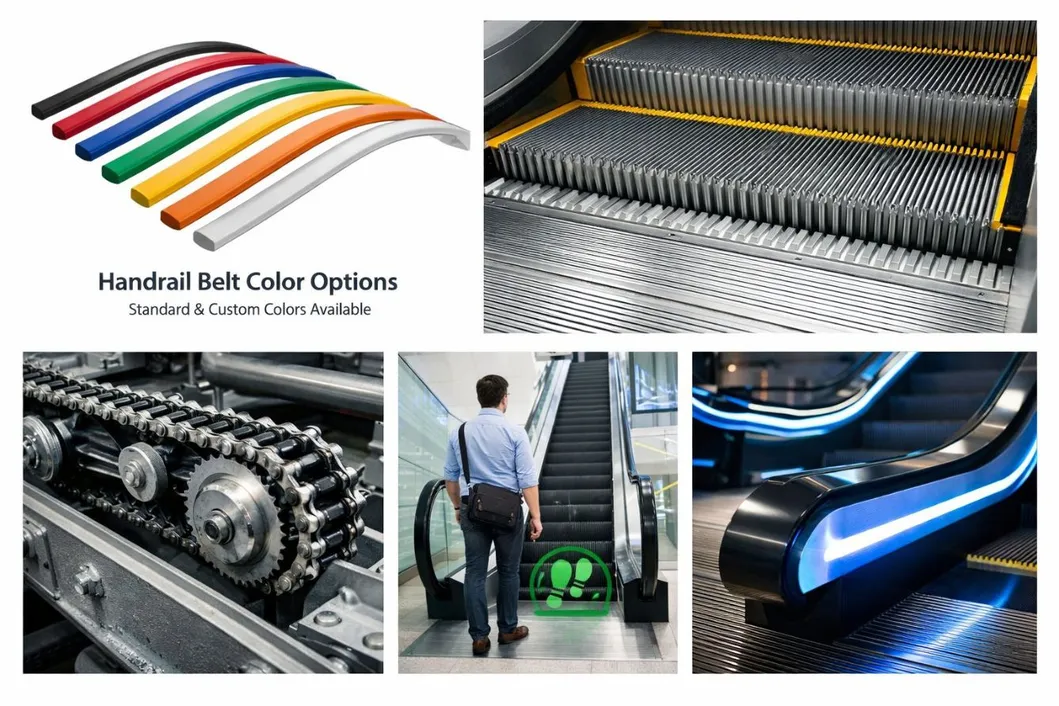

Parts Configuration

Safety Features & Instructions

Safety Brush: Installed on both sides of the skirt panel to prevent potential hazards caused by objects or shoelaces getting caught between steps and side panels.

Clamping Device: Our safety brushes conform to national standards, ensuring sufficient strength and proper inclination to maximize passenger safety.

Motor AC380V 50HZ power efficiency.
Grounding device resistor less than 4 ohm.
Spacious entry and exit areas for safe passenger flow.

About Manufacturing Capability

We are a professional manufacturer with over 15 years of export experience. Our production facility has an annual capacity of 3,000 units, with a significant global export volume. Our product range includes passenger elevators, home lifts, freight elevators, and moving walkways, all backed by CE and EAC certification and a 24-month warranty. We provide comprehensive technical support and installation guidance for worldwide projects.

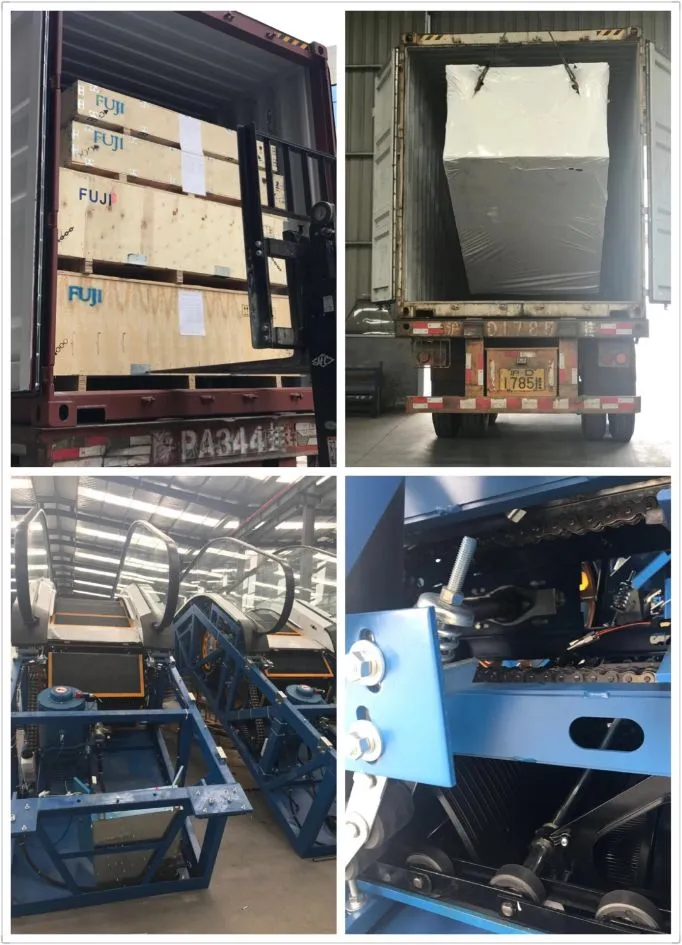

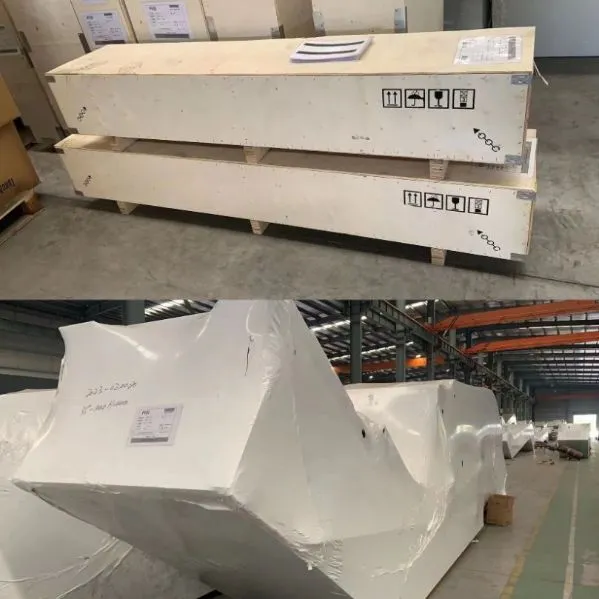

Packaging & Delivery

Package Size:992.00cm * 226.00cm * 154.00cm

Gross Weight:5500.00kg

Frequently Asked Questions

Q1: What are the standard inclination angles available? A: We offer both 30° and 35° inclination angles to suit different building architectural requirements.

Q2: Can these escalators be installed outdoors? A: Yes, we provide outdoor models with IP54 protection levels and stainless steel or aluminum steps for weather resistance.

Q3: What is the typical production lead time? A: Our standard production time is within 25 to 30 days after order confirmation.

Q4: What safety certifications do your products hold? A: All our escalators and elevators are CE and EAC certified, ensuring compliance with international safety standards.

Q5: What is the warranty period? A: We provide a 24-month warranty and full technical support for all our installations.

Q6: Is customization available for specific project needs? A: Yes, we offer non-standard customization and OEM services to meet unique architectural and functional specifications.
