Competitive Price Moving Sidewalk Moving Walk (XNW-010)

1 / 5

Competitive Price Moving Sidewalk Moving Walk (XNW-010)

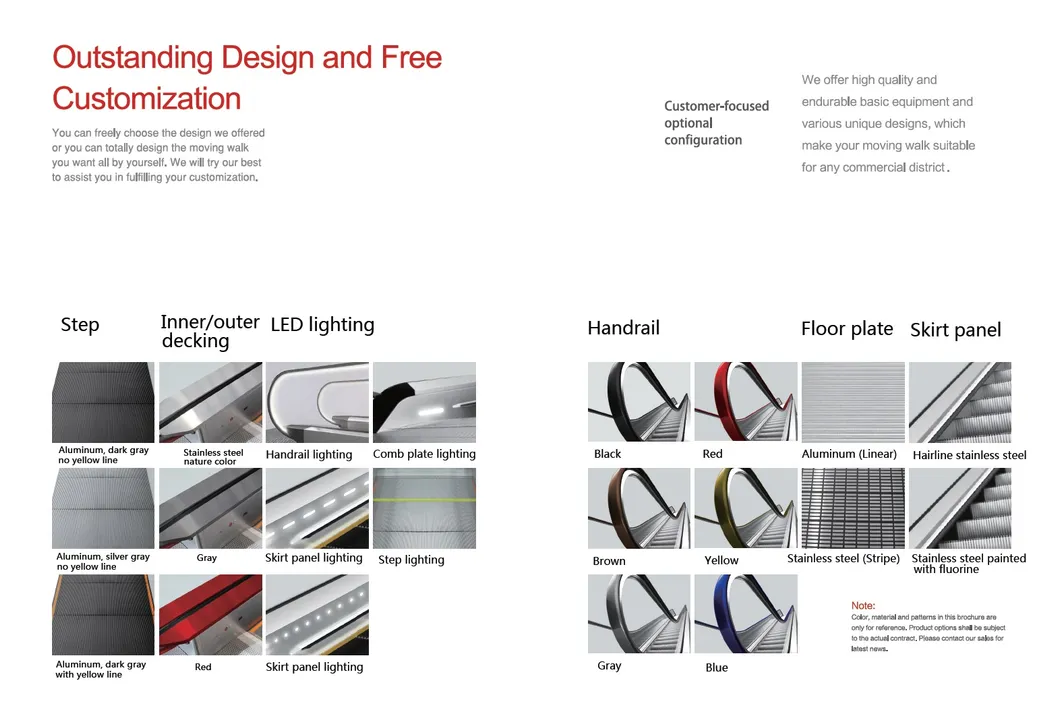

Customization:	Available
Type:	Step Type
Slope Angle:	12°

Send Inquiry

Product Description

Basic Specifications

Model NO.	XNW-010	Speed	0.5M/S
Nominal Width	1000mm	Drive Mode	AC
Occasions	Indoor Type	Handrail	Full Transparent
Control Type	Microcomputer	Railing Form	EX-EN
Usage	Supermarket, Airport	Energy Grade	a+++
Warranty	18 Months	HS Code	8428400000

Product Description

Competitive Price Moving Sidewalk Moving Walk (XNW-010)

In Busy Cities, Supermarkets and Shopping Malls, where people gather, broadly spread moving walks create a space full of imagination, drawing splendid lines which link every flowing sight. Safe, comfortable, and beautiful, moving walks provide a leisure experience for all passengers.

Product Name	Moving walkway, travelator, passenger conveyor, sidewalk, autowalk
Span Length	L ≤ 105000mm
Step Width	800mm, 1000mm, 1200mm, 1400mm
Inclined Degree	0°, 10°, 11°, 12°
Noise Level	≤65dB
Vibration	≤35cm/s²
Power Supply	380V, 50Hz Three Phase Five Wire / Lighting 220V
Energy Saving	VVVF, Auto start stop

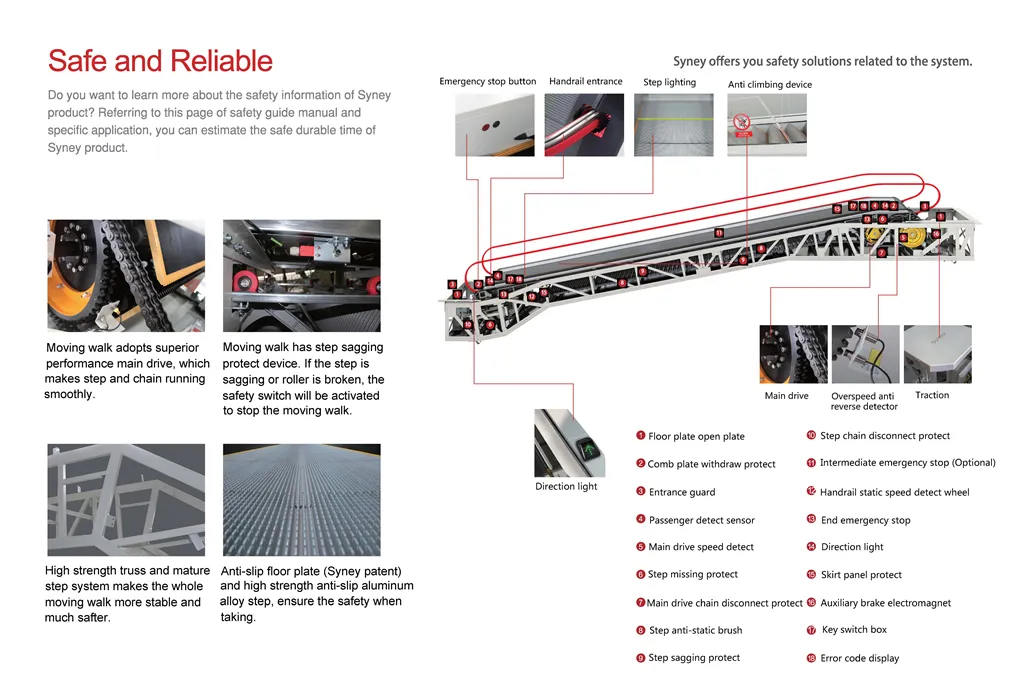

Safety Measures & Functions

Standard Safety Functions

Emergency Stop Button	Handrail Entry Contact	Broken Step Chain Protection
Comb Plate Contact	Inspection Socket	Phase Failure Protection
Step Sag Contact	Overload Protect	Overspeed Protection
Alarm Bell When Start	Step Missing Detect	Auto Lubricating Device

Optional Functions

Anti-climb device	Handrail lightening	Direction indicator
Oil-water separator	Heating device	Auxiliary brake

Production & Quality Control

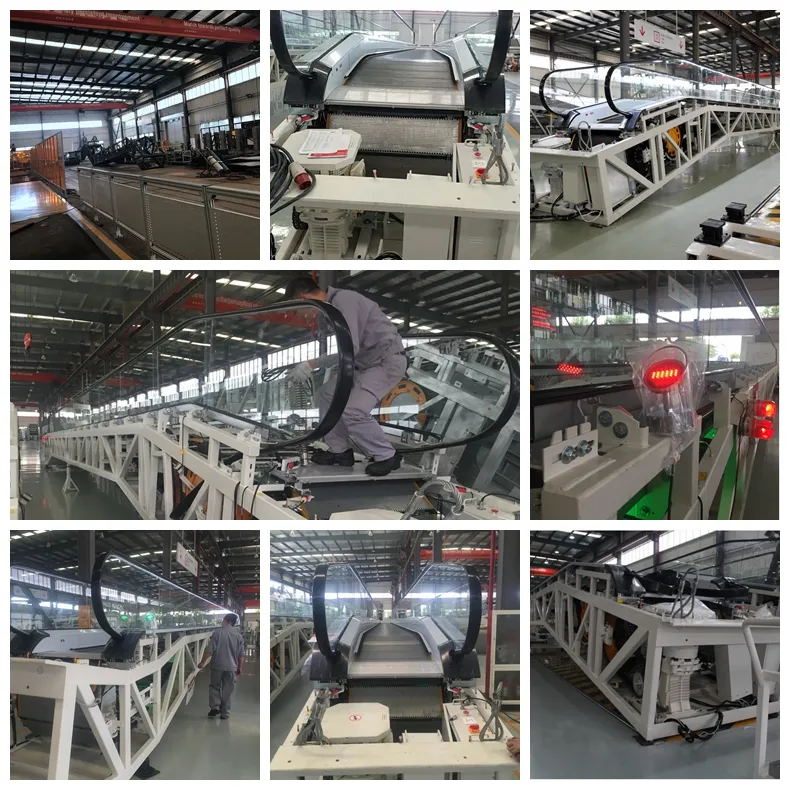

Production and Assembling

Strict Quality Control System:

QC1: Raw material inspection before warehousing.
QC2: Commissioning check during the production stage.
QC3: Matching test for motor, control cabinet, and running condition.
QC4: Final package condition check with photographic reference.
QC5: Container loading verification to prevent missing parts.

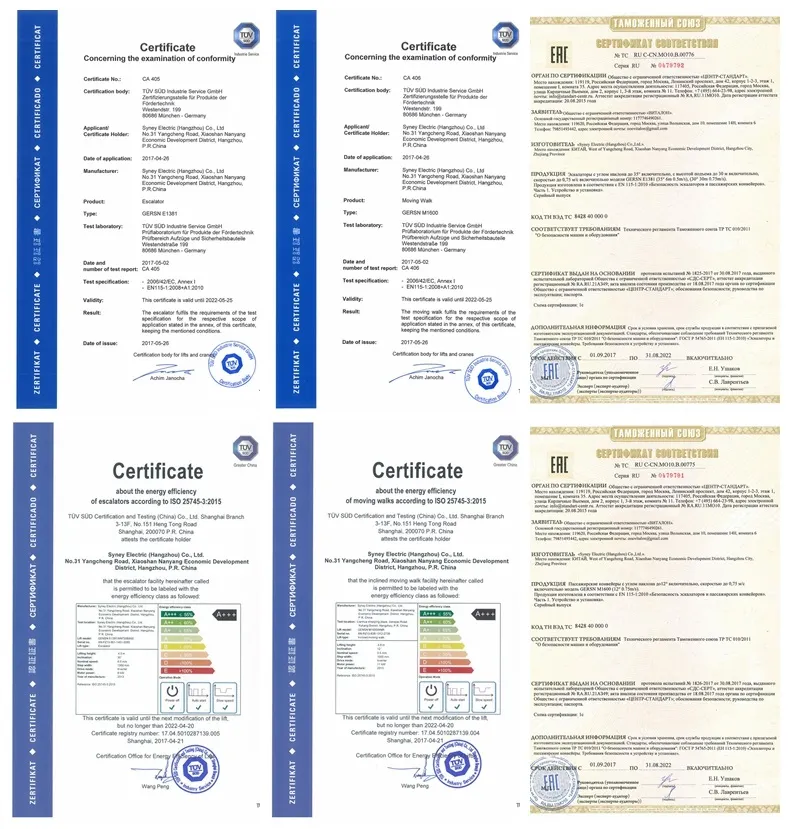

Certificates

• CE Certificate of escalator and moving walk
• CE Certificate of energy-efficiency: A+++
• EAC Certificate for international standards

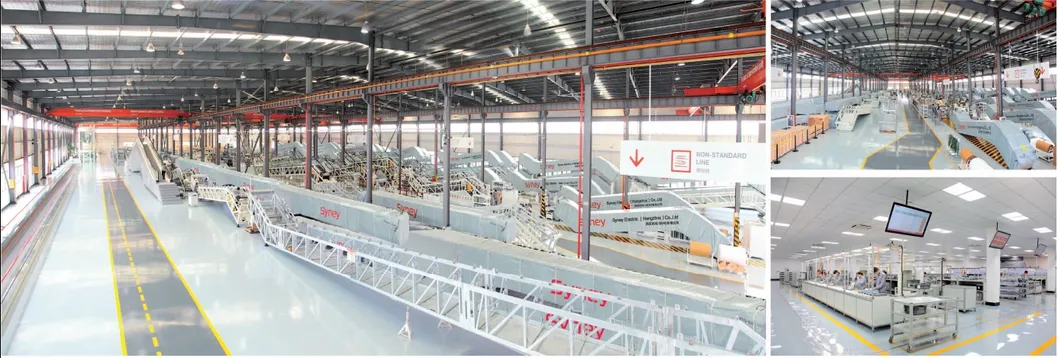

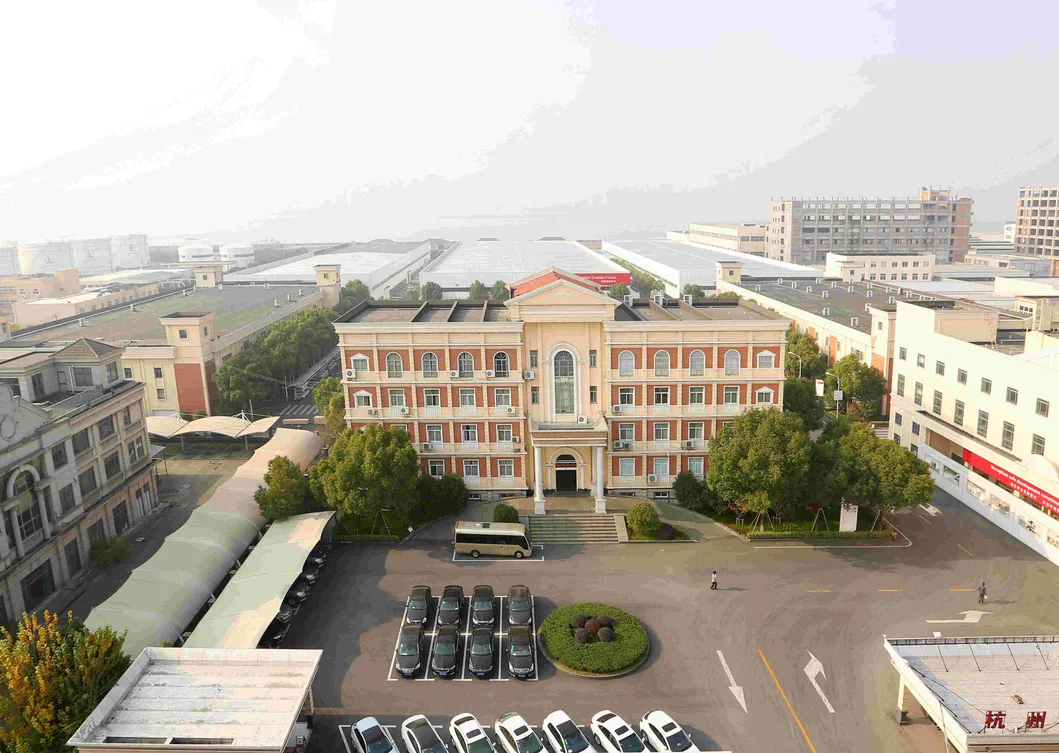

Manufacturing Process

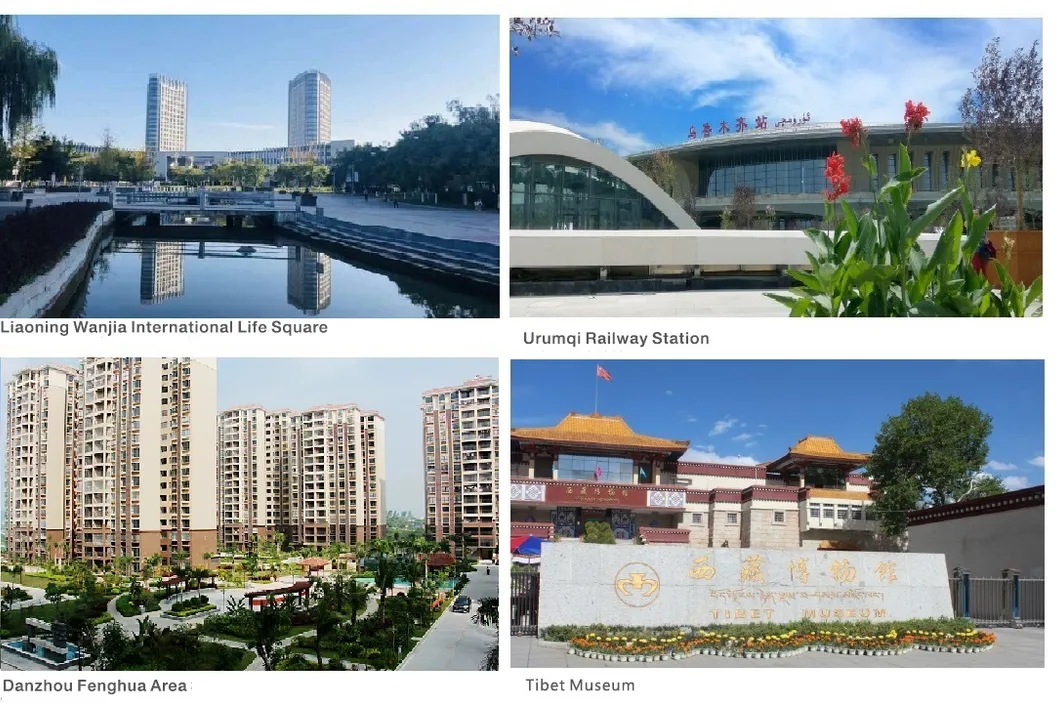

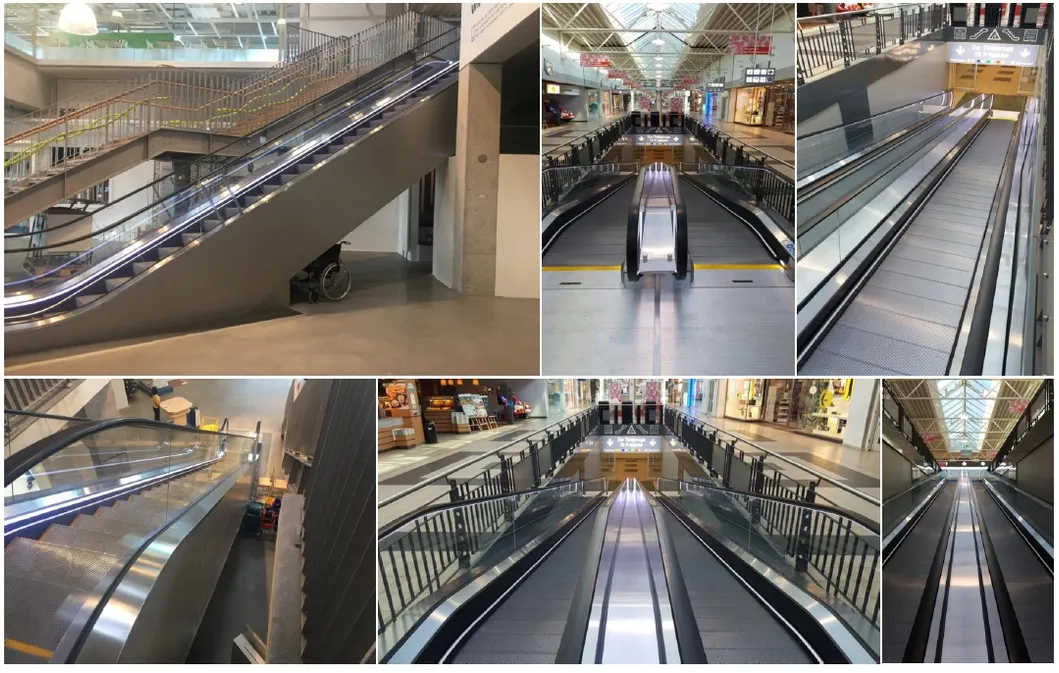

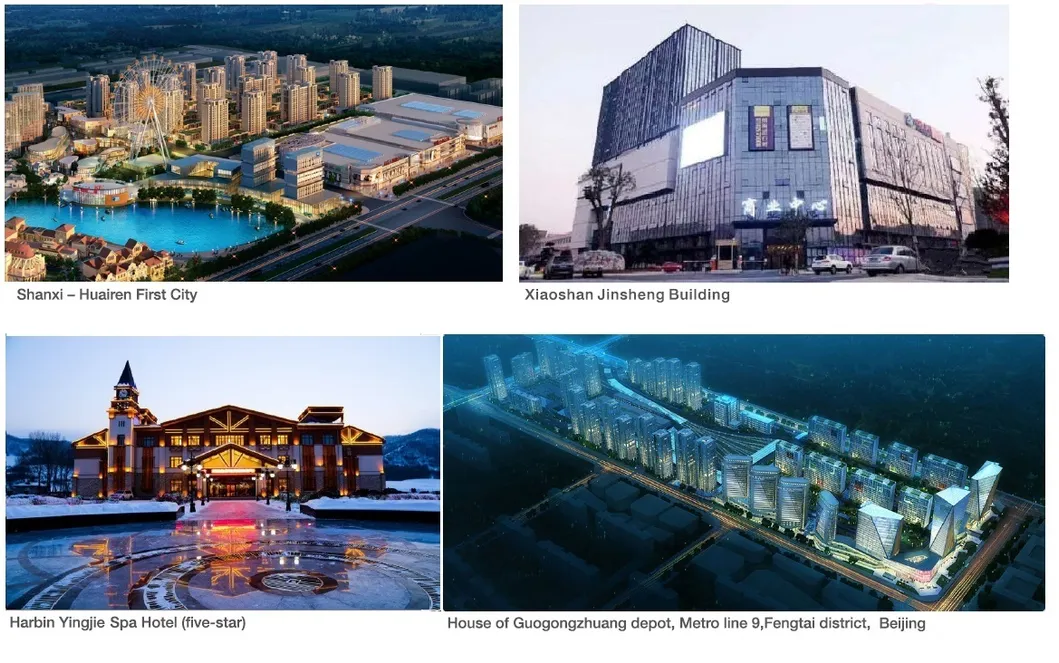

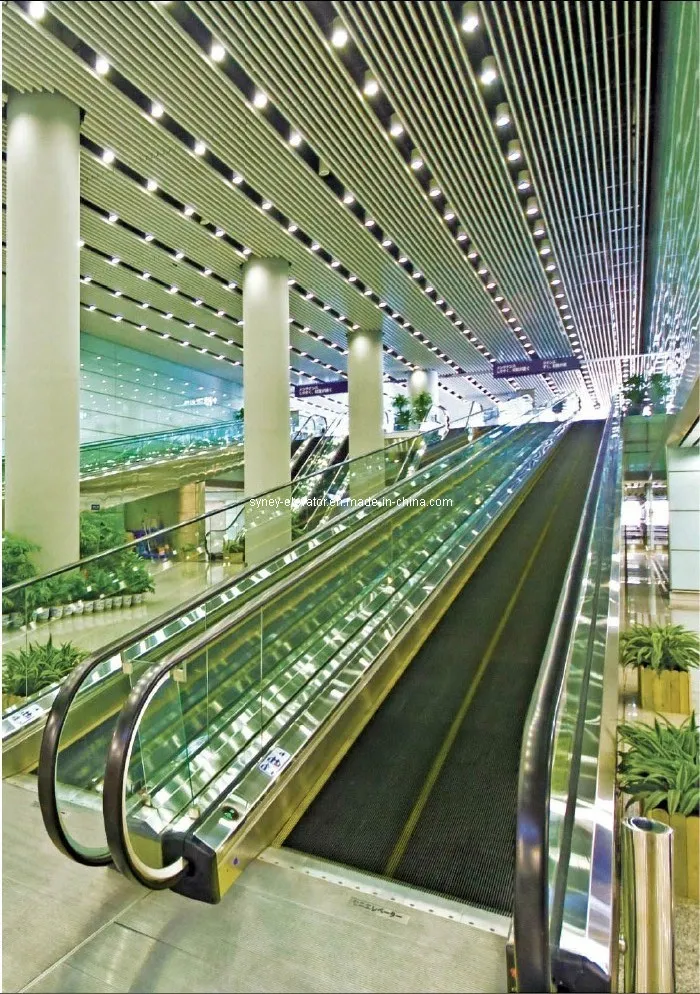

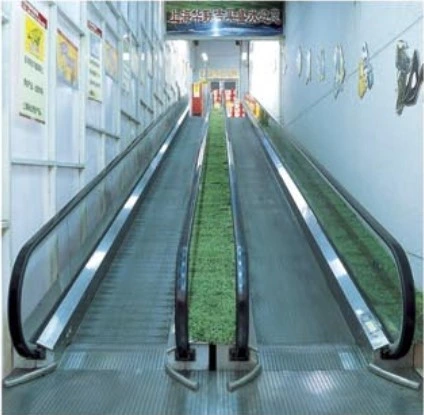

Project Gallery

Frequently Asked Questions

Q1: What is the maximum length (span) available for the moving walk? A1: Our moving walks can support a span length of up to 105,000mm, making them suitable for large-scale facilities like airports and malls.

Q2: What are the standard step width options? A2: We offer four standard widths: 800mm, 1000mm, 1200mm, and 1400mm to accommodate different passenger traffic volumes.

Q3: How long is the warranty period for this equipment? A3: The product comes with a comprehensive warranty of 18 months starting from the date of delivery.

Q4: Does the moving walk include energy-saving features? A4: Yes, it is equipped with VVVF technology and an auto start-stop function, achieving an A+++ energy-efficiency grade.

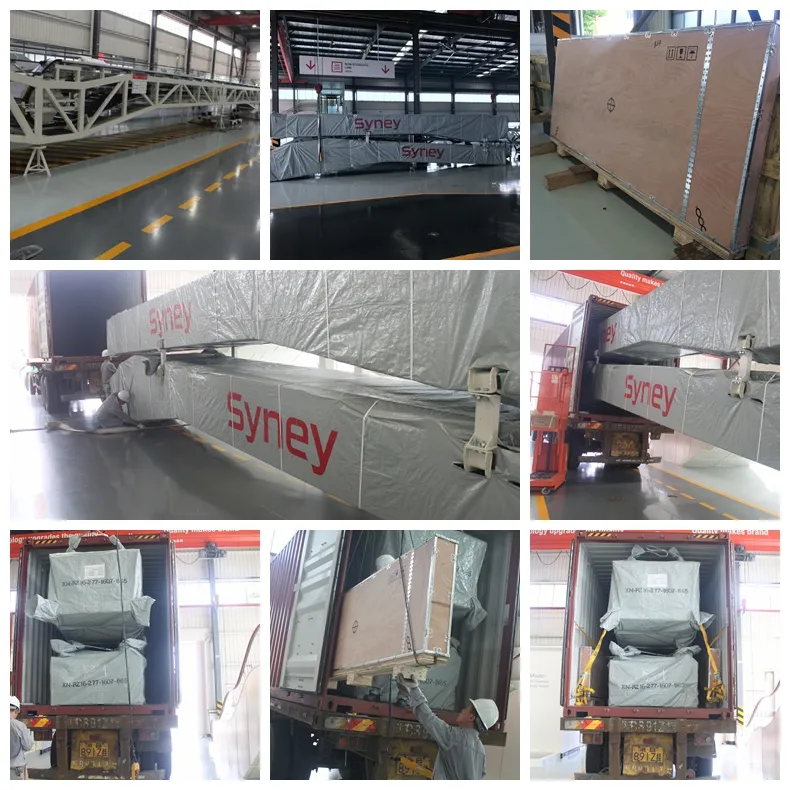

Q5: How is the equipment protected during international shipping? A5: All parts are packed in solid plywood boxes. Critical components like control cabinets and motors are wrapped in protective film with desiccant to prevent moisture damage.

Q6: What safety certifications does the product hold? A6: Our products are fully certified with CE (European Conformity) for escalators and moving walks, as well as EAC certifications.
