Basic Specifications
◈
Model:
Dumbwaiter Elevator
◈
Rated Speed:
1.0 - 2.0m/s
◈
Load Capacity:
100kg - 500kg
◈
Control Mode:
Collective Selective Control
◈
Material:
Stainless Steel
◈
Drive Type:
AC (Geared/Gearless)
◈
Computer Room:
Machine Roomless (MRL)
◈
Certification:
ISO9001, ISO14001, OHSAS18001
Product Description

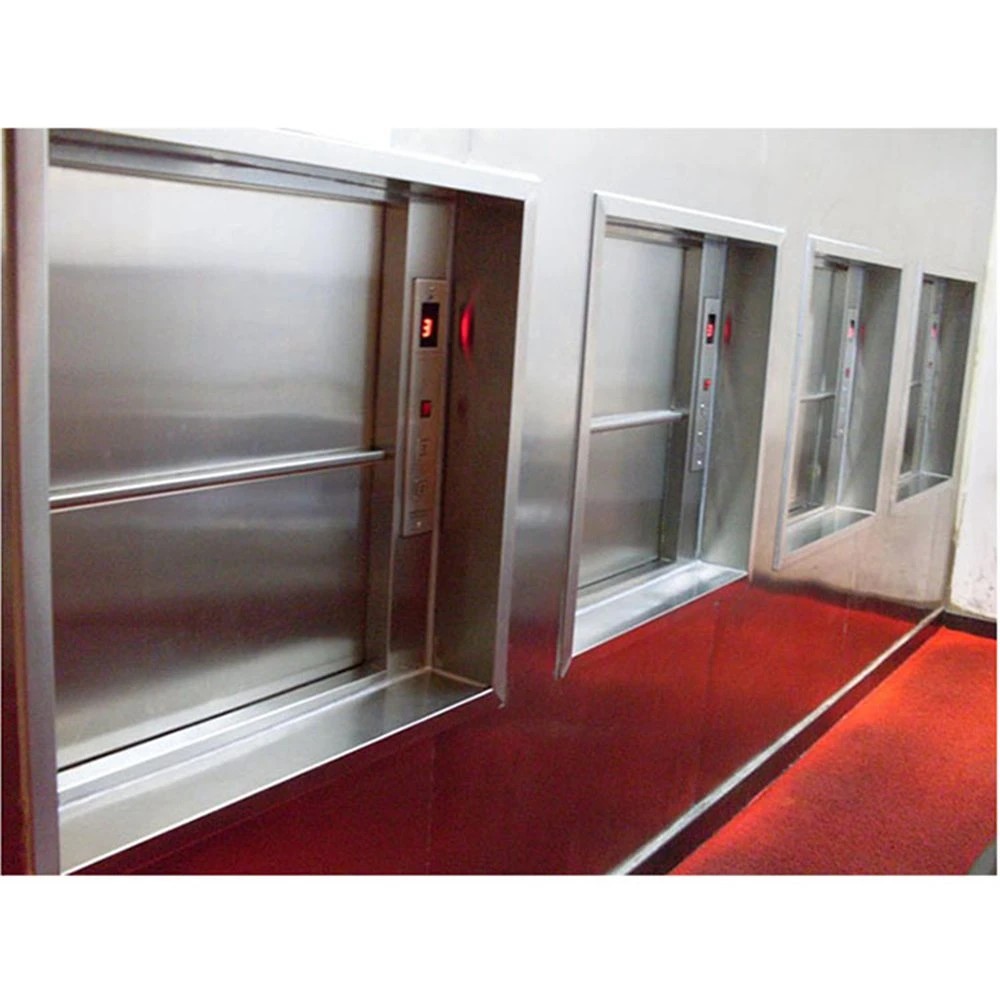

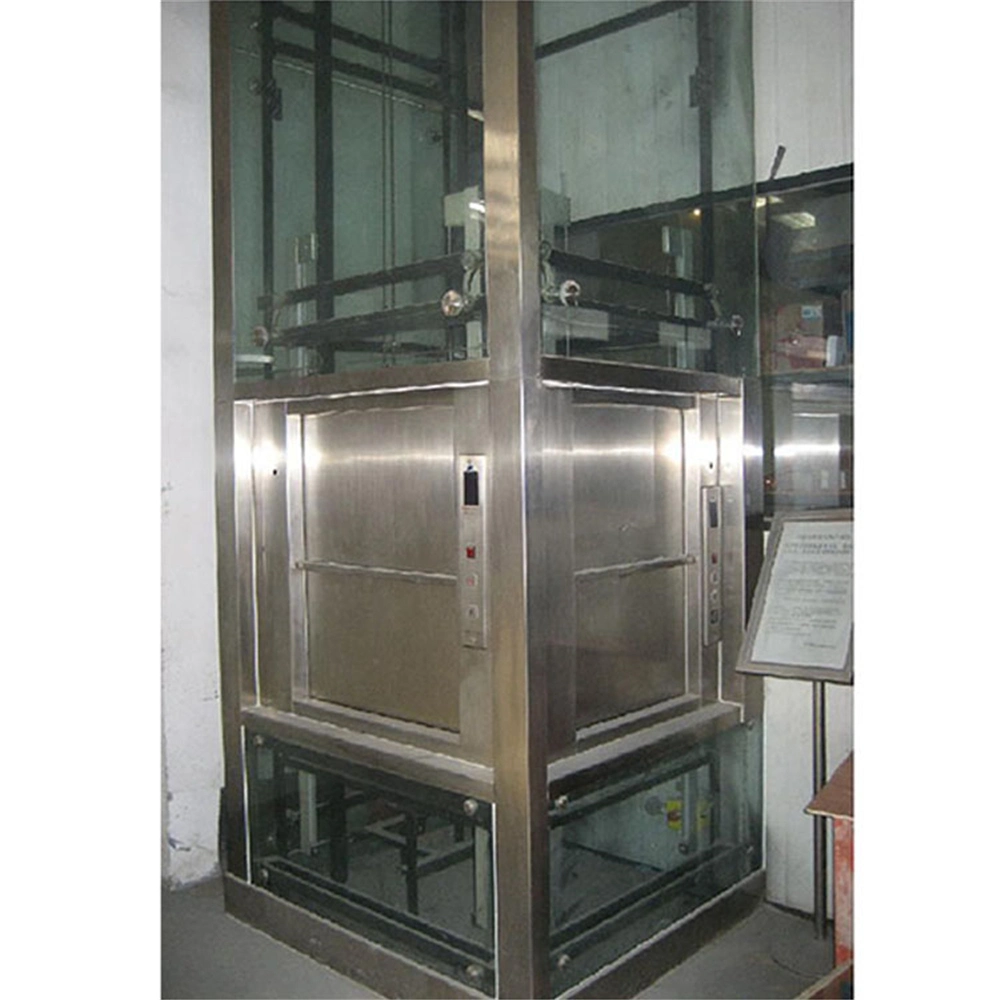

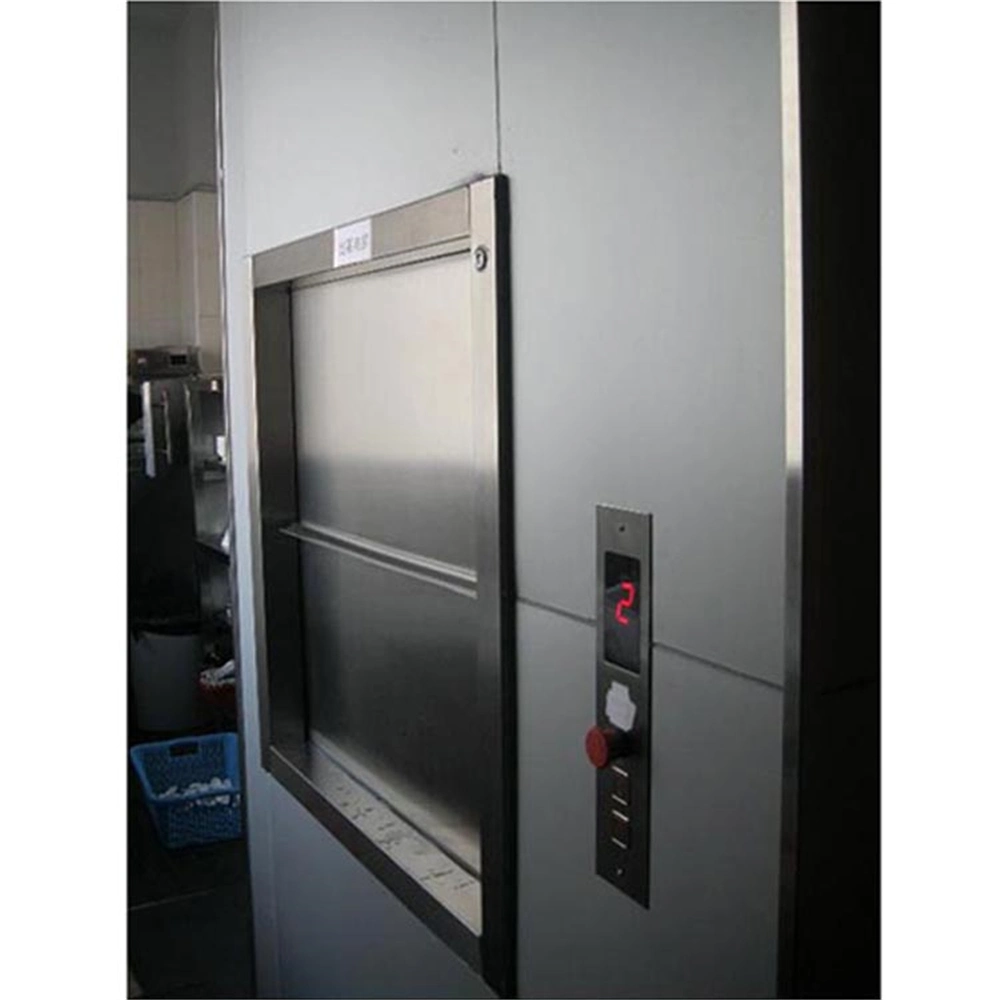

Superior Durable Kitchen Dumbwaiter Food Lift Elevator
| Load(KGS) |
Type |
Cabin Size (WxDxH) |
Shaft Size (WxD) |
Overhead Height |
Pit Depth |
Motor Power(KW) |
| 100 |
Window Type |
750x750x900 |
1250x900 |
>=3600 |
- |
1.1 |
| 100 |
Trolley Type |
750x750x900 |
1250x900 |
>=3600 |
600 |
1.1 |
| 200 |
Window Type |
900x900x1000 |
1400x1100 |
>=3600 |
- |
1.5 |
| 200 |
Trolley Type |
900x900x1000 |
1400x1100 |
>=3600 |
800 |
1.5 |
| 250 |
Window Type |
950x950x1000 |
1450x1150 |
>=3600 |
- |
2.2 |
| 300 |
Trolley Type |
1000x1000x1100 |
1500x1200 |
>=3600 |
1200 |
3.0 |
| 500 |
Trolley Type |
1100x1100x1200 |
1600x1300 |
>=3600 |
1200 |
4.0 |

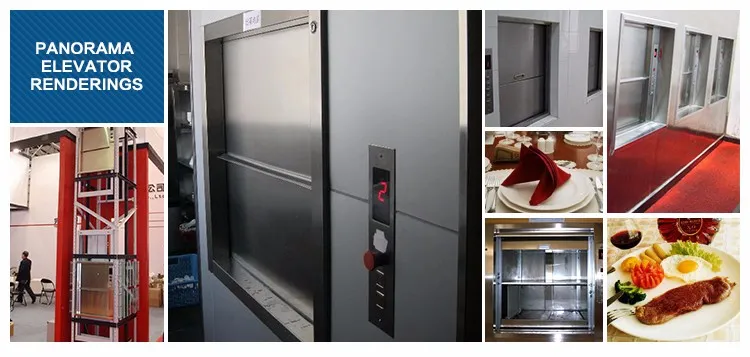

Visual Presentation
Frequently Asked Questions
What is the typical load capacity for these dumbwaiters?
Our standard dumbwaiter models support a load capacity ranging from 100kg to 500kg, making them ideal for restaurants, kitchens, and hospitals.
What types of dumbwaiter designs are available?

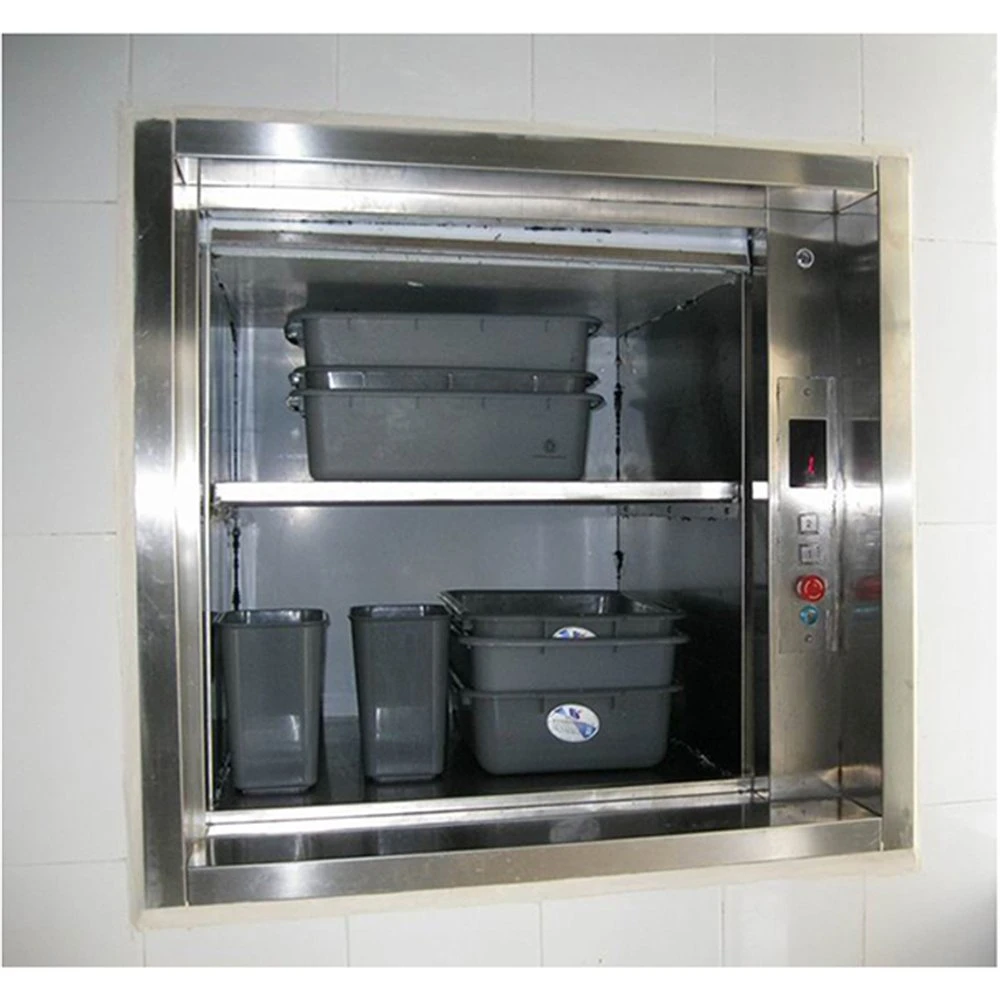

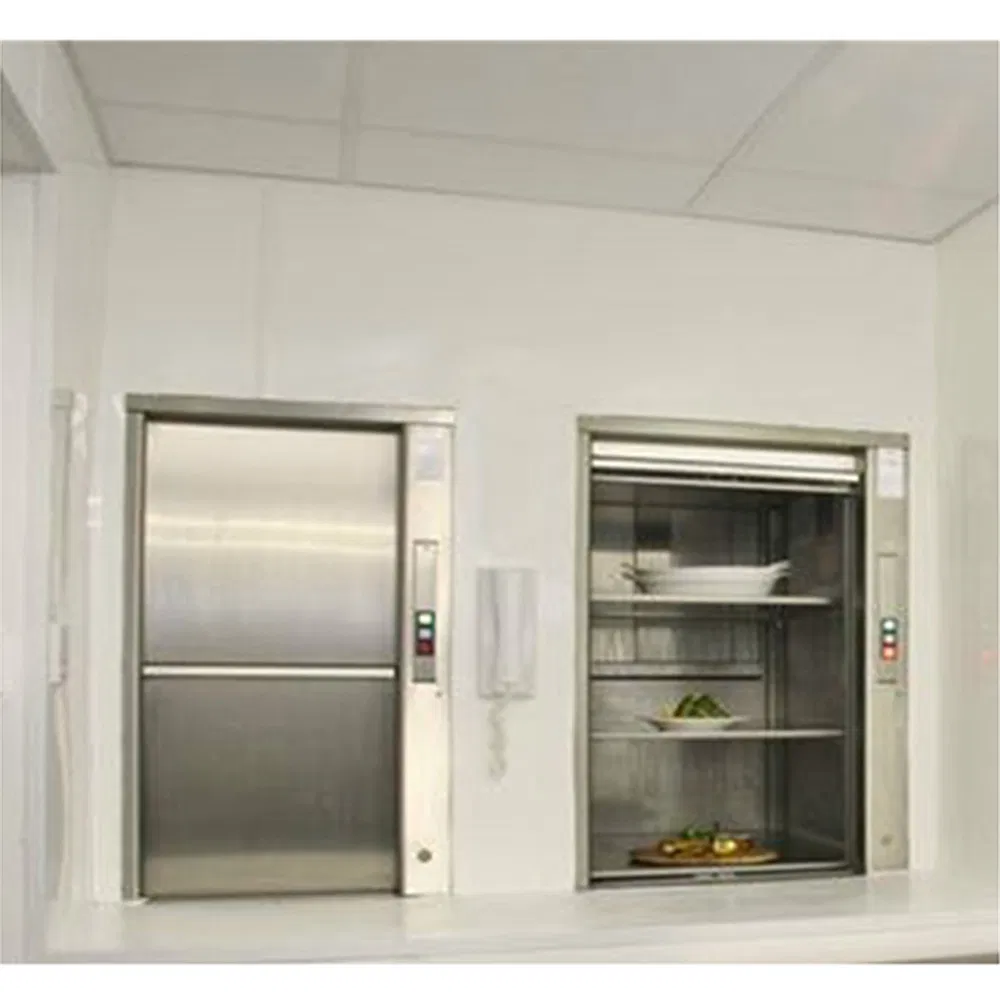

We offer two main configurations: Window Type (waist-high access for plates/small items) and Trolley Type (floor-level access for carts and heavy loads).
How long is the warranty period for the elevator?
All our dumbwaiter systems come with a standard one-year warranty period ensuring reliable performance and peace of mind.
What material is used for the cabin and doors?
The elevator is constructed using high-quality Stainless Steel, ensuring durability, hygiene, and easy cleaning for food-service environments.
How is the installation and maintenance handled?
We provide a comprehensive installation and maintenance manual with every unit. We recommend hiring a professional local elevator company for onsite installation and regular servicing.
What are the shipping and packaging standards?
The equipment is packed in standard export wooden cases to ensure maximum protection during transit. We support various shipping terms including FOB, CIF, and CFR.
