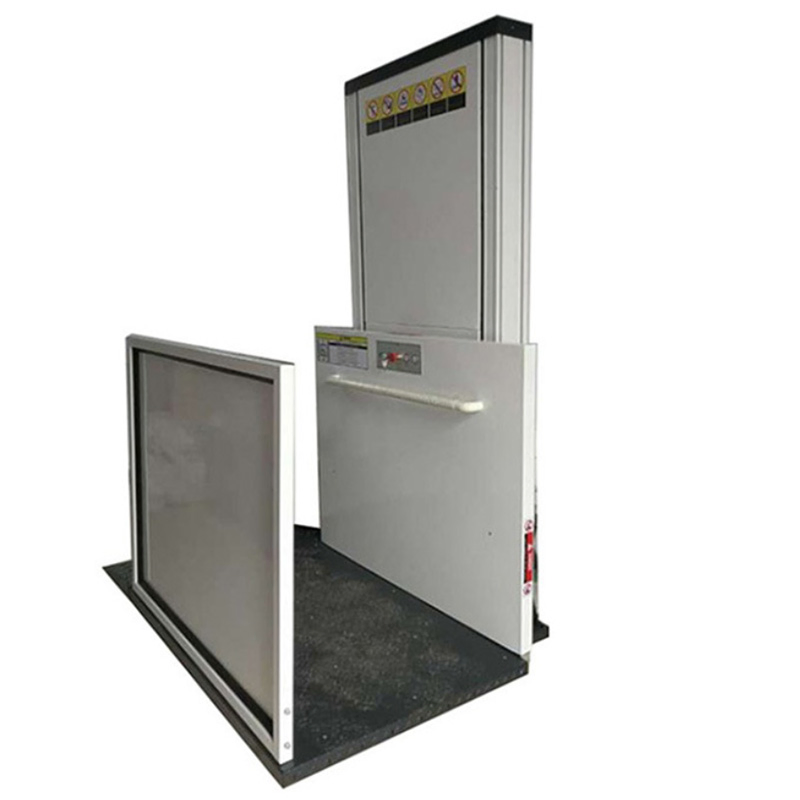

Stairlift 2 Floor Stair Wheelchair Transfer Lifts Disabled Elevator Small Home Elevators

Customization: Available
After-sales Service: Online
Warranty: 1 Year

Product Description

📋

Basic Information

Model NO.WL0.35-1
Lift MechanismLift Chain
Driven TypeHydraulic
CapacityLight Level (300kg)
FeatureExplosion-Proof, Insulating
CertificationCE, RoHS, ISO 9001
OriginChina
ApplicationWorkshop, Shipboard, Warehouse, Building, Home
⚙️

Technical Parameters

PowerWorldwide voltage customization available
Lifting Height1500mm (Standard); Customizable up to 9m
Platform Size1430mm(L) x 1000mm(W)
Lifting Speed40mm/s
Load Capacity300kg
In/Out Direction90° or 180°
Motor Power1.5KW 220V/AC or 110V/AC
Operating Temp-20°C to 60°C
InstallationNo foundation pit needed; fixed to concrete
Safety FeaturesEmergency stop, Aluminum safety bar (stops on obstacles)
🖼️

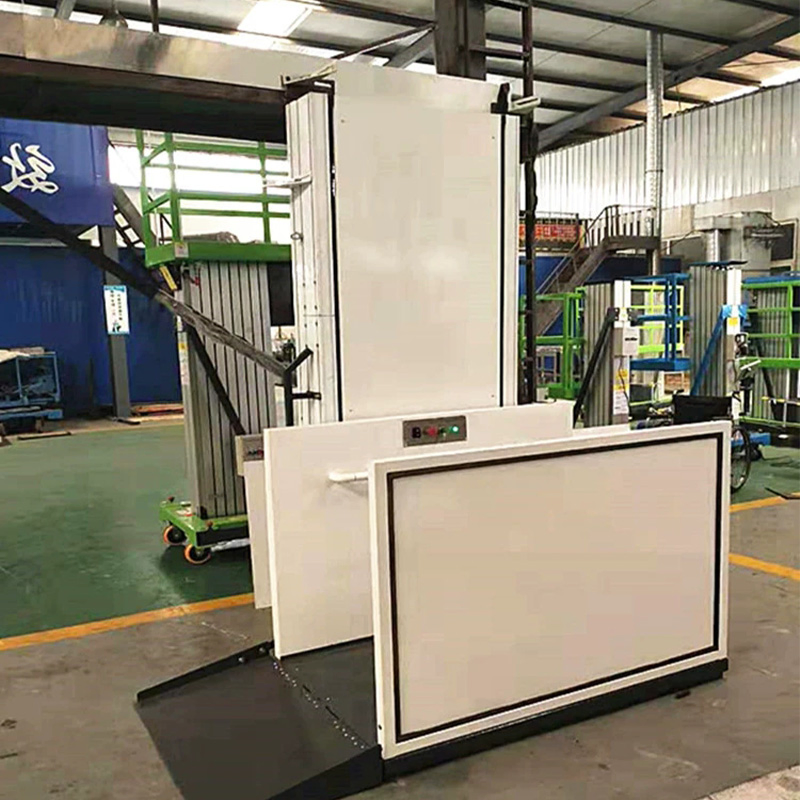

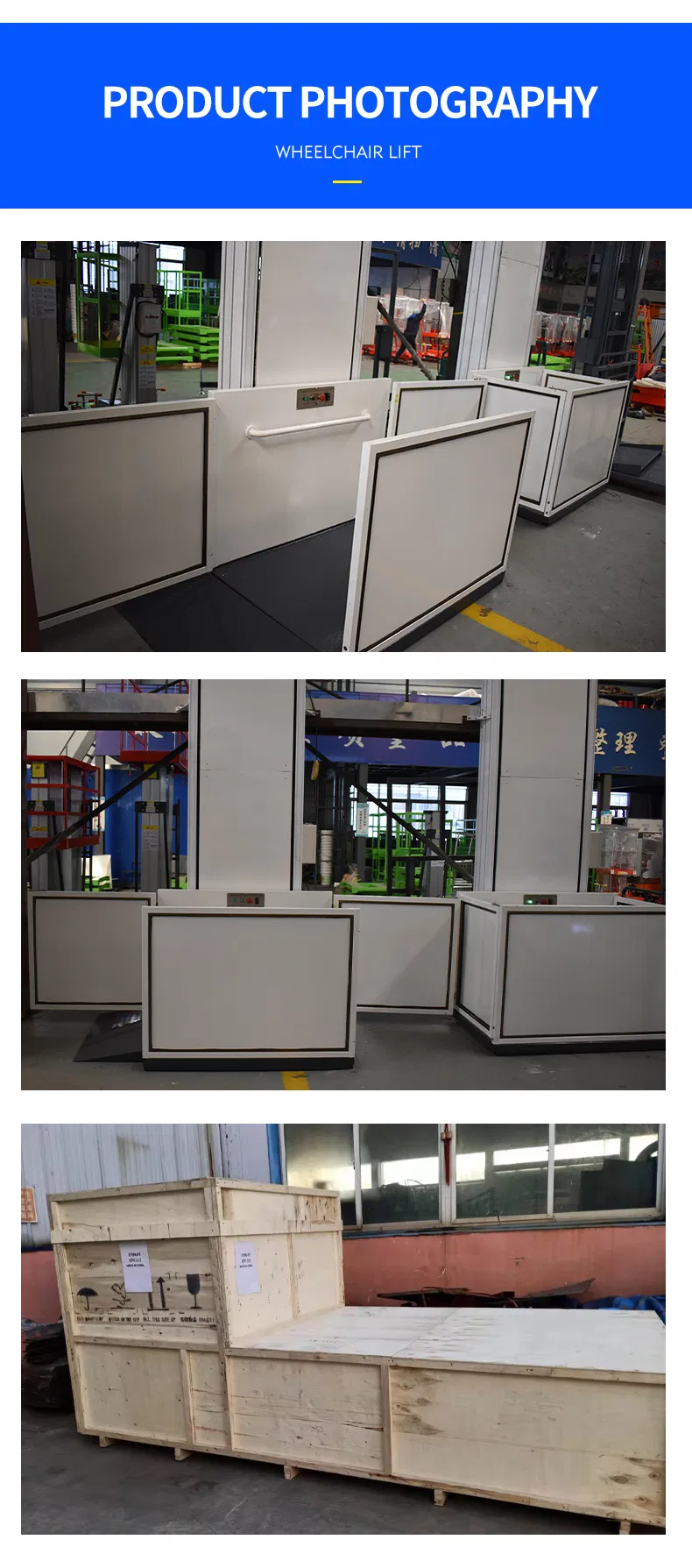

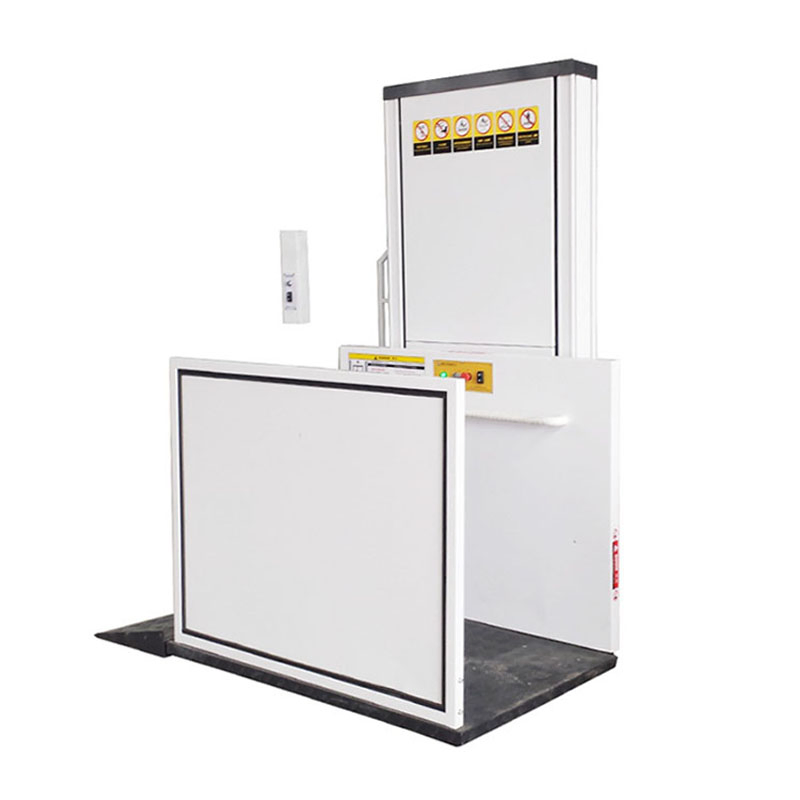

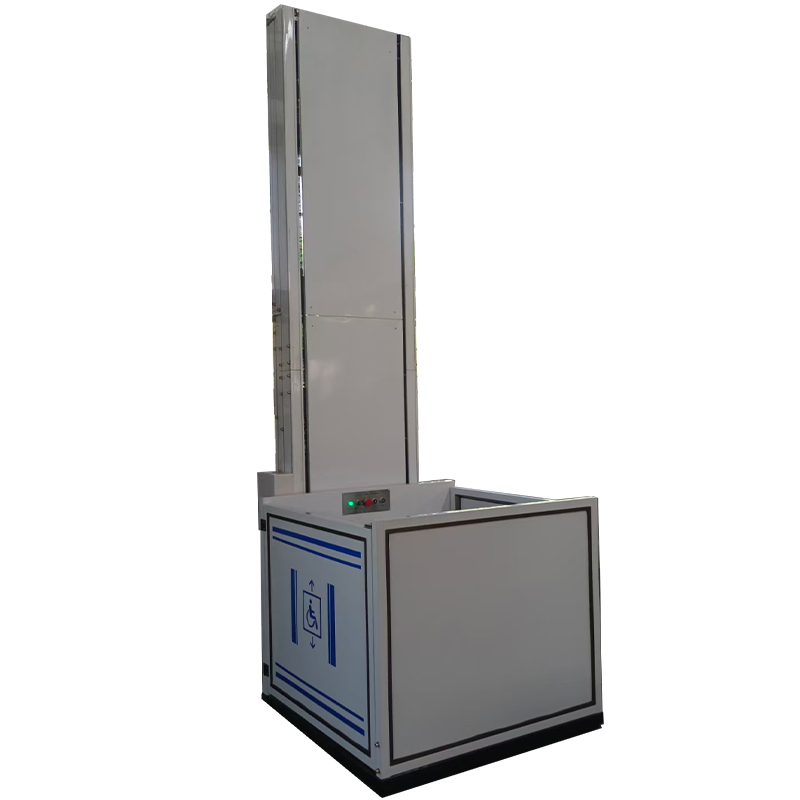

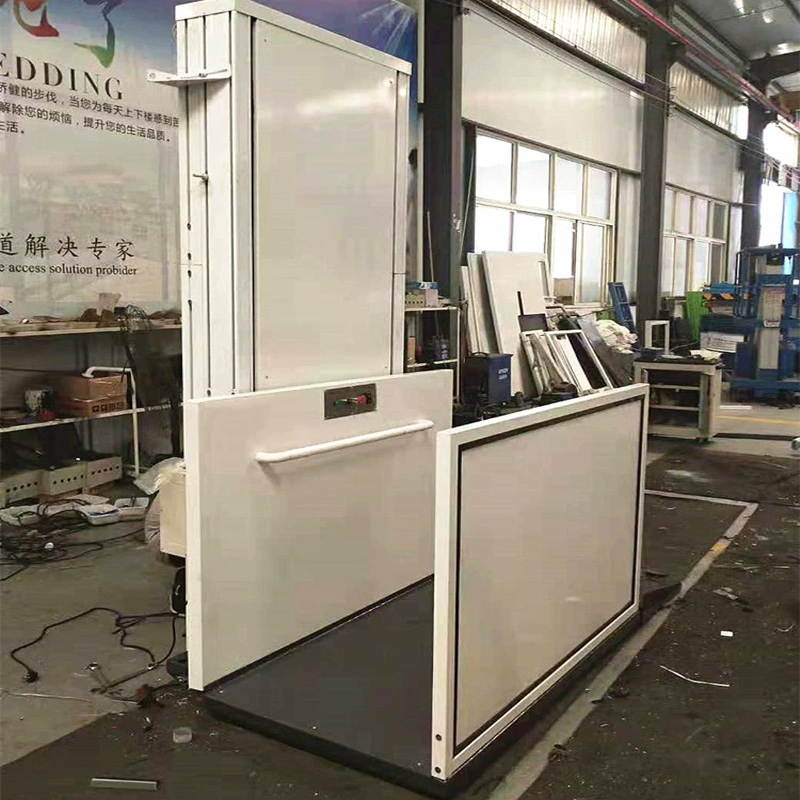

Product Showcase

💰

Cost & Pricing Factors

The cost of a wheelchair lift varies based on type, capacity, and customization. Below is a general guide:

Vertical Platform Lifts (VPLs)

  • Residential Use: $2,000 to $10,000.
  • Commercial Use: $10,000 to $20,000+.

Factors Influencing Price

  • Height: Greater lifting heights require more robust structures.
  • Installation: Costs typically range from $500 to $1,000 depending on structural needs.
  • Customization: Features like weatherproofing, remote controls, and battery backups.
  • Capacity: Heavy-duty models for multiple users or power wheelchairs.

Frequently Asked Questions

What is the maximum height this lift can reach?
While the standard height is 1500mm, we can customize the design to reach a maximum height of up to 9 meters.
Can the power supply be adapted for different countries?
Yes, we accept worldwide voltage customization (e.g., 110V, 220V, 380V) to meet your specific regional requirements.
Is a foundation pit required for installation?
No foundation pit is required. The lift can be fixed directly to a flat concrete ground for easy installation.
What safety features are included?
The lift includes an emergency stop button and an aluminum alloy safety bar that stops the platform immediately if it encounters an obstacle while lowering.
Can this lift be used outdoors?
Yes, the system is designed to operate in both indoor and outdoor environments with a working temperature range of -20°C to 60°C.
What is the load capacity of the standard model?
The standard load capacity is 300kg, which is suitable for a user in a manual or power wheelchair.
