Long Service Time 1m/S Stainless Steel Kitchen Dumbwaiter Food Elevator

1 / 5

Long Service Time 1m/S Stainless Steel Kitchen Dumbwaiter Food Elevator

Customization:	Available
Driving Type:	AC Elevator
Capacity:	500-1000kg

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

Dumbwaiter

Speed

1.00 - 2.00m/s

Control Mode

Collective Selective Control

Material

Stainless Steel

Load Capacity

100-500kgs

Drive Type

Door Type

Center Opening Door

Certification

ISO9001, ISO14001, OHSAS18001

Traction Machine

Geared/Gearless

Warranty

One Year

🚀

Product Description

Long Service Time 1m/s Stainless Steel Kitchen Dumbwaiter Food Elevator

Load (KGS)	Type	Cabin Size (WxDxH)	Shaft Size (WxD)	Overhead	Pit Depth	Entrance Size	Power (KW)
100	Window Type	750x750x900	1250x900	≥3600	-	750x1000	1.1
100	Trolley Type	750x750x900	1250x900	≥3600	600	750x1000	1.1
200	Window Type	900x900x1000	1400x1100	≥3600	-	900x1100	1.5
250	Trolley Type	950x950x1000	1450x1150	≥3600	800	950x1100	2.2
500	Trolley Type	1100x1100x1200	1600x1300	≥3600	1200	1100x1300	4

🖼️

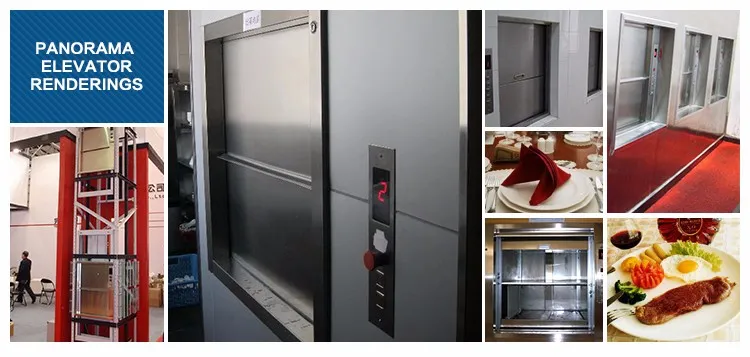

Visual Display

❓

Frequently Asked Questions

1. How can I get a quotation for the dumbwaiter elevator?

Please send us an inquiry with your detailed requirements. We will provide a formal quote within 24 hours. Providing details about your specific project needs helps us give a more accurate estimate.

2. What are the standard payment terms?

We typically accept T/T (Telegraphic Transfer) or L/C (Letter of Credit) at sight.

3. How is the installation and maintenance handled?

We provide a comprehensive installation and maintenance manual with every elevator. We recommend hiring a professional local elevator company for installation and ongoing service. Technical assistance is available via email or phone.

4. What are the available shipping and price terms?

We support FOB, CIF, and CFR price terms. We work with reliable forwarders to ensure smooth shipment and delivery to your location.

5. What is the difference between Window Type and Trolley Type?

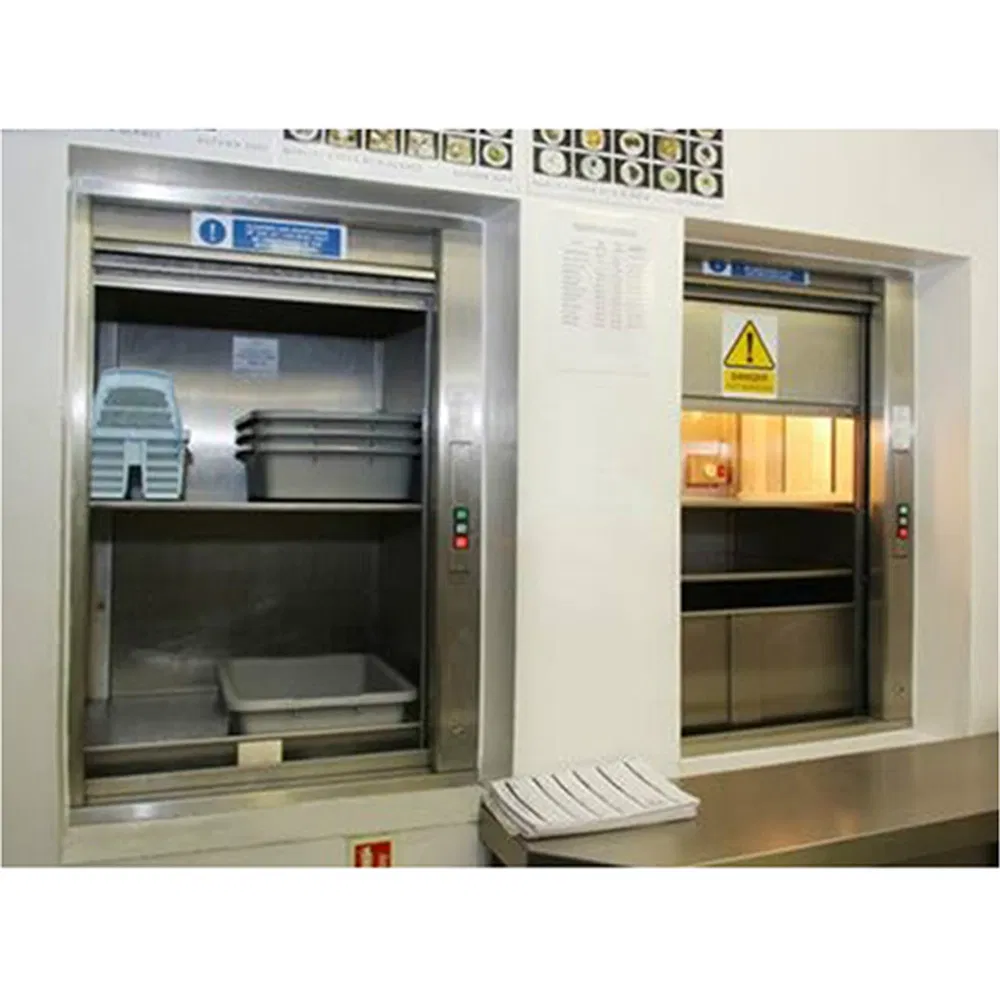

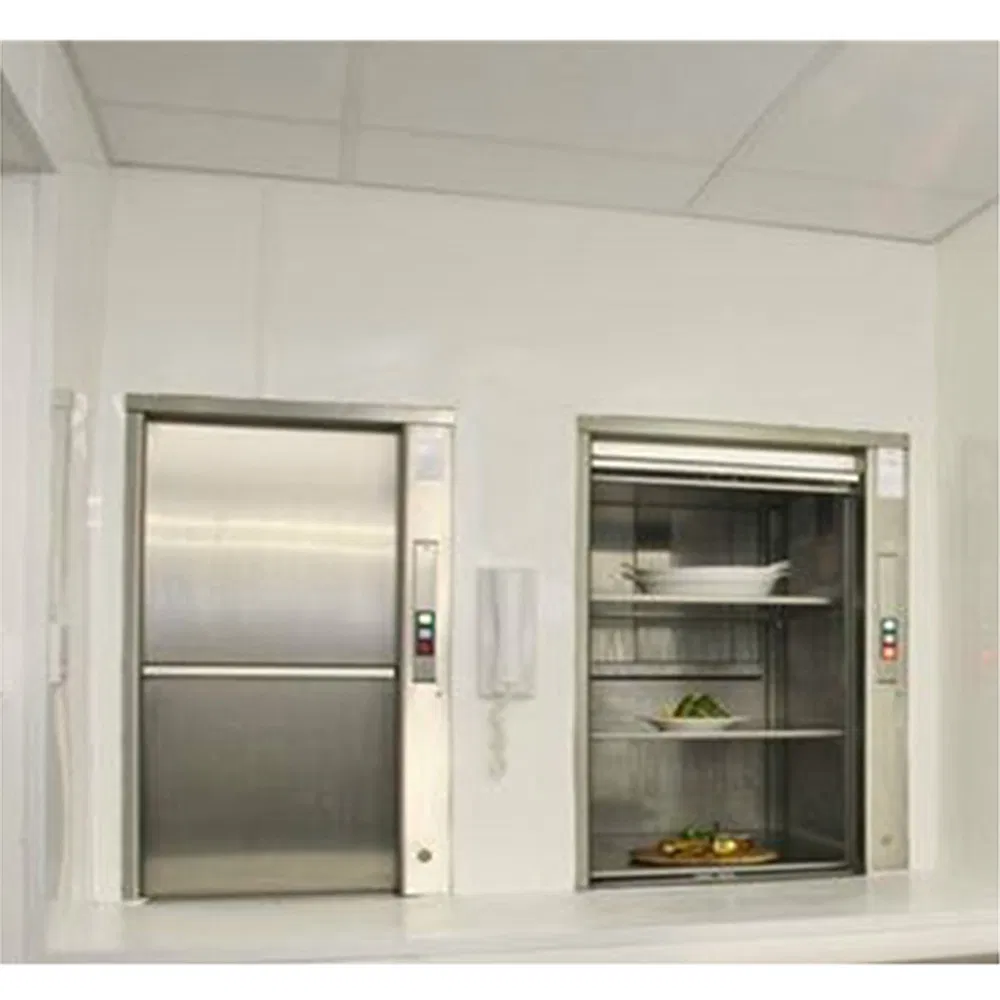

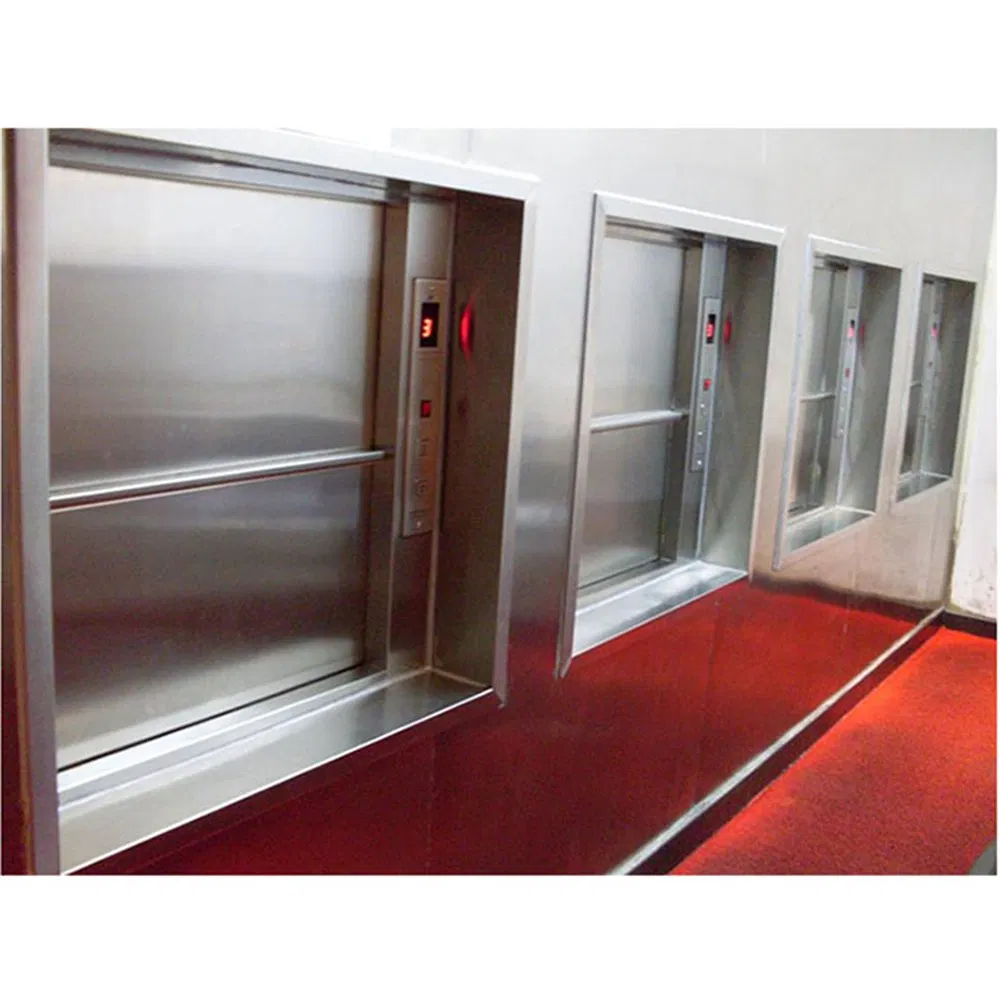

Window Type is usually installed at waist height for easy manual loading of small items like food plates. Trolley Type starts at floor level, allowing carts or trolleys to be rolled directly into the cabin.

6. What safety features are included?

Our dumbwaiters include standard safety features such as door interlocks, emergency stop buttons, and deceleration devices to ensure safe and reliable operation in kitchen and commercial environments.
