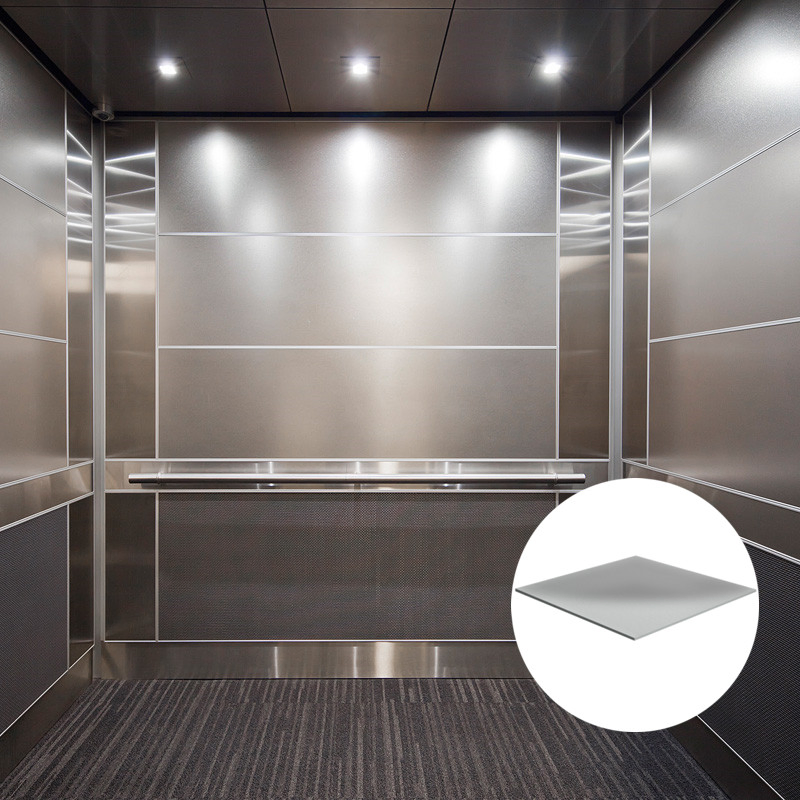

Sound Insulation Fasade Panel for Exterior Dual Metal Panels for Elevator Cladding and High-Speed Rail Wall Interior Decoration

i

Basic Specifications

Surface Finishing

Coating

Panel Thickness

3mm

Aluminum Thickness

0.2mm

Function

Fireproofing, Anti-static, Anti-Bacterial, Mould-proof

Usage

External Wall, Curtain Wall, Interior, Advertising

Certification

CE, ASTM, ISO, Green Leaf

Production Lines

10 Productions Lines

Aluminum Alloy

1100 3003 5005

Panel Density

5.5kg/M2

Lead Time

7-20 Day(S)

Origin

China

Capacity

45000sqm/Per Day

P

Product Description

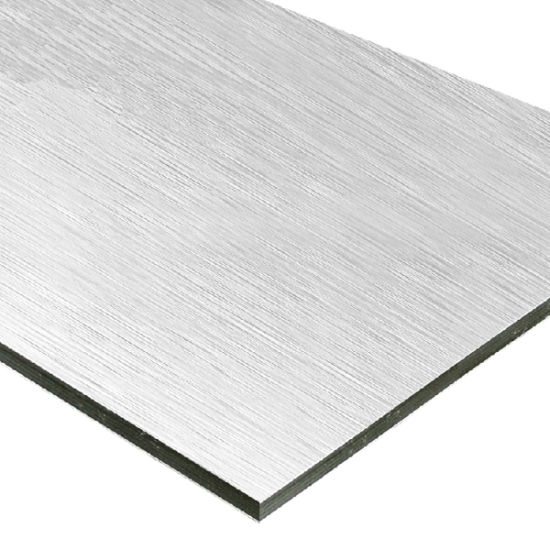

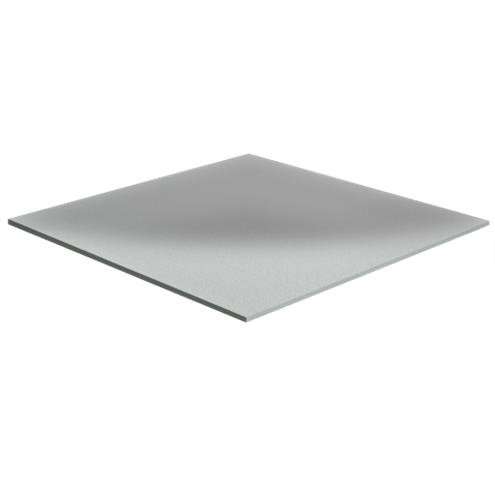

Production Dual Metal Aluminum Composite Decorative Panel

Parameter	Standard Specification
Width	1000mm, 1220mm, 1250mm, 1500mm, 1550mm, 1570mm
Length	2440mm, 3200mm, 4000mm, 5000mm, 6000mm, or customized
Thickness	2mm, 3mm, 4mm, 5mm, 6mm
ALU-layer Thickness	0.08mm to 0.5mm
Inner Core	Normal non-toxic PE core, one side/two side unbroken plastic, virgin LDPE, fireproof material
Color Options	Solid, Metallic, Brush, Mirror, Marble, Wooden, Glossy
Surface Coating	PE coating, PVDF coating, NANO, Brush surface, Mirror surface

M

Material & Dimensions

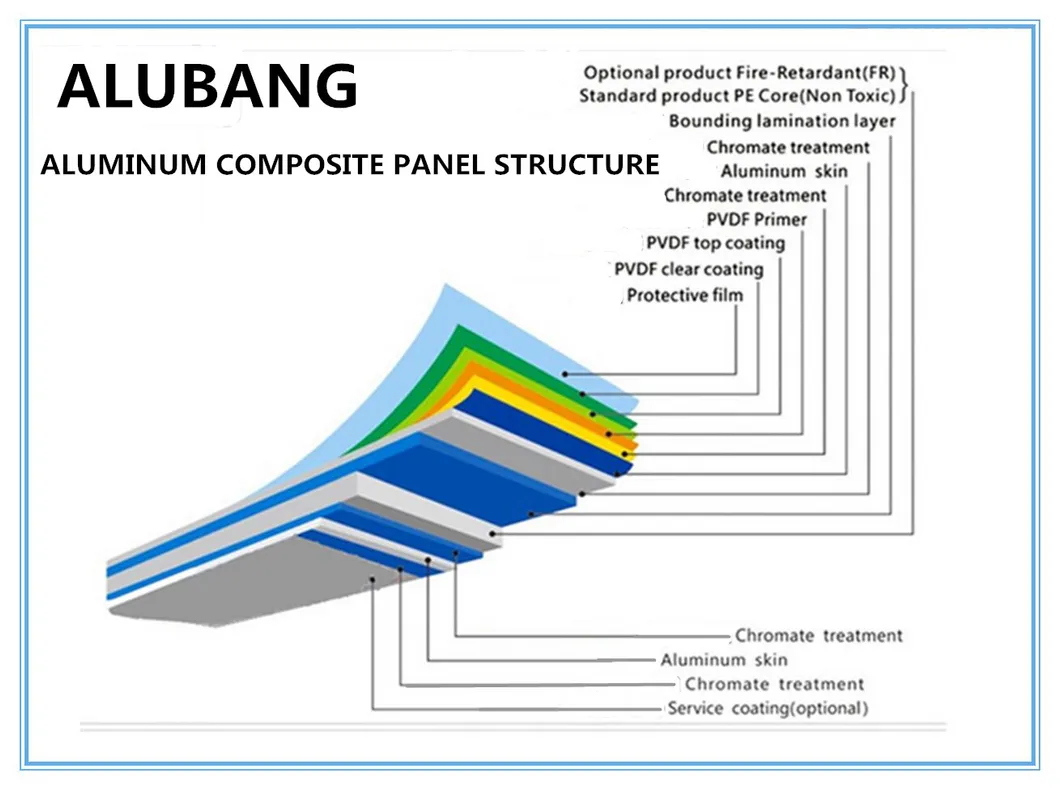

Material Composition:

Front: Aluminum alloy sheet coated with PVDF (fluoro-carbon resin) and Nano lacquer
Core: Nontoxic low density polyethylene
Back: Aluminum alloy sheet coated with polyester resin painting
Surface Coating Thickness: 32μ±1μ
Aluminium Alloy: 3003 H24

F

Key Features & Applications

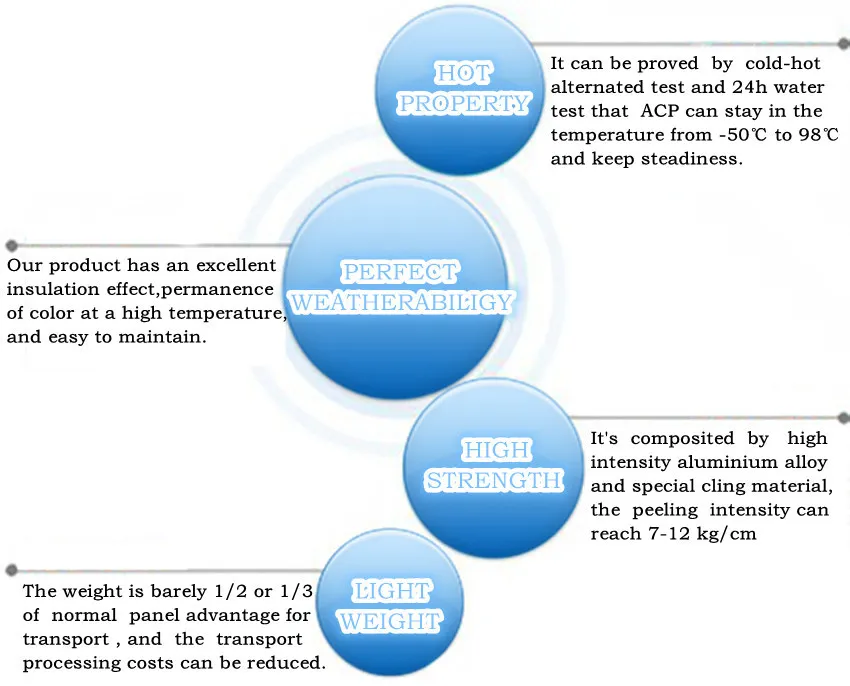

Features:

Light weight, flat surface and high strength
Excellent heat and sound insulation
Acid, alkali, and weatherproofness
Kynar 500 PVDF resin for strong chemical resistance

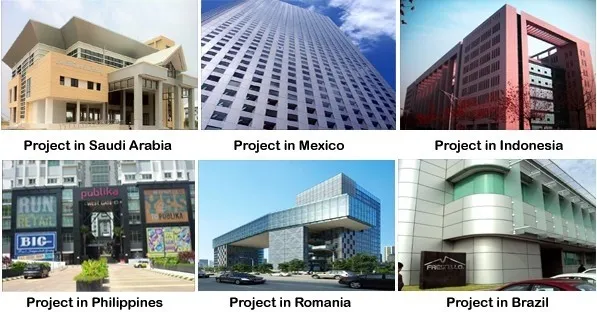

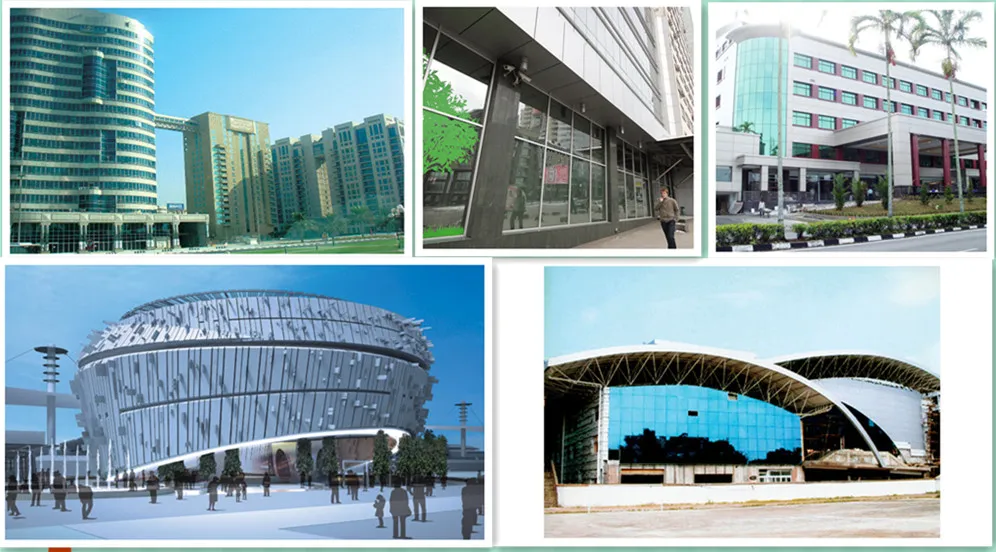

Applications:

Exhibitions, offices, banks, hotels, and apartments
Interior and exterior wall cladding
Kitchen cabinets, billboards, and signboards
Subways, tunnels, and vehicle bodies

T

Physical Properties

Property	Test Result
Panel Density	5.5kg/m2
Peel Strength	Average 7.0 N/mm
Tensile Strength	52.5 Mpa / 130 Mpa (Aluminum)
Flexural Strength	100.0 Mpa
Temperature Resistance	-50°C to +90°C
Impact Strength	50kg/cm2, no change
Acid/Alkali Resistance	24 hrs immersion, no change

L

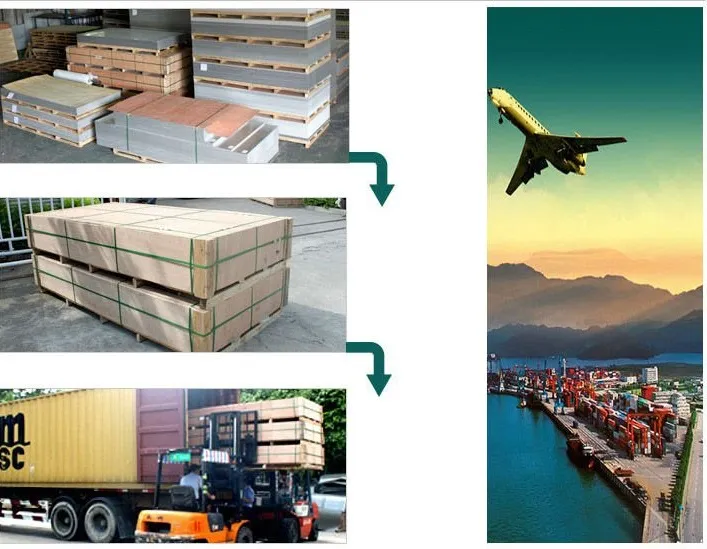

Packing & Loading

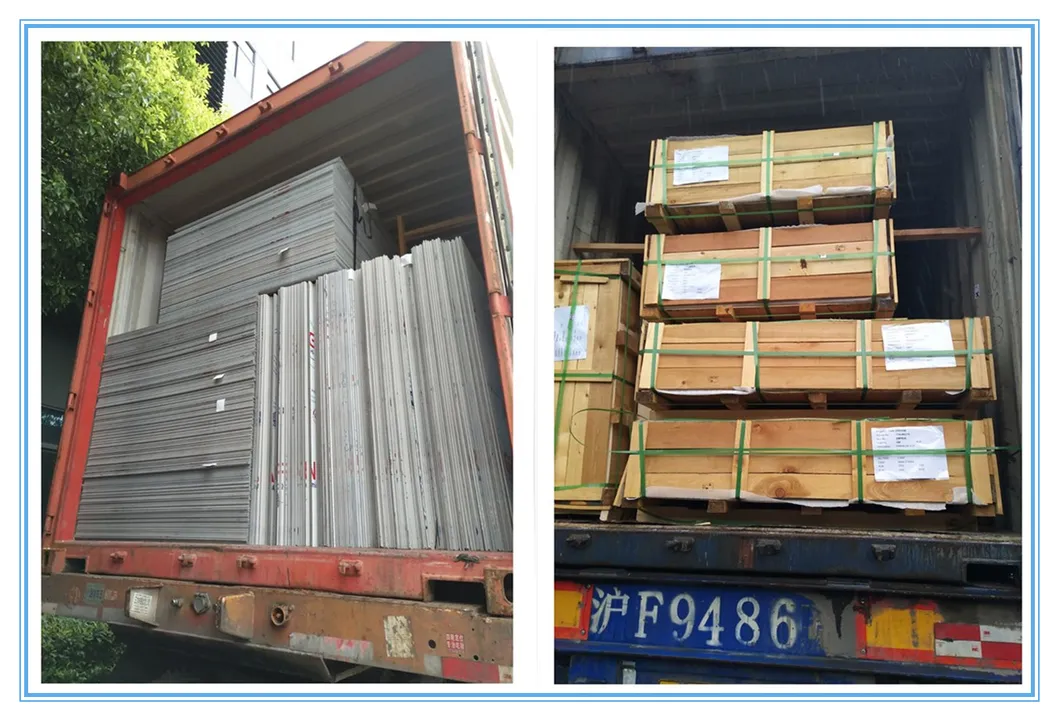

Panels are secured in wooden boxes. Reinforcements with timbers are used during container loading to ensure safety during transit.

S

After Sales Service

Quality Guarantee:

PVDF Coating: 20 years guarantee
PE Coating: 5~8 years guarantee
Claims: Please contact service within 60 days of receiving goods

?

Frequently Asked Questions

How soon can I get a price quote?

Once we know the panel thickness, aluminum thickness, dimensions, and paint requirement (PVDF or PE coating), we can provide a competitive quote within 24 hours.

Can I get a sample?

Yes, samples are free. However, you will need to provide a courier account number to cover shipping fees. Sending usually takes 3-5 days.

How can my order be produced under my brand?

We offer OEM production. If your order quantity reaches two containers, this service is free. For smaller quantities, an additional setup fee of USD 500 applies.

What is your delivery time?

Standard production takes approximately 2 weeks to finish all order requirements, excluding legal holidays.

Is there a minimum order requirement?

Due to high machine setup and shipping costs, the minimum order quantity is 600 SQMS. Ordering a 20"GP is recommended to reduce unit costs.

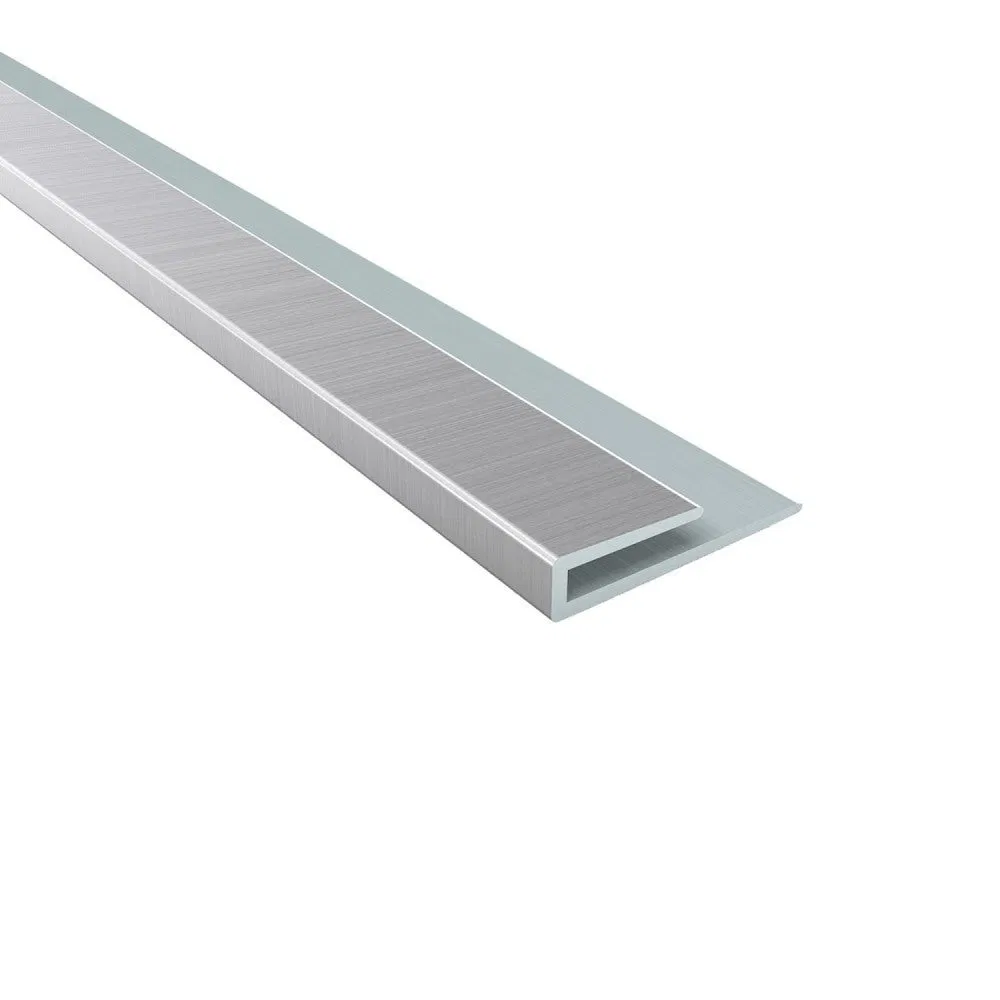

Do you sell related installation accessories?

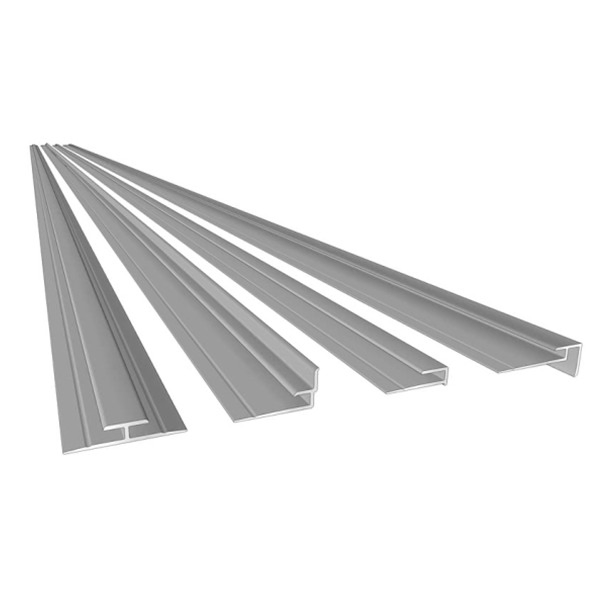

Yes, we provide aluminum profiles, screws, rivets, foam filler rods, paper tape, and silicone for panel installation at competitive prices.
