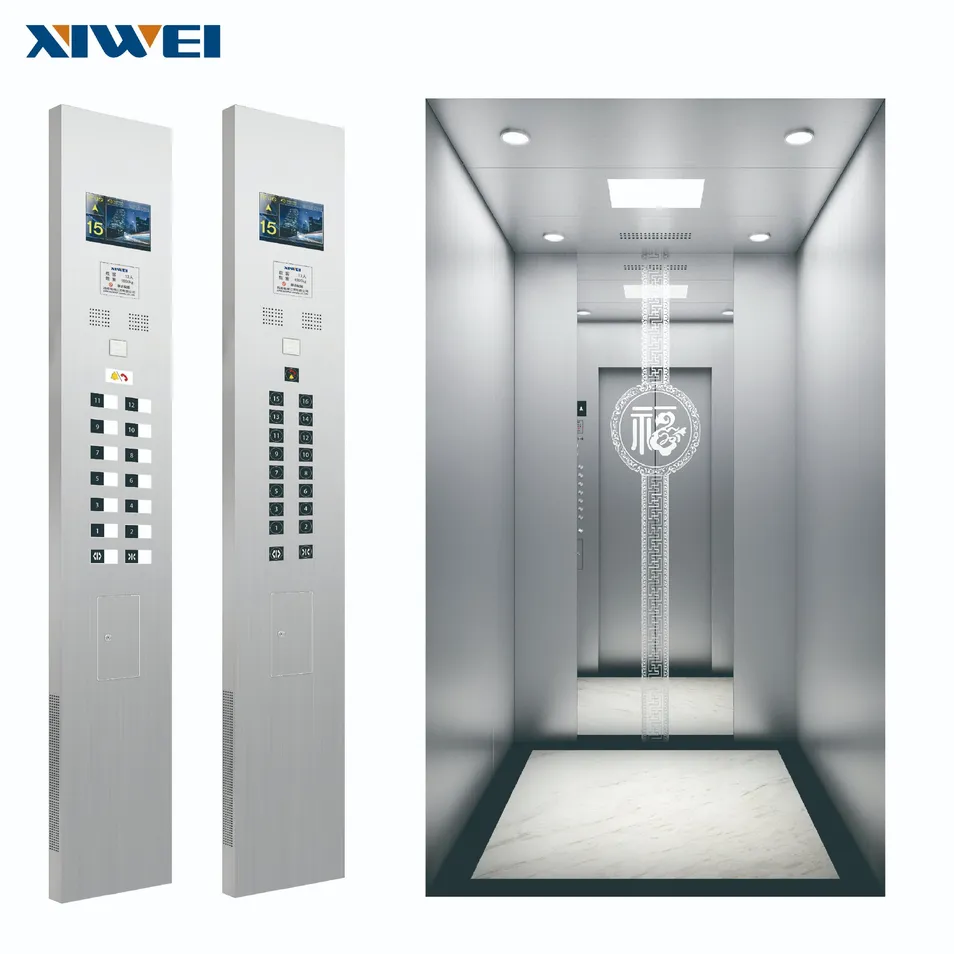

Applications: Combined with modern technology and fashion art, this passenger lift satisfies all needs of hotels, office buildings, shopping malls, etc., providing a safe and comfortable riding experience.
| Rated Load (kg) | Speed (m/s) | Car Size (CWxCD) | Door Size (DWxPH) | Hoistway (HWxHD) | Pit (PD) | Overhead (OH) |
|---|---|---|---|---|---|---|
| 450 | 1.0 - 1.75 | 1100x1150 | 700x2100 | 1850x1600 | 1500-1700 | 4700-4900 |
| 630 | 1.0 - 1.75 | 1200x1300 | 800x2100 | 2000x1750 | 1500-1700 | 4700-4900 |
| 800 | 1.0 - 2.5 | 1400x1400 | 800x2100 | 2100x1800 | 1500-2100 | 4700-5300 |
| 1000 | 1.0 - 2.5 | 1600x1500 | 900x2100 | 2300x1900 | 1500-2100 | 4700-5300 |

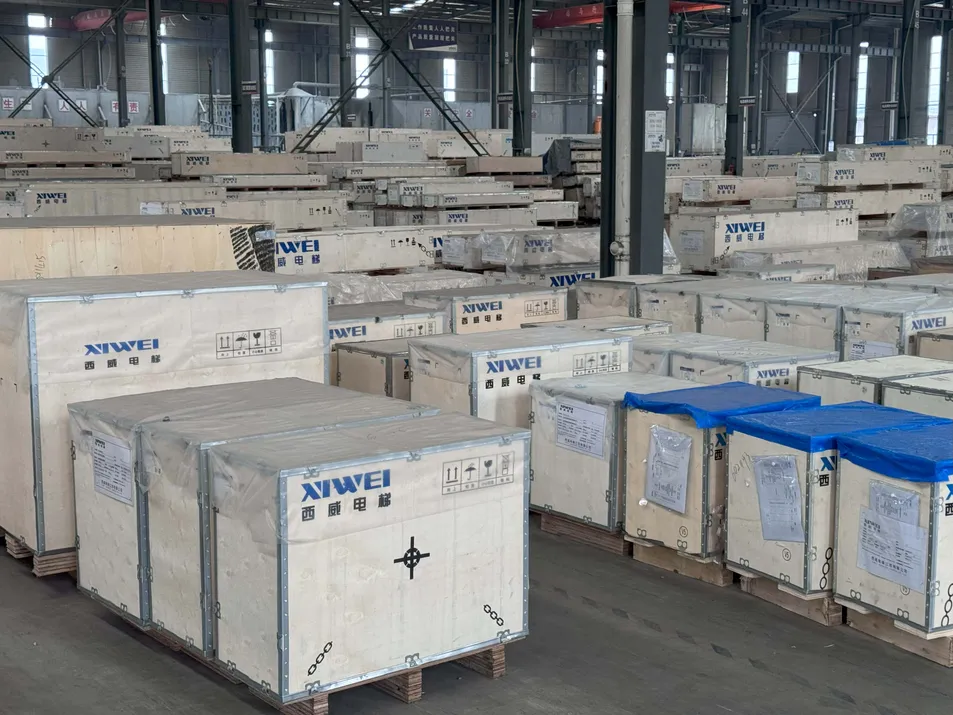

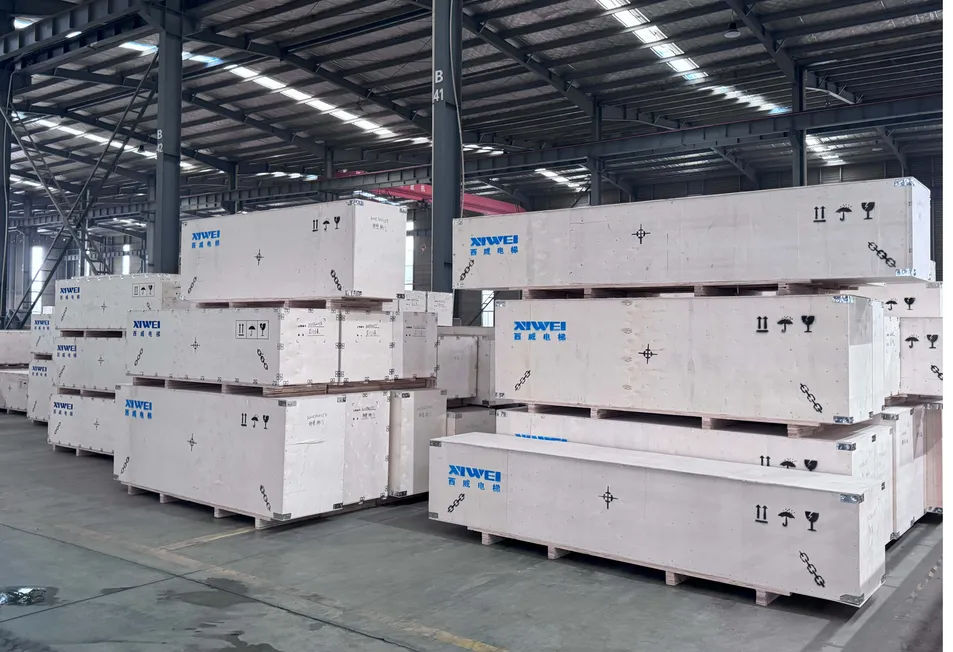

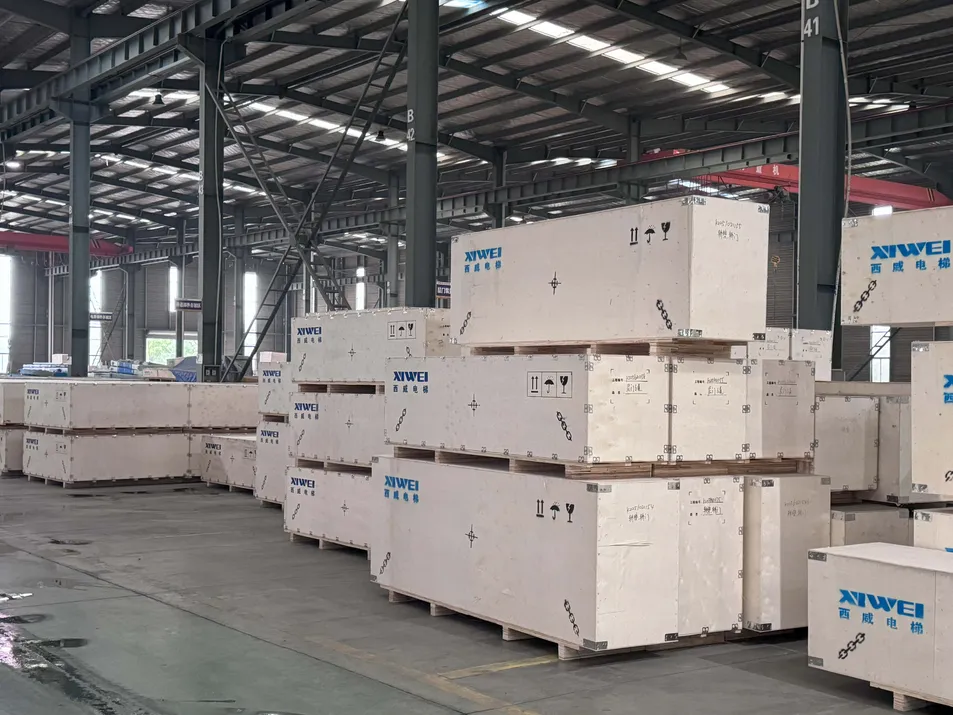

Logistic Reference:
Warranty Period:

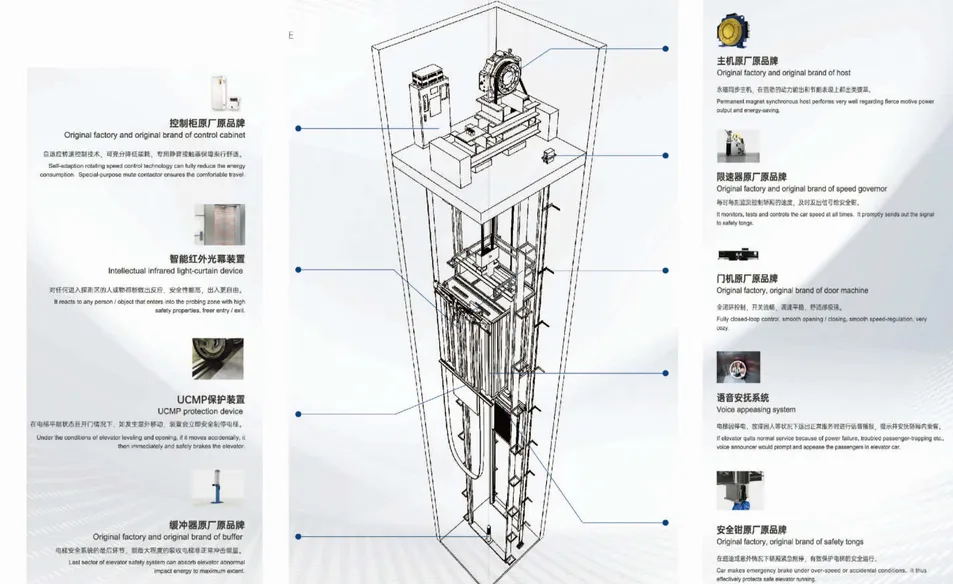

The overall warranty period is 1 year. The warranty for core components (traction machines, control cabinets, safety gears, and speed governors) is extended to 5 years.
During the warranty period, all costs for maintenance and component replacement caused by manufacturing defects will be covered by us.

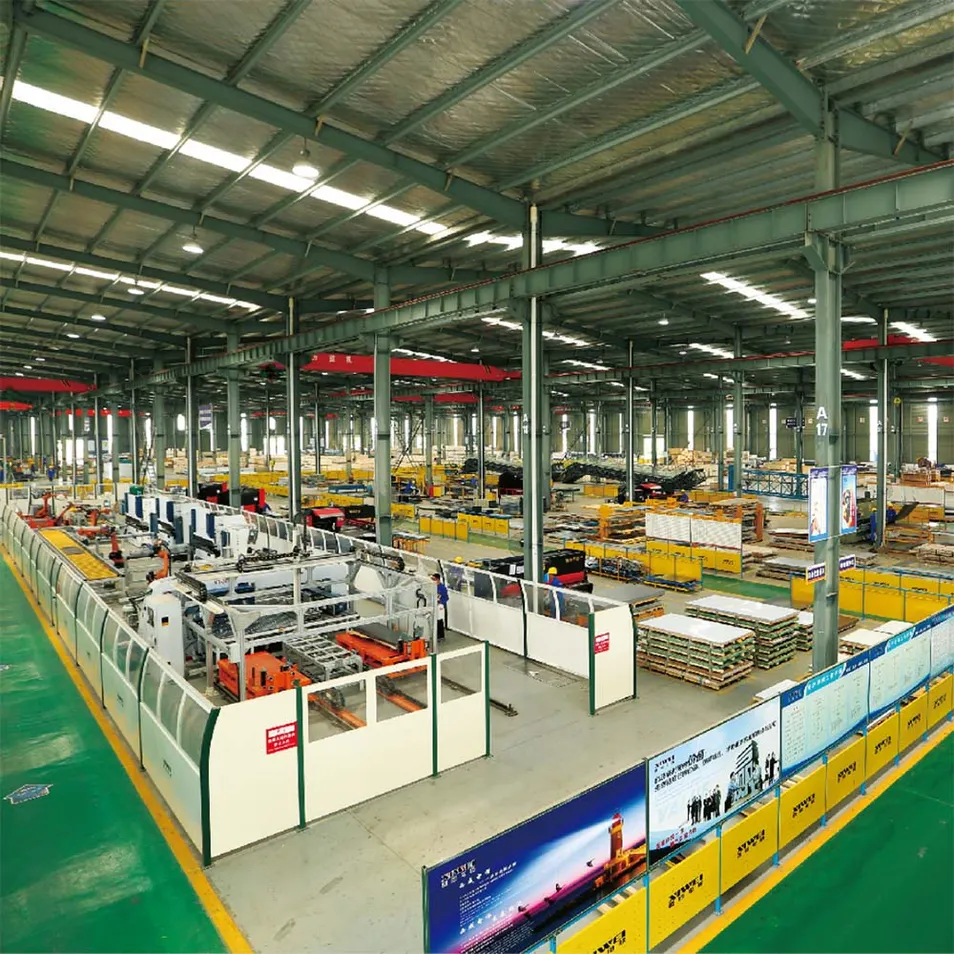

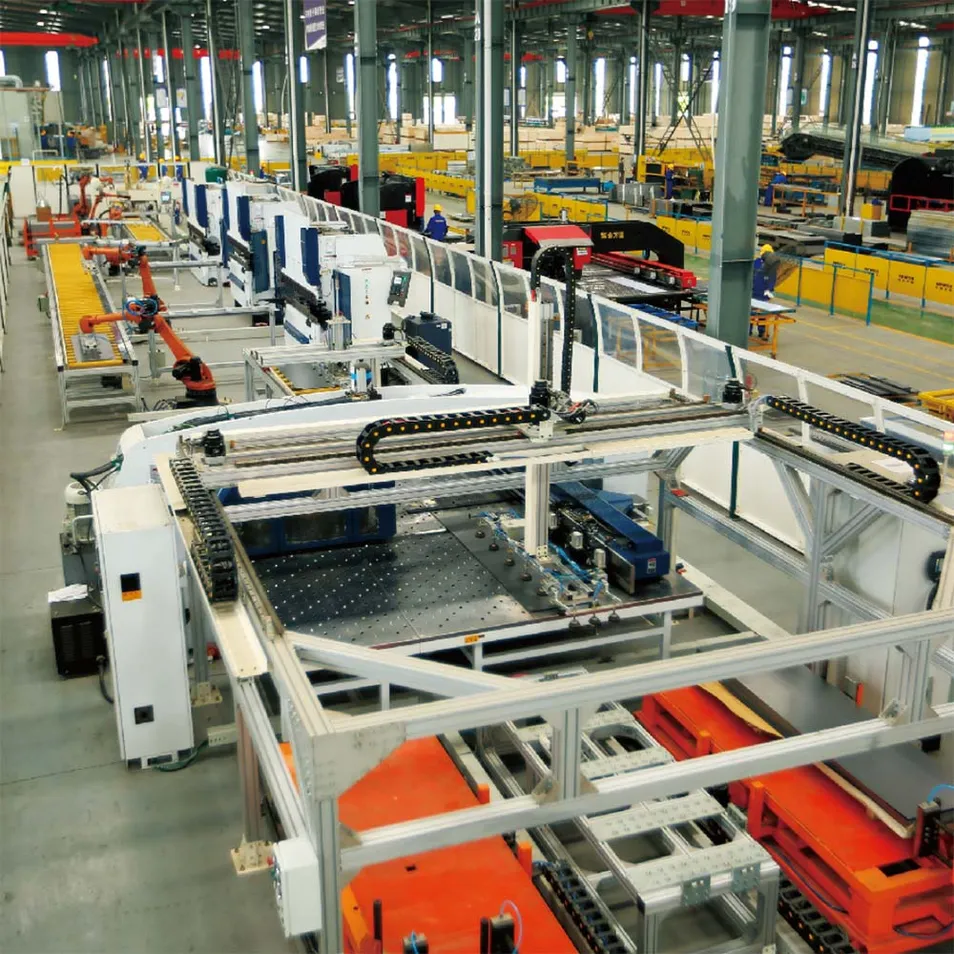

The factory covers an area of 120,000 m² with 90,000 m² of production workshops and an 87m high test tower. Annual productive capacity is 80,000 sets. We introduce advanced intellectual devices such as automatic feed warehouses, automatic painted flow-lines, and robot flow-lines to ensure safe and smooth product design.
