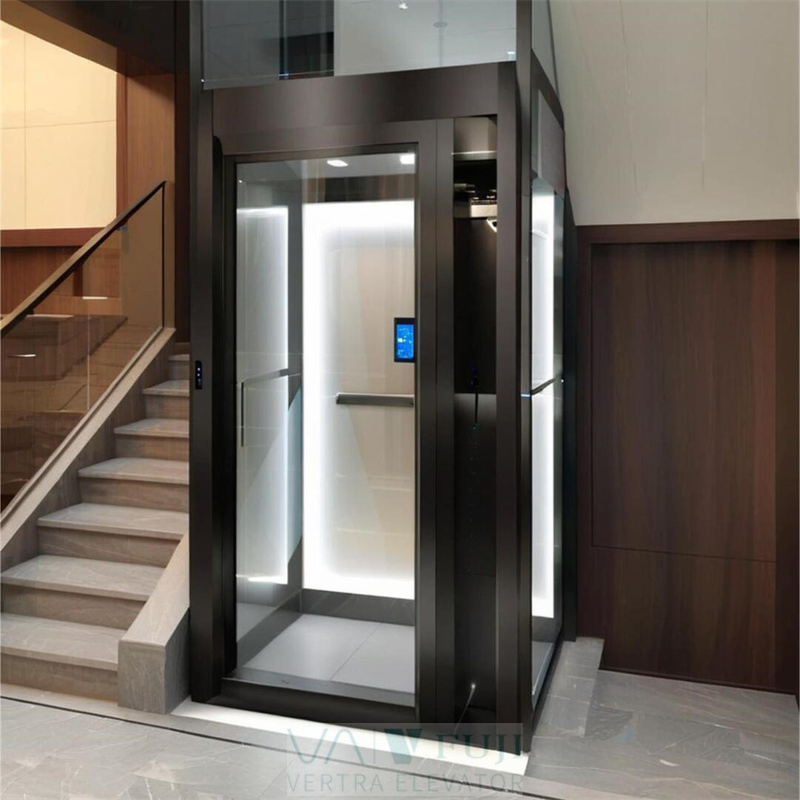

Ascom Elevator
1 / 5
| Model | Home Elevator Lift |
| Driving Type | AC Elevator |
| Capacity | 500 - 1000kg |
| Persons | 6 - 10 |
| Speed | 1.00 - 2.00m/s |
| Control Mode | Signal Control |
| Position | Without Computer Room (MRL) |
| Elevator Door | Center Opening Door |
| Feature | Safer, Smooth, Quiet, Durable |
| Lifting Height | 2000mm - 12000mm |
| Origin | China |

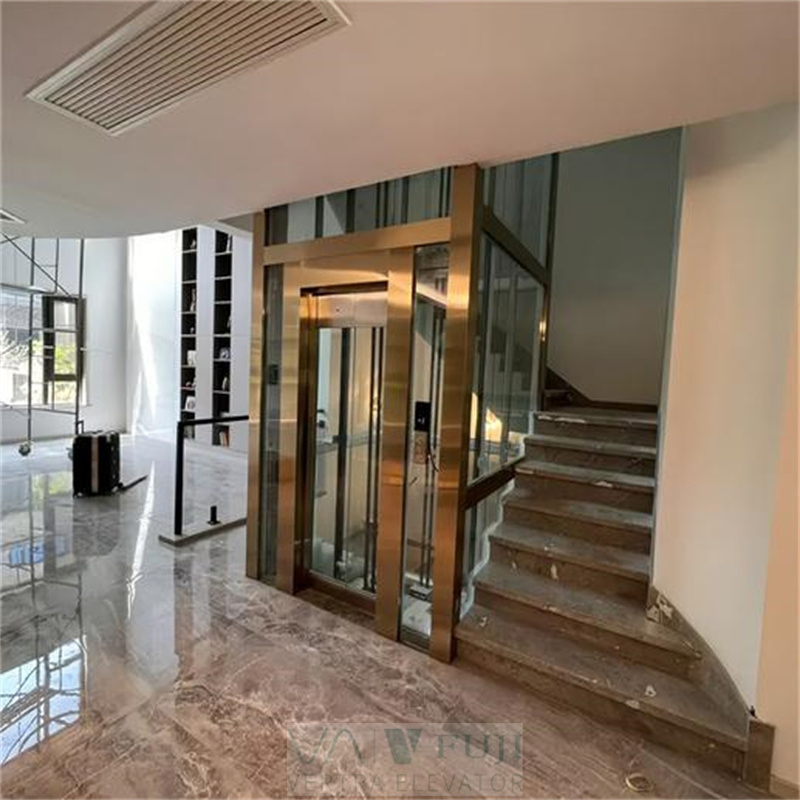

The villa elevator transfers individuality and pragmatic properties with unique styles. A life with intelligent household appliances is not just about art & high-tech. It is back to life. It is creative. lt expresses a life attitude through creation.
Perfectly connecting the elevator and home furnishing, it satisfies the demand for life with superior quality, making your return to beauty of home and enjoying comfortable living.

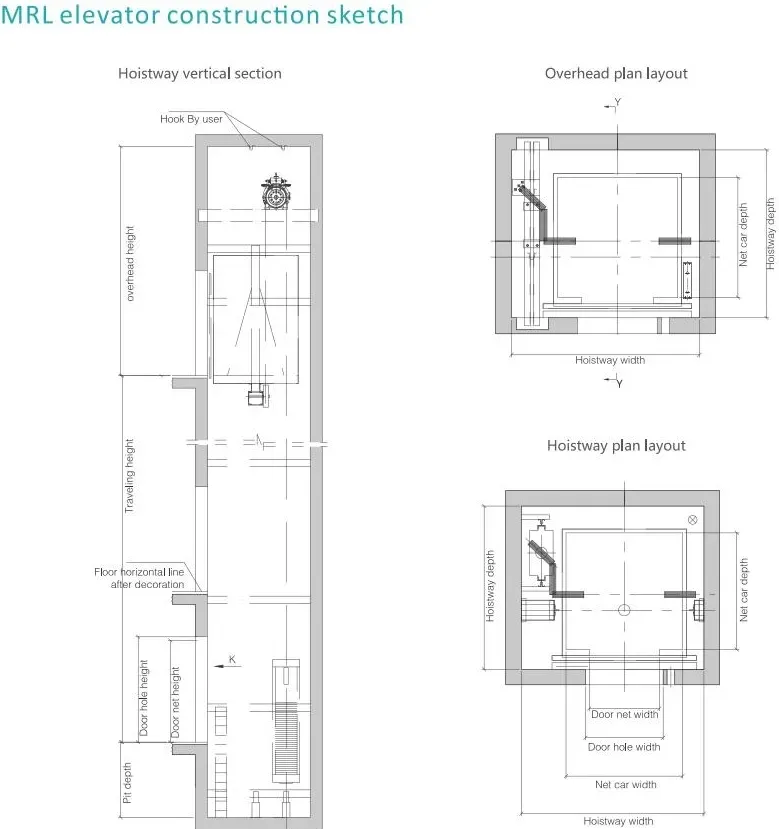

| Persons | Capacity (kg) | Speed (m/s) | Car Size (CWxCD) | Door Size | Shaft Size |
|---|---|---|---|---|---|
| 5 | 450 | 1.0 | 1100x1100 | 700x2100 | 1950x1750 |
| 8 | 630 | 1.0/1.5/1.75 | 1400x1100 | 800x2100 | 2250x1850 |
| 10 | 800 | 1.0/1.5/1.75 | 1450x1600 | 800x2100 | 2250x1950 |
| 13 | 1000 | 1.0/1.5/1.75 | 1450x1600 | 900x2100 | 2350x2150 |
Safety is the first priority to ensure each passenger's safe delivery to the destination.
Improved space availability from the view of space saving for residential applications.

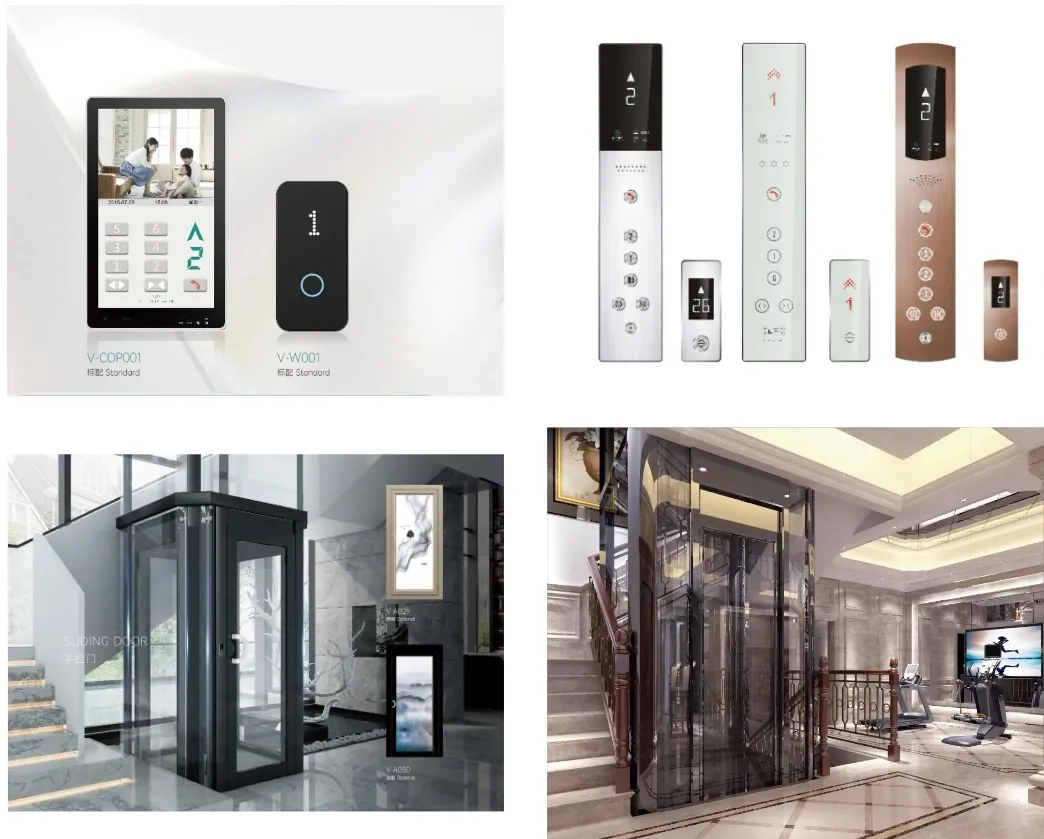

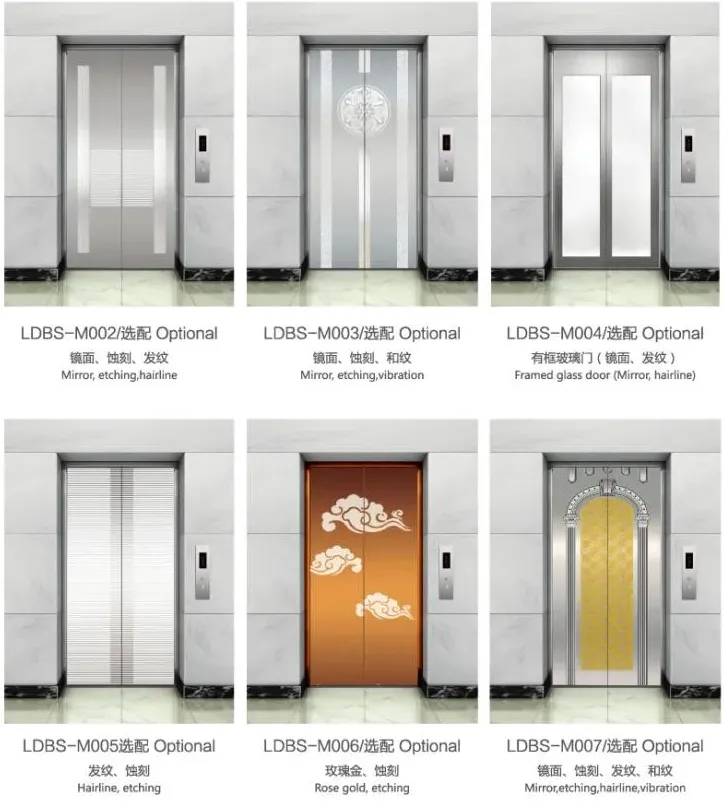

Customized appearance options for car finish, design, ceiling, and floor materials.
Adopts low noise units to avoid traditional contactor noise for a quiet, green life.
