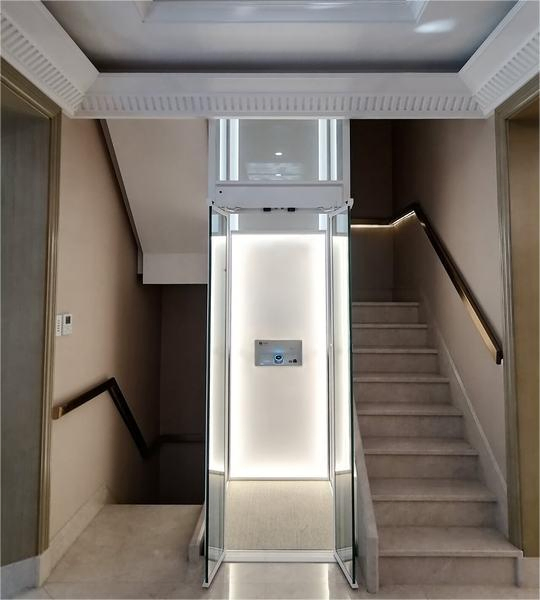

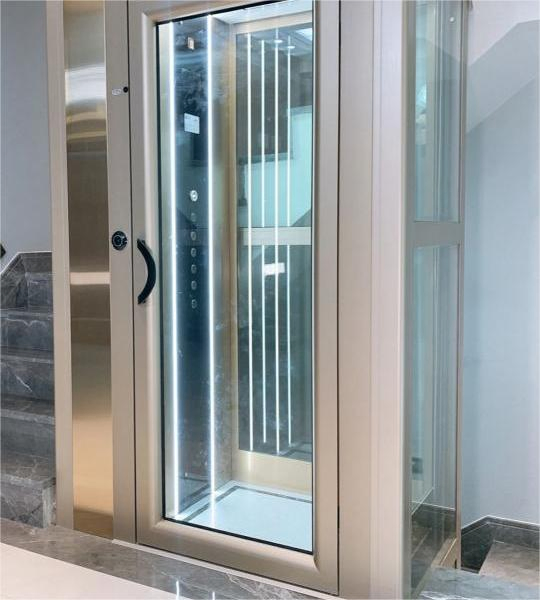

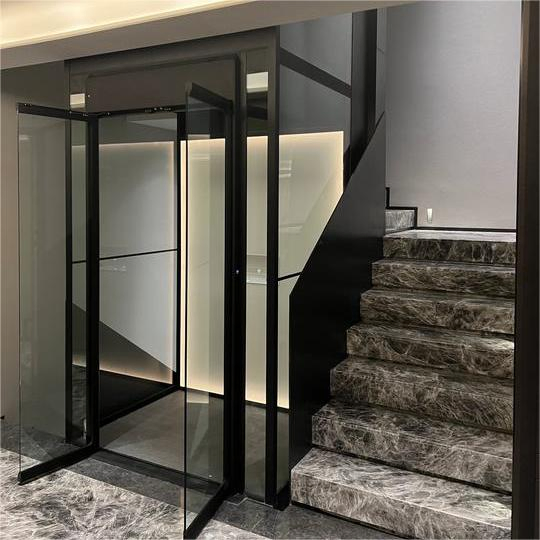

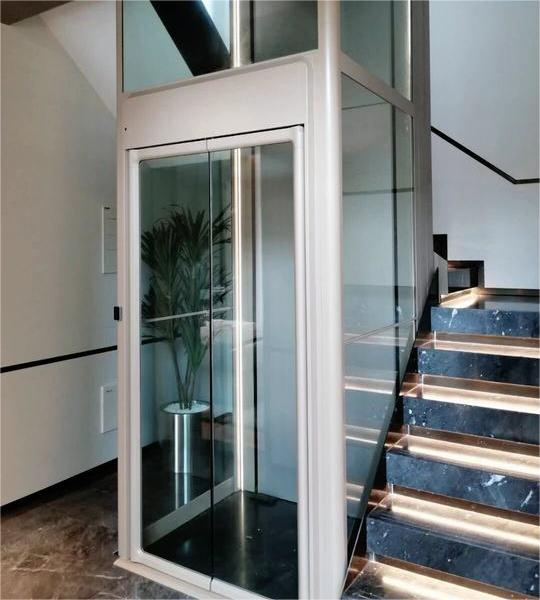

Our home lifts are specialized custom hydraulic and traction solutions designed for limited spaces. We offer versatile designs to match your home interior, including stainless steel or glass car finishes. These systems can be installed with or without a shaft and pit, providing a flexible solution for any residential architecture.
| Model | VPL-4 |
| Load capacity | 400kg |
| Car size | 900*1000*2100mm |
| Stop | Up to 4 levels |
| Travel height | 9m (Standard) |
| Car wall | Glass or Stainless Steel |
| Shaft | With or Without Shaft Options |
| Door opening | 900mm Width |

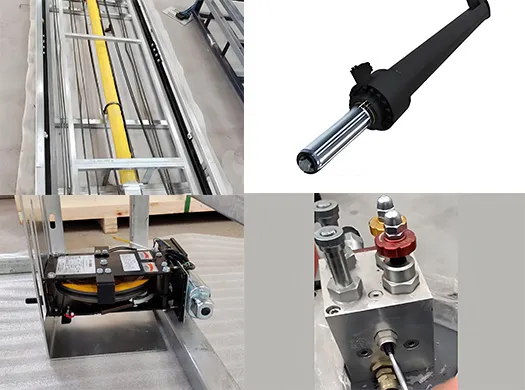

■ Safety Ropes: Four high-strength steel wire ropes, each sustaining 3000kg.
■ Explosion Proof Valve: Prevents sudden drops if hydraulic lines are damaged.
■ Safety Gear: Clamps the car to guide rails if rated speed is exceeded.

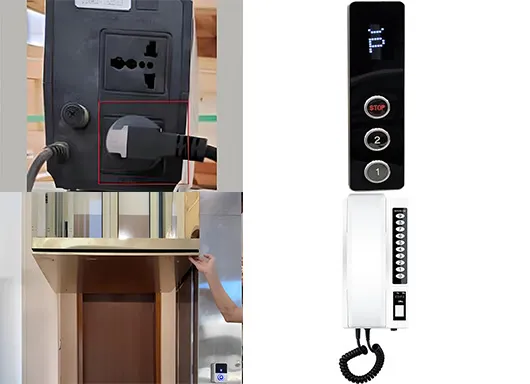

■ UPS System: Battery backup ensures the lift continues to run during power outages.
■ Safety Panel: Under-platform sensor stops the car if an obstruction is detected below.

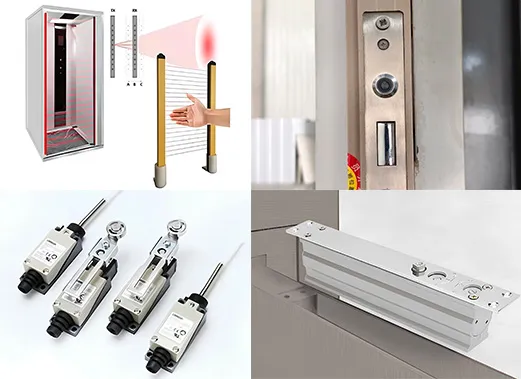

■ Light Curtain: Infrared beams detect objects in the doorway to prevent closing.

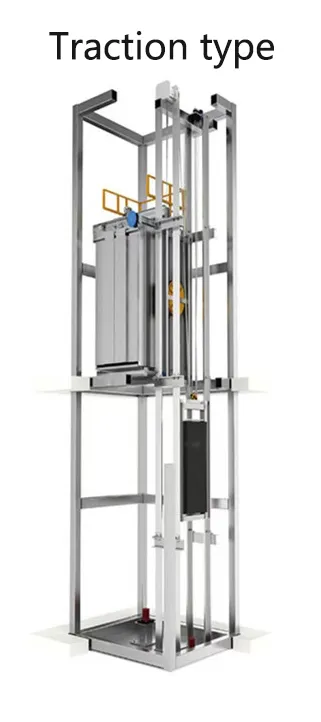

Operates via a pulley system and counterweights. Best for energy efficiency and smoother, faster rides in taller buildings.

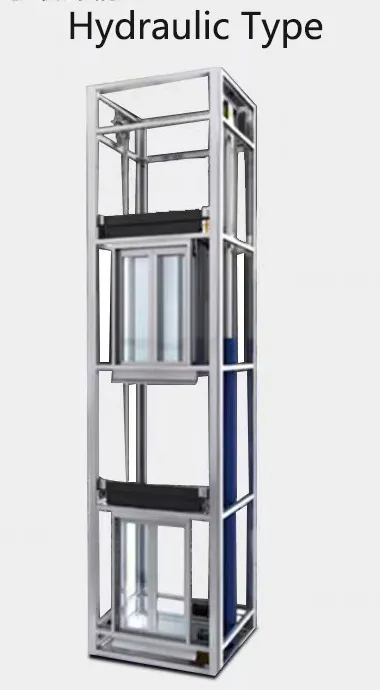

Uses a fluid-driven piston. Lower initial cost, simpler design, and no need for overhead machinery room. Ideal for 2-5 story homes.

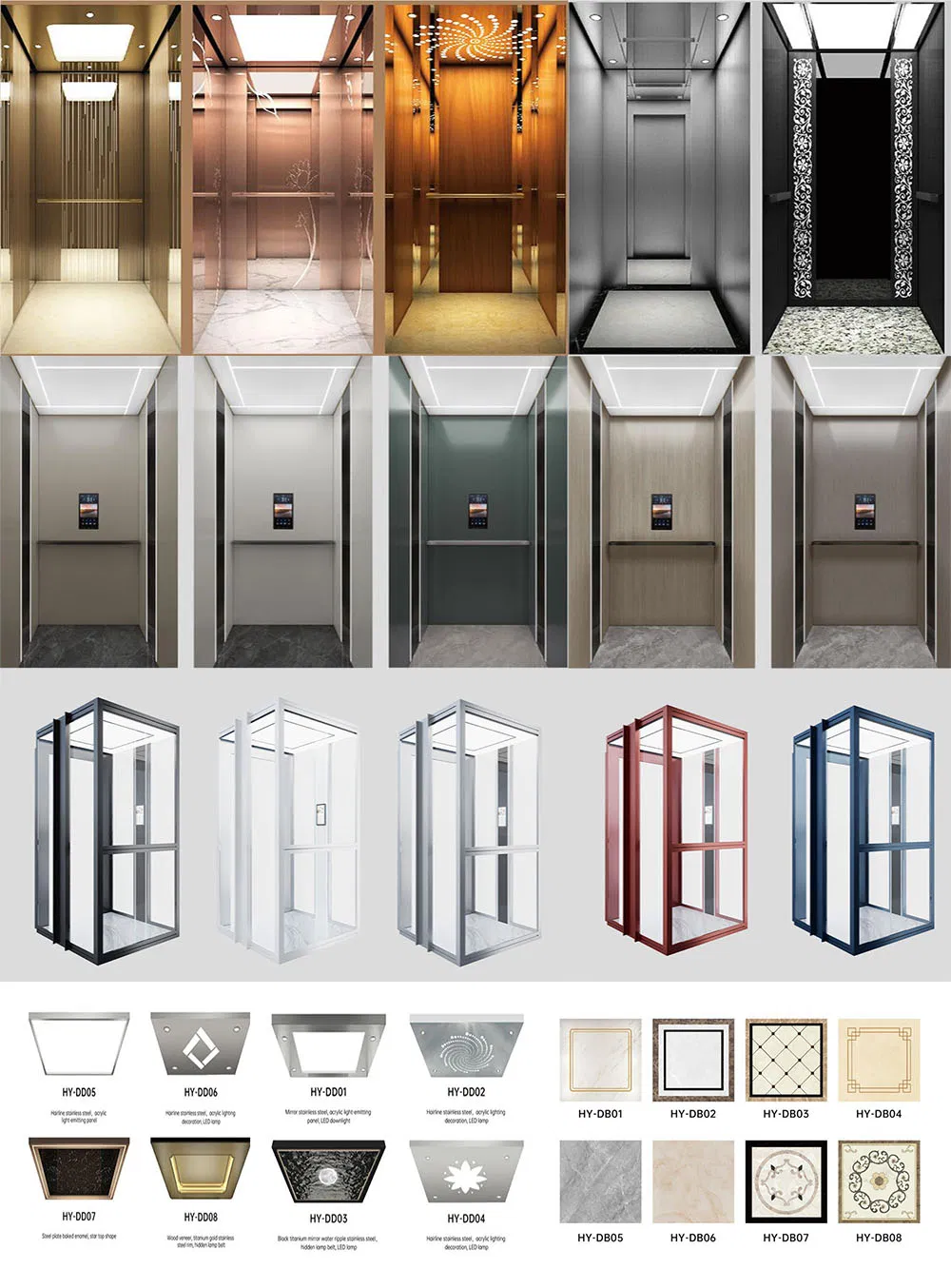

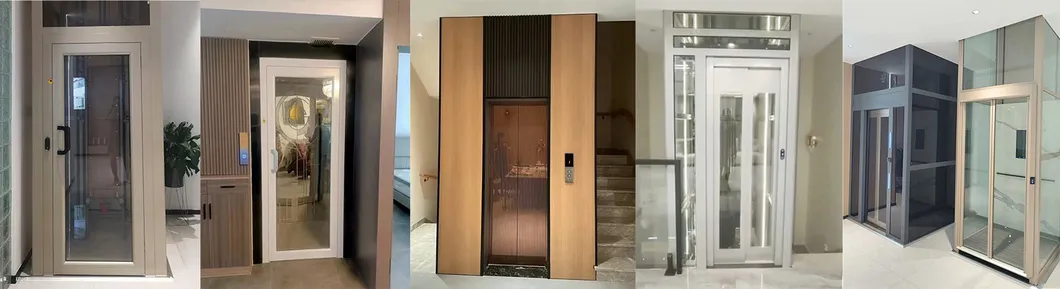

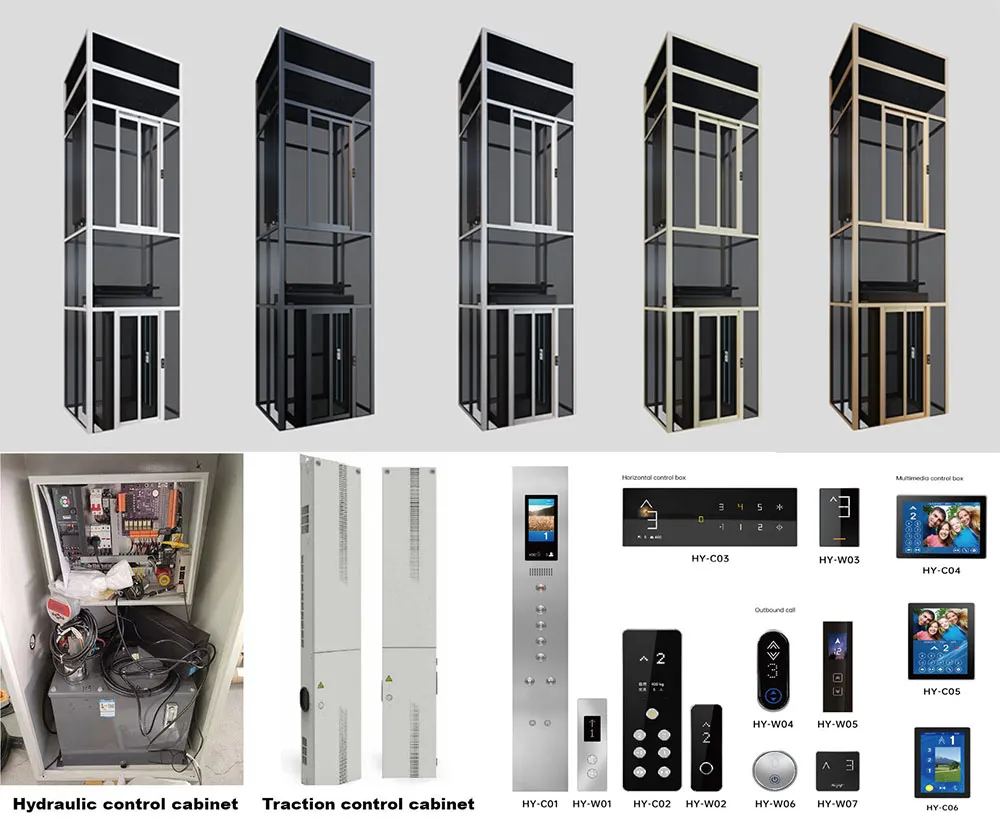

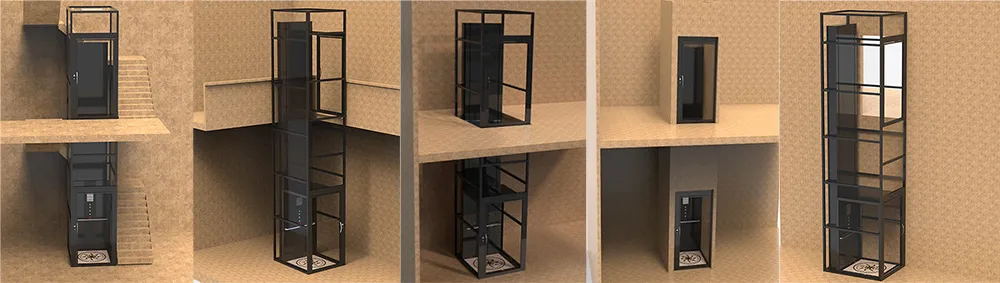

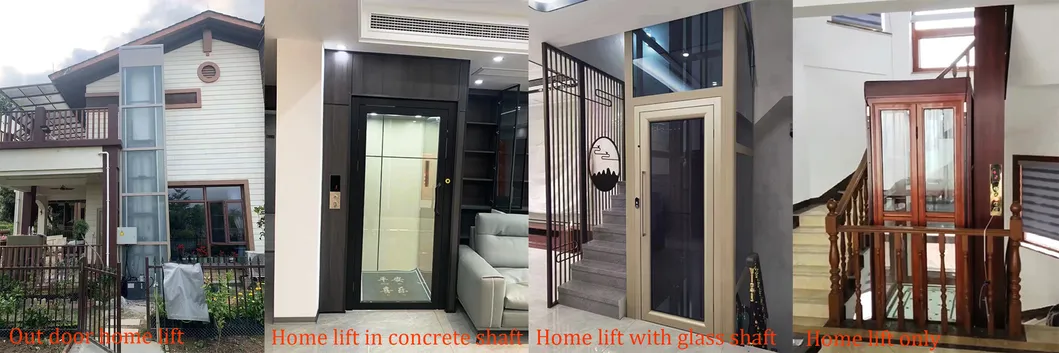

Choose from various landing doors, shaft colors, control panels, and car designs (ceiling, walls, and flooring) to perfectly match your home's aesthetic.

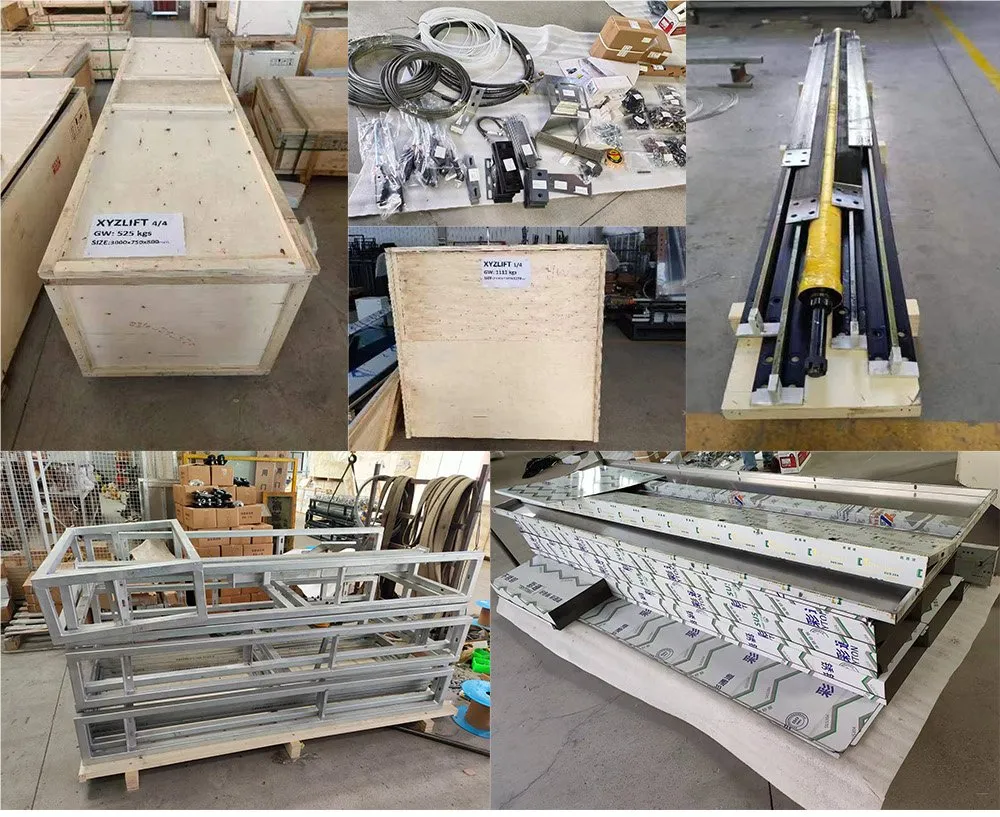

All parts are securely packaged in 4 reinforced wooden boxes:
Total Weight: 1450kg
A: Our standard home lifts support a load capacity of up to 400kg-500kg, which is typically sufficient for 3-5 passengers.
A: Yes, we offer solutions that can be installed without a pit or a pre-built concrete shaft. We can provide integrated glass shafts as part of the installation.
A: All our lifts come equipped with a UPS (Uninterrupted Power Supply) system that automatically provides backup power to ensure the lift can reach a floor safely during an outage.
A: Our standard models can serve up to 4 stops with a total travel height of approximately 15 meters.
A: Absolutely. Our lifts feature automatic safety locks on all landing doors, ensuring they only open when the car is at the correct level. We also include light curtains to prevent doors from closing on occupants.
A: You can choose from various finishes including luxury stainless steel, elegant glass panels, or warm wooden panels to match your home's interior design.
