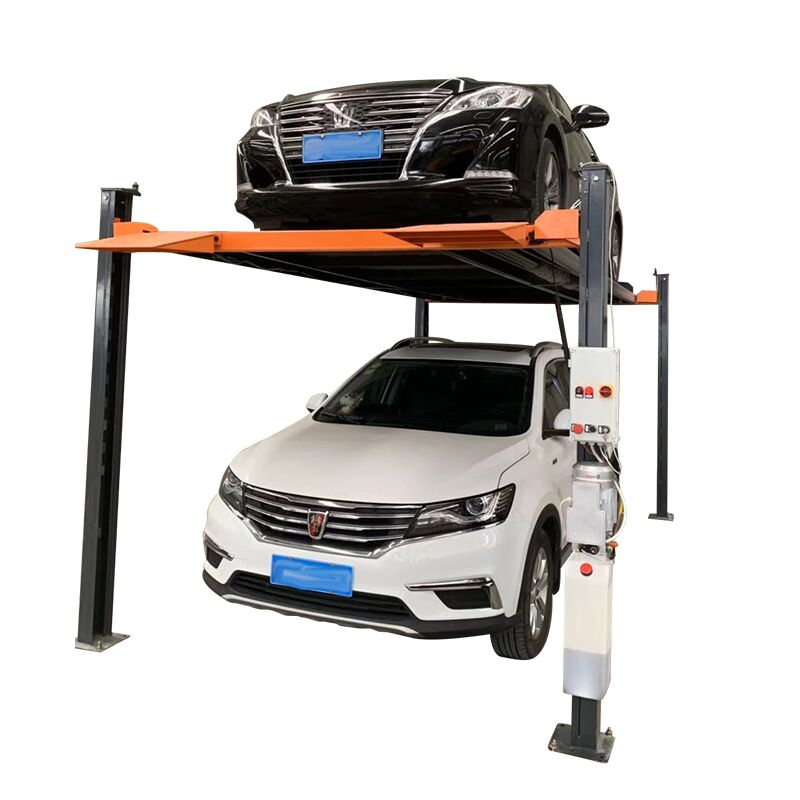

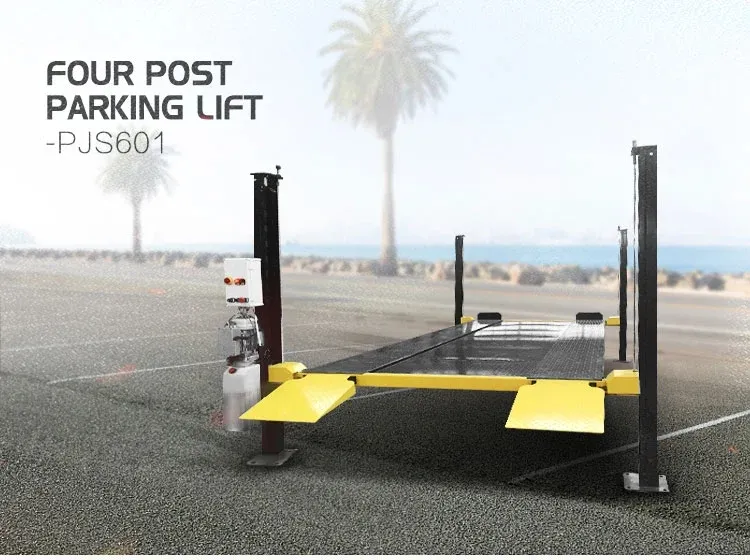

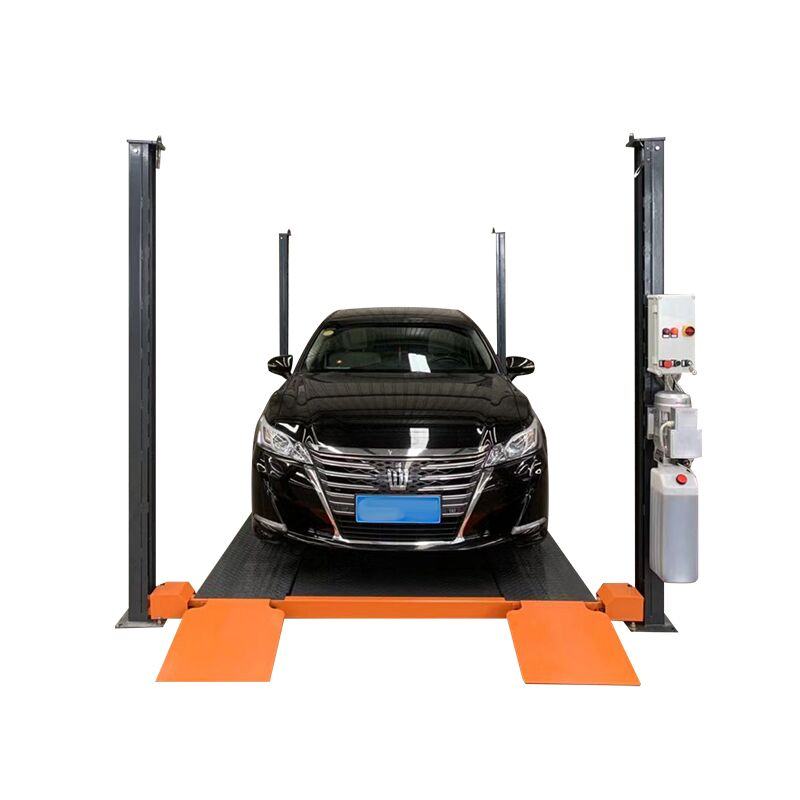

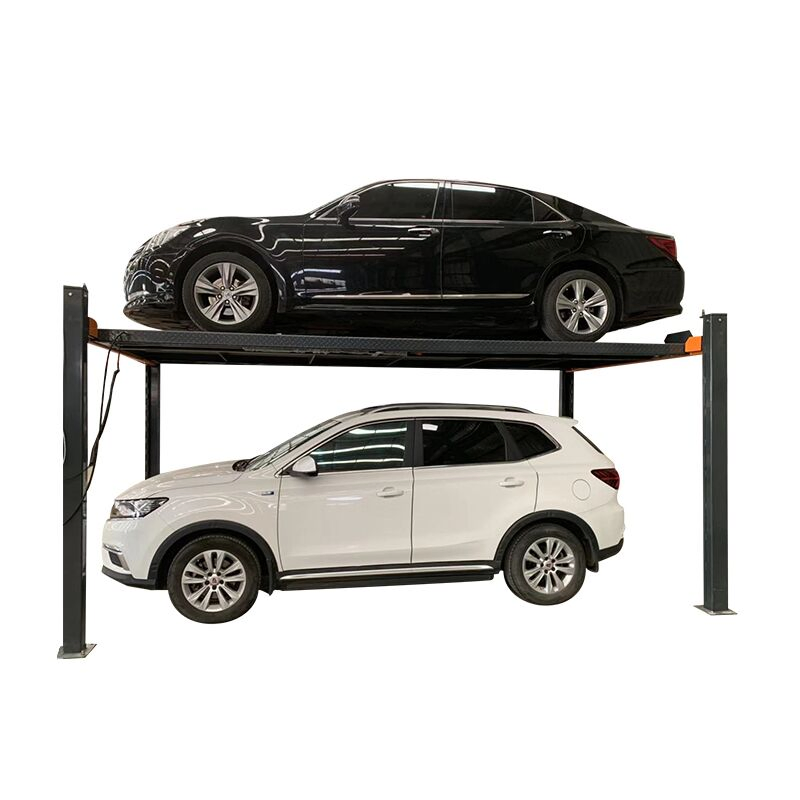

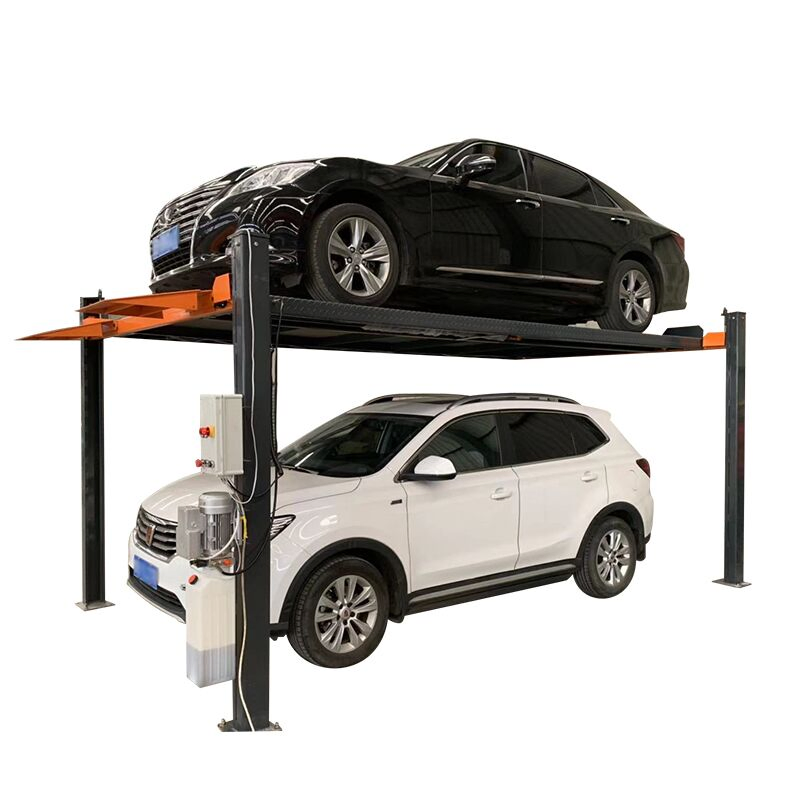

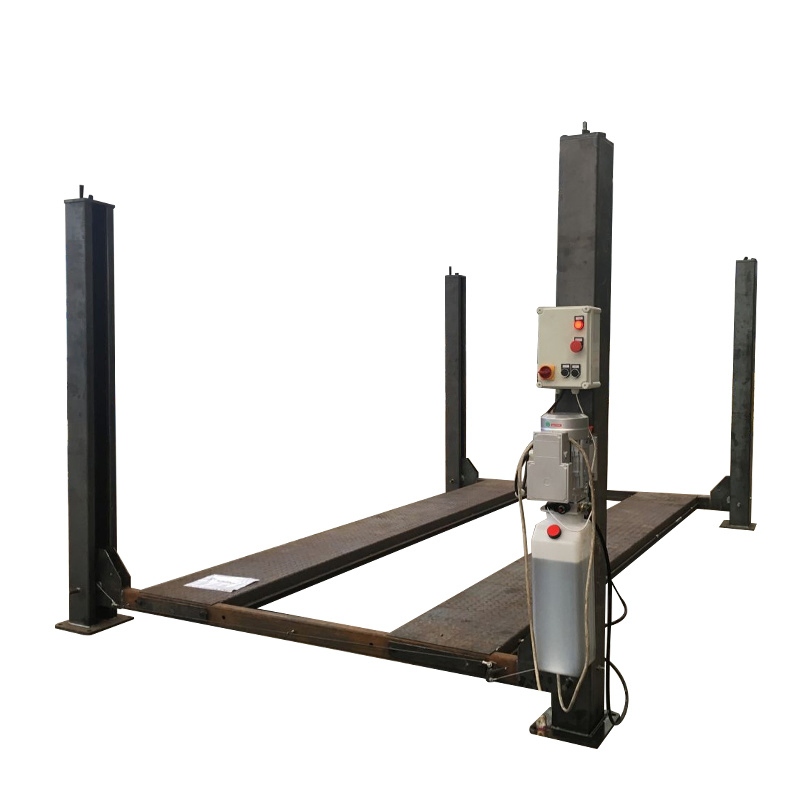

The PJS601 Series is a four-post type parking lift consisting of two levels, designed to park 2 cars vertically. Lower cars can be parked or retrieved at will. If you wish to park or retrieve the upper vehicle, the lower vehicle must be removed first.
The equipment features a maximum lifting height of 2100 mm and a maximum lifting capacity of 3000kg, making it suitable for both SUVs and sedans. Equipment dimensions can be customized according to specific customer requirements.

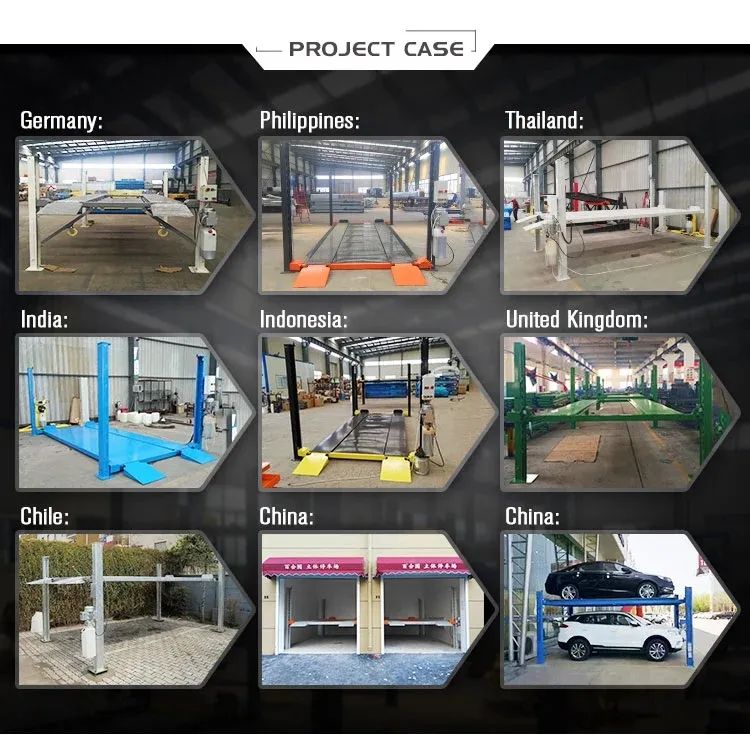

This solution is widely utilized in banks, hospitals, hotels, supermarkets, entertainment venues, office enterprises, public institutions, and residential areas.
| Name | PJS601 Series Four Post Parking Lift |
| Model | PJS601D-30 |

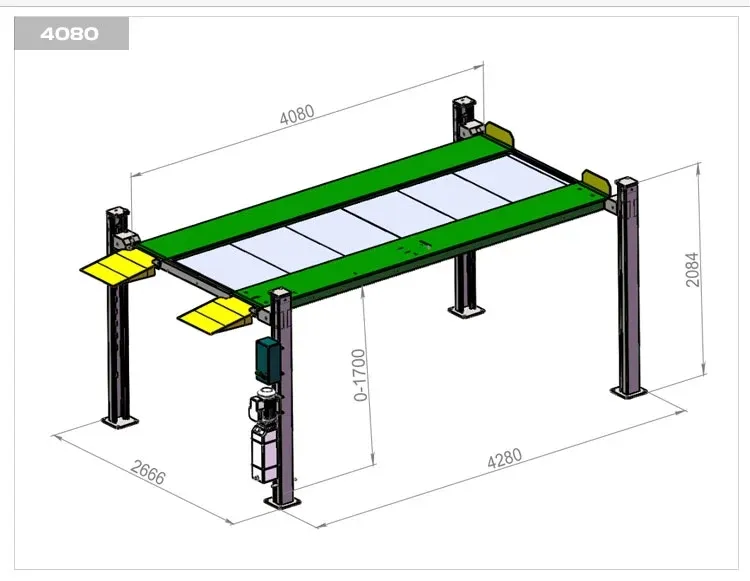

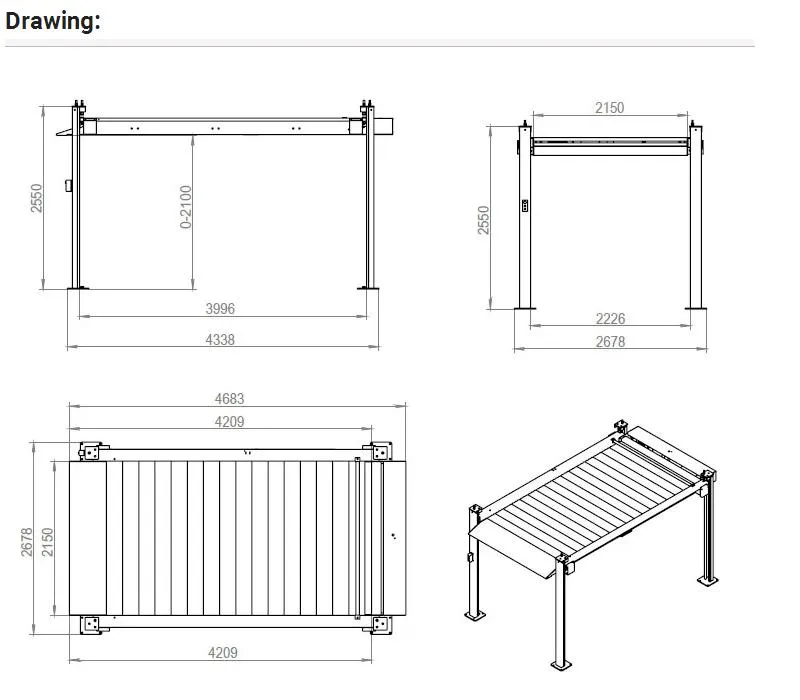

| Equipment Size | 5000*2678*2550 mm |
| Capacity | ≤3000 kg |
| Voltage | 220 V, 50 Hz, 1 Ph / 380 V, 50Hz, 3 Ph (Customized) |
| Control | AC24 V |
| Up speed | 1.7 m/min |
| Down Speed | 1.9 m/min |
| Equipment Weight | 1200 kg |
| Lifting Height | 2100 mm |

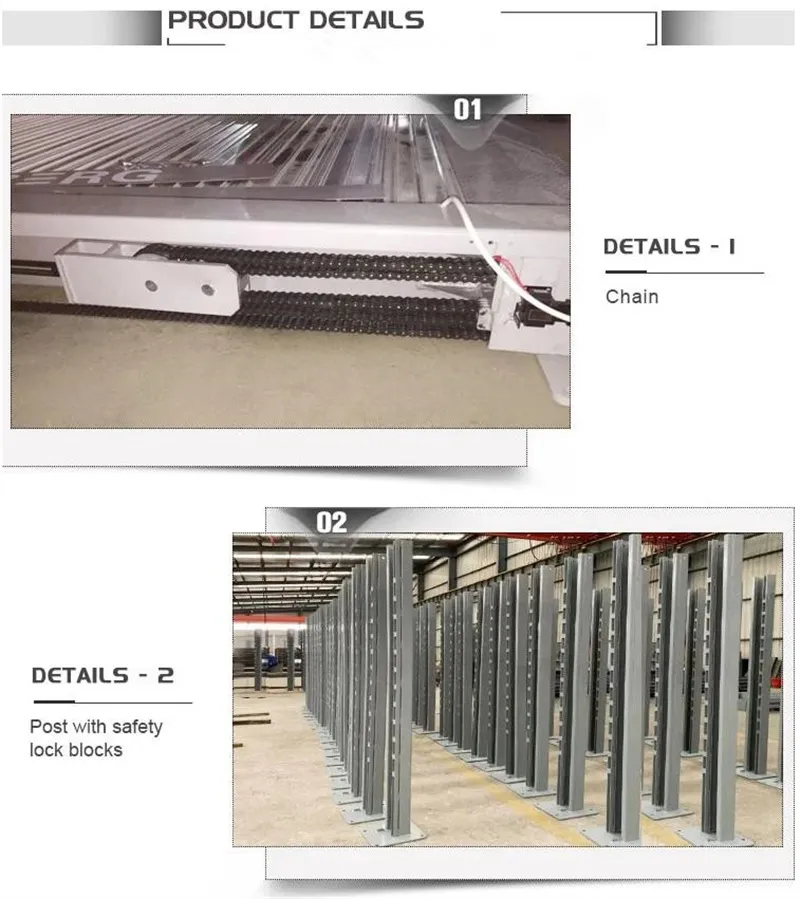

| Drive mode | Hydraulic and chain drive and keep balance |
| Motor Power | 2.2 kw |
| Package size | 4200*1000*700 mm |
| Package weight | 1100 kg |
