Professional Manufacturer China SGS Vvvf Cheap Safe Elegant Dumbwaiter Lifts Service Elevator

Customization: Available
After-sales Service: by Factory or Local Agent
Warranty: 18 Months After Shipment

Product Description

Basic Specifications
Model NO.ZW002
Load Capacity300kg
Speed0.40m/s
Drive ModeAC
Open TypeAutomatic
Lift MechanismTelescoping Lift
Guide RailHollow Guide
Main PowerAC 380V, 3 Phase 50Hz
PackingPlywood Box
Capacity11000 Sets/Year
Product Description

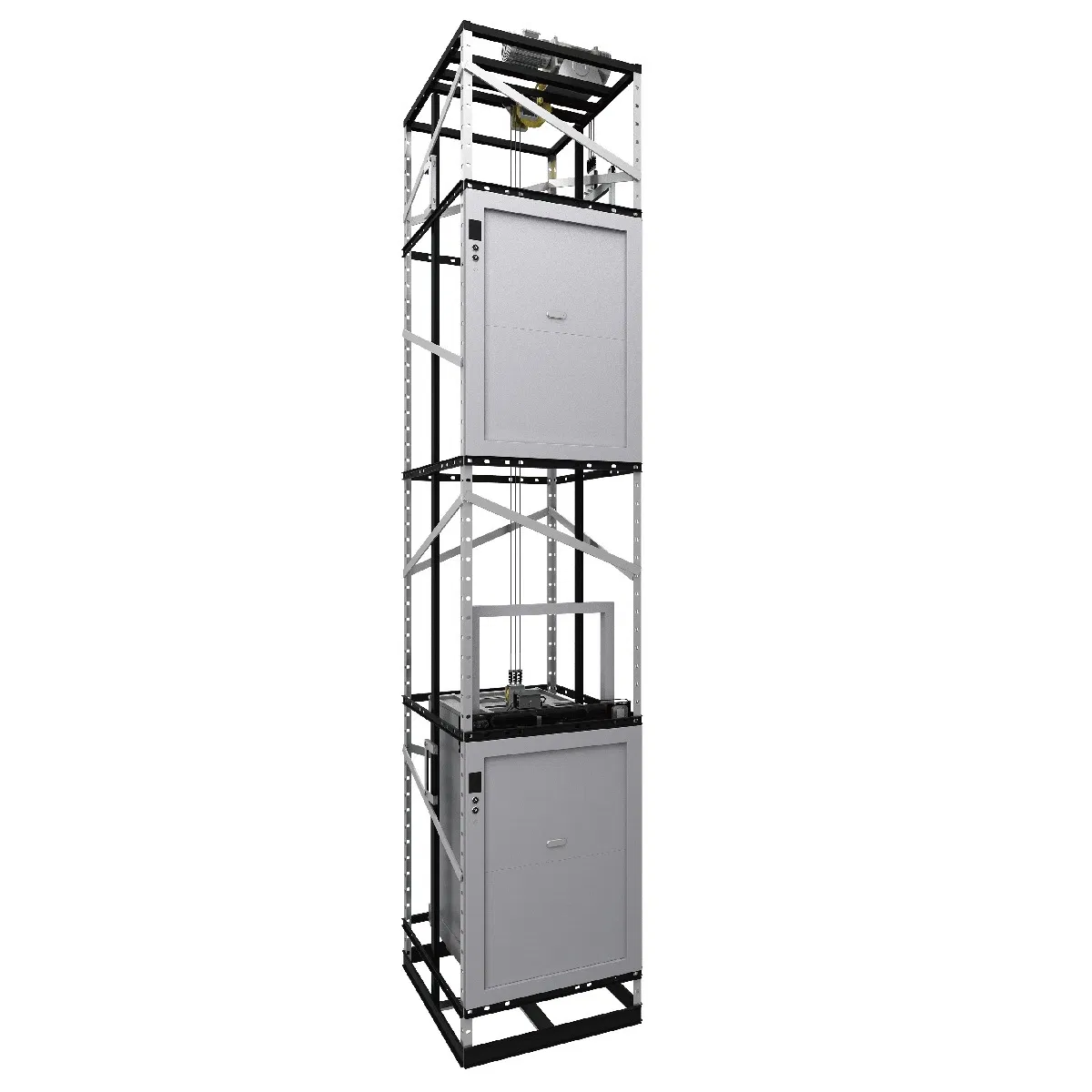

Professional Manufacturer Cheap Safe Elegant Dumbwaiter Lifts Service Elevator

The dumbwaiter is the smallest member of the elevator family. According to different use occasions, it is also called the food elevator, the food dumbwaiter, or the kitchen lift. It silently serves various industries, playing the biggest role within the smallest space.

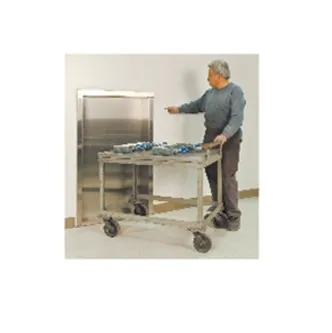

Dumbwaiter Design
🚀 Key Advantages:
  • Small Footprint: Occupies minimal space and requires low civil engineering bearing capacity.
  • Advanced Control: Uses PC control modules for smooth running and accurate leveling.

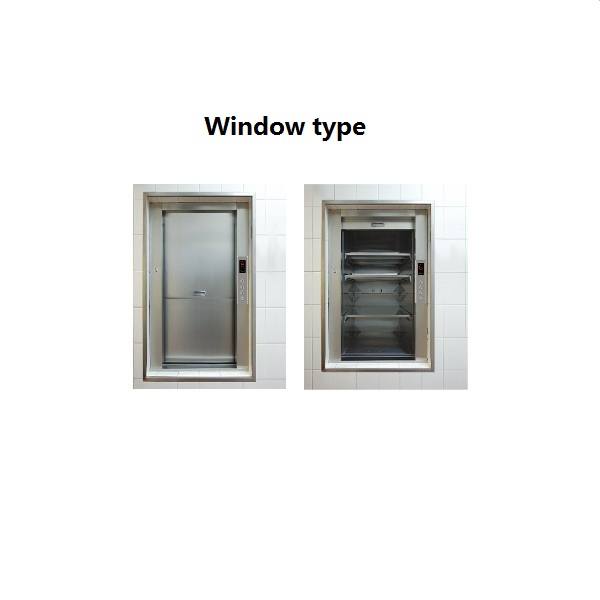

  • Flexible Operation: Available in window type and floor type to suit various needs.
  • Safe & Elegant: Practical, quiet, and very easy to maintain.

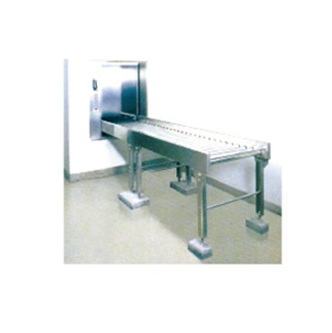

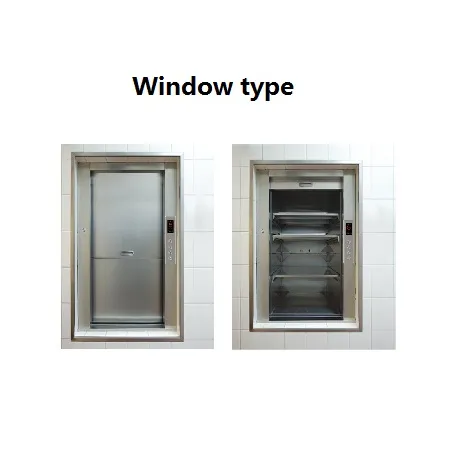

Food Lift Details

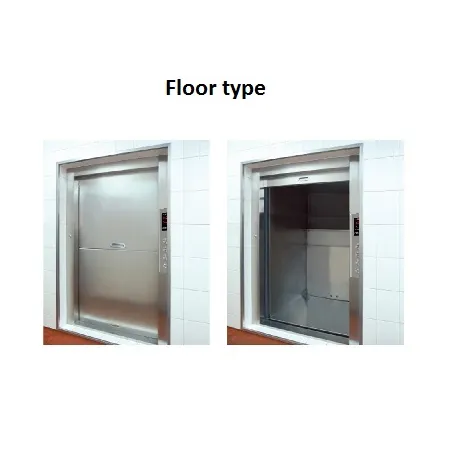

Service Elevator
Product Parameters
Load (kg) Speed (m/s) Cabin size (WXDXH)mm Door size (WxH)mm Shaft size (WxD)mm Pit depth (mm) OH (mm) Type
100 0.4 500x500x900 500x900 1000x800 700 4500 Window
200 0.4 600x600x900 600x900 1100x900 700 4500 Window
250 0.4 800x800x900 800x900 1300x1100 700 4500 Window
300 0.4 900x900x900 900x900 1400x1200 700 4500 Window

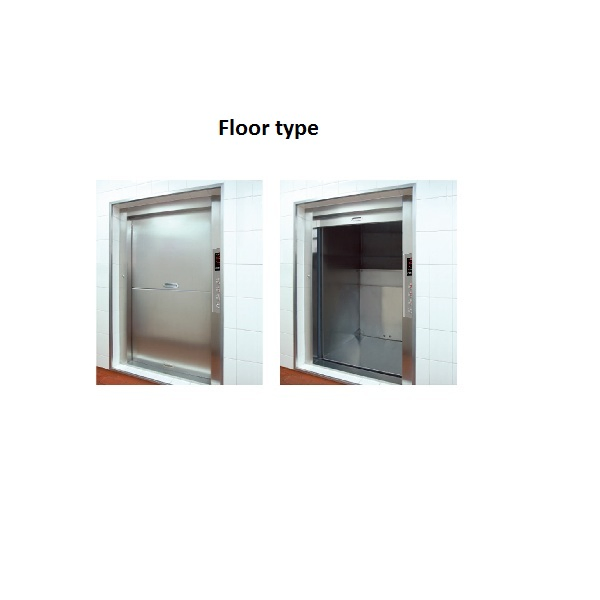

100 0.4 500x500x1000 500x1000 1000x800 1000 4000 Floor
300 0.4 900x900x1000 900x1000 1400x1200 1000 4000 Floor
Safe Functions
🛡️ Motor overheat protect
🛡️ Power phase fault detect
🛡️ Inspection running
🛡️ Emergency door opening key
🛡️ Car door contact
🛡️ Shaft emergency stop switch
🛡️ Running direction indicator
🛡️ Car position indicator
Manufacturing & Packing

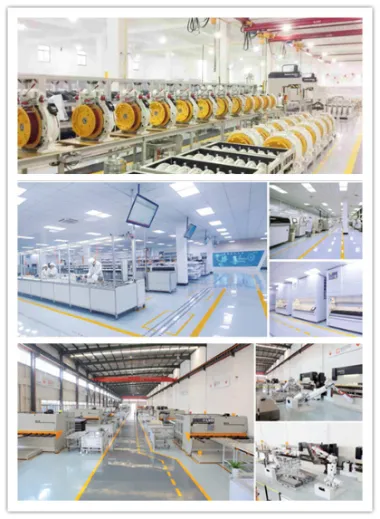

Manufacturing Process

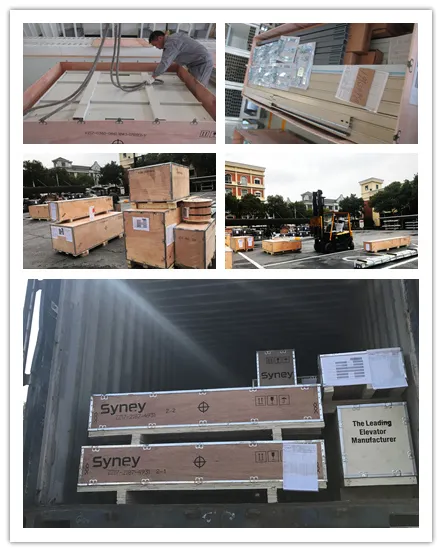

Packing Details
Global Projects & Certification

The professional enterprise integrates R&D, design, manufacture, marketing, installation and customer service. Applying a whole set of advanced equipment, it specializes in passenger lifts, sightseeing elevators, cargo elevators, and kitchen lifts. The network expands to over 50 countries in Europe, Asia, Africa, and America.

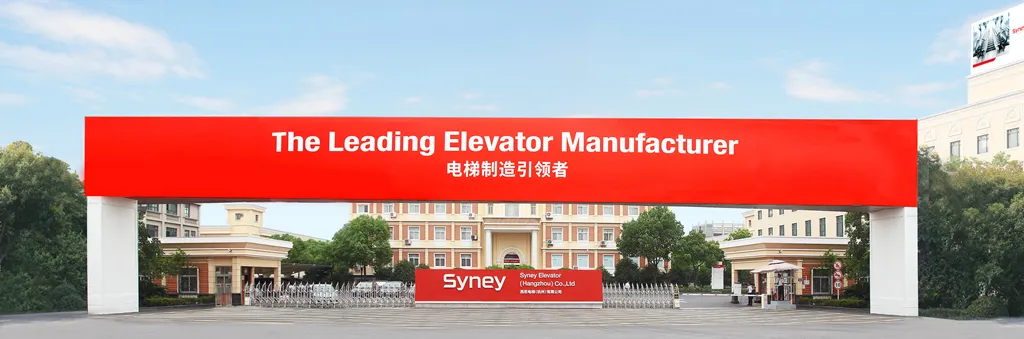

Production Line

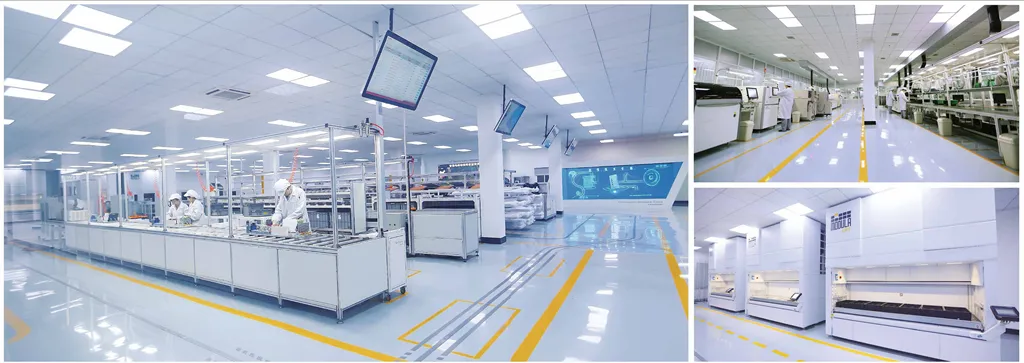

Factory

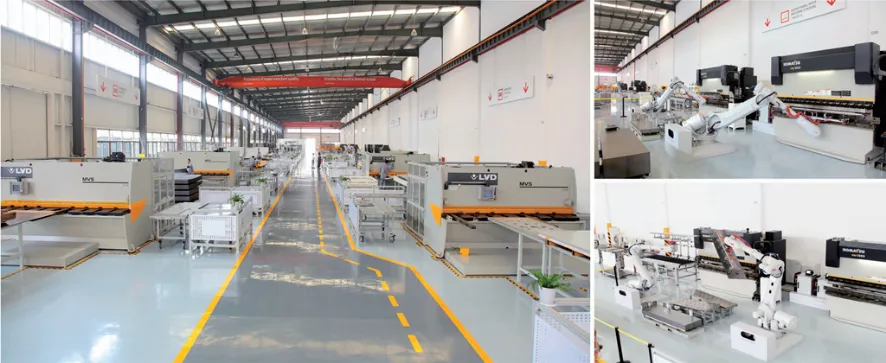

Facility

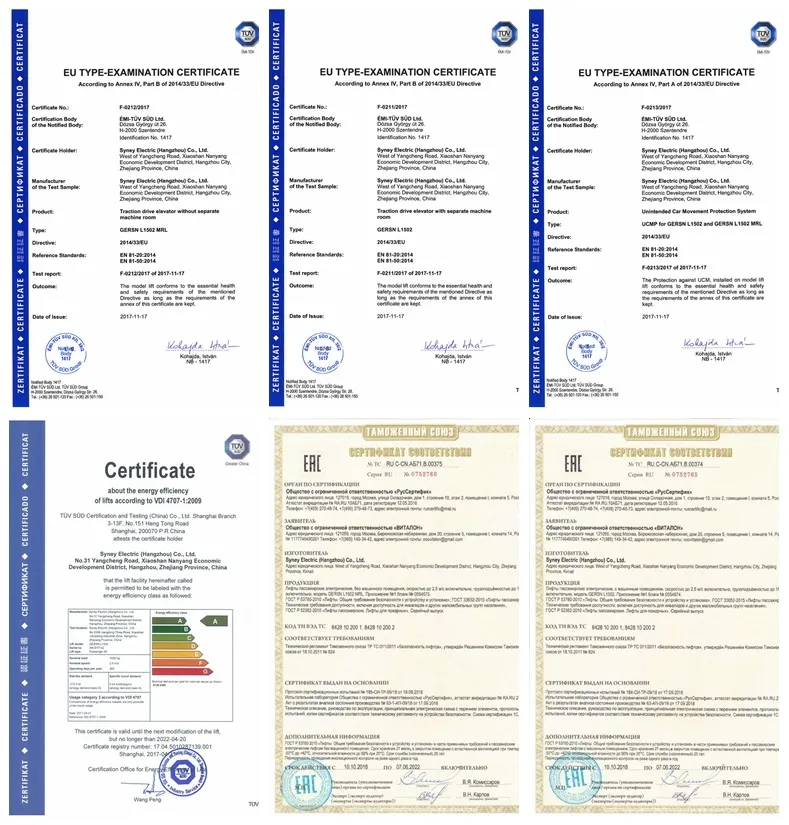

Certification

Certificates:

  • CE Certificate for Elevator with/without machine room
  • CE Certificate for energy-efficiency: Grade A
  • EAC Certificates
  • TÜV SÜD Quality Certification

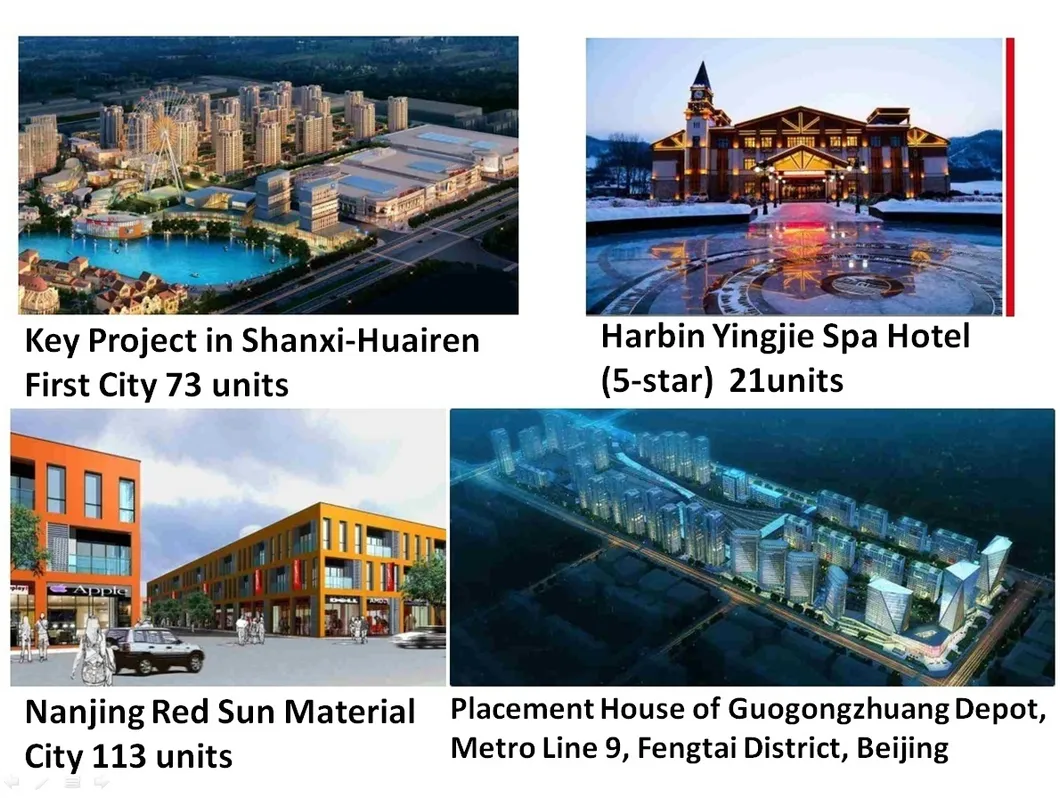

Project Case 1

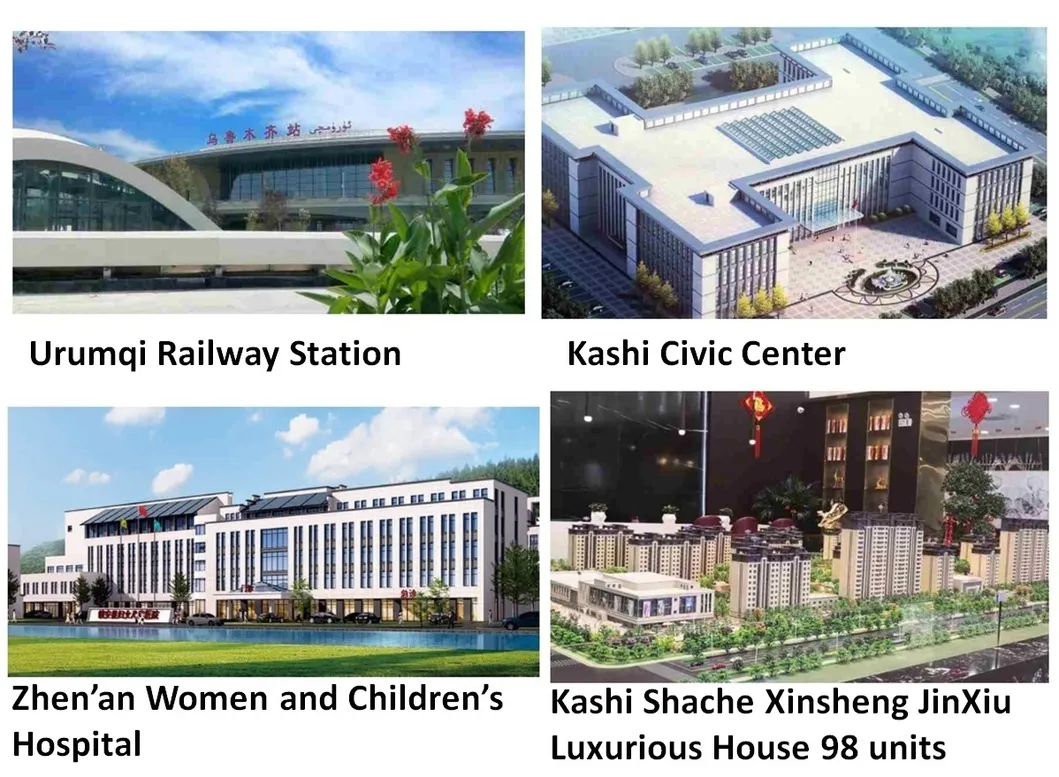

Project Case 2
Frequently Asked Questions
How can I get a fast reply for my inquiry?
Please send complete information including elevator type (Kitchen food dumbwaiter), capacity (e.g., 100kg), number of floors/stops, shaft size, and your specific requirements.
What is the standard delivery time?
Usually 30 days after the arrival of the deposit. However, urgent production options are available to support your specific project timelines.
What is the product warranty period?
We provide a 18-month warranty for all elevators starting from the date of delivery.
How is the installation and commissioning handled?
The factory provides a complete set of installation manuals and remote commissioning guidance. For special projects, engineers can be sent to the site to assist.
Are your products certified for international markets?
Yes, our elevators hold CE certificates, Energy-efficiency Grade A ratings, and EAC certification, meeting strict European and international standards.
How do I place an order?
1) Confirm specifications and drawings; 2) Sign the contract; 3) Production begins after payment; 4) Notification of delivery and shipping booking; 5) Delivery of documents; 6) After-sales follow-up.
