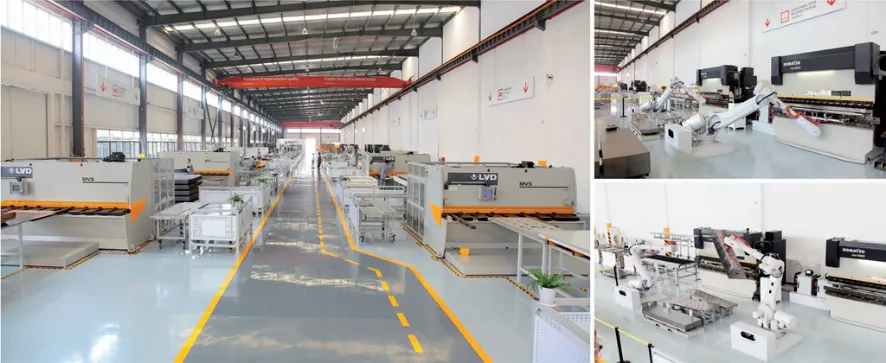

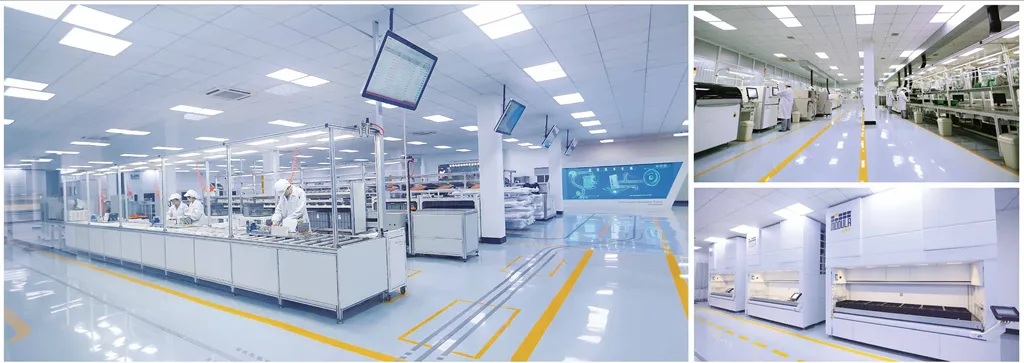

Our elevators and escalators are manufactured in accordance with international and professional standards. With specialized workshops for electronics, traction machines, door systems, and assembly, we maintain a robust annual production capacity and all-around service capability for passenger elevators, freight elevators, panoramic elevators, home lifts, and more.

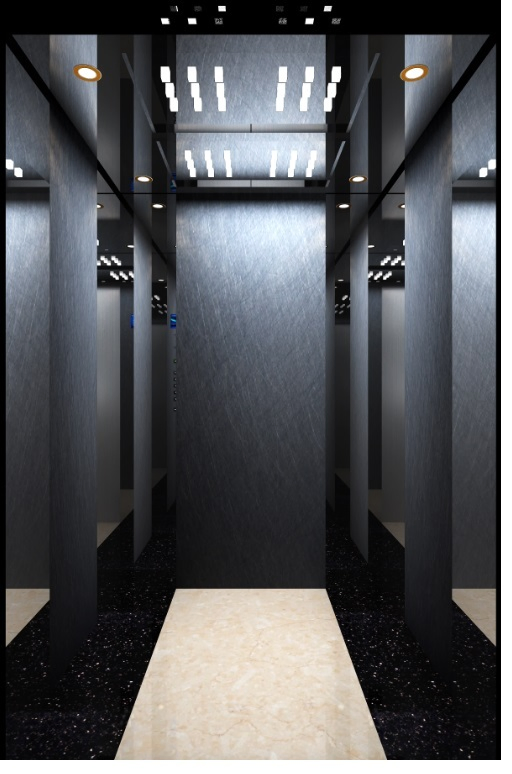

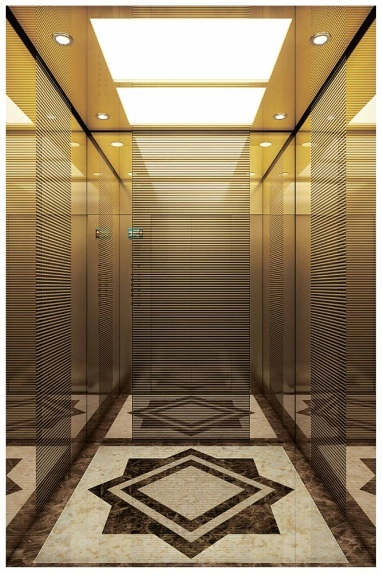

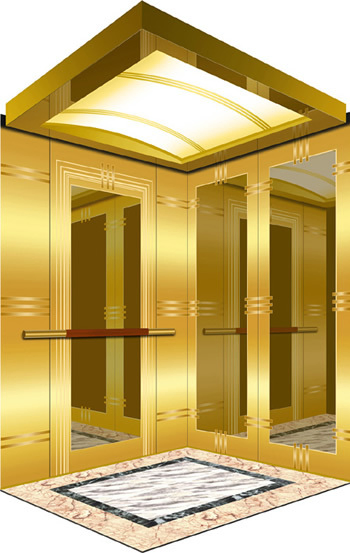

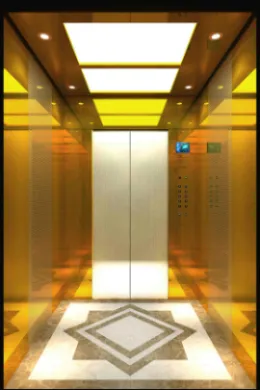

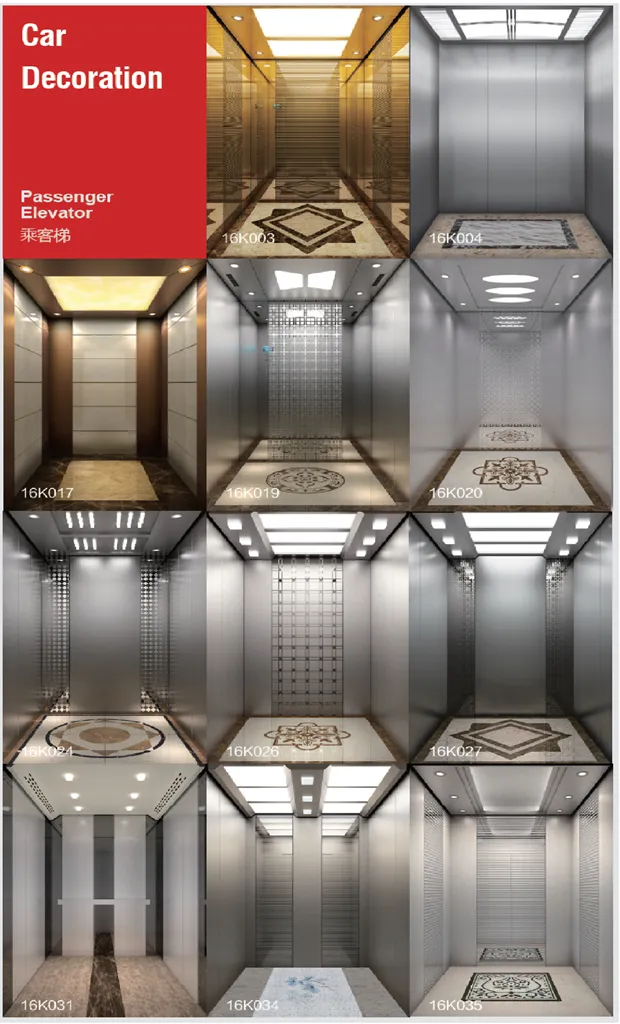

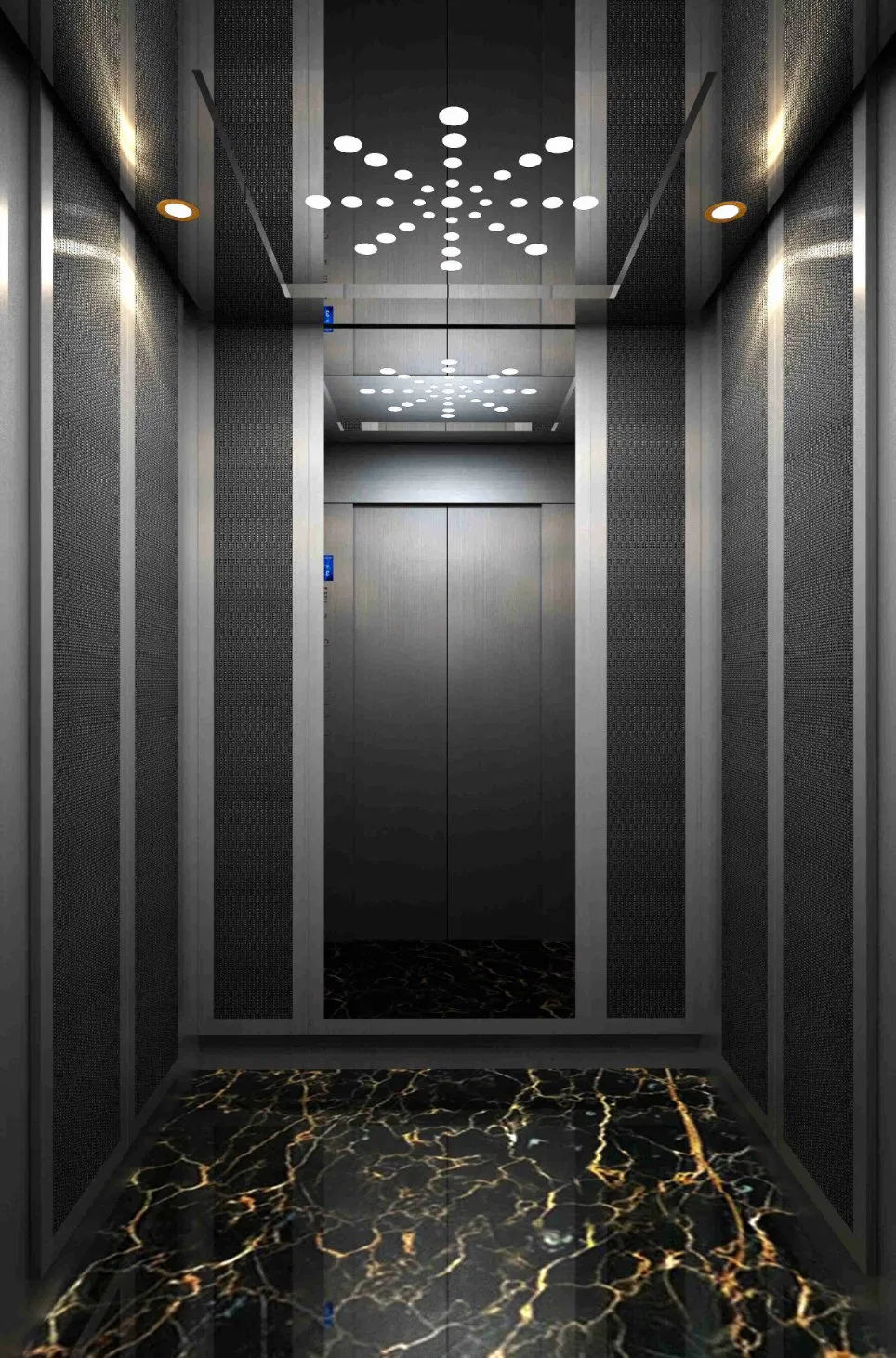

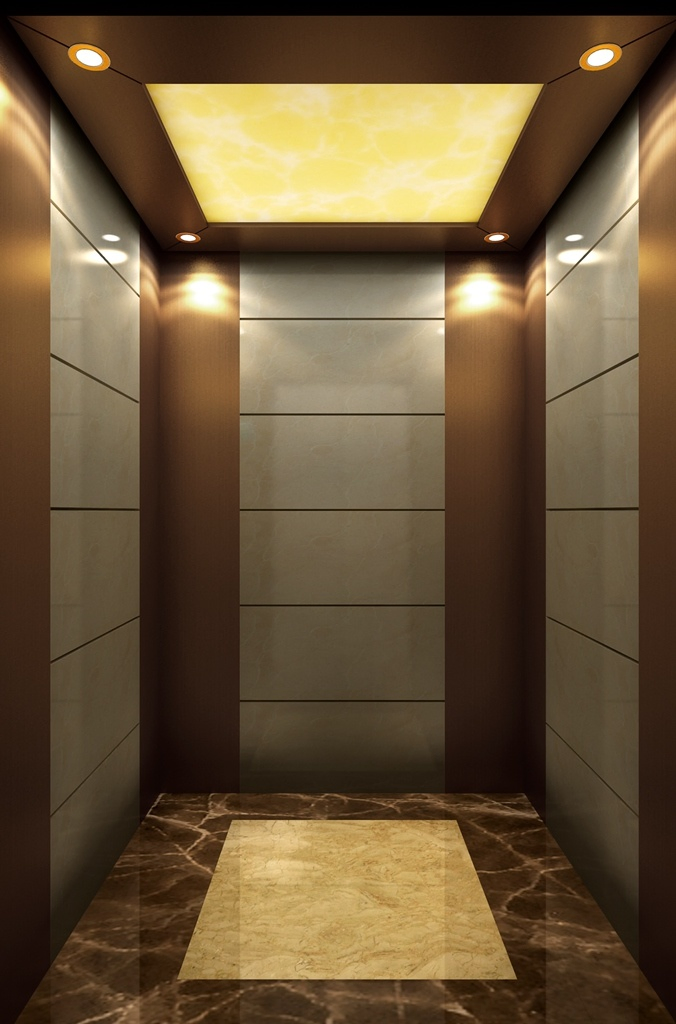

Combined with modern technology and fashion art, our passenger lift satisfies all needs of hotels, office buildings, and shopping malls, providing a safe and comfortable riding experience.
| Capacity (kg) | Speed (m/s) | Cabin Size (WxD mm) | Open Size (mm) | Shaft Size (WxD mm) | Pit Depth (mm) | Overhead (mm) | Max Travel (m) |
|---|---|---|---|---|---|---|---|
| 630 | 1.0 - 1.75 | 1400 * 1150 | 800 * 2100 | 2000 * 1800 | 1500 | 4500 | 50-90 |
| 800 | 1.0 - 2.5 | 1350 * 1400 | 800 * 2100 | 2000 * 2100 | 1500 | 4500 | 50-120 |
| 1000 | 1.0 - 2.5 | 1600 * 1400 | 900 * 2100 | 2200 * 2100 | 1500 | 4500 | 50-120 |
| 1150 | 1.0 - 2.5 | 1800 * 1400 | 1000 * 2100 | 2400 * 2100 | 1500 | 4500 | 50-120 |
| 1600 | 1.0 - 2.5 | 2000 * 1700 | 1100 * 2100 | 2600 * 2400 | 1500 | 4600 | 50-120 |
Note: Above standard specification is only for reference. If shaft size at jobsite is different, factory will design a suitable one according to your parameters.

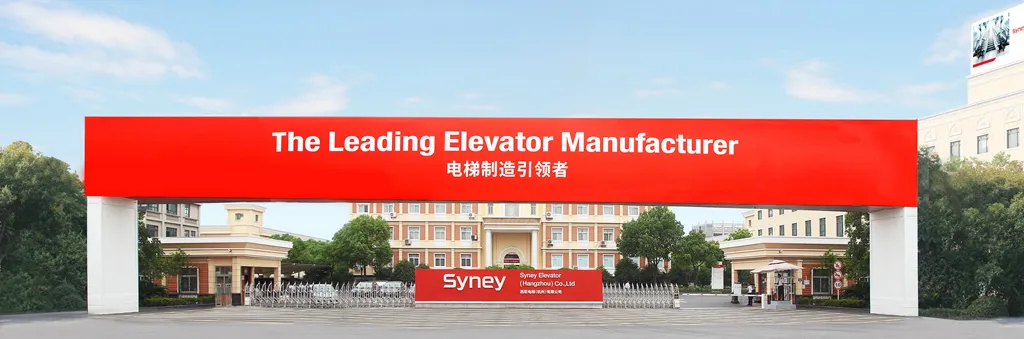

We are a professional enterprise integrating R&D, design, manufacture, marketing, installation, and customer service. We specialize in products including passenger lifts, sightseeing elevators, bed elevators, cargo elevators, and villa elevators. Our network covers over 50 countries in Europe, Asia, Africa, and America, positioning us as one of the most development-potential elevator companies.

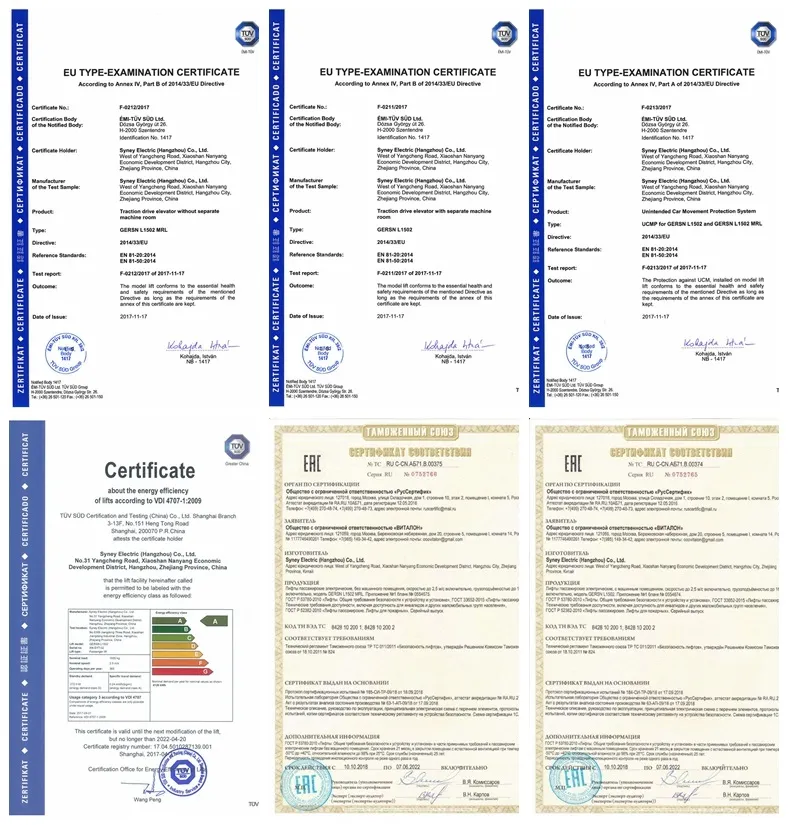

Our products have gained the Germany TÜV SÜD mark, one of the strictest certificates worldwide. This indicates our quality certification system meets international requirements for Grade A energy efficiency and safety standards including CE and EAC certificates.
