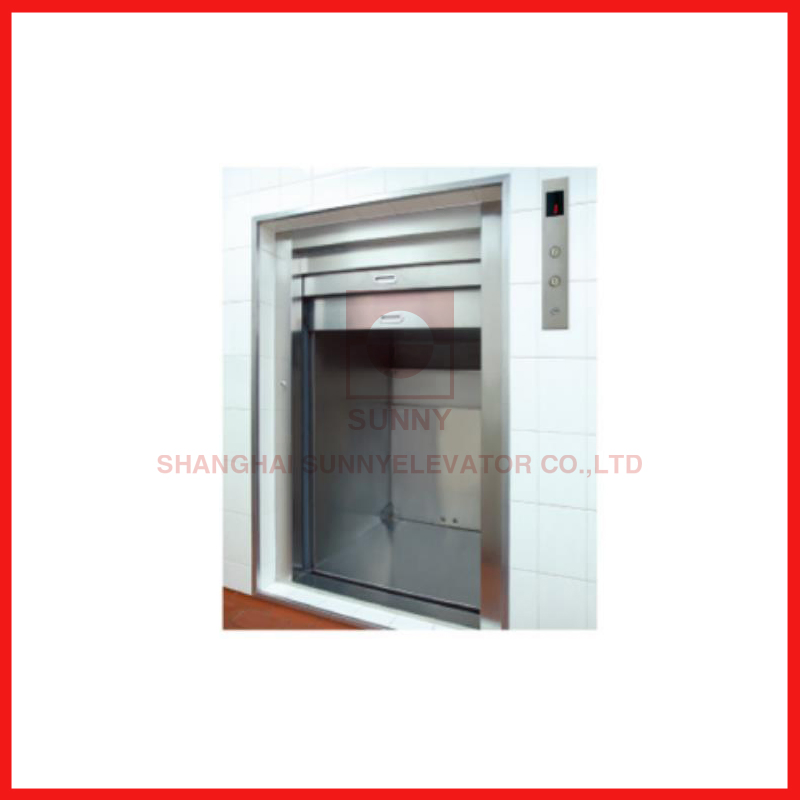

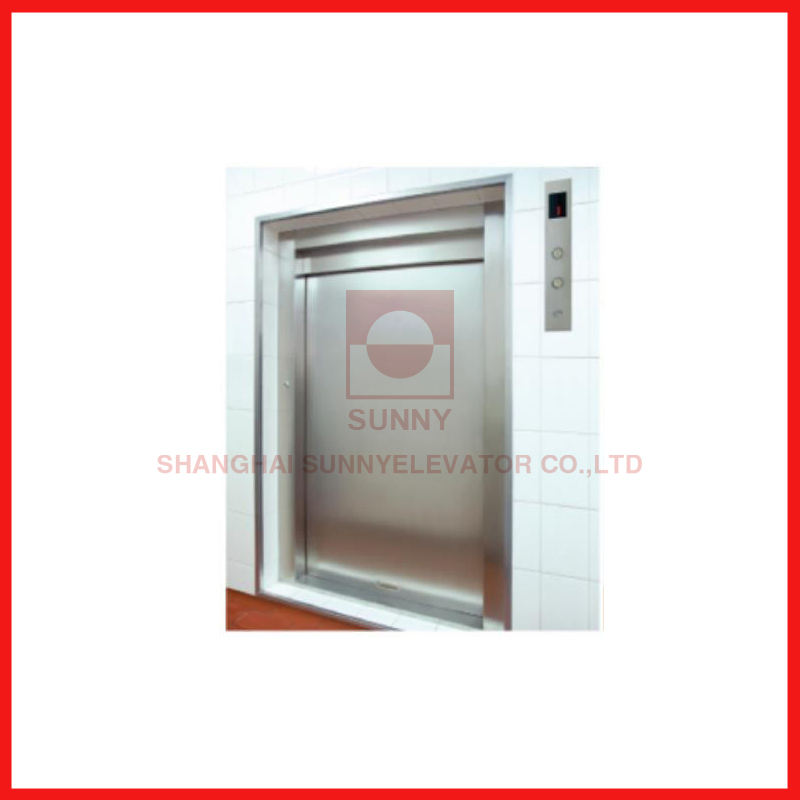

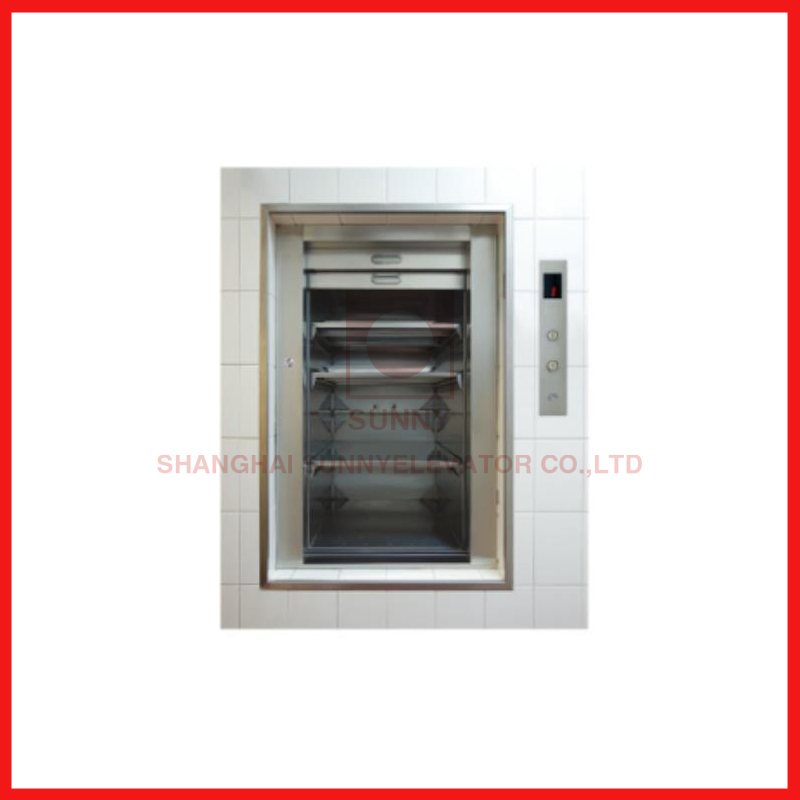

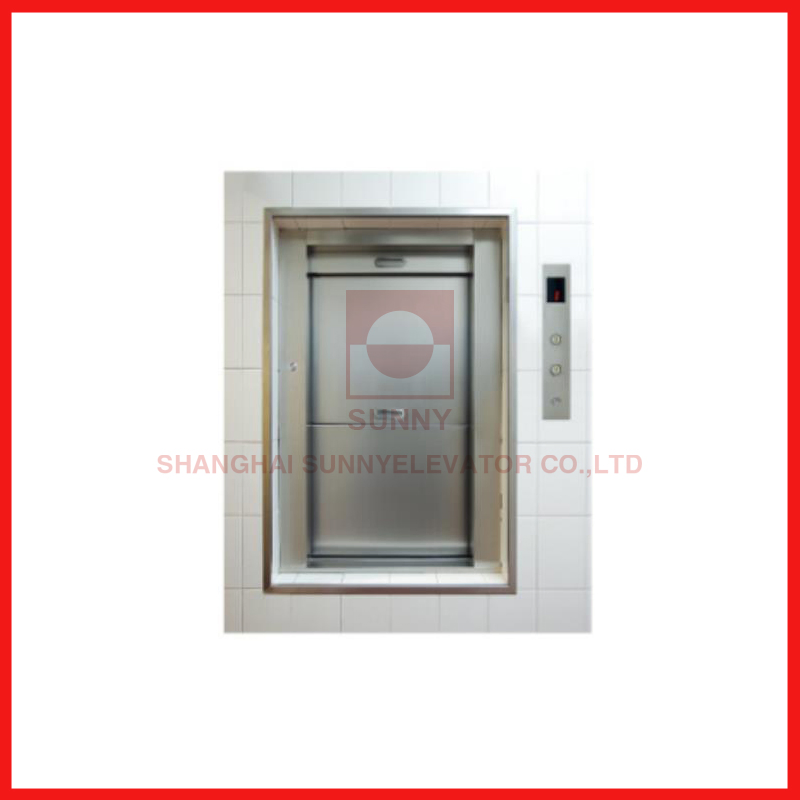

Open Sliding Door Dumbwaiter Goods Elevator Car Design
■Flexible and changeable multi-dimensional spaces
Durable products and good facilities service are very important for industrial clients. Rich experience and highly professional spirits of dumbwaiter surely help you to design the best solution plans. It enhances your operational efficiency. Dumbwaiter is perfect in every step. It accords with our promised practice.
■Economic transport shows pulse of the times
Dumbwaiter can economically, conveniently, vertically transport small goods in various buildings. Design of dumbwaiter is in accordance with building structure. Therefore it is applicable for the world. The products are ample and complete in varieties. Various cars are free for choice according to standard load rating and rated speed.

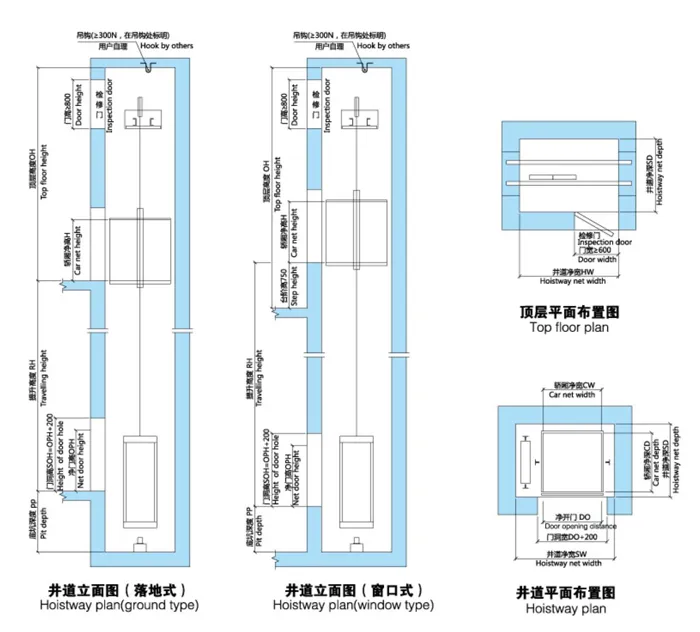

| Load(kg) | Speed(m/s) | Door opening size(mm) | Car size(mm) | Hoistway size(mm) | Door-opening type | Top floor height(mm) | Pit depth(mm) | Work type |
| 100 | 0.4 | 700*800 | 700*700 | 1250*1000 | Up/down center opening | 4000 | 750 | Window type |
| 200 | 0.4 | 800*1000 | 800*800 | 1450*1100 | 3200 | 1000 | Fall to ground | |
| 300 | 0.4 | 1000*1200 | 1000*1000 | 1550*1250 | 3200 | 1000 | Fall to ground |
