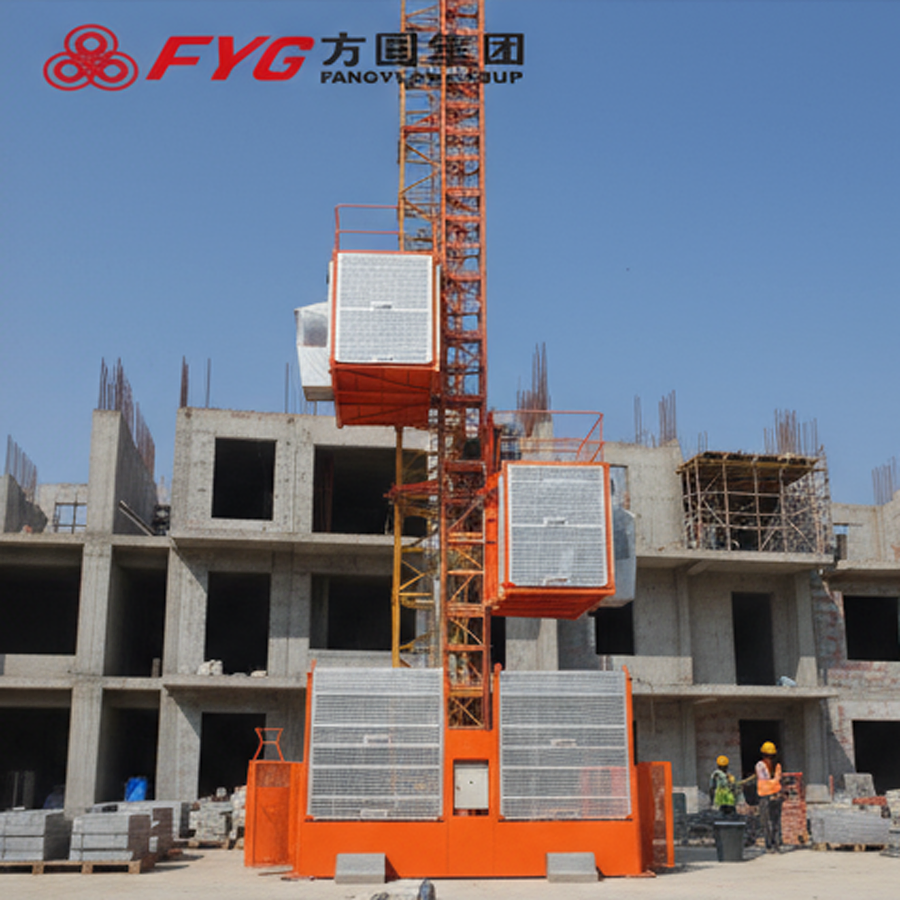

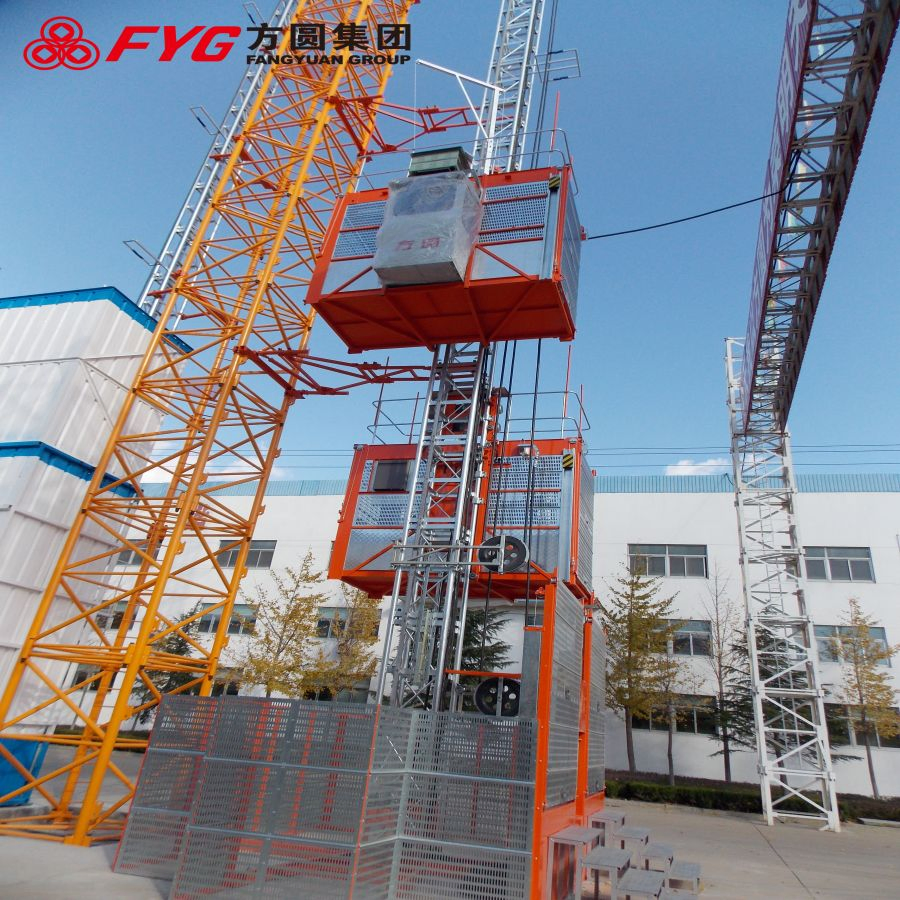

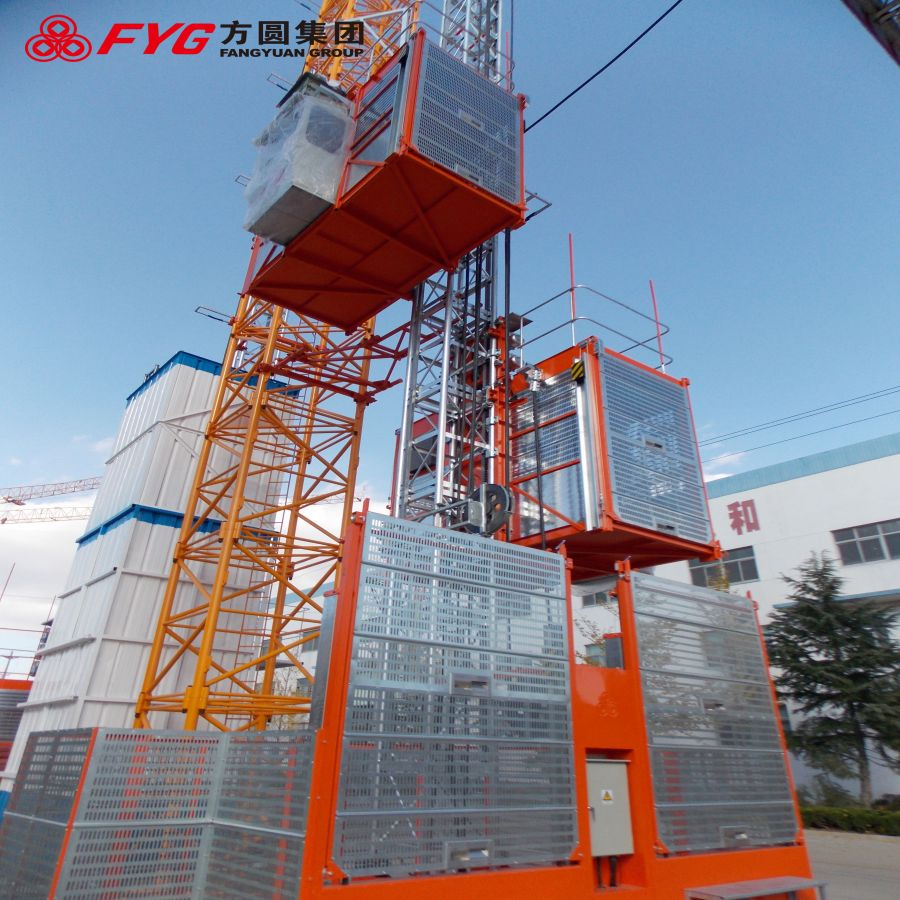

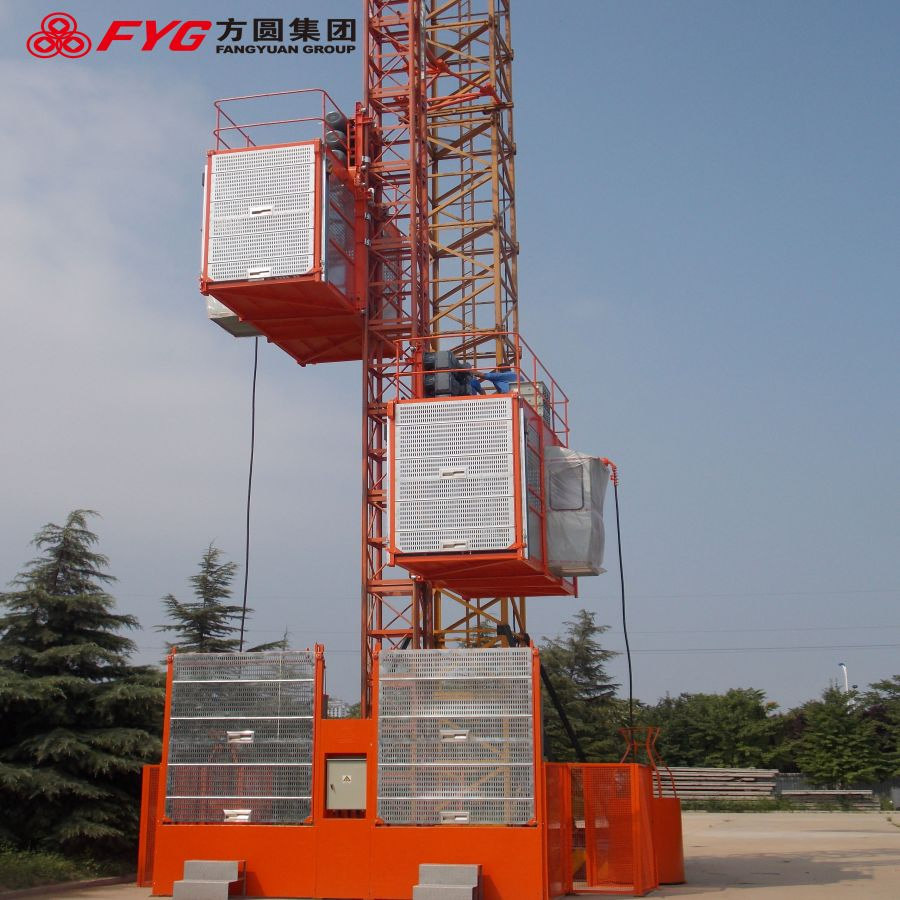

Multi-Purpose Residential Building Passenger Freight Construction Elevator
Multi-Purpose Residential Building Passenger Freight Construction Elevator
Multi-Purpose Residential Building Passenger Freight Construction Elevator
Multi-Purpose Residential Building Passenger Freight Construction Elevator
Multi-Purpose Residential Building Passenger Freight Construction Elevator
1 / 5
Multi-Purpose Residential Building Passenger Freight Construction Elevator
Multi-Purpose Residential Building Passenger Freight Construction Elevator
Multi-Purpose Residential Building Passenger Freight Construction Elevator
Multi-Purpose Residential Building Passenger Freight Construction Elevator
Multi-Purpose Residential Building Passenger Freight Construction Elevator

Multi-Purpose Residential Building Passenger Freight Construction Elevator

Customization: Available
After-sales Service: Provided
Warranty: 1year
Send Inquiry

Product Description

📋

Basic Information

Model NO.
SC200/200
Type
Construction Elevator
Load Capacity
1T - 2T
Speed
20M/Min - 40M/Min
Usage
Construction Hoist
Drive / Actuation
Electric Motor
Transport Package
Bulk
HS Code
8428909090
Production Capacity
1,000 Sets/Year
🚀

Product Description & Features

The cage drive system is equipped with buffering device, so the cage moves more stable.
The ergonomically designed cage interior improves comfortableness.
The unique structural design has applied for patent.
The typical technologies ensure the malposition difference of the guide rail.
The excellent parts in the industry ensures reliable quality of the machine.
Precise assembly and accurate drive.
Professional solutions for special projects.
The complete safety devices ensures reliable control system.
📊

Technical Specifications

Model Unit SC200/200 SC200/200BP SCD200/200 SC200/200B
Configuration - Standard type Frequency conversion Counterweight type Export type
Rated load kg 2000/2000 2000/2000 2000/2000 2000/2000
Cage size L× W× H m 3× 1.3× 2.2 3× 1.3× 2.2 3× 1.3× 2.2 3× 1.3× 2.2
Passengers - 16/16 16/16 16/16 16/16
Max. lifting height m 150 300 150 150
Max. height of free end m 9 9 9 9
Lifting speed m/min 33 0~60 33 33
Capacity of small hoist kg 200 200 200 200
Std. section L× W× H mm 650× 650× 1508
Electric motor Type - Disc brake electic motor
Power kW 11× 3/11× 3 11× 3/11× 3 11× 2/11× 2 11× 3/11× 3
Speed limiter Action speed m/s 1.2 1.45 1.2 1.2
Rated brake load kN 40 40 30 40
🖼️

Product Gallery

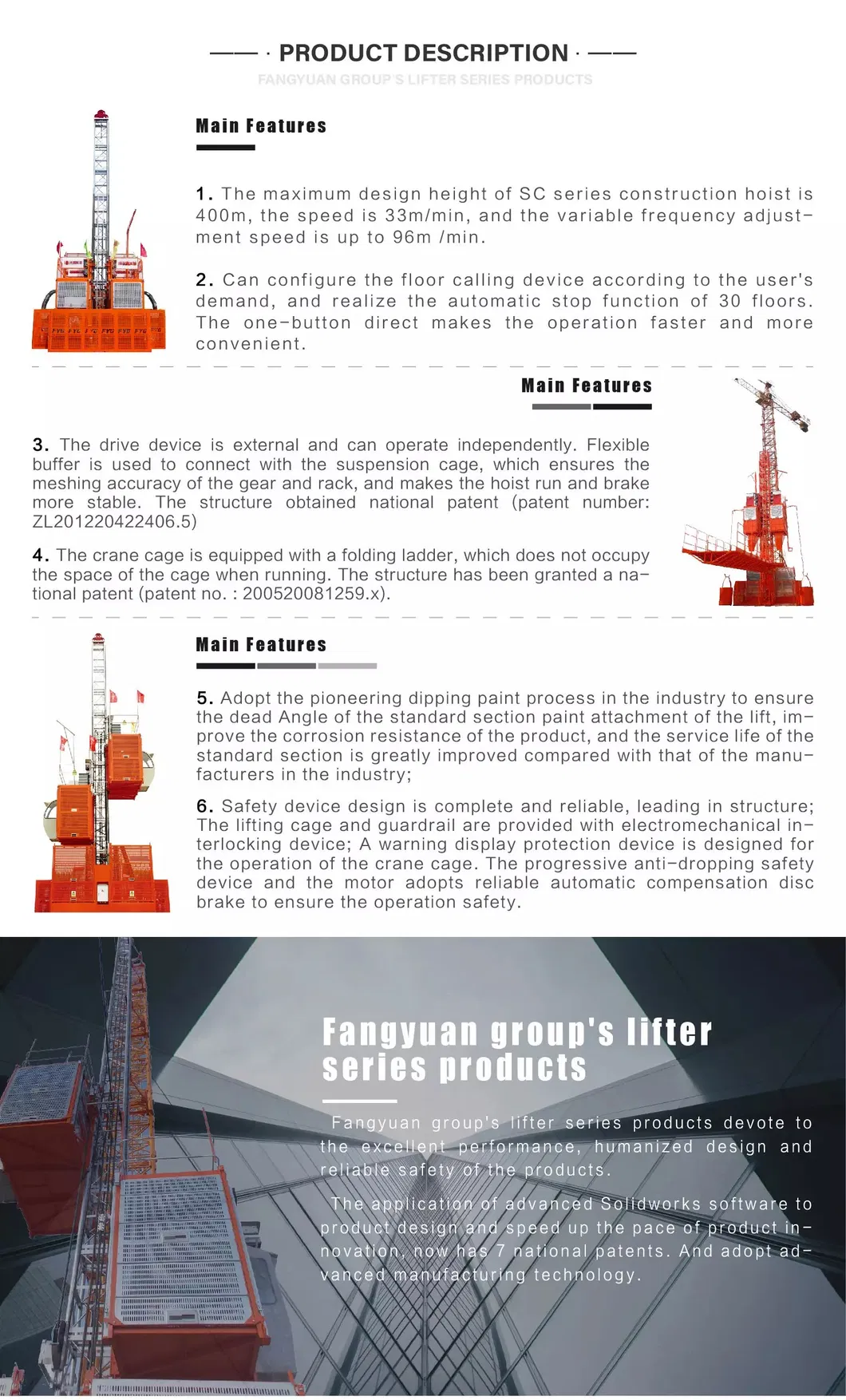

Passenger Freight Construction Elevator View 1

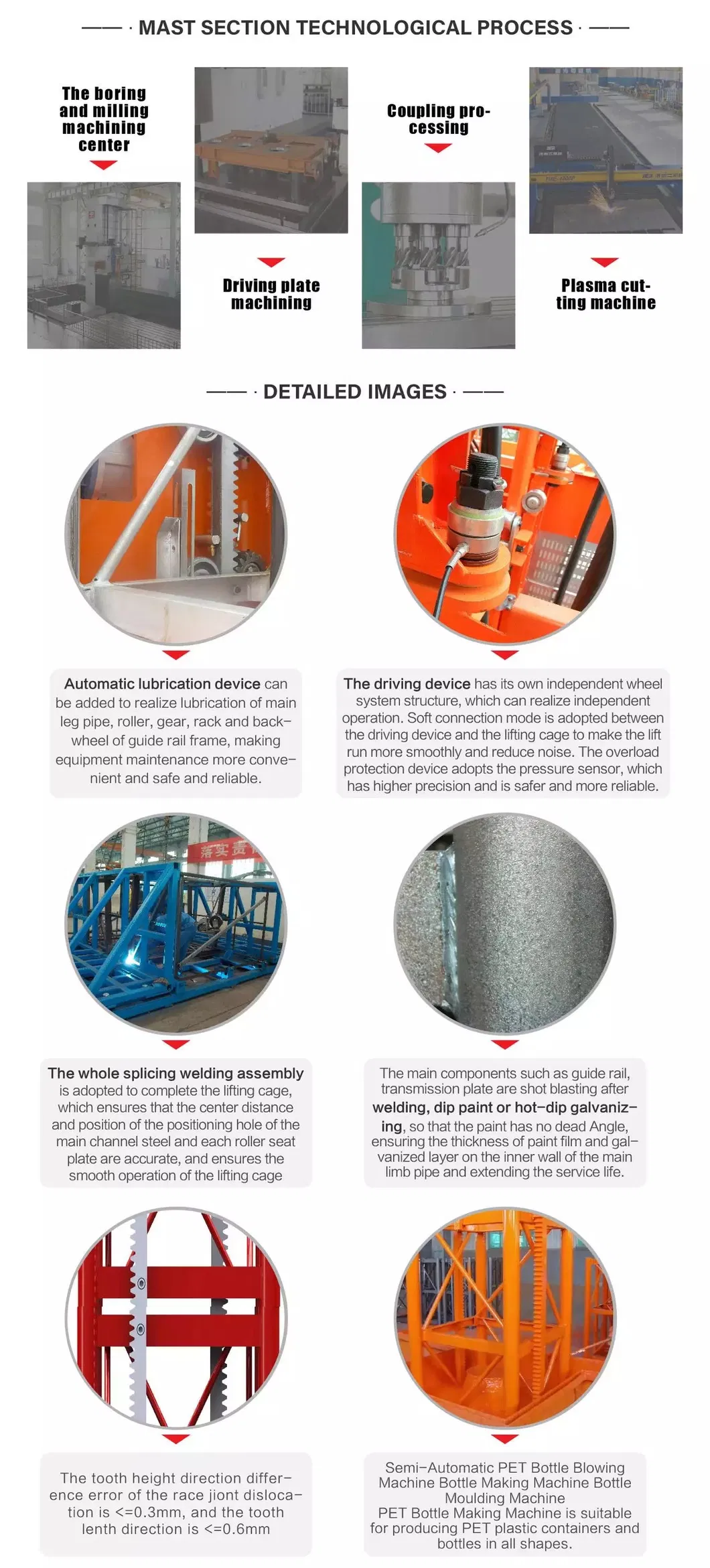

Passenger Freight Construction Elevator View 2
Passenger Freight Construction Elevator View 3
Passenger Freight Construction Elevator View 4
❓

Frequently Asked Questions

What is the maximum load capacity of the SC200/200 model?
The SC200/200 model features a dual-cage design with a rated load capacity of 2000kg (2 tons) per cage.
What safety features are included in this construction elevator?
It is equipped with a comprehensive safety system, including a speed limiter (progressive safety device), disc brake electric motors, buffering devices, and electronic limit switches.
Can the lifting speed be adjusted?
Yes, we offer the SC200/200BP model which uses frequency conversion technology, allowing for smooth speed adjustment from 0 to 60 m/min.
What are the standard dimensions of the elevator cage?
The standard cage size for the SC200/200 series is 3.0 meters in length, 1.3 meters in width, and 2.2 meters in height.
What is the maximum lifting height achievable?
The standard maximum lifting height is 150 meters, while the frequency conversion (BP) model can reach up to 300 meters.
What power supply is required for the electric motors?
The system typically uses high-performance disc brake electric motors, with common configurations being 3x11kW per cage.
