We are a professional elevator and escalator factory in China, integrating design, manufacture, sales, after-service, installation, and maintenance into a whole. Each of our staff members has extensive experience in the elevator and escalator field. Our engineers design the best solutions for each customer using high technology.
Every day, customers in more than 20 countries worldwide enjoy a ride experience that is safe, efficient, and energy-saving.

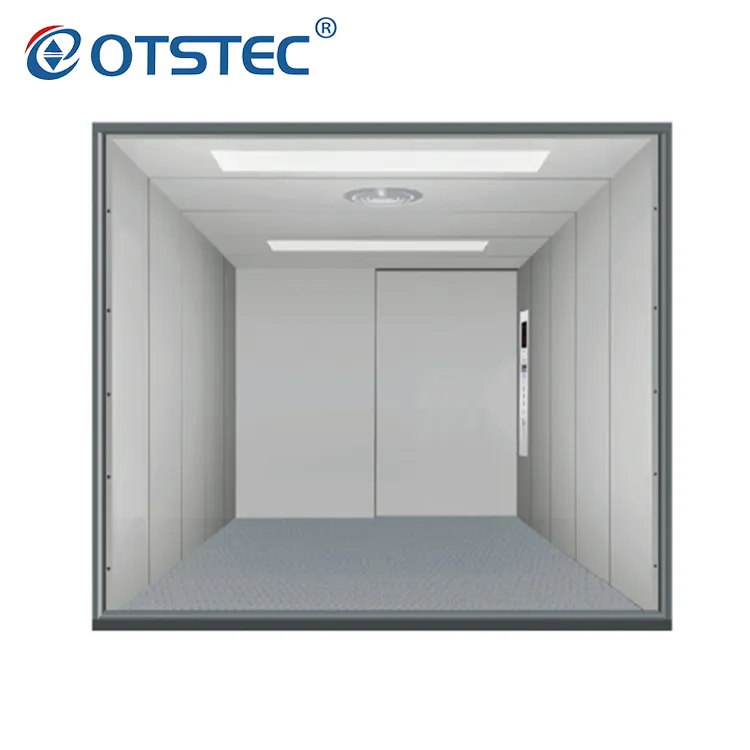

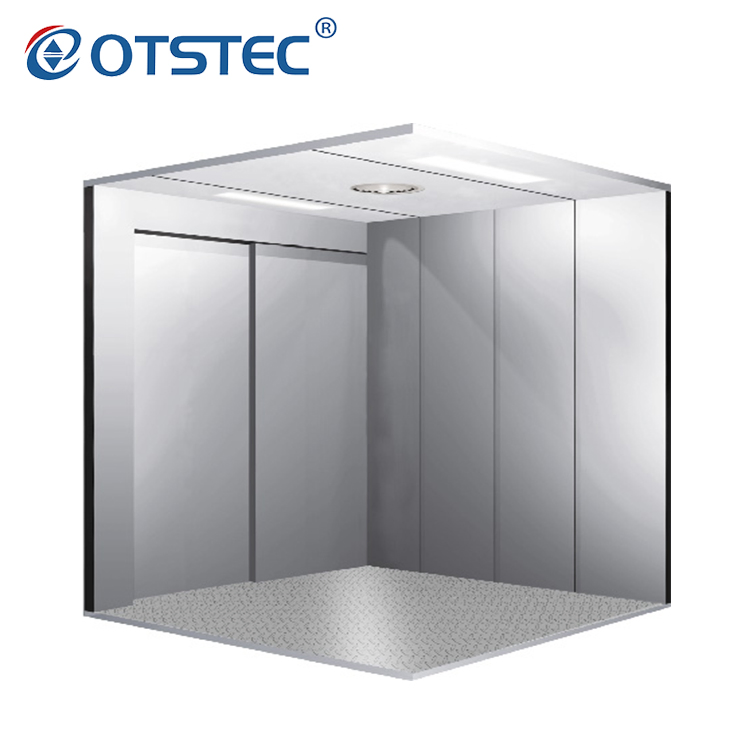

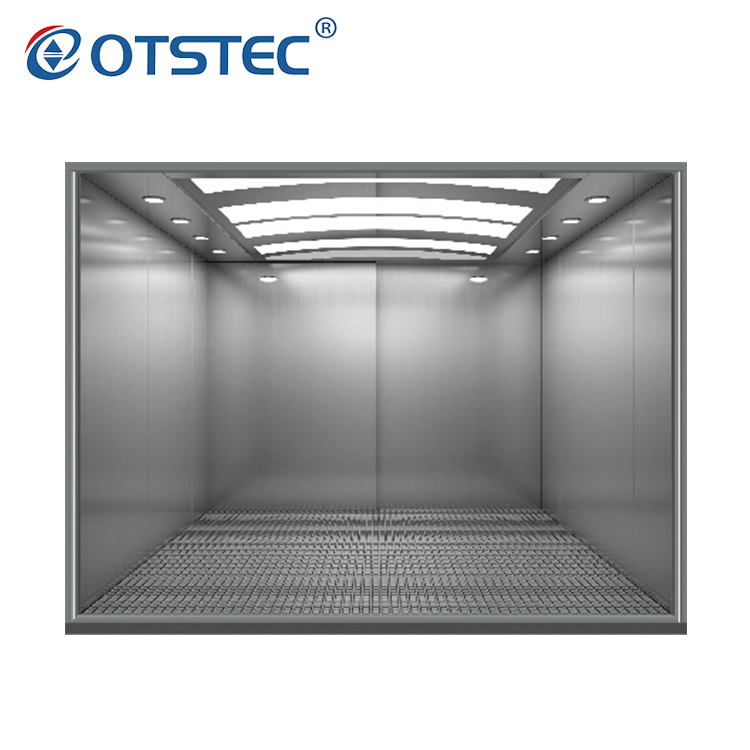

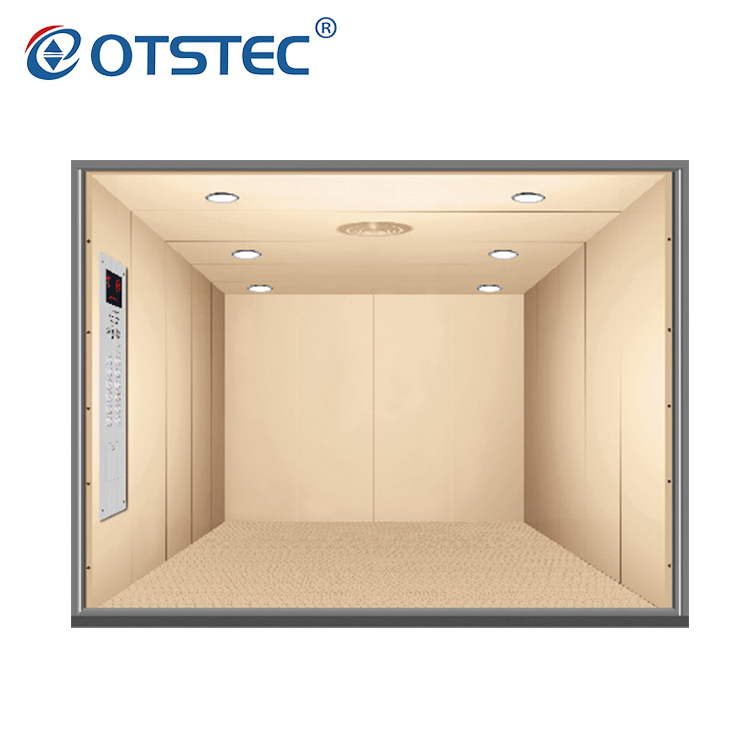

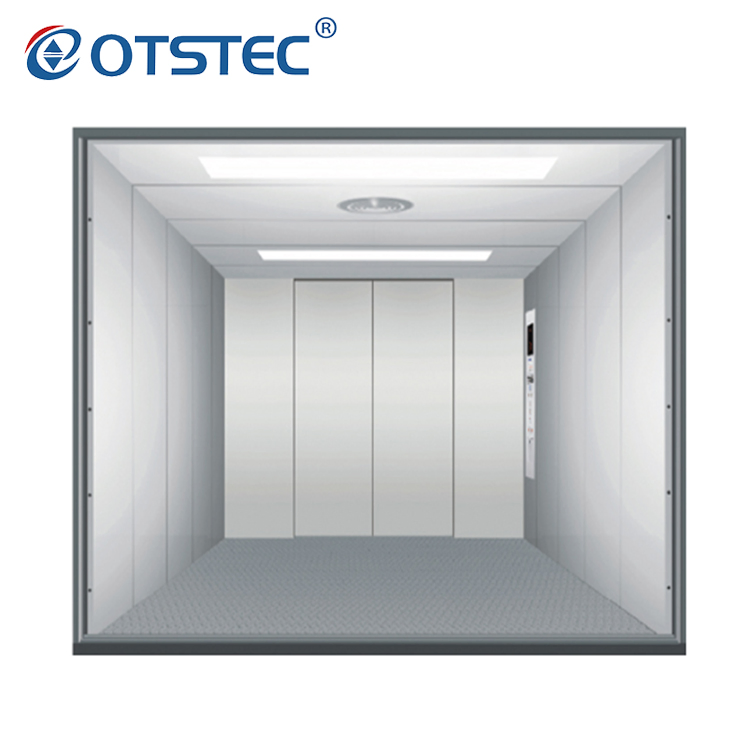

FREIGHT/CARGO ELEVATOR PARAMETERS (Machine Room)
| Load(kg) | Speed(m/s) | Door Type | Car Size (mm) | Door Open (mm) | Hoist-way (mm) | Pit Depth (mm) |
|---|---|---|---|---|---|---|
| 1000 | 0.5/1.0 | Center/Side | 1400x1600 | 1000x2100 | 2200x2100 | 1400 |
| 1600 | 0.5/1.0 | Center/Side | 1500x2300 | 1300x2100 | 2400x2800 | 1400 |
| 2000 | 0.5 | Center/Side | 1900x2200 | 1600x2200 | 2950x2700 | 1500 |
| 3000 | 0.5 | Center/Side | 2200x2550 | 1800x2200 | 3300x3050 | 1600 |
| 5000 | 0.25/0.5 | Center | 2500x3500 | 2400x2200 | 4000x4000 | 1600 |

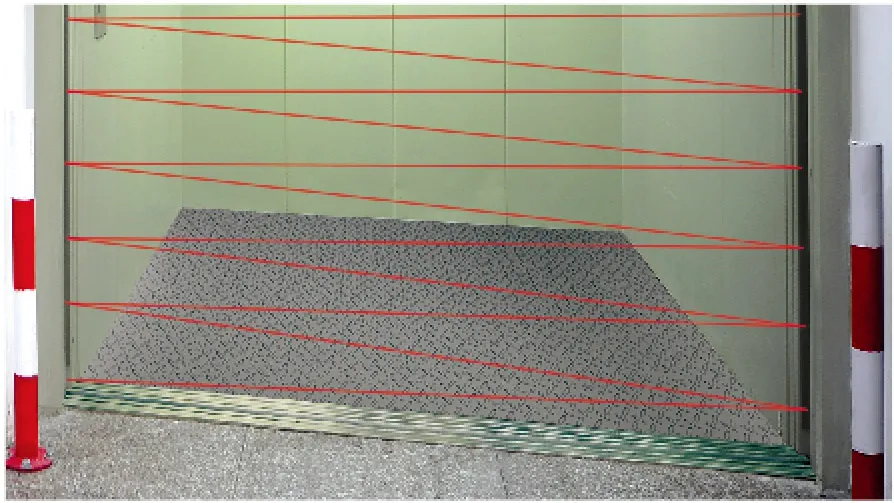

Light Curtain Protection
It forms a light curtain protection screen in the elevator entry and sensitively reacts to any object that enters the probing range, efficiently protecting the safety of both passengers and freight.

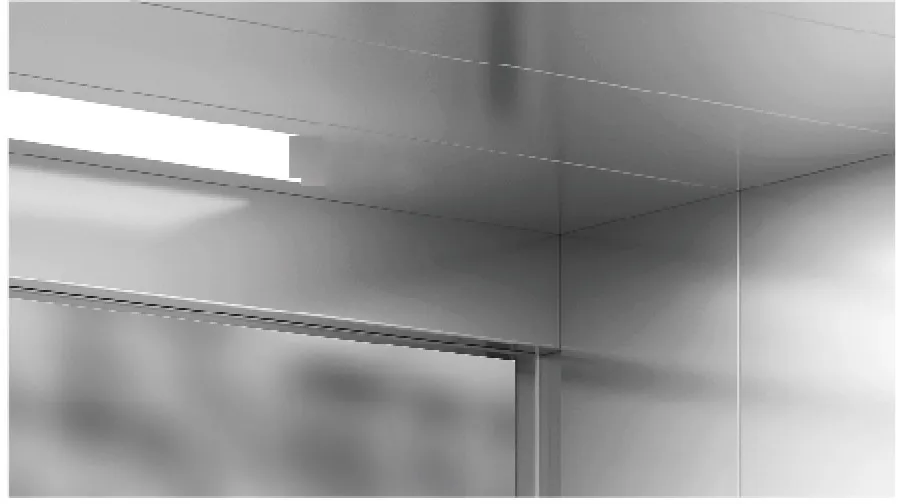

High-strength Materials
Our freight elevators apply high-intensity section materials for car manufacturing and implement special reinforcement designs for the car platform, ensuring durable and anti-ageing performance.

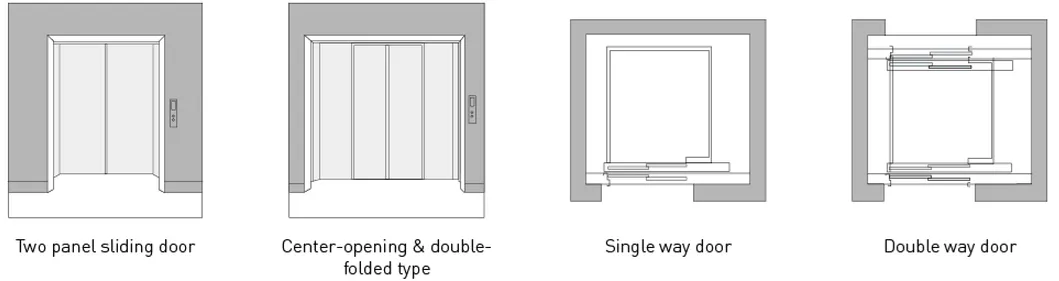

Multiple Door Opening Modes
To satisfy different entry/exit requirements, we offer four door opening modes: side opening, center opening double-folded door, one-way door opening, and opposite door opening. It flexibly matches factories, warehouses, and shopping centers.
We use the best components for our elevators: gearless motors from XIZI, door operators from Shenling or Wittur, and control systems from Monarch or STEP. All parts come from the world's largest and most reputable suppliers.
Our strict management ensures that elevators are installed without issues, and our designs guarantee stable and efficient operation.
