Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up
Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up
Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up
Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up
Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up
1 / 5
Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up
Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up
Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up
Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up
Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up

Joylive Heavy Load 10000kg Residential Goods Cargo Lift Freight Elevator for Supermarket Stock up

Customization: Available
After-sales Service: Online Technical Guidance
Warranty: 12 Months After Installation Finished
Send Inquiry

Product Description

📊

Basic Info & Specifications

Model NO.
Freight Elevator
Type
Wellhole
Load Capacity
1000-5000kg, 7000-20000kg
Speed
0.5m/S, 1m/S, 1.5m/S
Drive Mode
VVVF
Control System
Monarch
Traction Machine
AC/Gearless Permanent Magnet Synchronous Motor
Certification
ISO/CE/Saso
Travel Height
Max 75m
Elevator Door
Side/Center Open
🏗️

Heavy Load Freight Elevator

Expertly designed for heavy-duty logistics, this series provides auxiliary planning for large vehicle transportation, equipment warehousing, and distribution with a maximum load capacity of 20 tons. It supports automatic dispatching between elevators and AGVs (Automated Guided Vehicles), ensuring efficient transport across floors and solving vertical space transportation obstacles.

Heavy Load Cargo Lift

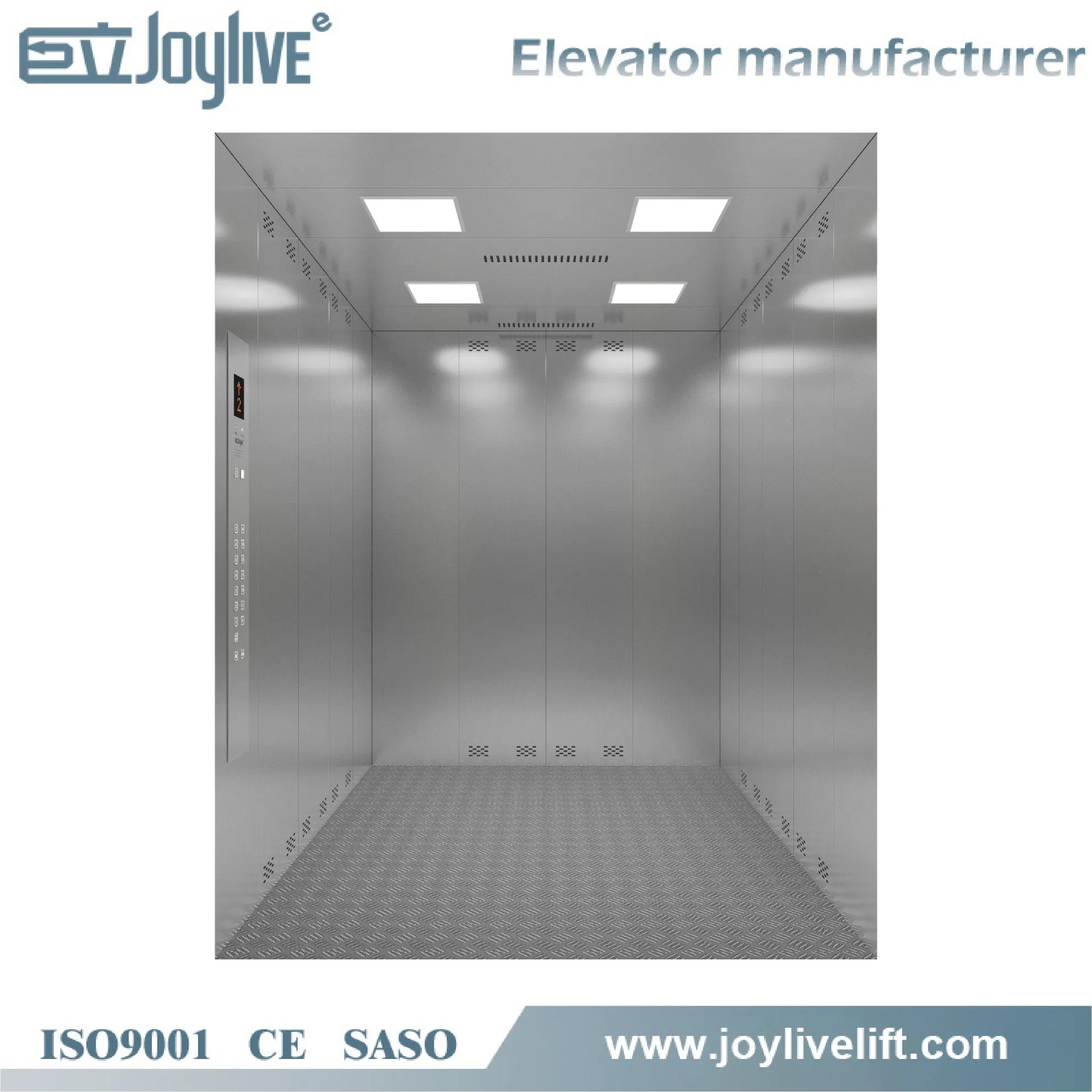

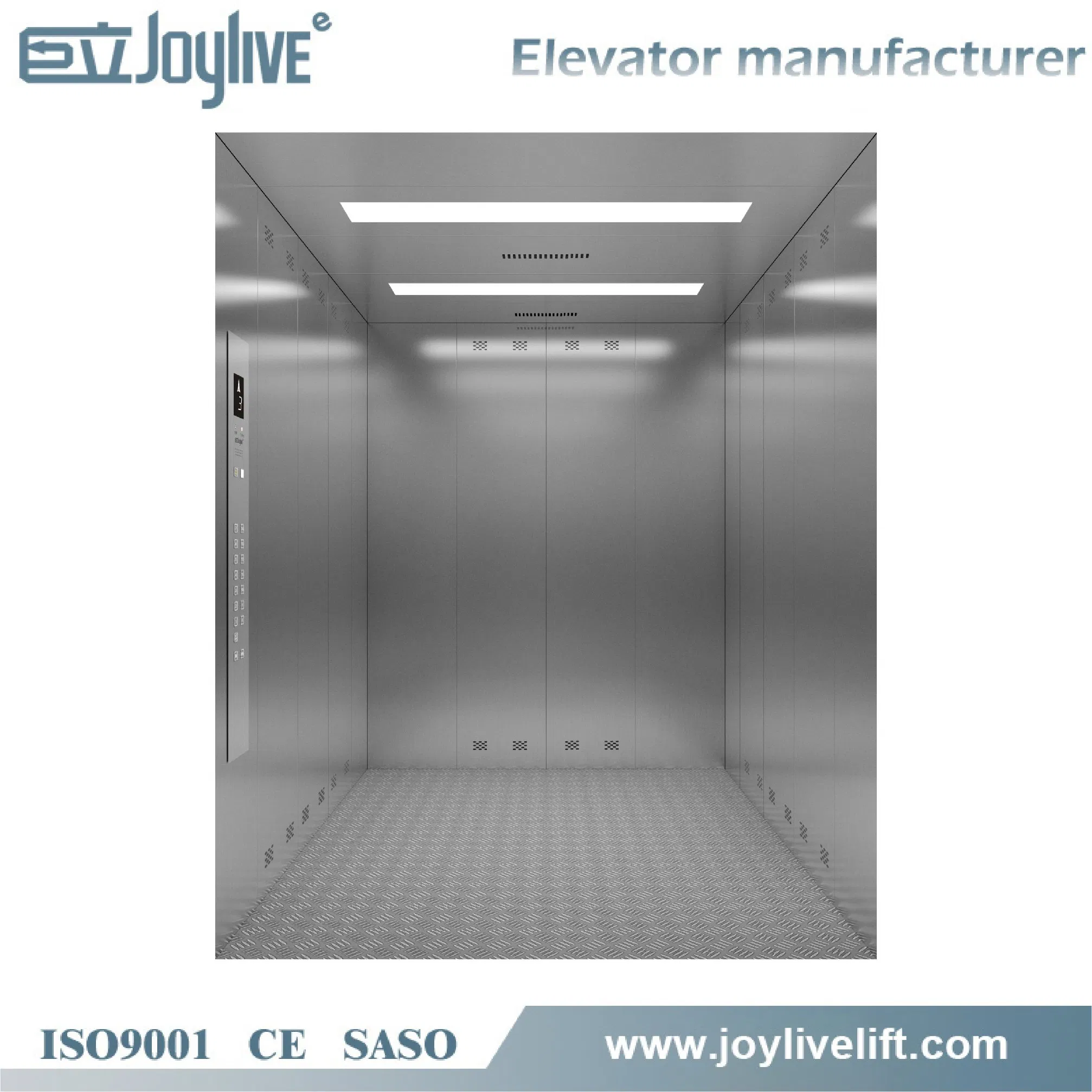

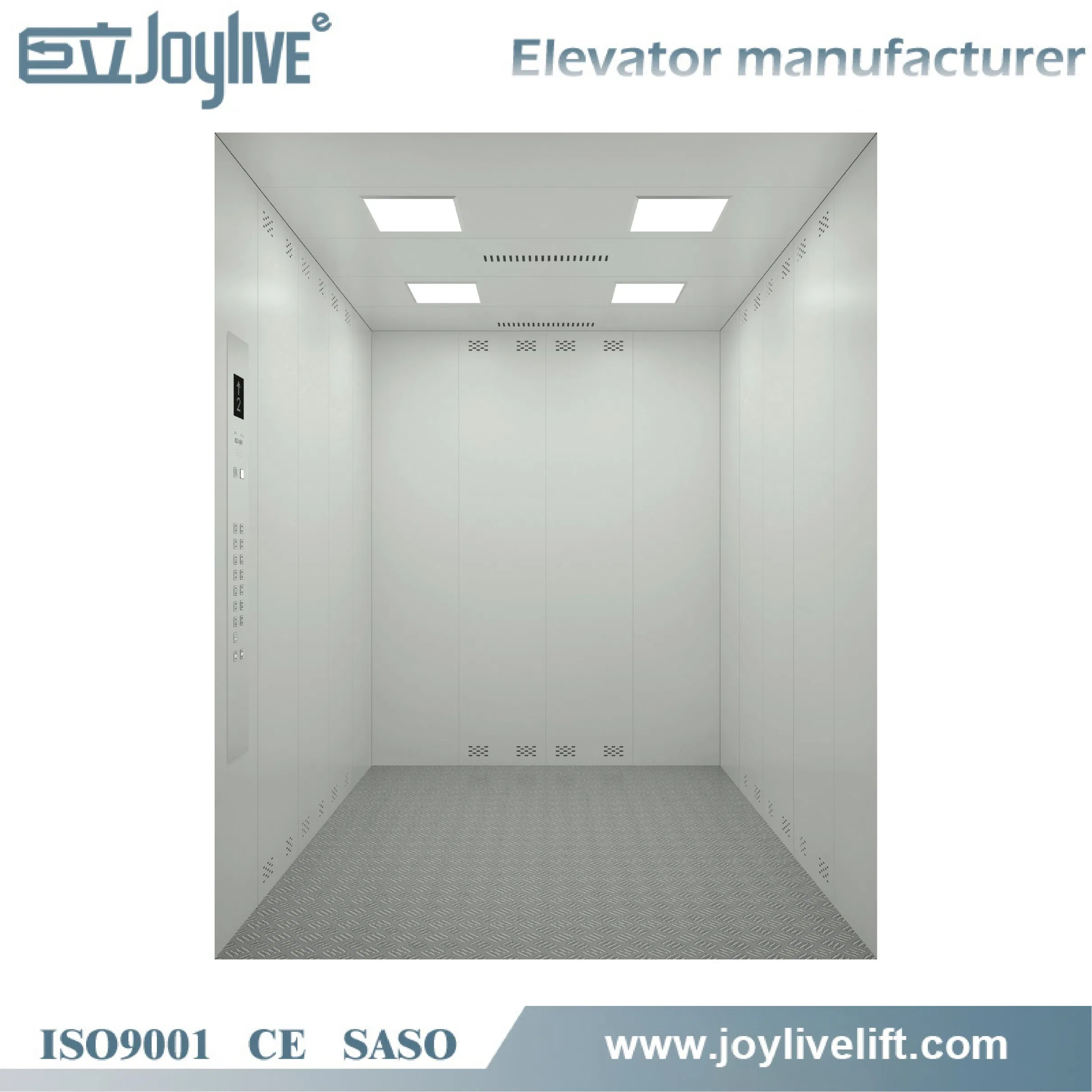

Freight Elevator Details

Standard Decoration:

  • Ceiling: Powder coated steel, LED Lighting
  • Cabin Wall: Hairline stainless steel, Powder coated steel
  • Floor: Chequered steel plate
📋

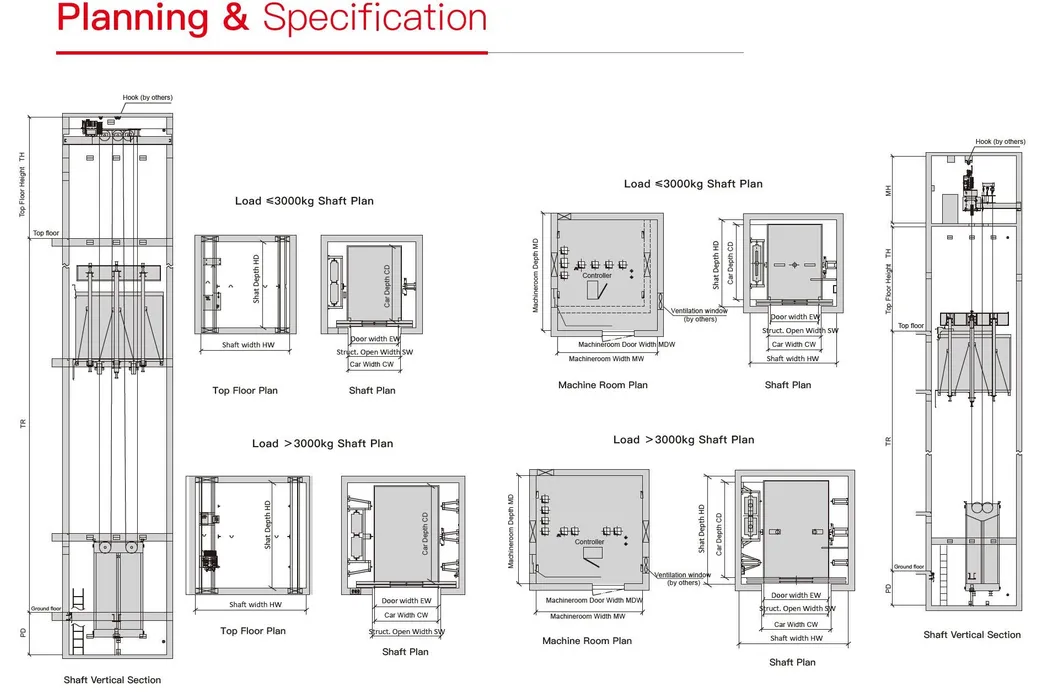

Technical Parameters (MR & MRL)

Machine Room (MR) Freight Elevator Data:

Load (kg) Speed (m/s) Cabin Size (CW×CD) Door Opening (EW×EH) Shaft Size (HW×HD) Pit Depth Top Height
10000.5/1.01400×17001200×21002250×210015004300
20000.5/1.01700×24001700×21002900×285015004300
30000.5/1.02000×28001800×21003350×325015004300
50000.25/0.52400×36002400×23004050×405016004800
100000.53400×49003000×30005300×520020005750
200000.54600×70004000×35006400×765025005800
⚙️

Core Safety & Operational Functions

VVVF Drive System
Over-load Protection
Light Curtain Protection
Emergency Light & Alarm
Fault Diagnosis
Anti-slip Protection
Fire Emergency Return
Full Collective Control
UCMP Protection
ARD (Auto Rescue Device) - Optional
❓

Frequently Asked Questions

1. What is the maximum load capacity for this freight elevator?
The elevator supports a wide range of loads, starting from 1000kg up to heavy-duty 20000kg (20 tons) for industrial applications.
2. Are both Machine Room (MR) and Machine Roomless (MRL) options available?
Yes, we provide both MR and MRL configurations to suit different building architectures and space-saving requirements.
3. Can the elevator be integrated with Automated Guided Vehicles (AGV)?
Yes, our systems feature automatic dispatching technology that allows seamless interaction between the elevator and AGVs for automated factory logistics.
4. What safety features are included as standard?
Standard safety features include VVVF drive, over-load protection, light curtain protection, over-speed protection, and fire emergency return systems.
5. What is the maximum travel height for these elevators?
Our freight elevators are capable of reaching a maximum travel height of up to 75 meters.
6. Is the cabin decoration customizable for harsh environments?
Standard cabins use hairline stainless steel or powder-coated steel with chequered steel plate floors for durability in cargo-heavy environments. Custom configurations can be discussed with engineers.
