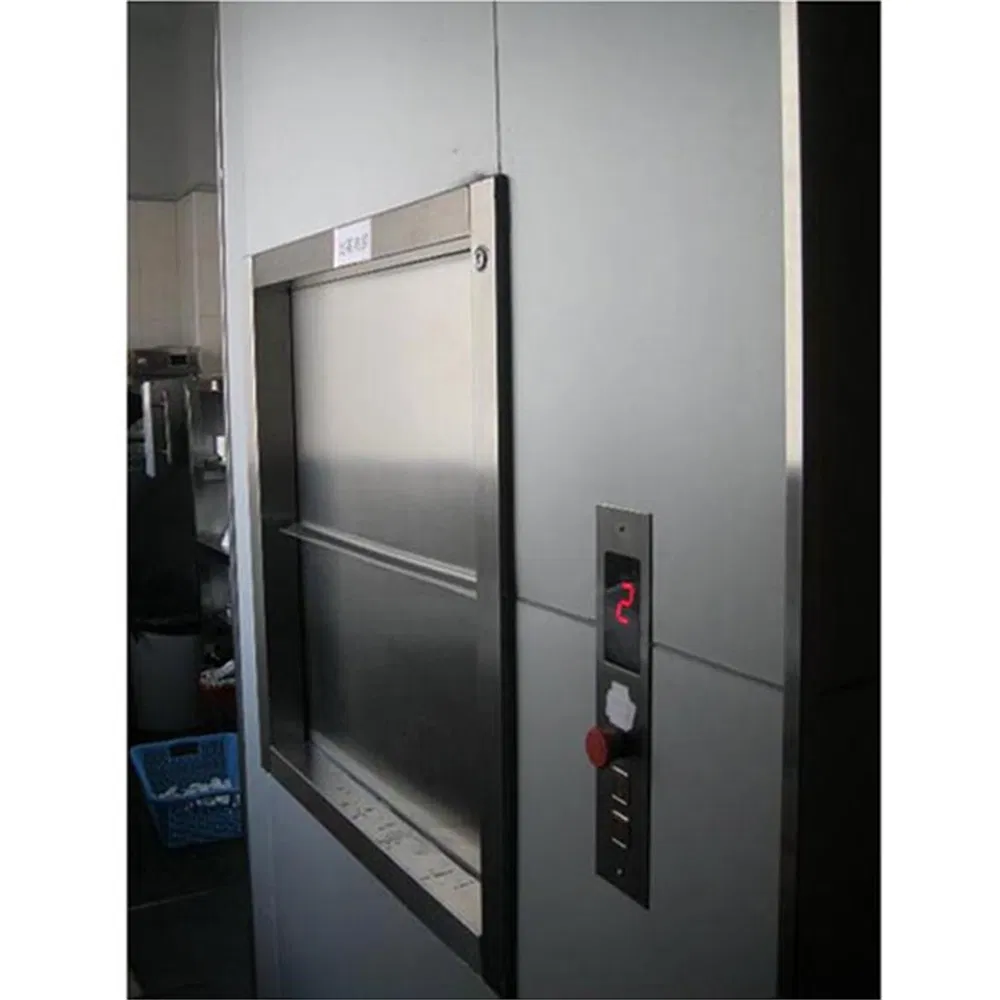

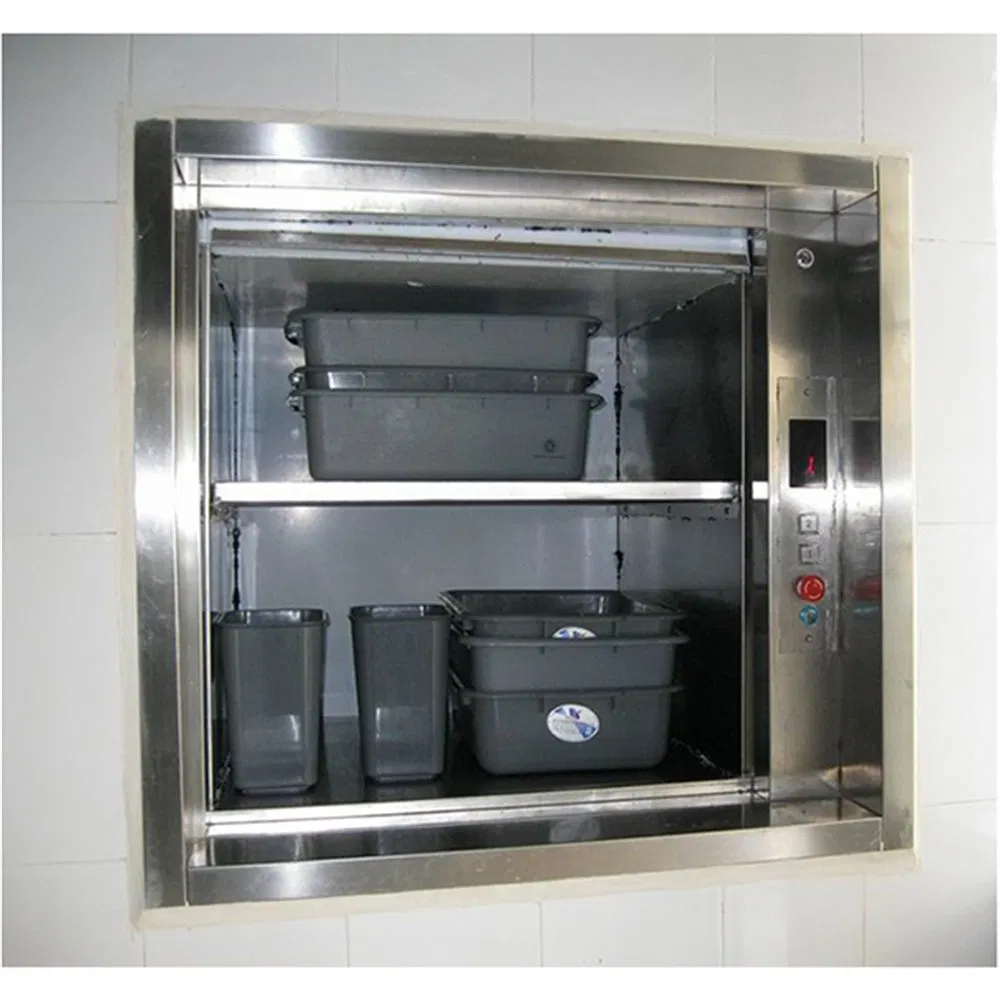

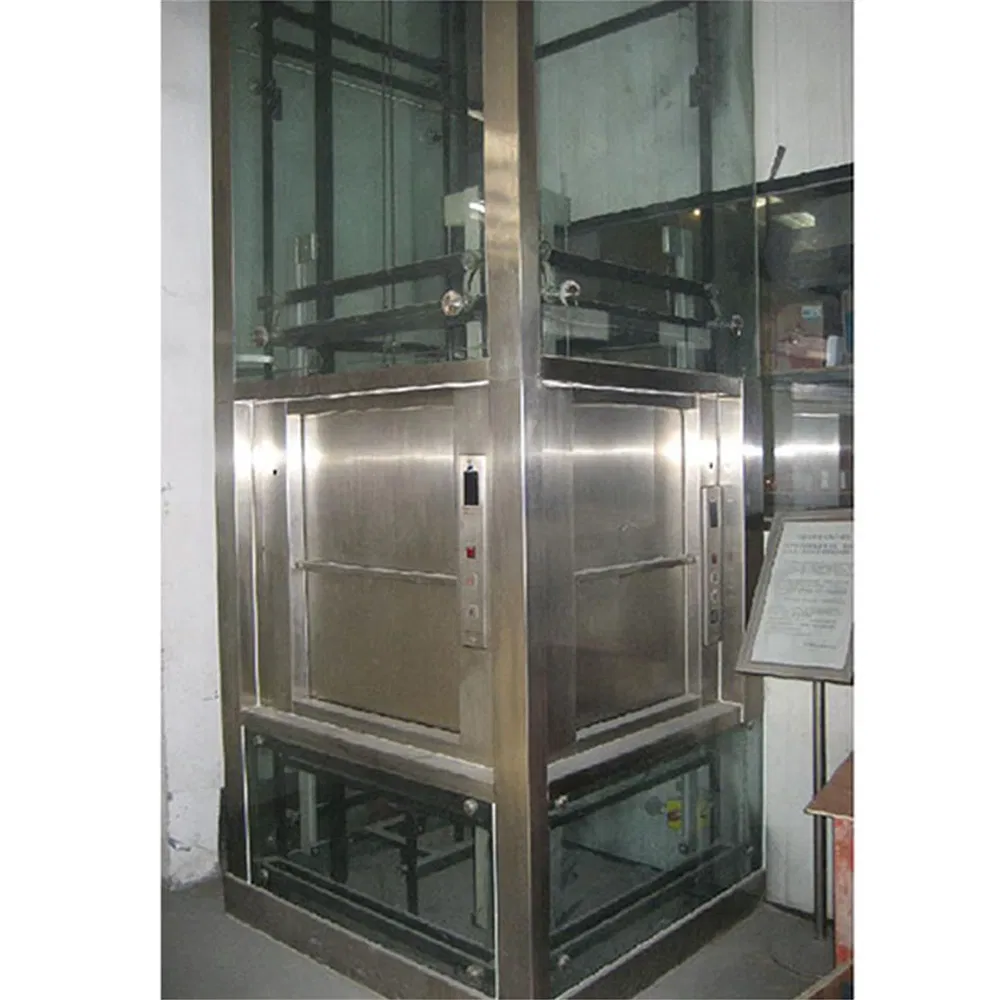

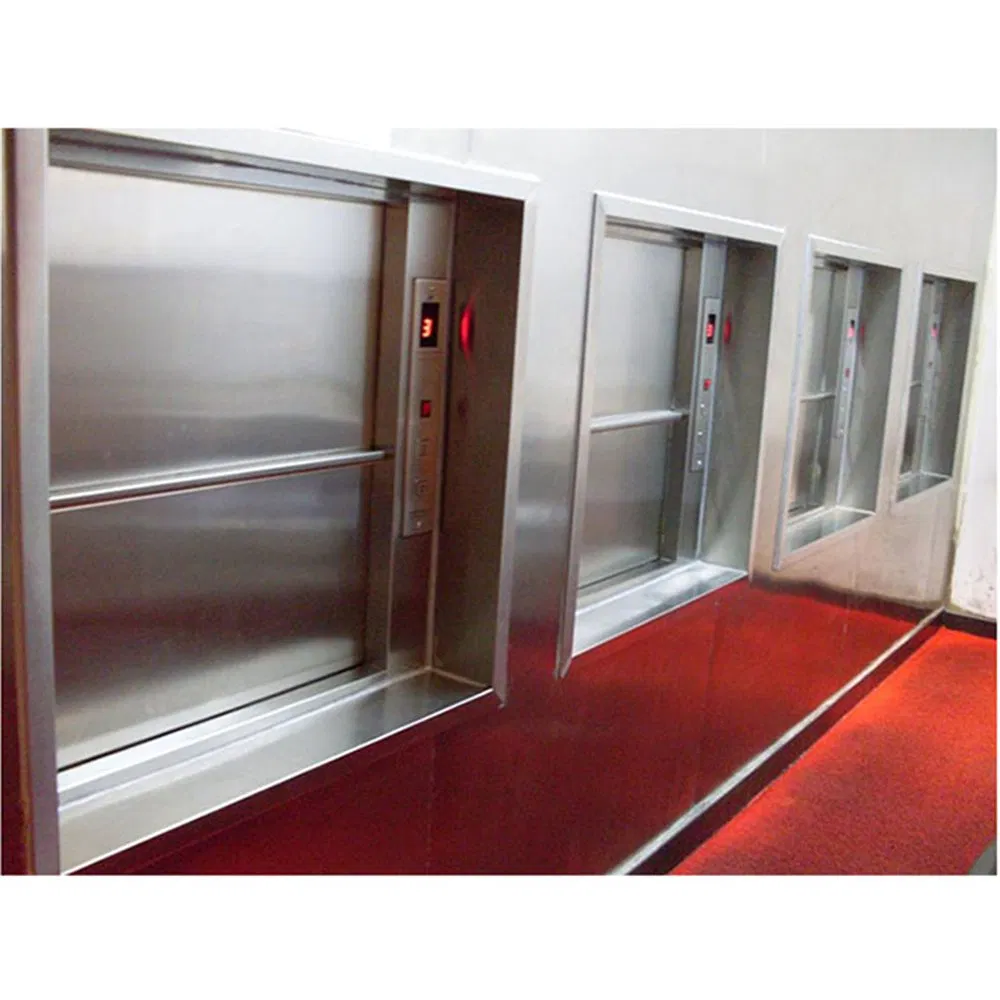

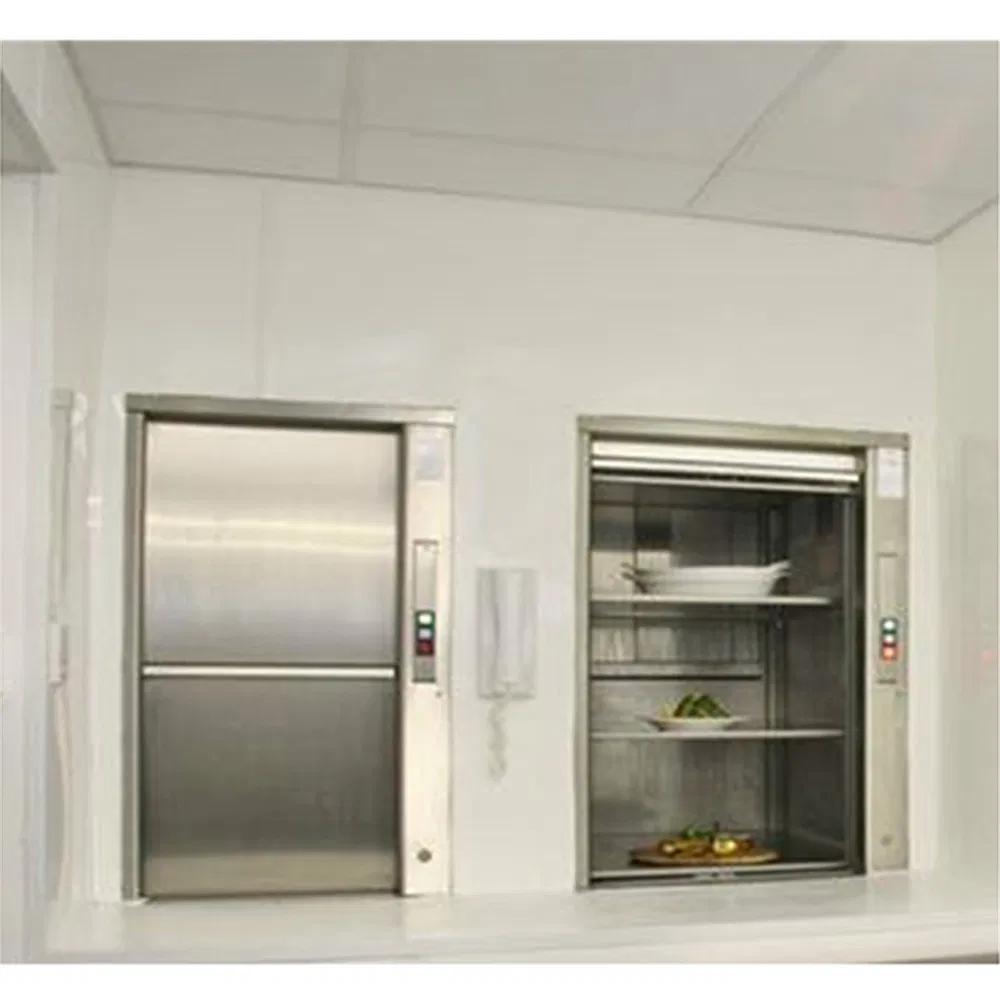

ISO Certification 500kg Home Used Food Dumbwaiter Elevator provides an efficient solution for transporting food, documents, or small goods across multiple floors. Constructed with durable stainless steel and featuring a space-saving machine roomless design.
| Load(KGS) | Type | Cabin Clear Size (mm) | Shaft Clear Size (mm) | Overhead Height | Pit Depth | Entrance Reserved Size | Motor Power(KW) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A(W) | B(D) | C(H) | D(W) | E(D) | F | G | H | |||||
| 100 | Window | 750 | 750 | 900 | 1250 | 900 | >=3600 | - | 750 | 1000 | 600 | 1.1 |
| 100 | Trolley | 750 | 750 | 900 | 1250 | 900 | >=3600 | 600 | 750 | 1000 | - | 1.1 |
| 200 | Window | 900 | 900 | 1000 | 1400 | 1100 | >=3600 | - | 900 | 1100 | 800 | 1.5 |
| 200 | Trolley | 900 | 900 | 1000 | 1400 | 1100 | >=3600 | 800 | 900 | 1100 | - | 1.5 |
| 250 | Window | 950 | 950 | 1000 | 1450 | 1150 | >=3600 | - | 950 | 1100 | 800 | 2.2 |
| 500 | Trolley | 1100 | 1100 | 1200 | 1600 | 1300 | >=3600 | 1200 | 1100 | 1300 | - | 4 |
