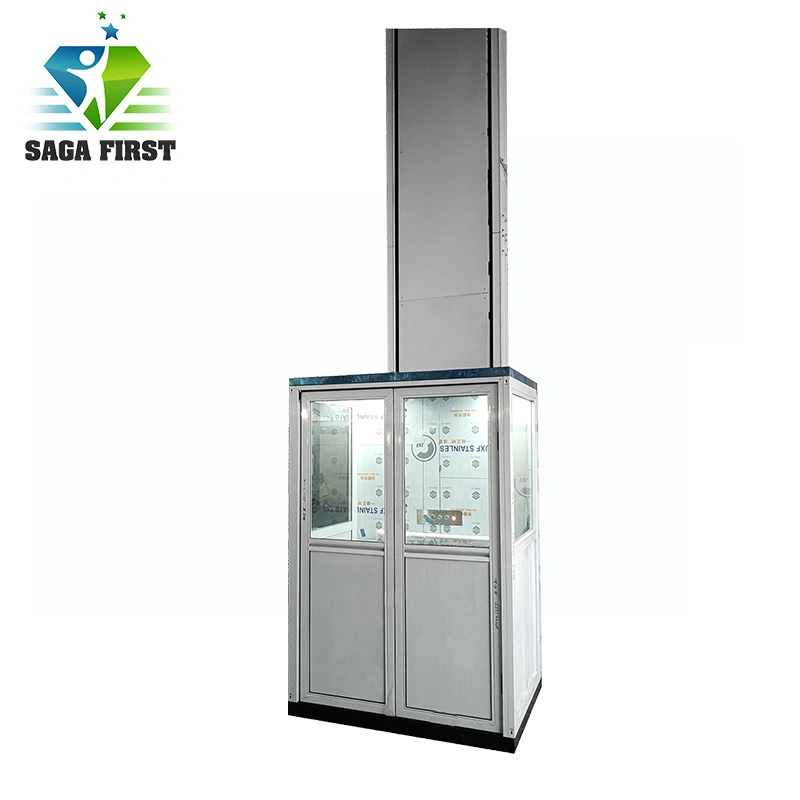

Ascom Elevator
1 / 5
| Model Type | AWL2510 | AWL2520 | AWL2530 | AWL2540 | AWL2550 | AWL2560 |
|---|---|---|---|---|---|---|
| Max. Platform Height | 1000mm | 2000mm | 3000mm | 4000mm | 5000mm | 6000mm |
| Load Capacity | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg |
| Platform Size | 1430*1000mm skid proof checkered steel | |||||
| Speed | 0.06~0.1m/s | |||||
| Power Output | 1.1~2.2KW | |||||
| Materials | Aluminium rails and guard with spraying plastics | |||||
The wheelchair lift adopts common hardware parts. You can easily purchase these from your local hardware market, or we can send them via express.
The equipment has a very low failure rate. If an issue occurs, we provide detailed video guides and instructions to help you perform repairs easily.
We provide an 18-month quality guarantee. If any parts fail due to quality issues within this period, we will provide replacements free of charge.
No, this lift is designed for no-pit installation. It can be installed directly on the floor, making it easy to set up or remove.
Yes, it is designed for both indoor and outdoor use, with a working temperature range of -20°C to 70°C.
The lift includes an emergency descending system, overload protection (over current relay), and safety guards with aluminum rails.
