Model: XW-K06

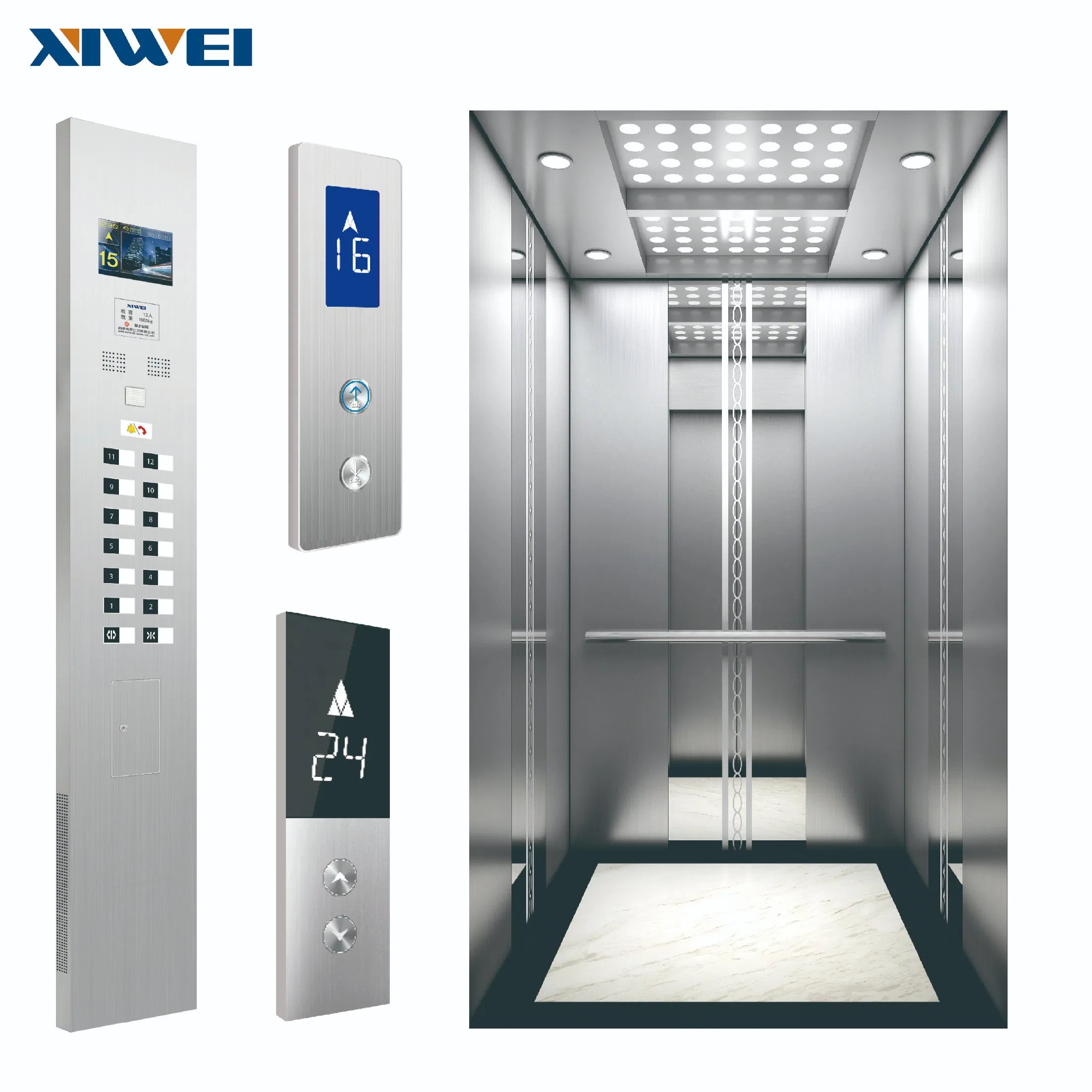

Our passenger lift combines modern technology with fashion art, satisfying all needs for hotels, office buildings, and shopping malls, providing a safe and comfortable riding experience.
| Rated Load (kg) | Rated Speed (m/s) | Net Car Size (CWxCD) | Net Door Size (DWxPH) | Hoistway Size (HWxHD) | Pit Depth (PD) | Overhead (OH) |
|---|---|---|---|---|---|---|
| 450 | 1.0 / 1.5 / 1.75 | 1100 x 1150 | 700 x 2100 | 1850 x 1600 | 1500 - 1700 | 4700 - 4900 |
| 630 | 1.0 / 1.5 / 1.75 | 1200 x 1300 | 800 x 2100 | 2000 x 1750 | 1500 - 1700 | 4700 - 4900 |
| 800 | 1.0 - 2.5 | 1400 x 1400 | 800 x 2100 | 2100 x 1800 | 1500 - 2100 | 4700 - 5300 |
| 1000 | 1.0 - 2.5 | 1600 x 1500 | 900 x 2100 | 2300 x 1900 | 1500 - 2100 | 4700 - 5300 |

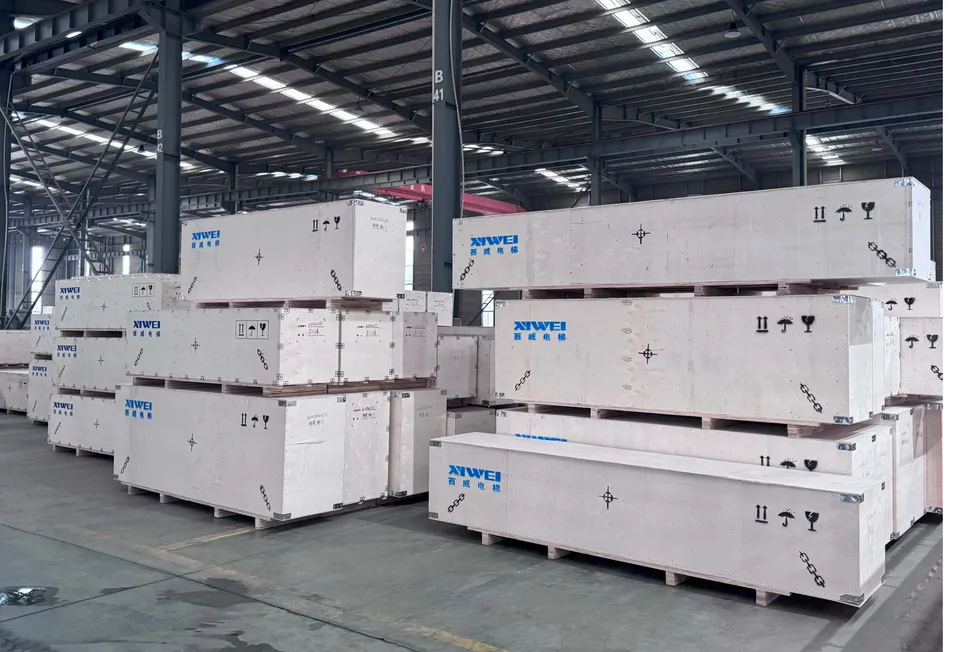

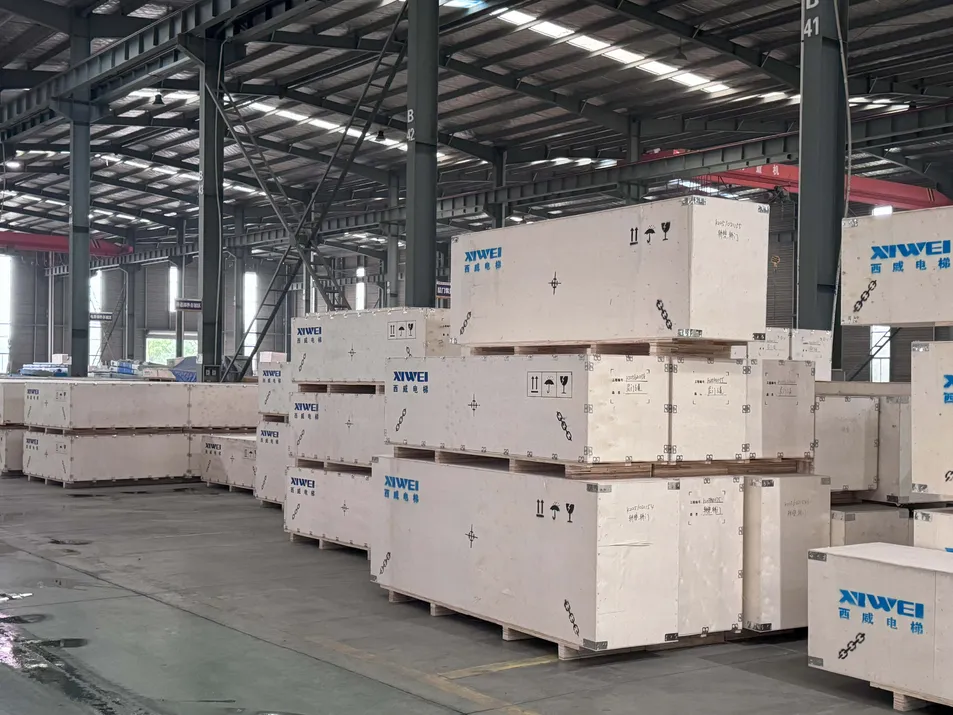

Estimated Shipping Times:
Warranty Period:

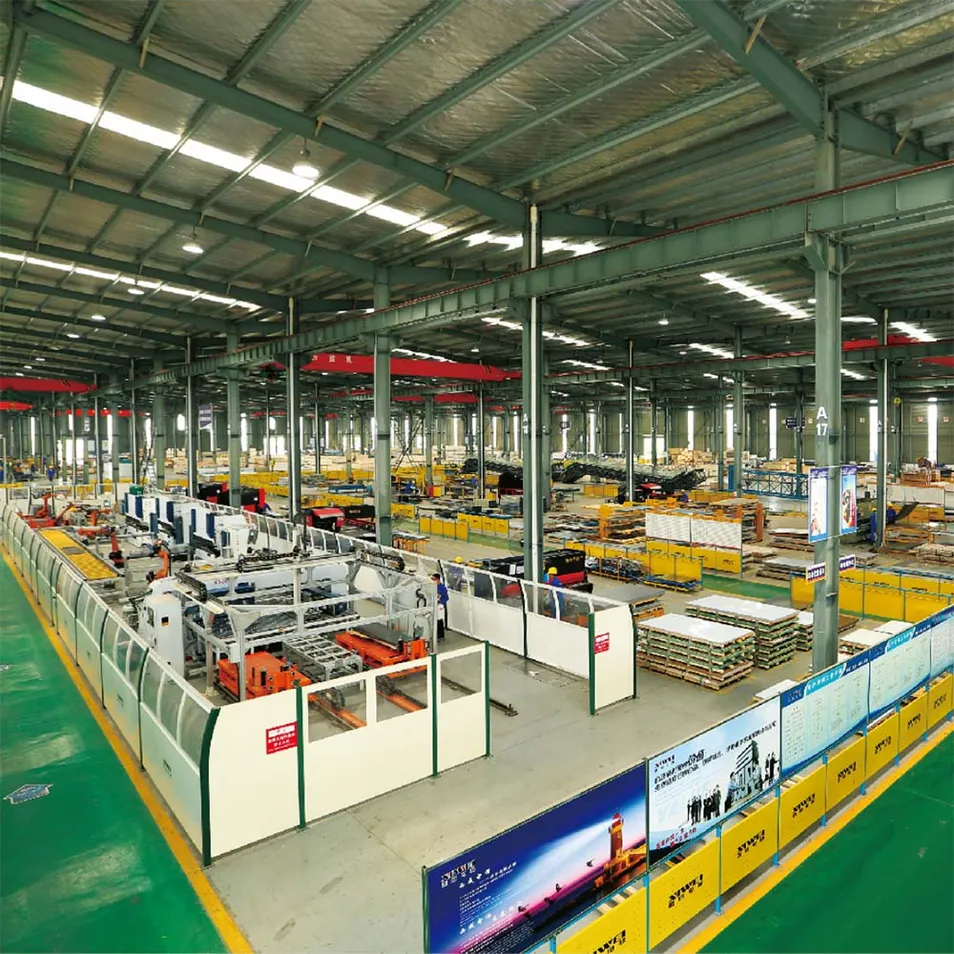

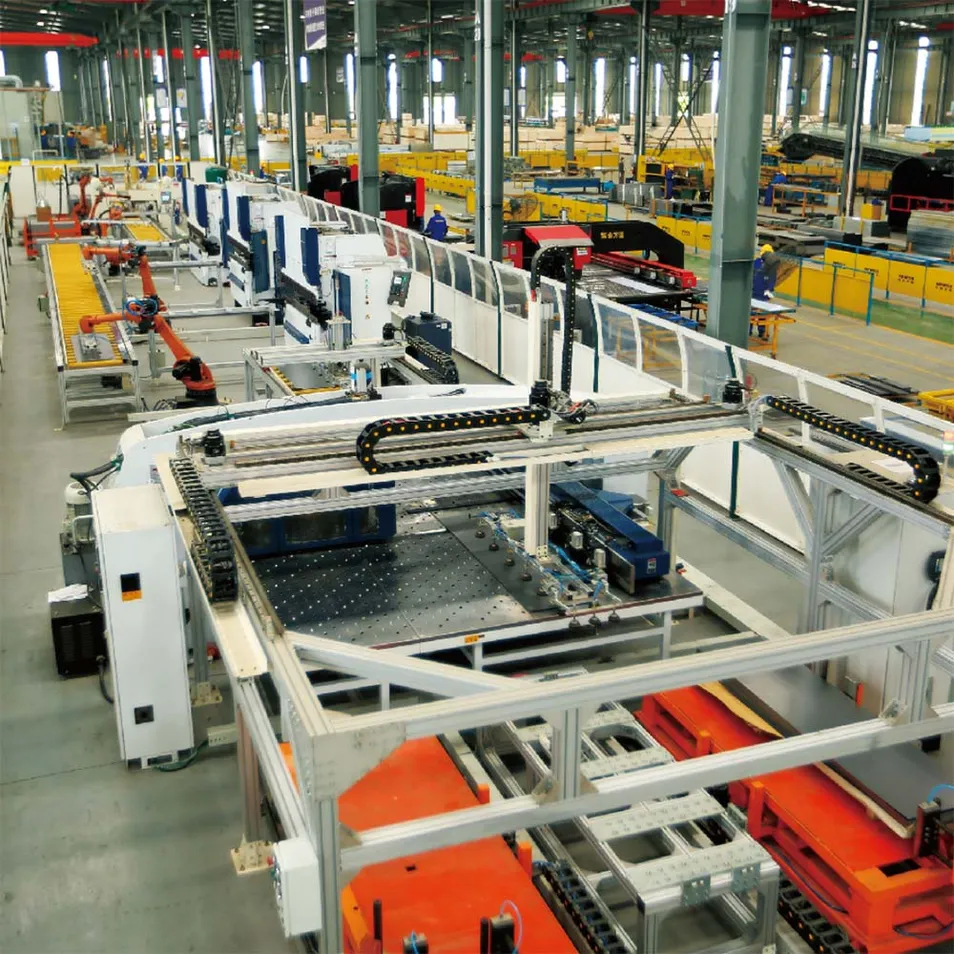

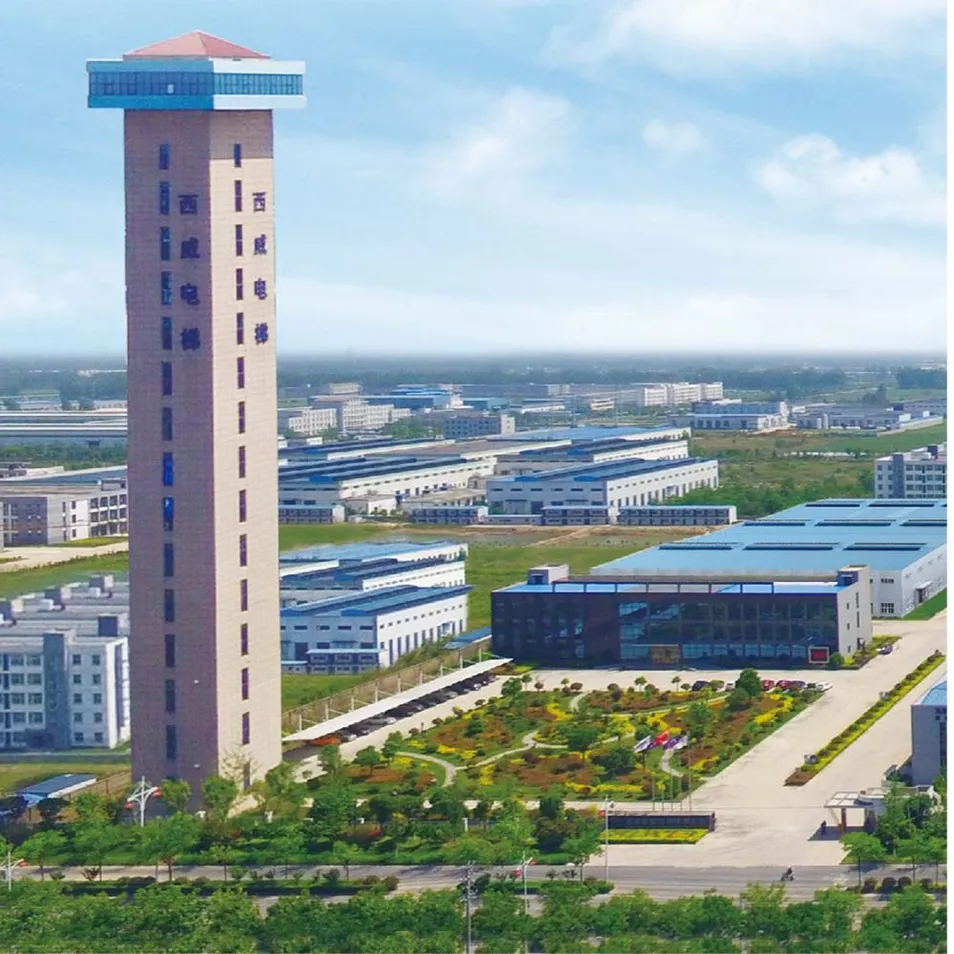

Our facility covers 120,000 square meters with advanced production workshops and an 87m high test tower. We implement Industry 4.0 concepts with automatic warehouses, robot flow-lines, and intelligent manufacturing systems to ensure high quality and low trouble rates.
