High Quality Vvvf Sightseeing Panoramic Standard Decoration Villa Passenger Elevator

Customization:	Available
Driving Type:	AC Elevator
Capacity:	400-1600kg

Send Inquiry

Product Description

Basic Specifications

Model NO.

FUJI-A

Persons

5-21

Speed

1.0 - 4.0m/S

Control Mode

Collective Selective Control

Position of Computer Room

Without Computer Room

Elevator Door

Center Opening Door

Product Price

$10000-22000/Unit

Production Time

Within 25-30 Days

Transport Package

High Quality Export Wooden Case

Origin

China

H.S Code

8428101090

Product Features

Safe and Reliable: Puts safety first, ensuring each passenger is safely delivered to the destination.

Spatial Configurability: Provides a new layout for the machine room, increasing space availability.

Environmental Protection & Energy Saving: Uses gearless permanent magnet synchronous motors to save energy.

High Performance: Maximum capacity of 1600kg with an intelligent lifting and dispatching system.

Self-selectivity: Customizable automotive finishes, designs, ceilings, and flooring materials.

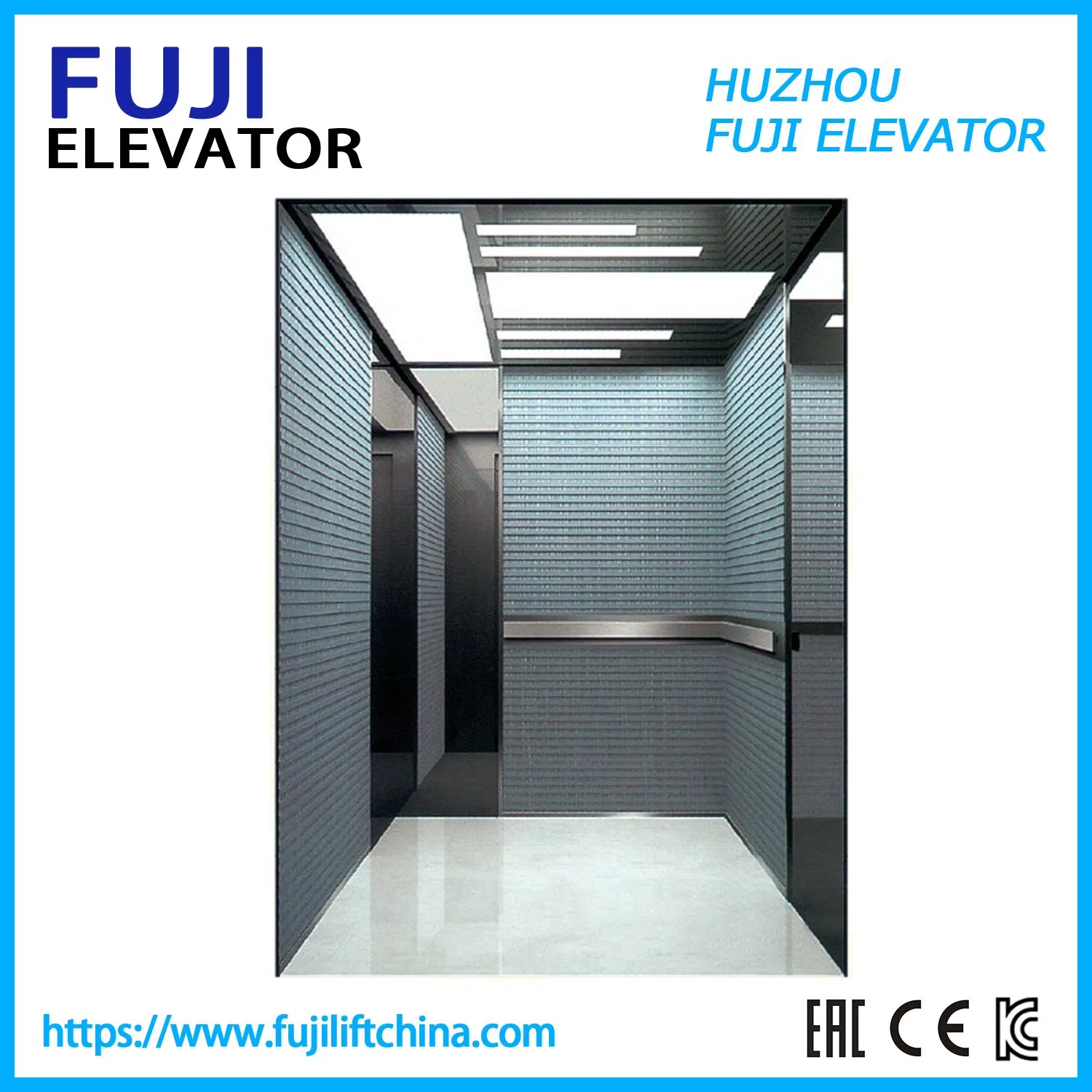

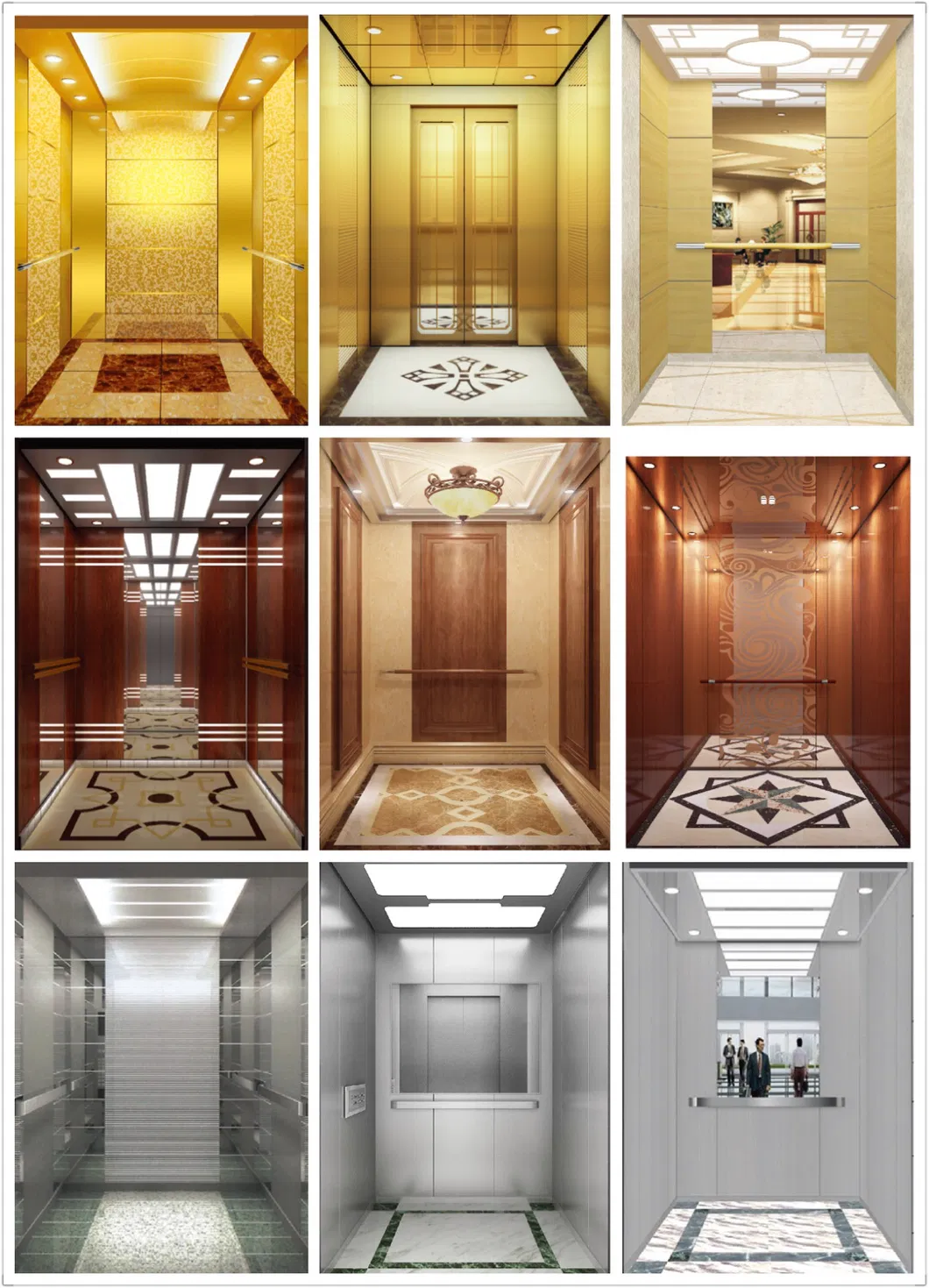

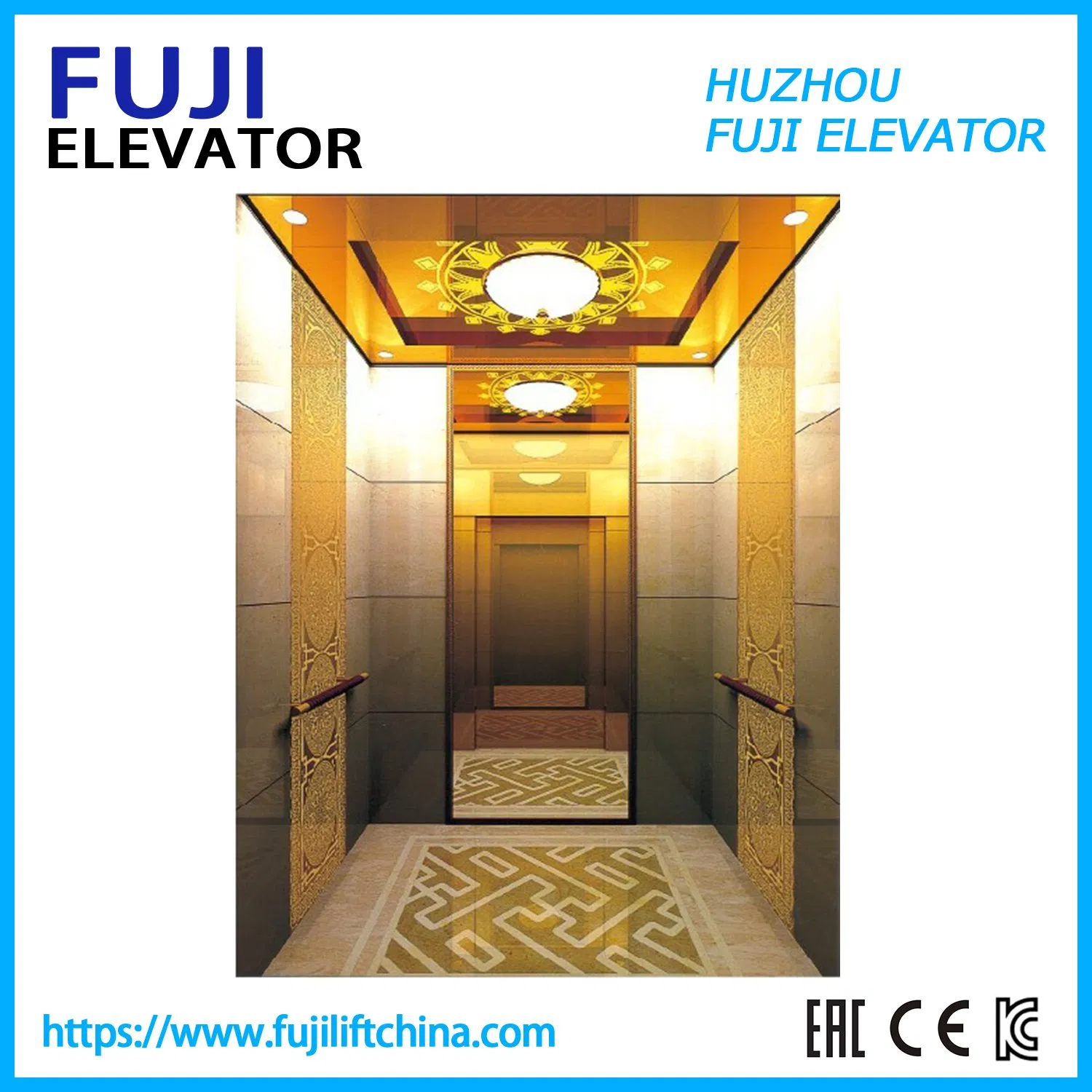

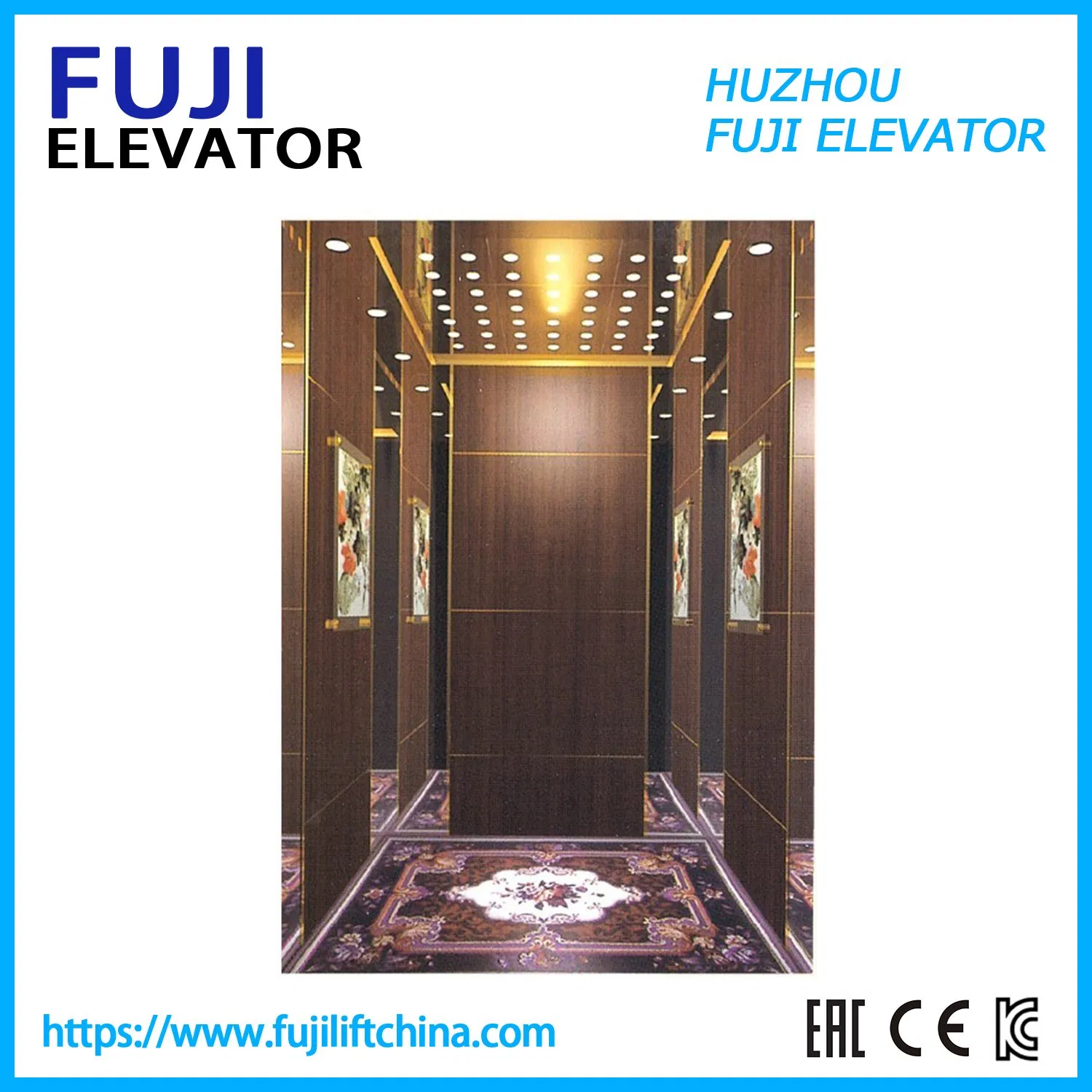

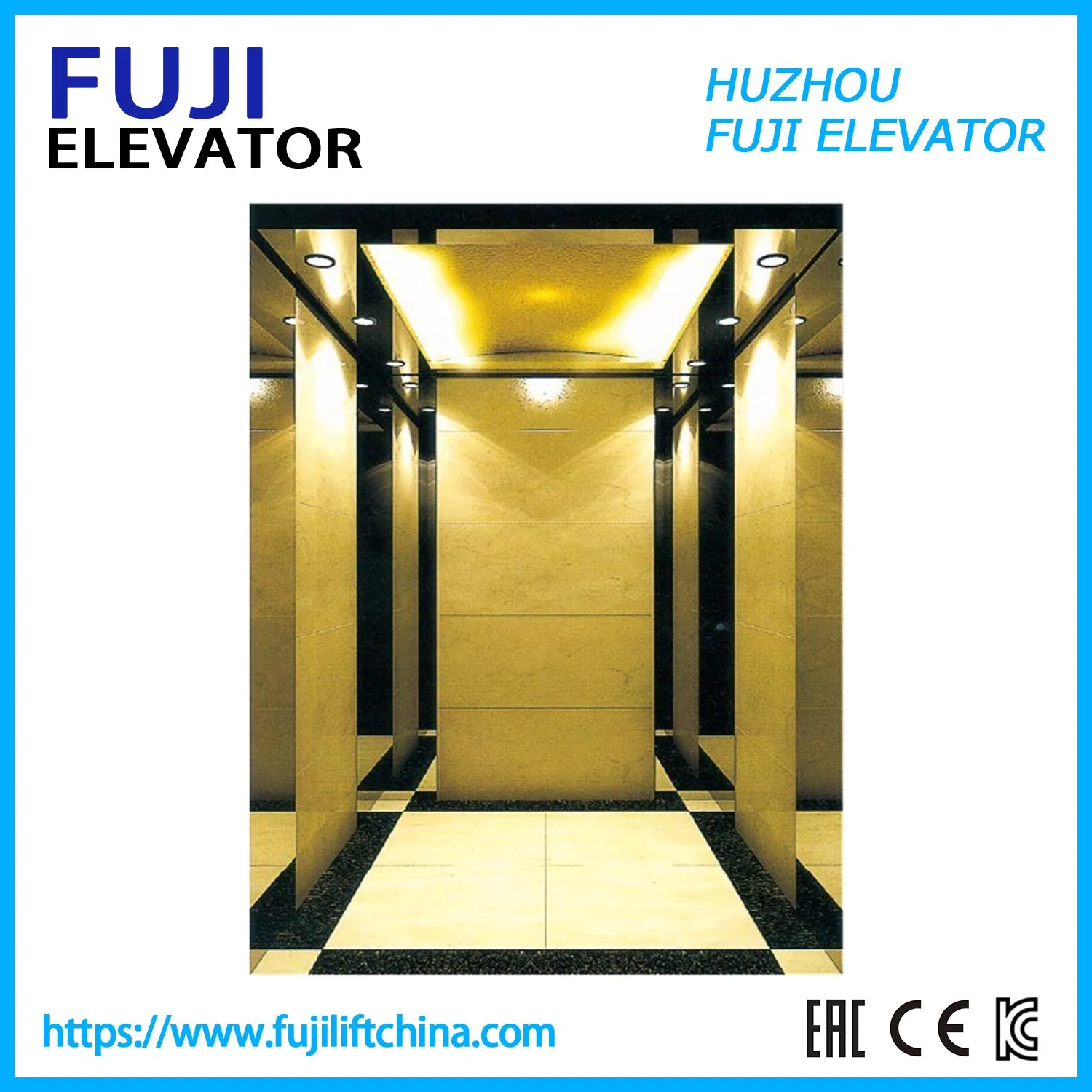

Standard Decoration Optional

Component	Standard Specification
Wall	Hairline stainless steel

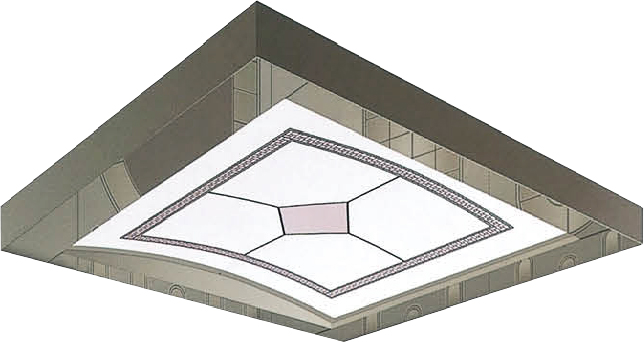

Ceiling	LED Fluorescent, according to the car design
Car bottom	PVC
Jamb material	The first layer of hairline, remaining steel plate Spraying
Hall door	The first layer of hairline, remaining steel plate Spraying

Passenger Elevator Parameters

Load (Kg)	Speed (m/s)	Car Size (mm)	Door Opening (mm)	Shaft Size (mm)	Pit Depth (mm)
450	1	1100×1100	800×2100	2050×1850	1500
630	1.0 - 1.75	1400×1100	800×2100	2250×1900	1500-1600
800	1.0 - 1.75	1400×1350	800×2100	2200×1950	1500-1600
1000	1.0 - 1.75	1500×1550	900×2100	2350×2150	1600
1600	1.0 - 1.75	1800×2000	1100×2100	2900×2200	1500-1600

Advanced Technology

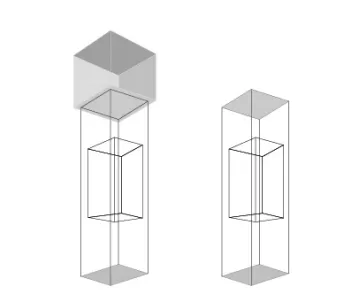

Machine Roomless Solution

Removes machine room at building top for more flexible outline design. It applies top-grade design concepts and computerized data network systems for low-carbon operation.

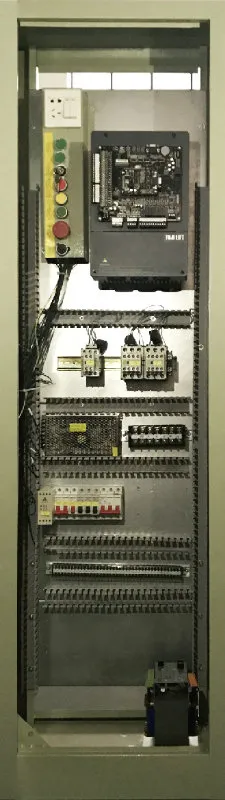

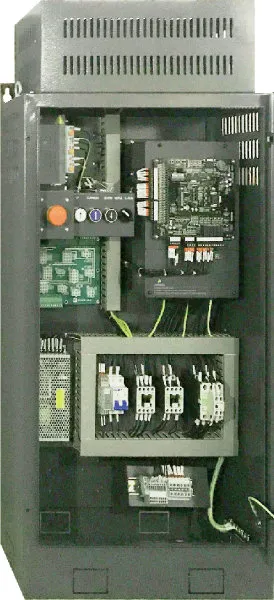

Intellectual Main Control System

FUJI elevator fulfills intellectual managements such as multi-computer, modular, and network control to provide passengers with efficient service.

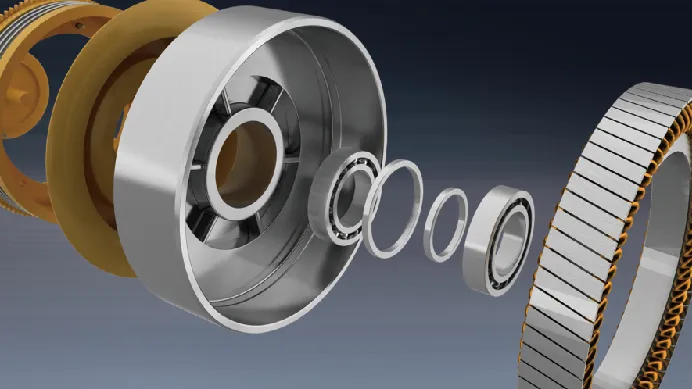

Permanent Magnet Synchronous Traction Machine

New generation gearless traction machine merges digital variable frequency technology with low energy loss and running costs.

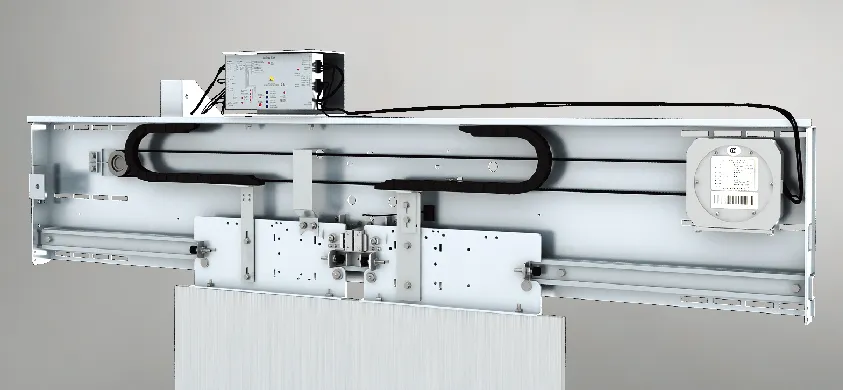

Advanced Door Operator System

Dual control system reduces non-opening accidents by using both a main controller and a door operator controller.

Safety & Standard Functions

No.	Function	Description
1	Static electricity protection	Eliminates static electricity from running steps.
2	Emergency stop button	Stops the elevator immediately in case of emergency.
3	Over-load protection	Protects motor against continuous overloading.
4	Skirting protection	Prevents foreign bodies from being jammed between steps.
5	Handrail entry safety	Prevents trapping at the handrail entry point.
6	Over-speed protection	Activates if speed exceeds 20% of rated speed.

About the Technology

Adhering to advanced international elevator management modes, the system integrates first-class manufacture equipment and core technologies. The product range covers passenger elevators, freight elevators, and escalators, providing integrated solutions for manufacture, installation, and maintenance.

Frequently Asked Questions

Q1: How is the after-sales installation handled? A: We provide a comprehensive installation manual. Additionally, remote guidance for commissioning is available, and for special requirements, engineers can be sent to the site.

Q2: Can the elevator design be customized? A: Yes, customers can select their preferred car finishes, ceiling designs, lighting, and flooring materials to match the building's aesthetic.

Q3: What are the energy-saving benefits of FUJI elevators? A: Our elevators use permanent magnet synchronous gearless traction machines, which significantly reduce energy consumption and operating costs compared to traditional motors.

Q4: Is a machine room required for all models? A: No, we offer machine roomless (MRL) designs that remove the need for a room at the top of the building, providing more flexibility for architectural design.

Q5: What safety systems are in place for passenger protection? A: The elevators include over-speed protection, emergency stop buttons, over-load sensors, static electricity protection, and an intelligent main control system to monitor all running conditions.

Q6: How can I report a technical issue or request service? A: You can report issues by providing the factory or contract number. This allows the technical team to check specifications quickly and provide an accurate solution.
