Ascom Elevator
1 / 5

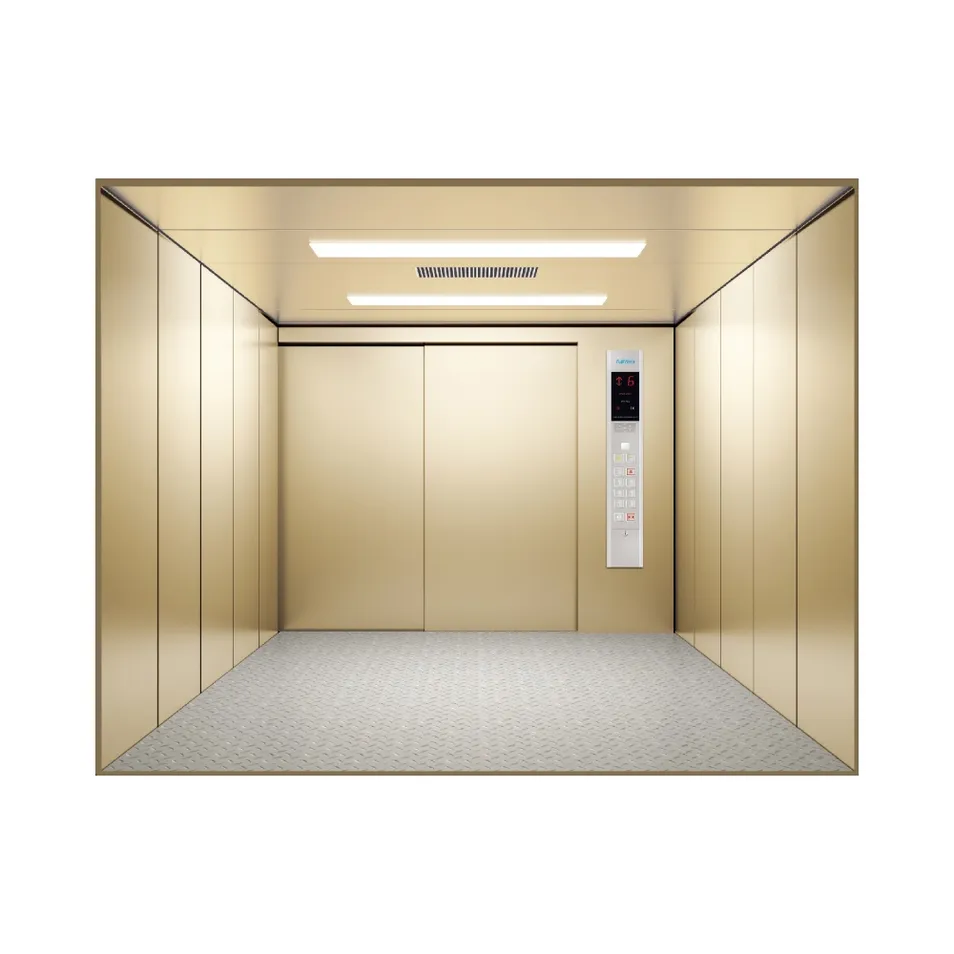

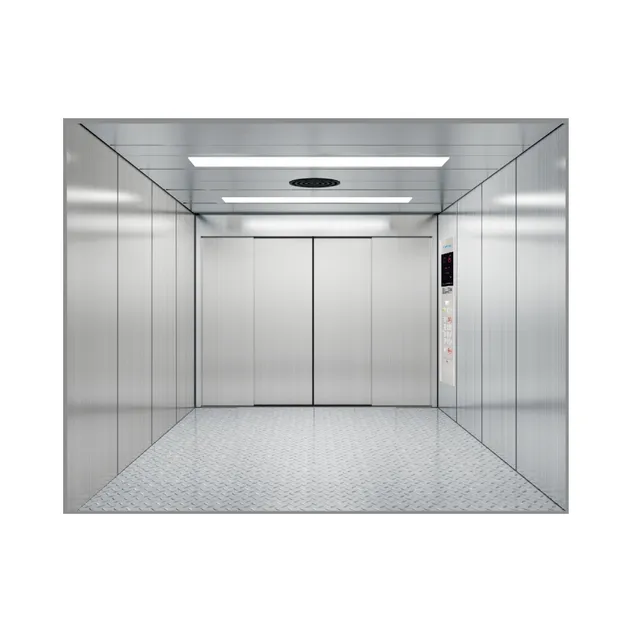

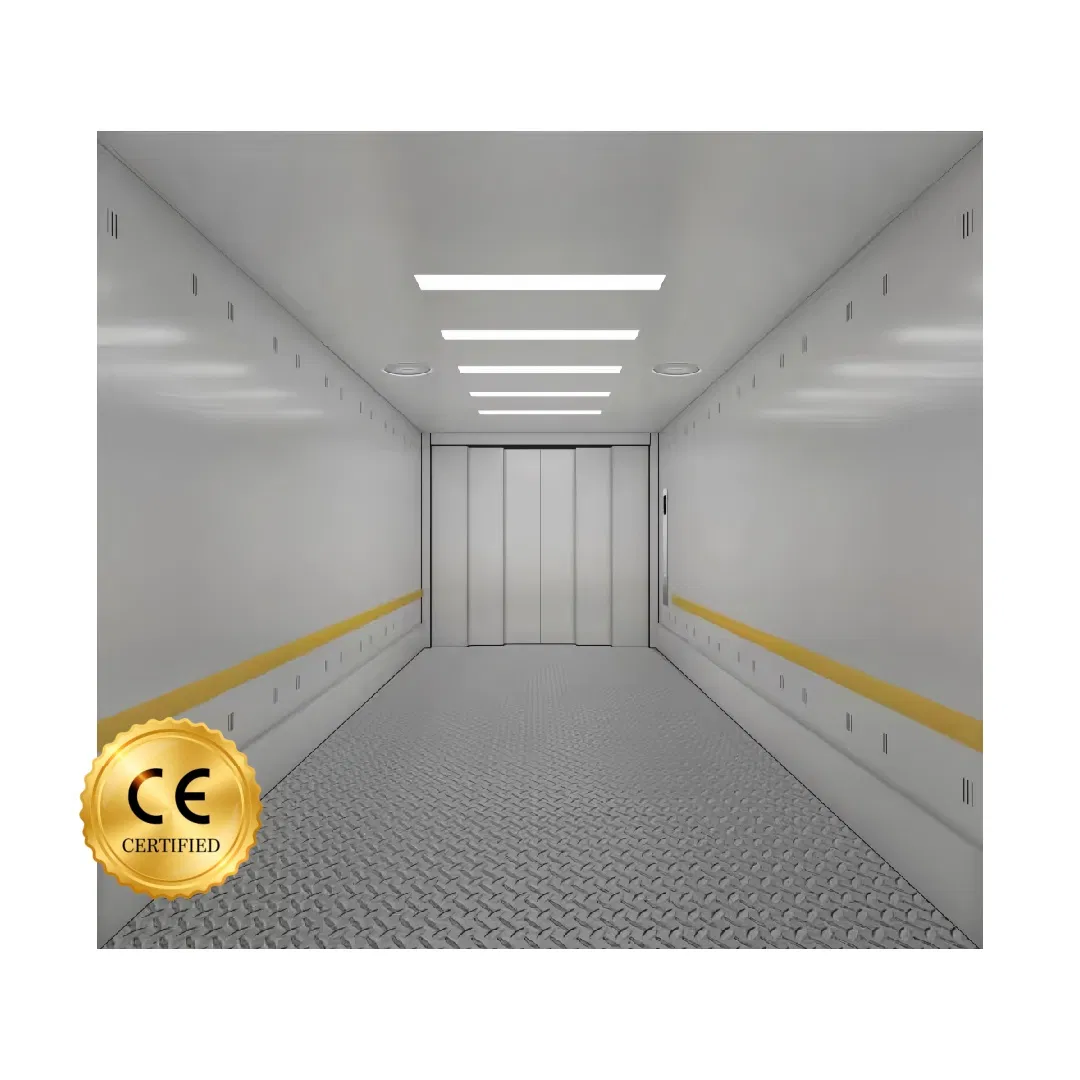

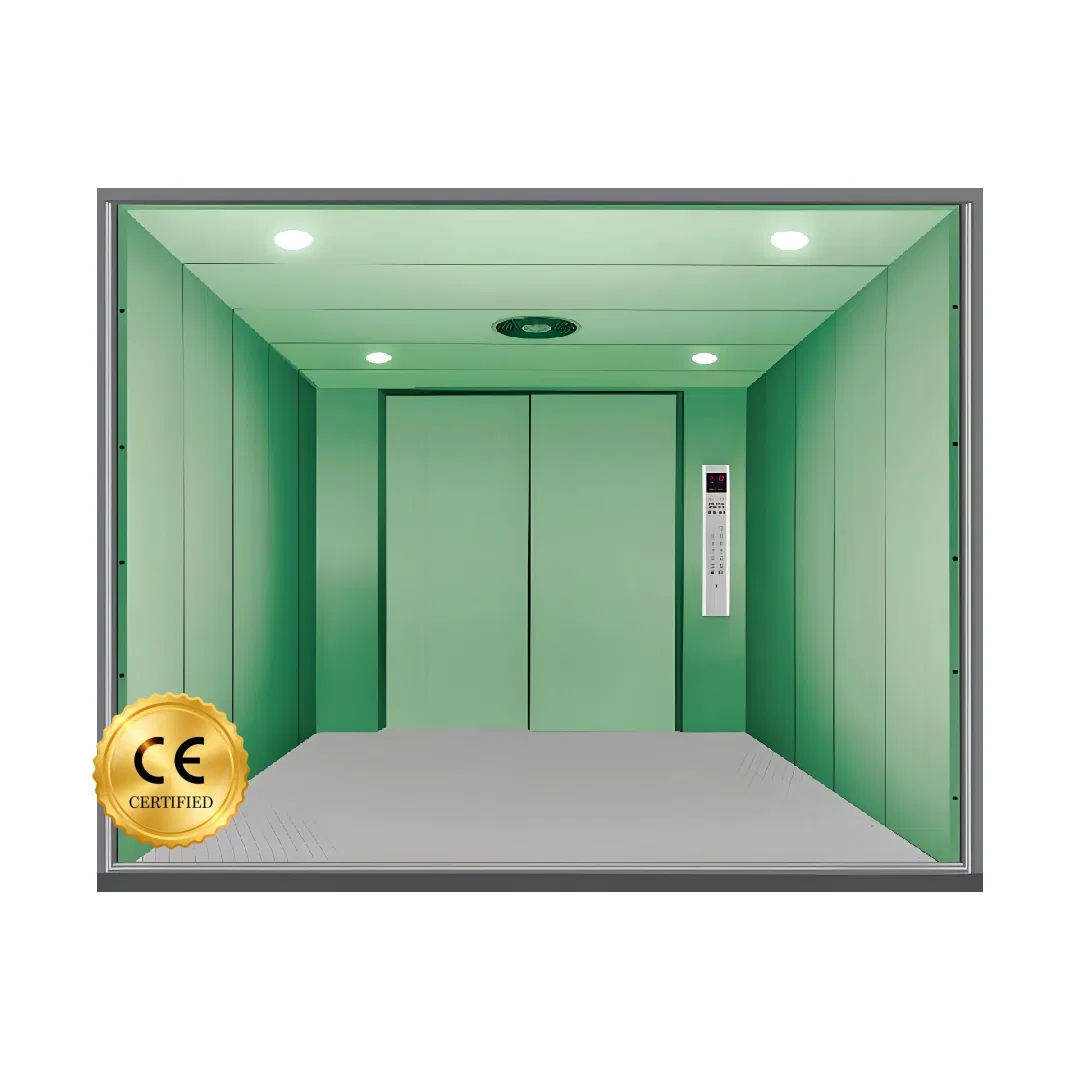

A robust vertical transport solution built for demanding industrial and commercial applications. Its core features include a high-strength bent-steel car structure, an advanced full microprocessor control system for consistent operation, and an AC variable frequency door operator that delivers energy efficiency alongside smooth access.
Customization high load capacities, millimeter-precise leveling, and space-saving designs—including multi-panel folding doors and machine-room less (MRL) configurations—cut energy consumption by up to 40% and reduce building footprint requirements by 10%.

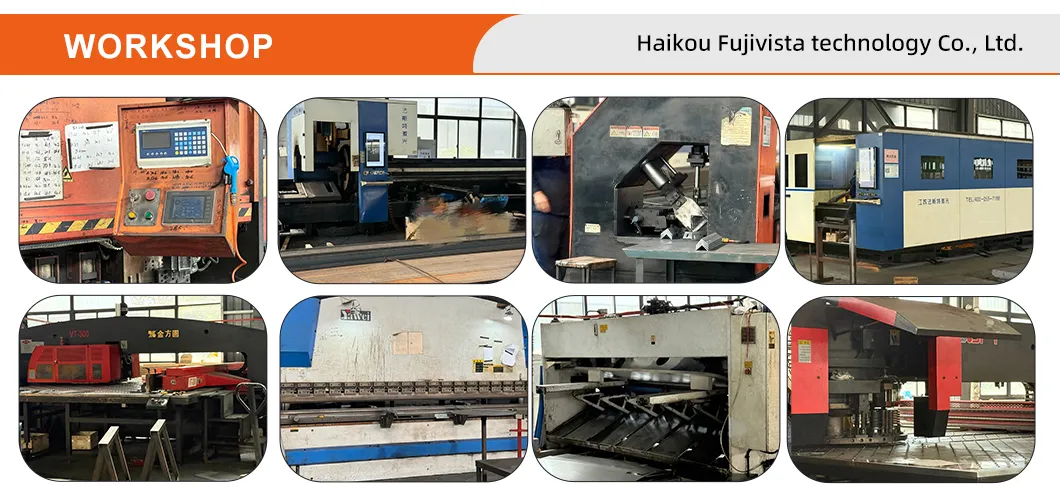

Built upon a solid foundation of three decades of dedicated manufacturing experience. Over these 30 years, the expertise has evolved from a component supplier to a master of integrated, end-to-end elevator solutions. We manage the entire product life cycle, from pioneering R&D and design to precision manufacturing and maintenance services.
Our commitment to quality and safety is validated by compliance with international standards, including those set by the EU (CE), the International Accreditation Forum (IAF), and the China National Accreditation Service (CNAS).
| Rated Load (kg) | Speed (m/s) | Door Width (mm) | Car Size (mm) | Shaft Size (mm) | Computer Room (mm) | Top Height (mm) | Pit Depth (mm) | Opening Method |
|---|---|---|---|---|---|---|---|---|
| 1000 | 0.5 | 1200x2100 | 1400x1700 | 2250x2200 | 3000x3500x2500 | 4200 | 1400 | Double fold side |
| 1600 | 0.5 | 1500x2100 | 1700x1950 | 2650x2450 | 3500x4000x2500 | 4500 | 1500 | Double fold side |
| 2000 | 0.5 | 1500x2100 | 1800x2300 | 2750x2800 | 3500x4000x2500 | 4500 | 1500 | Double fold side |
| 3000 | 0.5 | 1800x2100 | 2000x2800 | 3400x3400 | 3400x4500x2500 | 4600 | 1500 | Double center |
| 4000 | 0.25/0.5 | 2000x2300 | 2200x3300 | 3700x3800 | 3700x3800x2900 | 5000 | 1700 | Double center |
| 5000 | 0.25/0.5 | 2400x2400 | 2400x3600 | 4000x4100 | 4000x4100x2900 | 5000 | 1700 | Double center |
