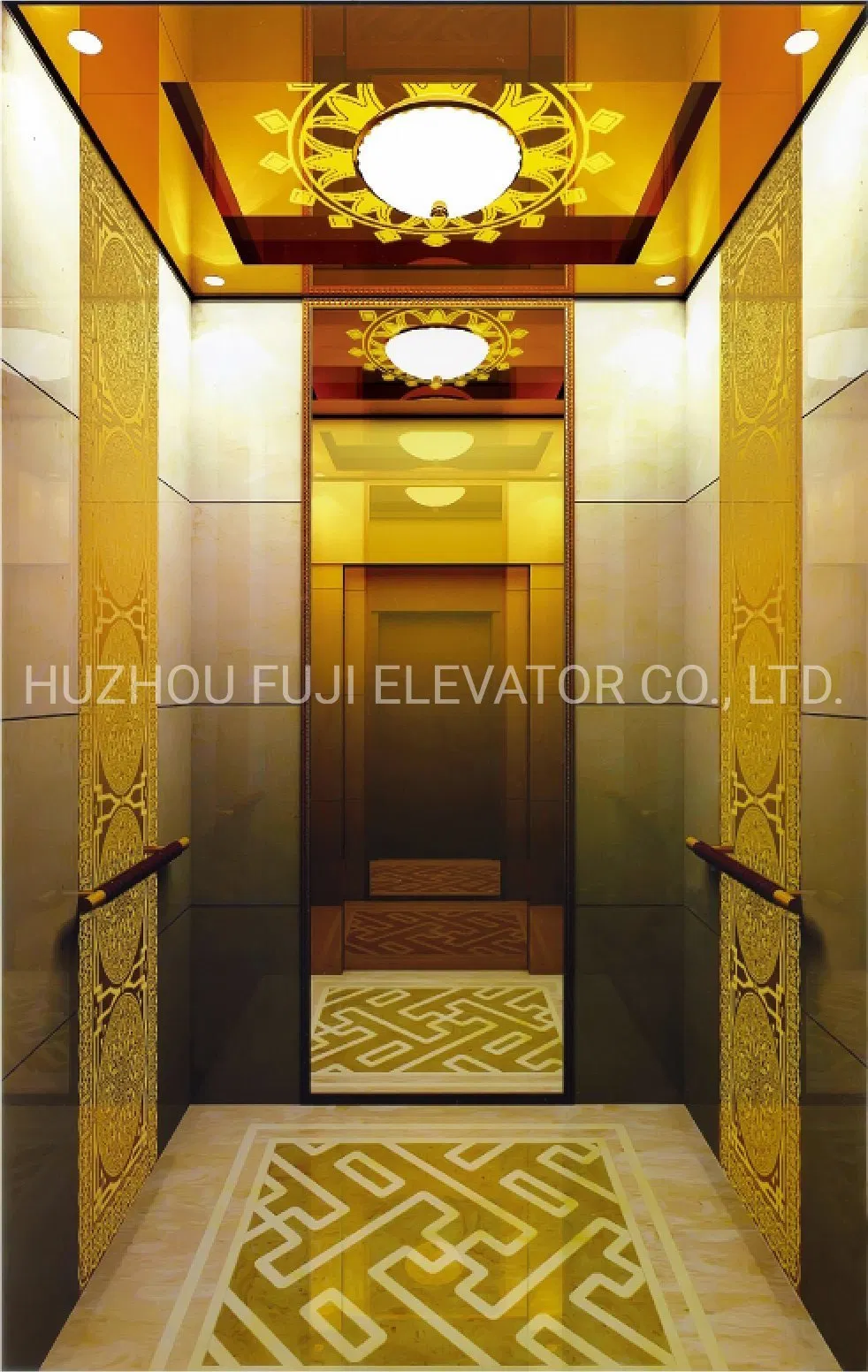

FUJI Vvvf Elevator China Factory Passenger Elevator Sightseeing Residential Home Villa Passenger Elevator Lift Panoramic Observation Glass Elevator
1 / 5
FUJI Vvvf Elevator China Factory Passenger Elevator Sightseeing Residential Home Villa Passenger Elevator Lift Panoramic Observation Glass Elevator
First layer hairline, remaining steel plate Spraying
Hall door
First layer hairline, remaining steel plate Spraying
Passenger Elevator Parameters
Load (Kg)
Rated Speed (m/s)
Car Size (mm)
Door Opening (mm)
Shaft Size (mm)
Top Height (mm)
Pit Depth (mm)
450
1
1100×1100
800×2100
2050×1850
4500
1500
630
1 / 1.5 / 1.75
1400×1100
800×2100
2250×1900
4500/4700
1500/1600
800
1 / 1.5 / 1.75
1400×1350
800×2100
2200×1950
4000/4700
1500/1600
1000
1 / 1.5 / 1.75
1500×1550
900×2100
2350×2150
4000/4700
1600
1600
1 / 1.5 / 1.75
1800*2000
1100*2100
2900*2200
4350/4500
1500/1600

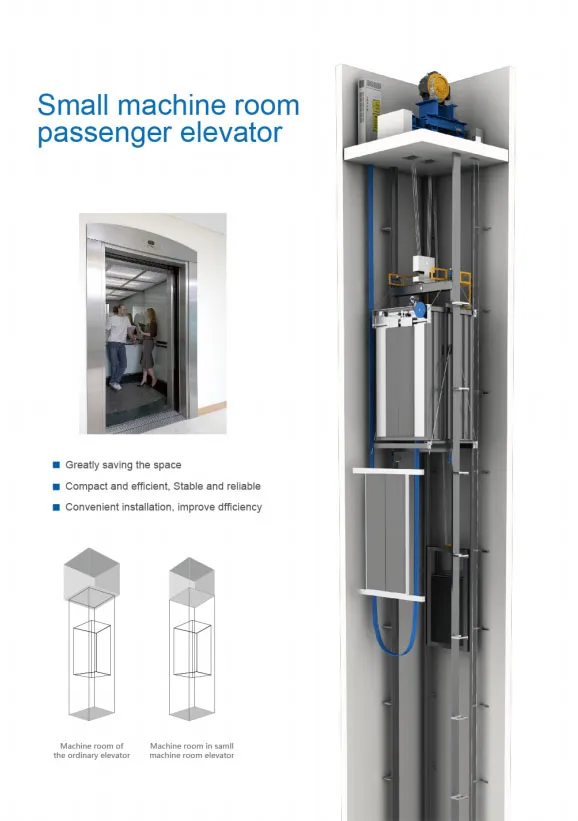

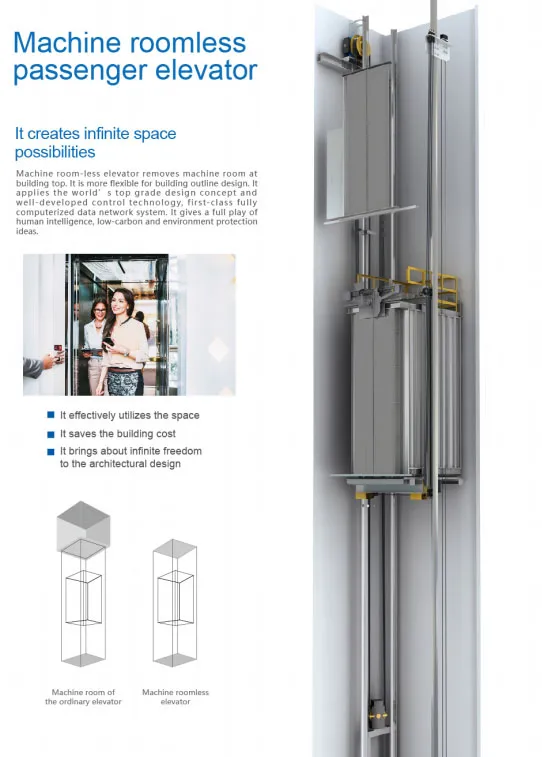

Options for Small or Machine Roomless Lifts

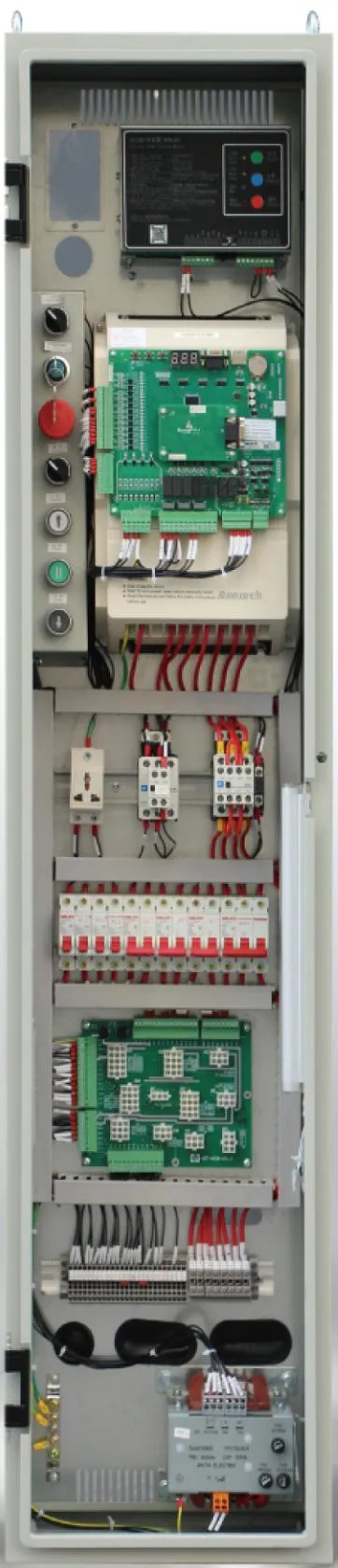

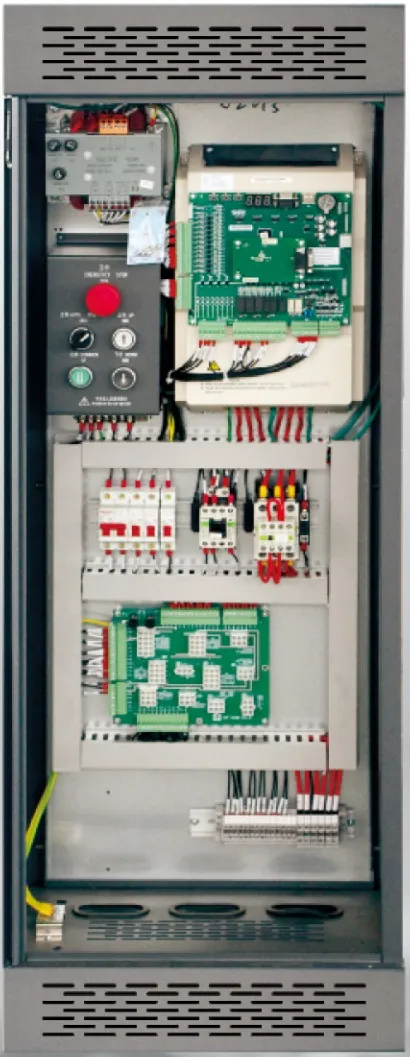

Intellectual Control System
FUJI elevator optimizes service efficacy through intellectual management including multi-computer, modular and network control. The fully computerized system feeds back running conditions instantly, providing passengers with efficient services.

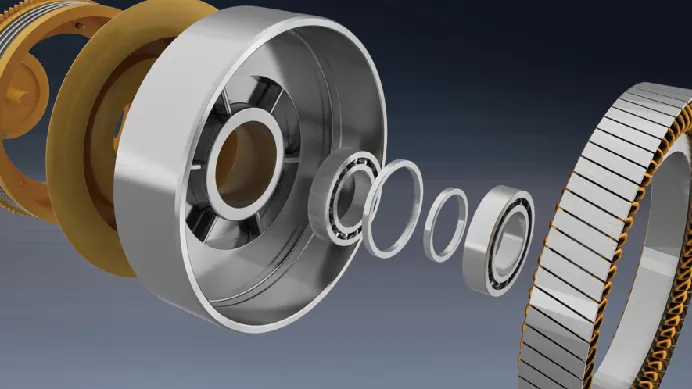

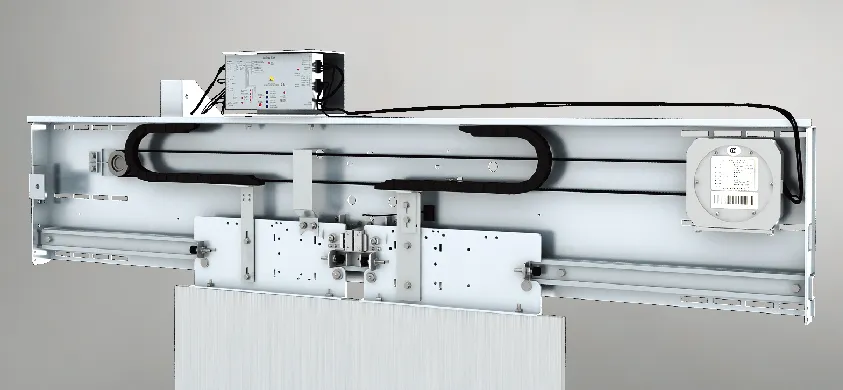

Permanent Magnet Traction & Door System
Standard Safety Functions
No.
Function
Description
1
Static electricity protection
Eliminates static electricity from running steps.
2
Emergency stop button
Instant stop mechanism for emergencies.
6
Over-speed protection
Protection if speed exceeds 20% of rated speed.
11
Over-load protection
Protects motor against continuous overloading.
17
Step missing detection
Detects missing steps in the stairway system.
20
Phase protection
Protects against phase failure or error phase.

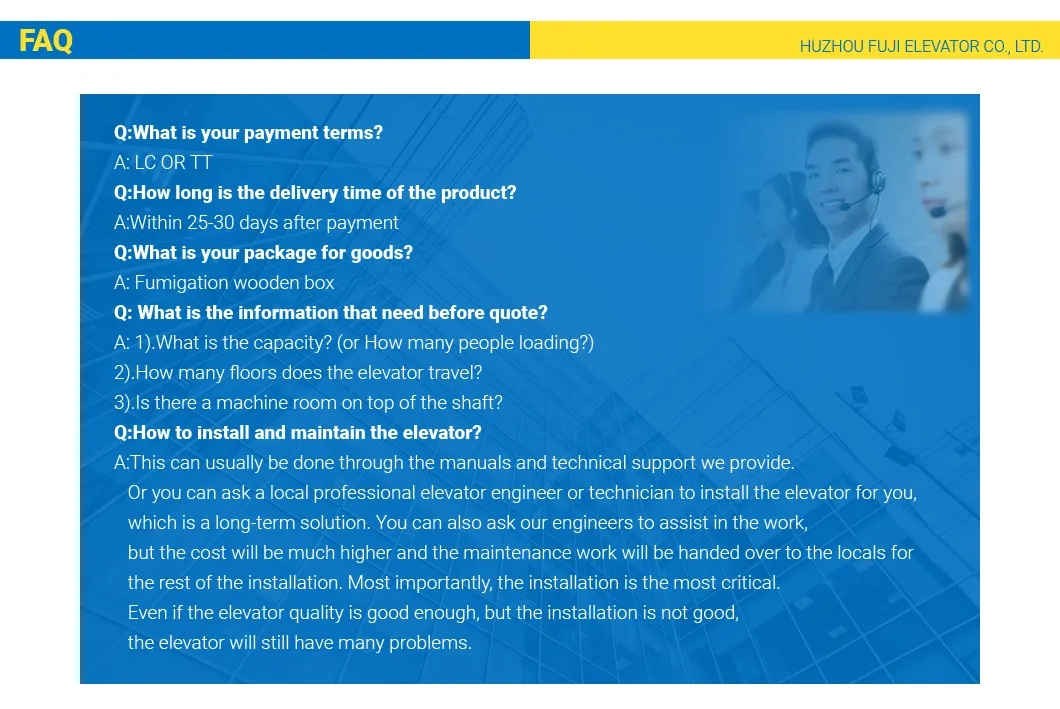

Frequently Asked Questions
1. What is the weight capacity of the FUJI-A passenger elevator?
The capacity ranges from 450 Kgs to 1600 Kgs, suitable for 5 to 25 persons depending on the model.
2. What are the available speed options for this elevator?
The elevator supports rated speeds between 1.0 m/s and 1.75 m/s.
3. Can this elevator be installed without a machine room?
Yes, we provide both Small Machine Room (SMR) and Machine Roomless (MRL) configurations to suit different building structures.
4. What type of safety protection is included as standard?
Standard safety features include over-speed protection, emergency stop buttons, static electricity protection, over-load protection, and phase failure protection.
5. What is the typical production and delivery time?
The standard production time for the FUJI-A model is within 25 to 30 days.

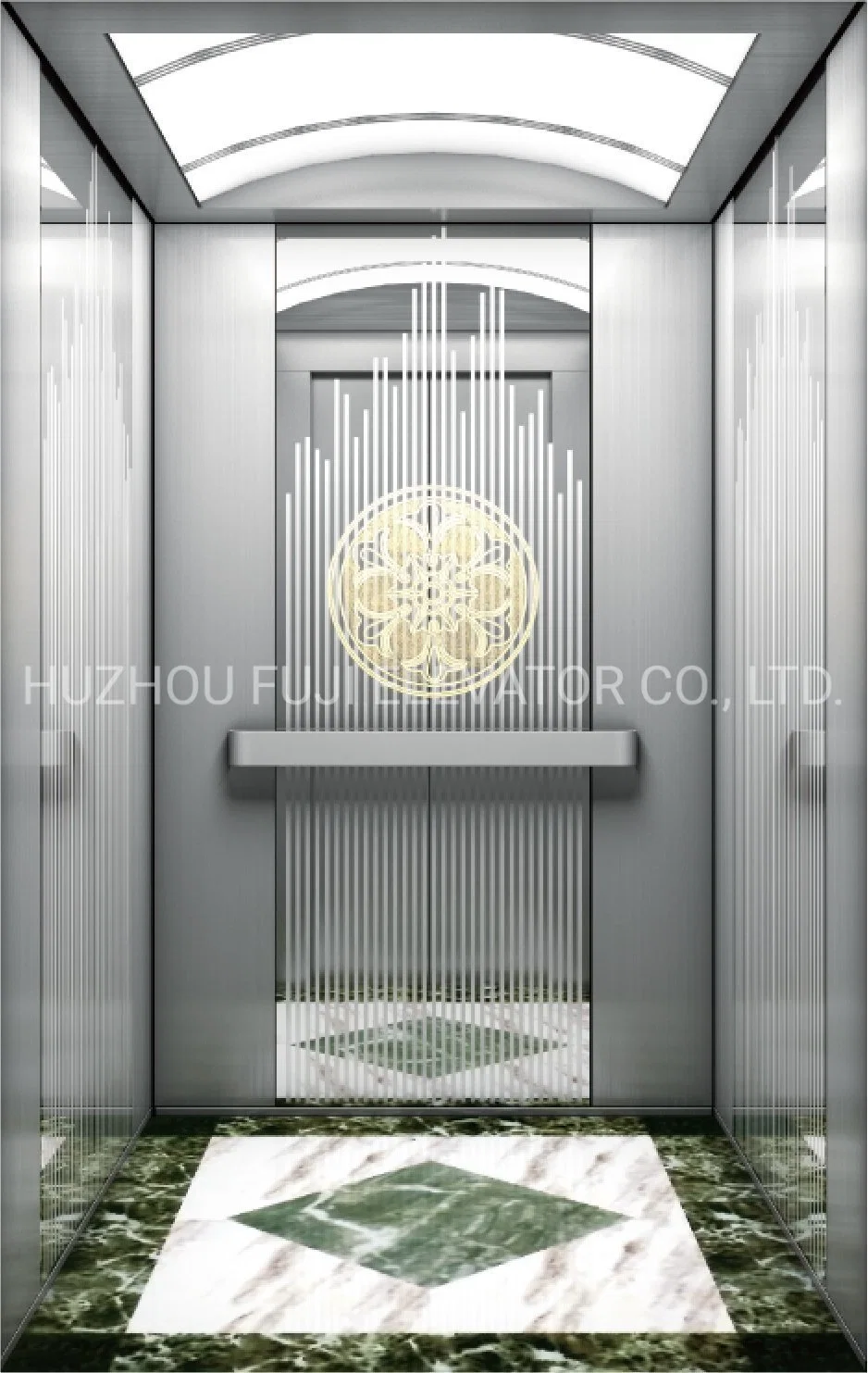

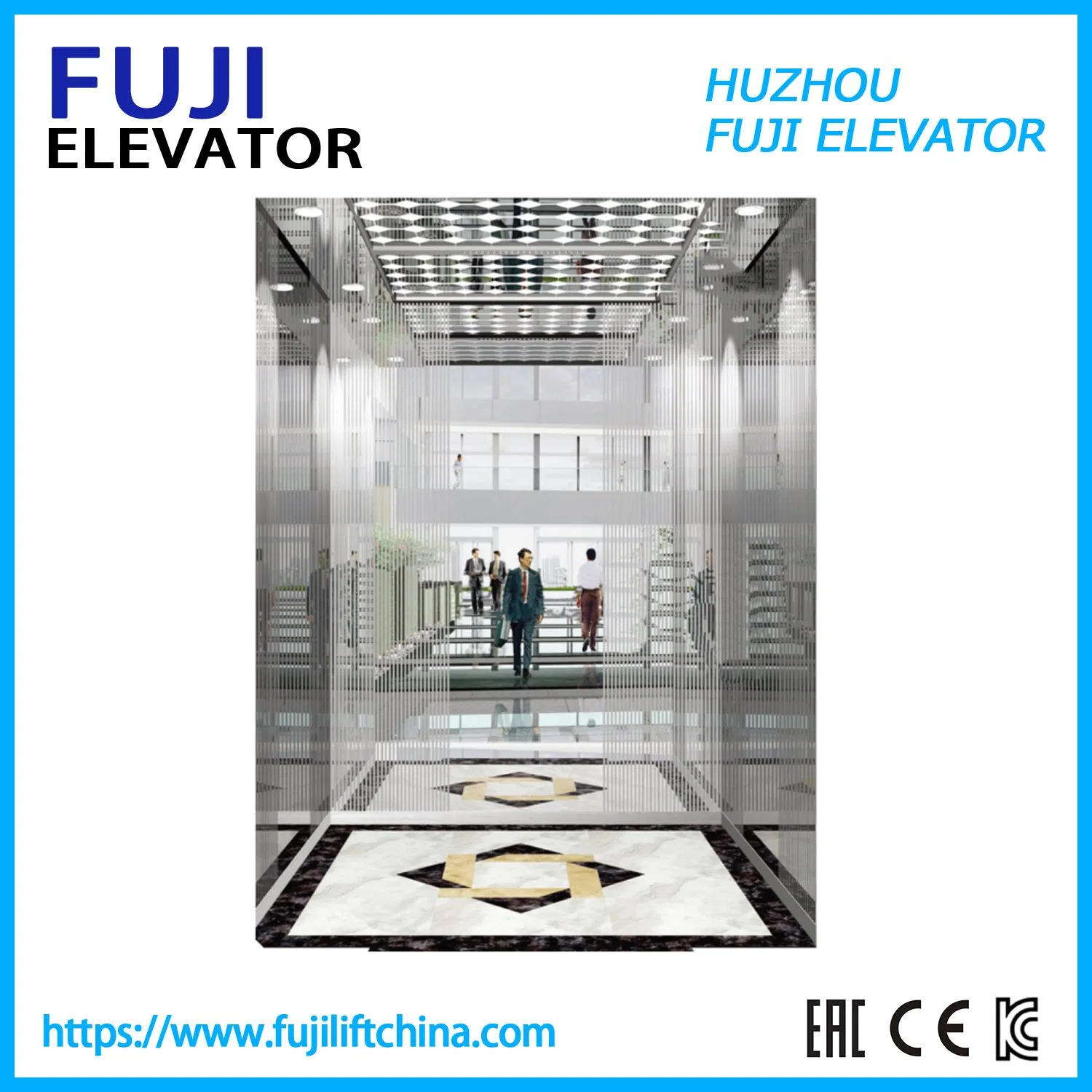

6. What materials are used for the car decoration?
The standard decoration uses hairline stainless steel for walls, LED lighting for ceilings, and durable PVC for the car flooring.
