Small Machine Room Passenger Elevator Parameters
| Capacity (Kg) | Persons | Speed (m/s) | Entrance (mm) | Clear Car Dim. (mm) | Hoistway Dim. (mm) | Pit Depth (mm) | Rated Power (KW) |
|---|---|---|---|---|---|---|---|
| 450 | 6 | 1.0 | 700 | 1200x1100 | 1800x1800 | 1500 | 3.0 |
| 630 | 8 | 1.0 | 800 | 1400x1100 | 2000x1800 | 1500 | 4.3 |
| 800 | 10 | 1.5 | 800 | 1400x1350 | 2000x2050 | 1600 | 8.6 |
| 1000 | 13 | 1.75 | 900 | 1600x1450 | 2200x2200 | 1700 | 11.7 |
| 1250 | 16 | 2.0 | 1000 | 1800x1550 | 2400x2300 | 1800 | 17.0 |
✦ VVVF Frequency Modulation Technology
Adopts low noise vector control inverter for precise voltage and speed regulation, significantly extending motor life and reducing power consumption.

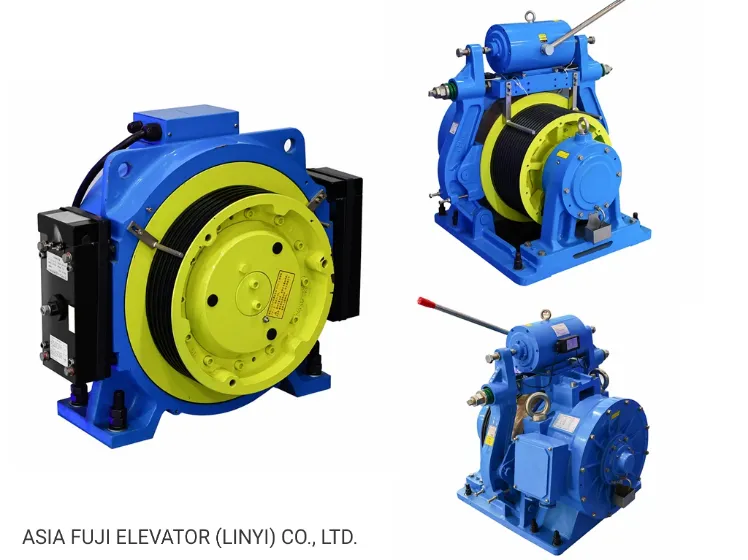

✦ Miniature Energy-Saving Host System
Utilizes permanent magnet gearless traction technology, reducing energy consumption by up to 60% compared to traditional systems. No oil, no maintenance, and minimum vibration.
1. Online Support: 24/7 technical assistance in English.
2. Systematic Packing: Each container includes a detailed packing list, sorted by system for efficient on-site installation.
3. Modular Installation: Each box is classified to reduce installation difficulty and improve efficiency by 80%.
