Customization: Available
Type: Wellhole
Load Capacity: 3000kgs
Send Inquiry

Product Description

Basic Info.
Model NO.
FUJI-E
Speed
0.5 M/S
Drive Mode
AC
Open & Close Type
Automatic
Lift Mechanism
Lift Chain
Deceleration Device
With Deceleration Device
Guide Rail
T Guide
Elevator Door
Center Opening Door
Door Knife
Single
Attendant
Without Attendant
Production Time
Within 25-30 Days
Machine Room
With and Without
Transport Package
Export Wooden Case
Origin
China
HS Code
8428109000
Product Description
About intelligent automobile elevator
This intelligent automobile elevator introduced well-developed international elevation technology. Developed and manufactured through absorption, conversion, and enhancement, our advanced technology removes negative factors like car shaking. It addresses noise from burdened traction systems and uneven force on the elevator car, optimizing the entire product series' characteristics.
Automobile Elevator Diagram
Automobile Elevator Interior
Technical Support & Service
1. How to provide you with after-sales service:
  • Installation manuals provided for technical staff.
  • Remote guidance for accurate commissioning.
  • Engineers can be sent to the site for special requirements.
  • Technician training available at our facility for agents.
2. How to report after-sales problems:
  • Provide the factory number or contract number for quick solutions based on product specifications.
  • Contact the relevant foreign trade personnel via email or call.
Features of Car Elevators

1. Adaptable Structure: Designed to handle rapid load changes and non-uniform stress, unlike standard freight elevators.

2. Dual Controls: Equipped with two button boxes so the driver can operate the lift without leaving the vehicle.

3. High Capacity: Rated load capacity over 3 tons with a spacious car area for various small vehicles.

4. Efficiency: Front and rear through-door settings facilitate easy entry and exit.

Car Elevator Parameters
Capacity(KG) Speed(m/s) Car Size (WxDxH)mm Door Opening(WxD)mm Shaft Size(WxD) OH(mm) Pit Depth(mm)
3000 0.25/0.5 2700x5800 2400x2200 4100x6160 4800 1600
5000 0.25/0.5 3500x7200 2600x2200 4750x7560 4800 1600
Standard Functions
1. Automatic stop16. Anti-mischief function
2. Self-diagnostic of call buttons17. Auto-running of full-load
3. Auto ventilation & light shut-off18. Re-opening via hall button
4. Repeat open/close door19. Door load sensor
5. Infrared Light curtain protection20. Arrival tip
6. Fire running function21. Self-diagnostic of faults
7. Automatic door lock/unlock22. Current floor auto-opening
8. Speed-adjustment by enforcement23. Offside prevention
9. With/without driver modes24. Overhaul running operation
10. Driver orientation function25. Auto-stop and rescue fault
11. Overload voice-light alarm26. High speed protection
12. Non-stop prevention27. Hoist way data self-save
13. Floor call records28. Directional changing function
14. Internal response & deceleration29. Power-fail data protection
15. Running signal fault protection30. Five-party interphone
Stability & Safety Guarantee
Our elevators feature outstanding structures and high-strength designs applicable for factories, production lines, warehouses, and shopping centers. The shock-absorbing mechanism ensures secure operation, while high-strength section materials prevent car deformation under heavy loads. The car bottom is reinforced with a doubled consolidation design to support varying vehicle weights.

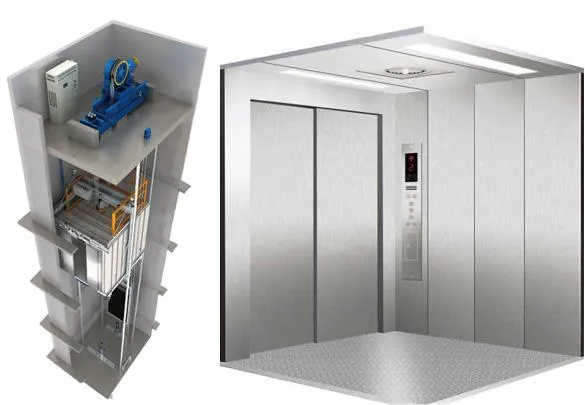

Elevator Strength Test
Elevator Door System
Frequently Asked Questions
What is the maximum weight capacity of the automobile elevator?
We offer standard models with capacities of 3000KG and 5000KG, designed specifically for vehicles and heavy cargo.
Does the driver need to get out of the car to operate the lift?
No, the elevator is equipped with two control button boxes inside the car, allowing the driver to control it while remaining inside the vehicle.
How long does the production process take?
The standard production lead time is within 25 to 30 days after the confirmation of order and technical specifications.
What kind of safety systems are included for vehicle entry?
The elevator includes an infrared light curtain for door protection, a door load sensor, and a shock-absorbing mechanism to ensure safe and stable vehicle transport.
Are these elevators compatible with buildings without a machine room?
Yes, we provide configurations for both with machine room (WMR) and machine roomless (MRL) requirements.
How is technical support handled for international installations?
We provide comprehensive installation manuals and remote technical guidance. For special projects, we can also dispatch engineers to the site for guidance.
