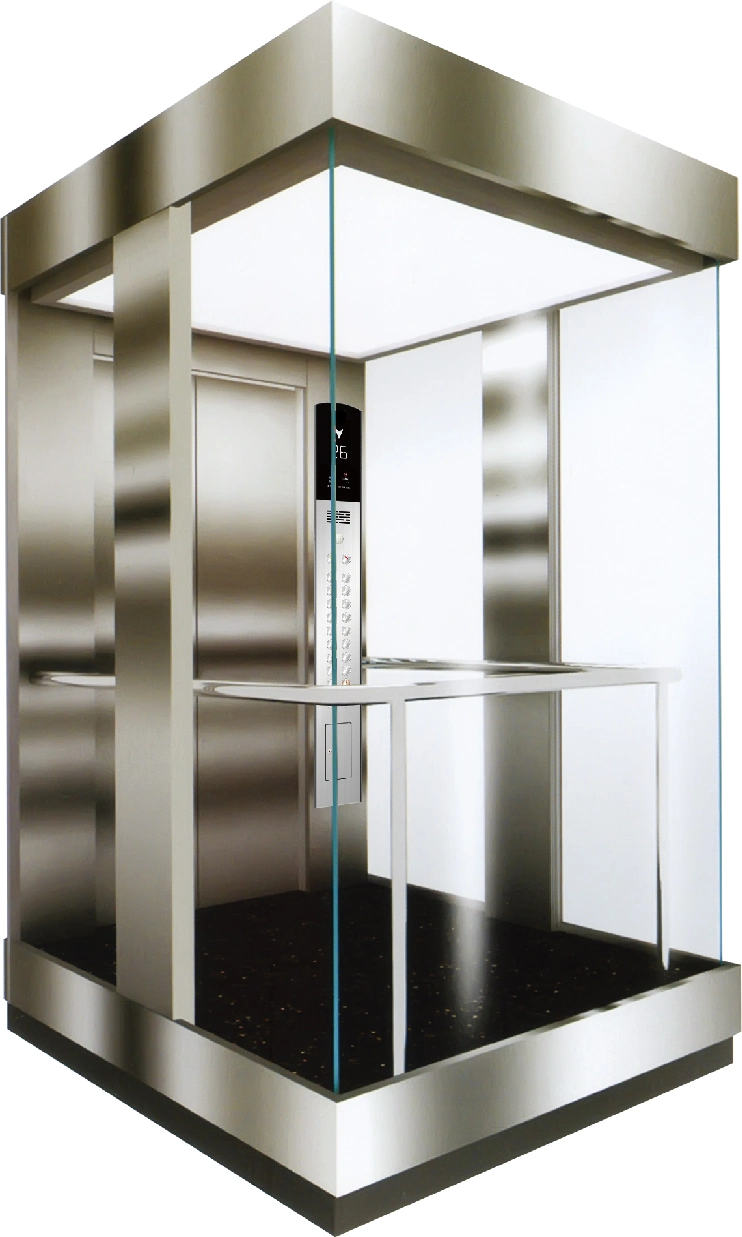

| Part | Standard Specification |
|---|---|
| Wall | Hairline stainless steel |
| Ceiling | LED Fluorescent, according to the car design |
| Car bottom | PVC |
| Jamb material | The first layer of hairline, the remaining steel plate Spraying |
| Hall door | The first layer of hairline, the remaining steel plate Spraying |
| Load (Kg) | Rated Speed (m/s) | Car Size (cw*cd) | Door Opening (ew*eh) | Shaft Size (hw*hd) | Top Height (mm) | Pit Depth (mm) |
|---|---|---|---|---|---|---|
| 450 | 1 | 1100×1100 | 800×2100 | 2050×1850 | 4500 | 1500 |
| 630 | 1 / 1.5 / 1.75 | 1400×1100 | 800×2100 | 2250×1900 | 4500-4700 | 1500-1600 |
| 800 | 1 / 1.5 / 1.75 | 1400×1350 | 800×2100 | 2200×1950 | 4000-4700 | 1500-1600 |
| 1000 | 1 / 1.5 / 1.75 | 1500×1550 | 900×2100 | 2350×2150 | 4000-4700 | 1600 |
| 1600 | 1 / 1.5 / 1.75 | 1800×2000 | 1100×2100 | 2900×2200 | 4350-4500 | 1500-1600 |

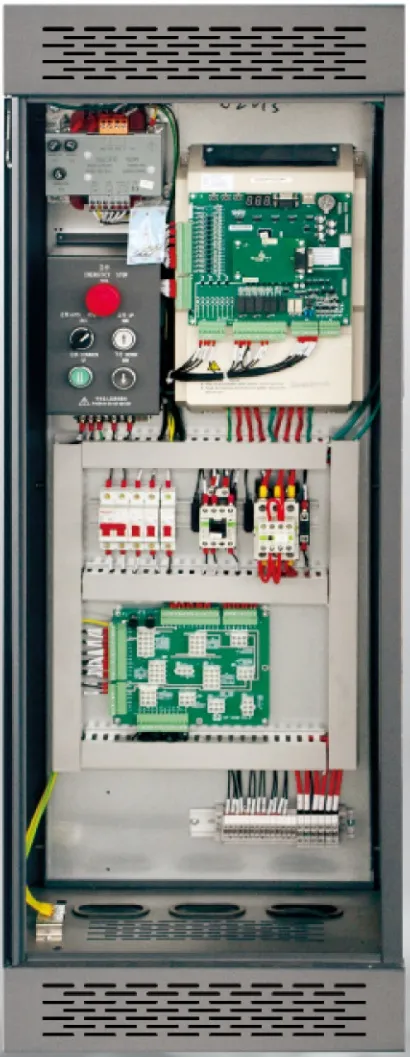

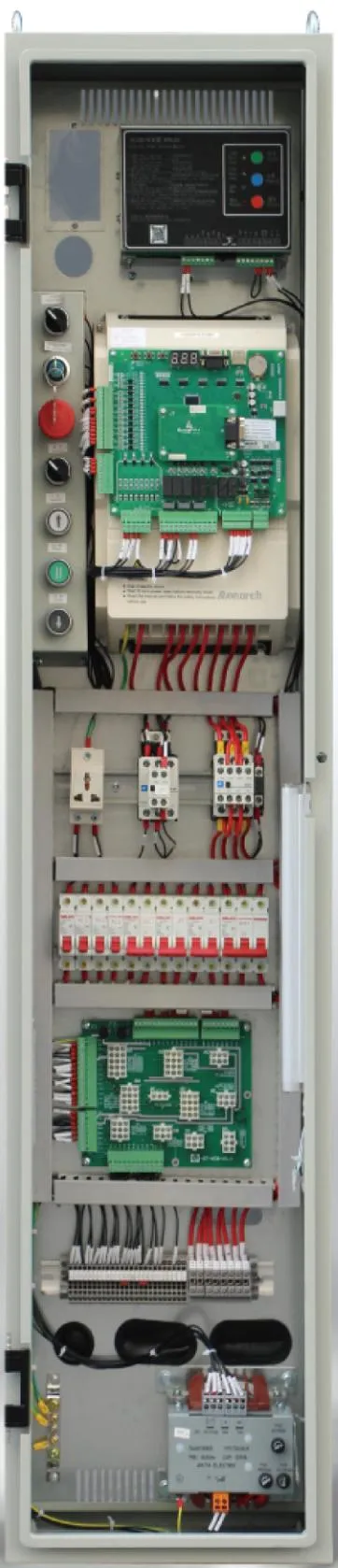

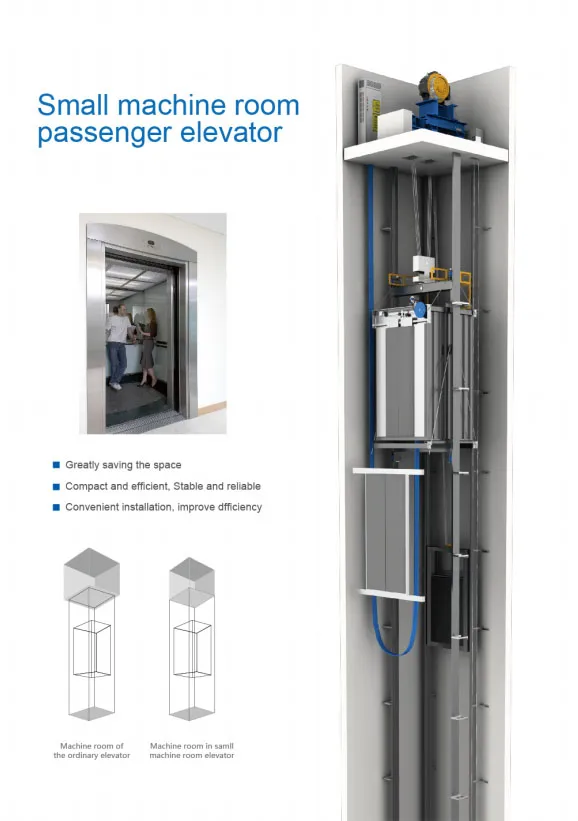

Giving first priority to effectiveness in vertical transport. The system optimizes service efficacy through multi-computer, modular, and network control, providing passengers with efficient and smooth operation.

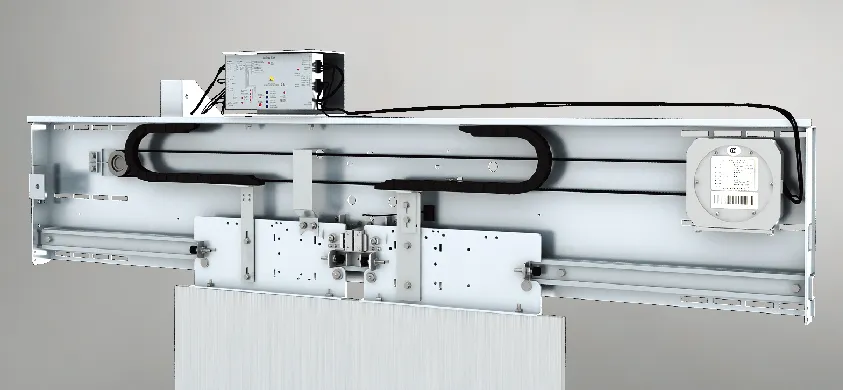

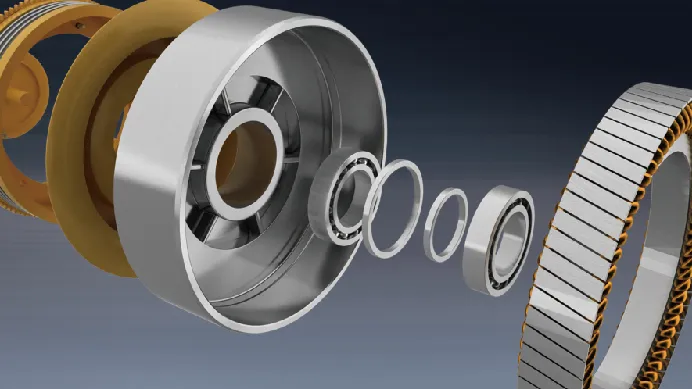

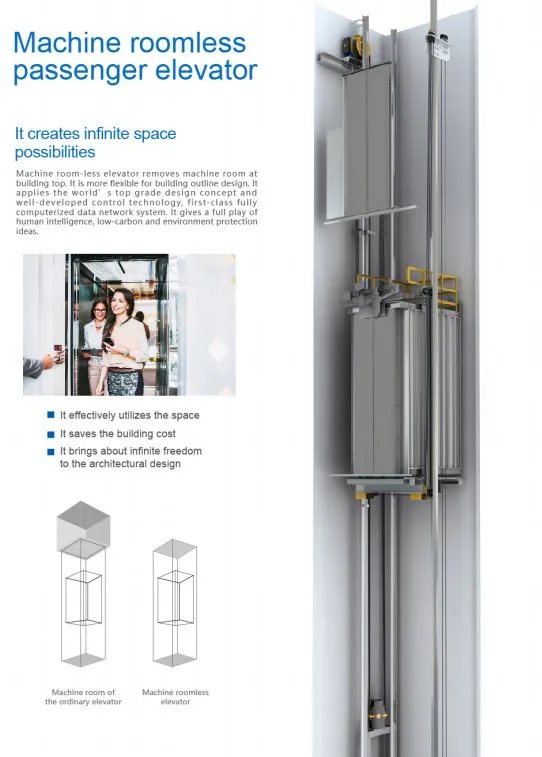

New generation traction technology combined with top advanced door operator systems ensures energy saving, low noise, and high precision door control.
| No. | Description Name | Function | No. | Description Name | Function |
|---|---|---|---|---|---|
| 1 | Static Protection | Eliminate static electricity. | 11 | Over-load Protection | Prevents motor overload. |
| 2 | Emergency Stop | Immediate stop button. | 12 | Step Sagging | Prevents breakage risk. |
| 3 | Skirting Protection | Foreign body jamming safety. | 13 | Chain Protection | Monitor chain elongation. |
| 4 | Handrail Entry | Entry safety protection. | 14 | Comb Teeth | Trap prevention at comb point. |
| 5 | Drive Chains | Breakage protection. | 15 | Handrail Monitor | Speed and breakage monitor. |
| 6 | Over-speed | Protection at 20%+ rated speed. | 16 | Anti-clamp | Skirting protection brush. |
| 7 | Under-speed | Protection at <80% rated speed. | 17 | Step Missing | Stairway integrity detection. |
| 8 | Un-intentional Reversal | Prevents accidental reversal. | 18 | Brake Monitor | Monitor brake open/close status. |
| 9 | Floor-plate Monitor | Safety switch for pit cover. | 19 | Handwheel safety | Safety circuit for manual use. |
| 10 | Short Circuit | Electrical short protection. | 20 | Phase Protection | Lack of or error phase protection. |
