| Customization: | Available |
|---|---|
| Type: | without Machine Room |
| Speed: | 1.00 - 2.00m/s |

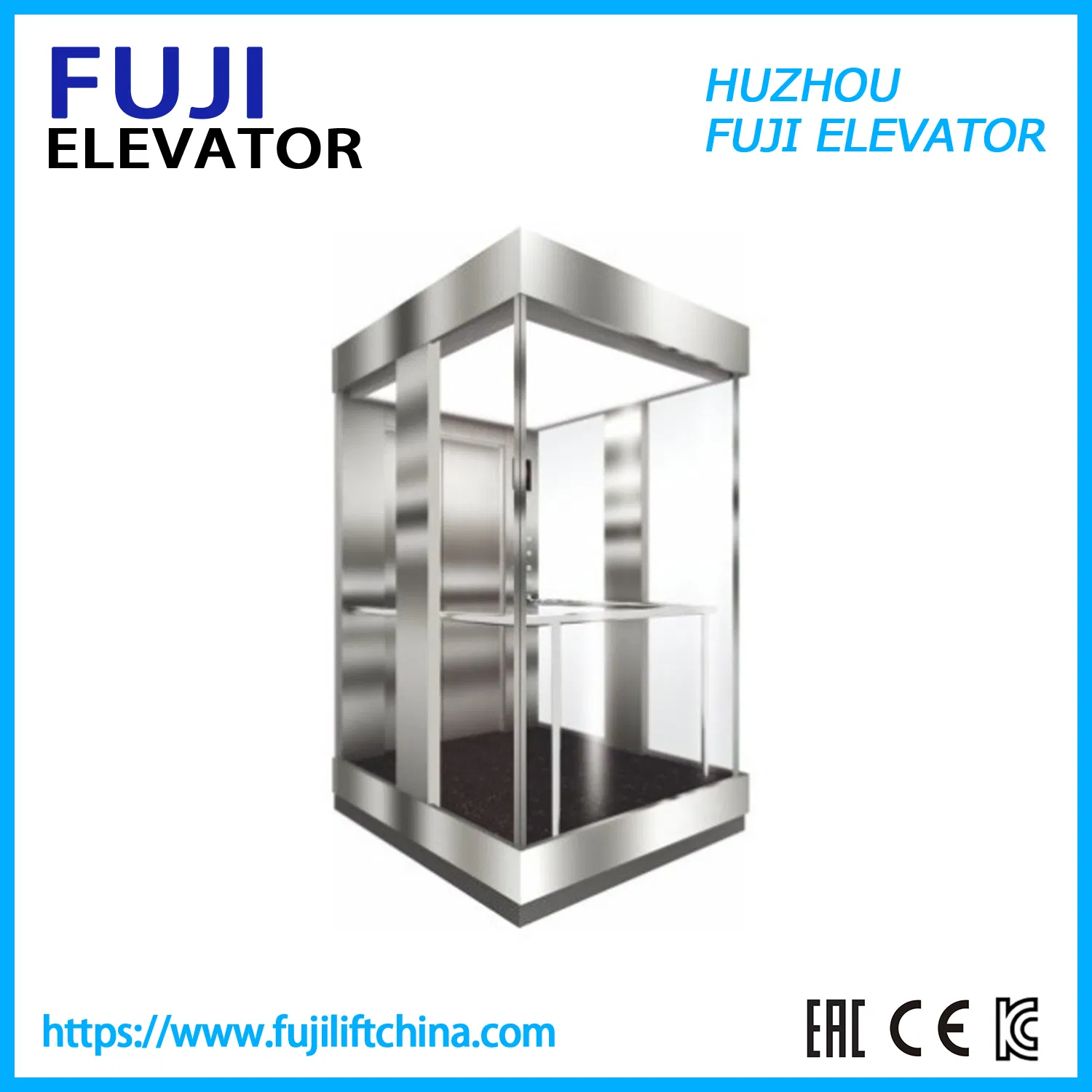

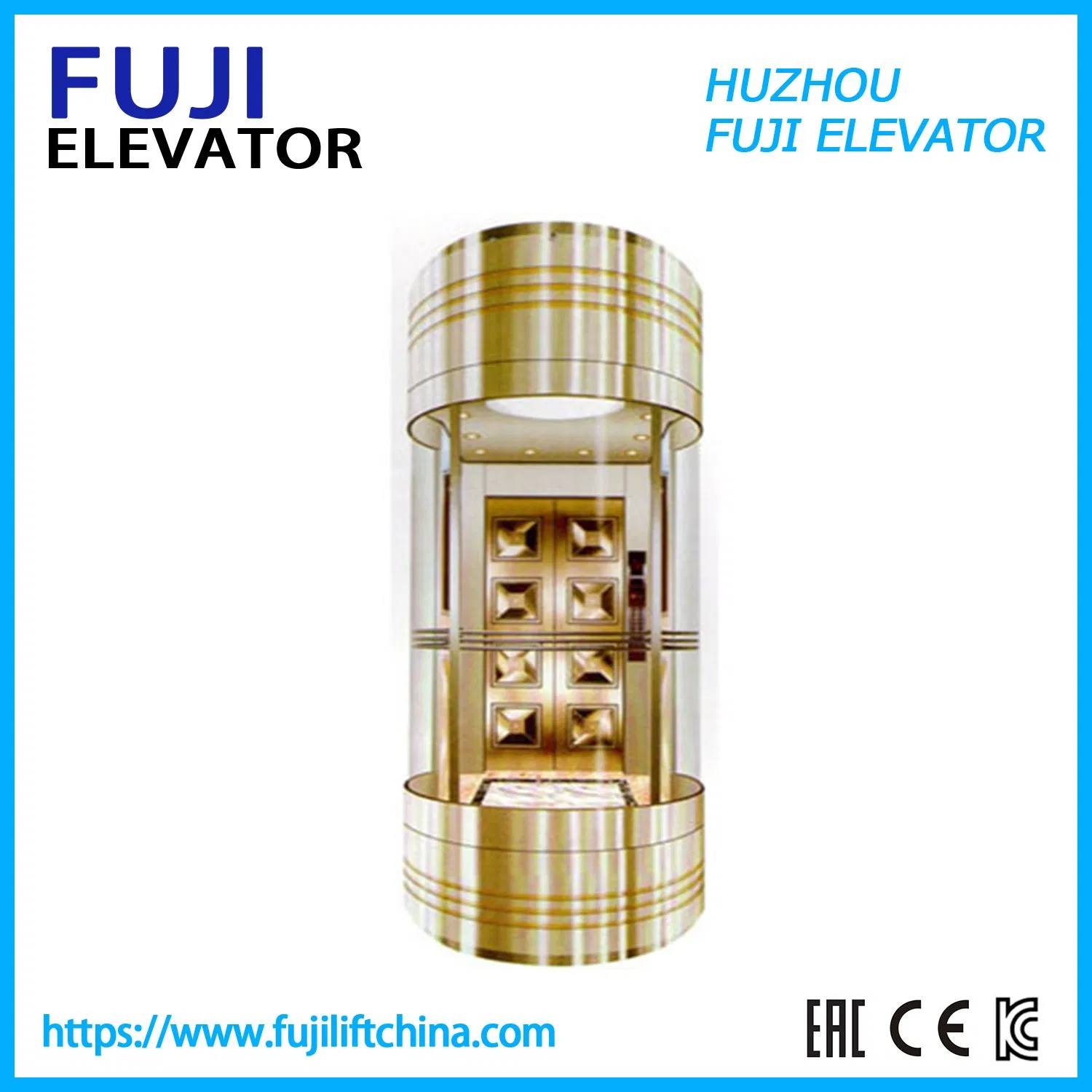

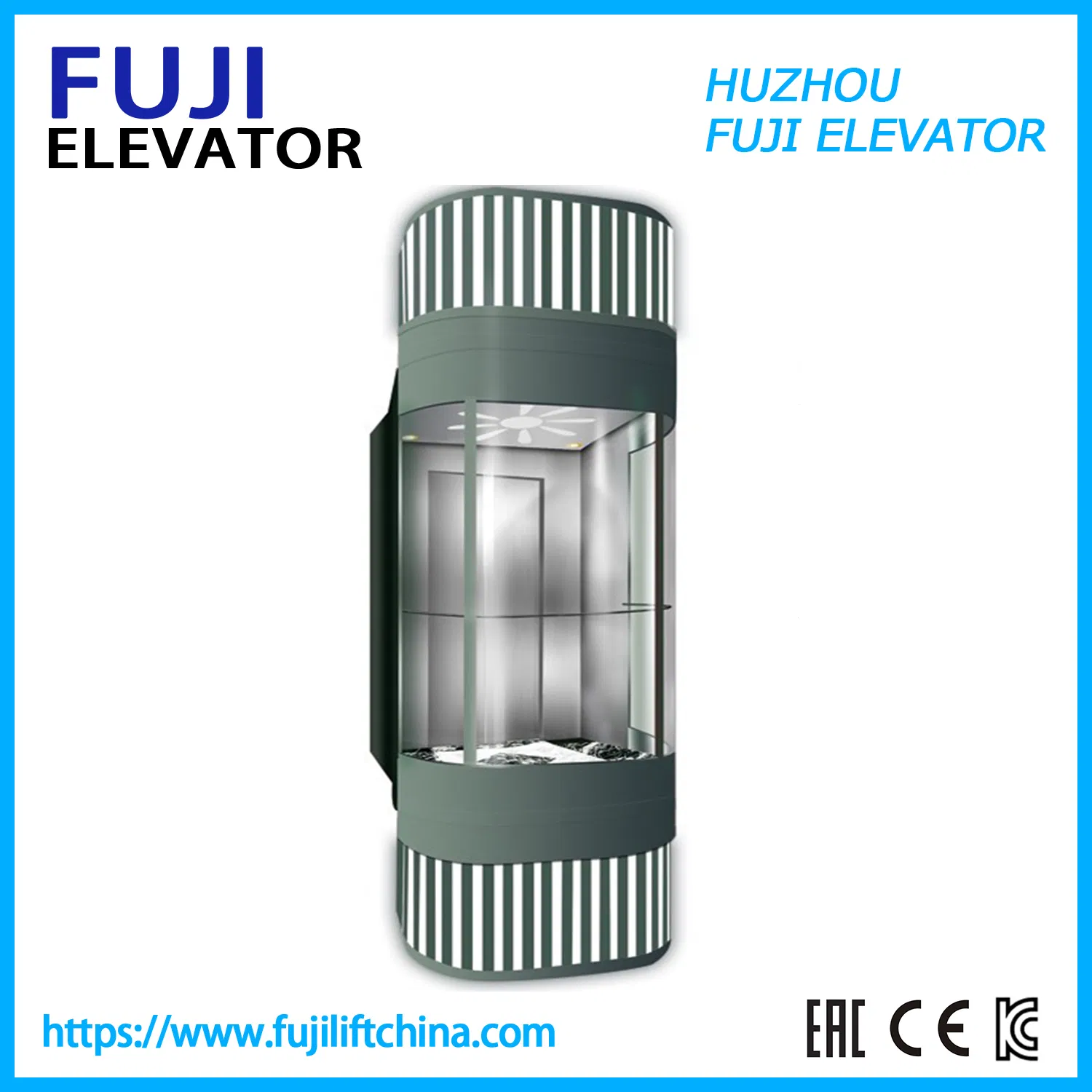

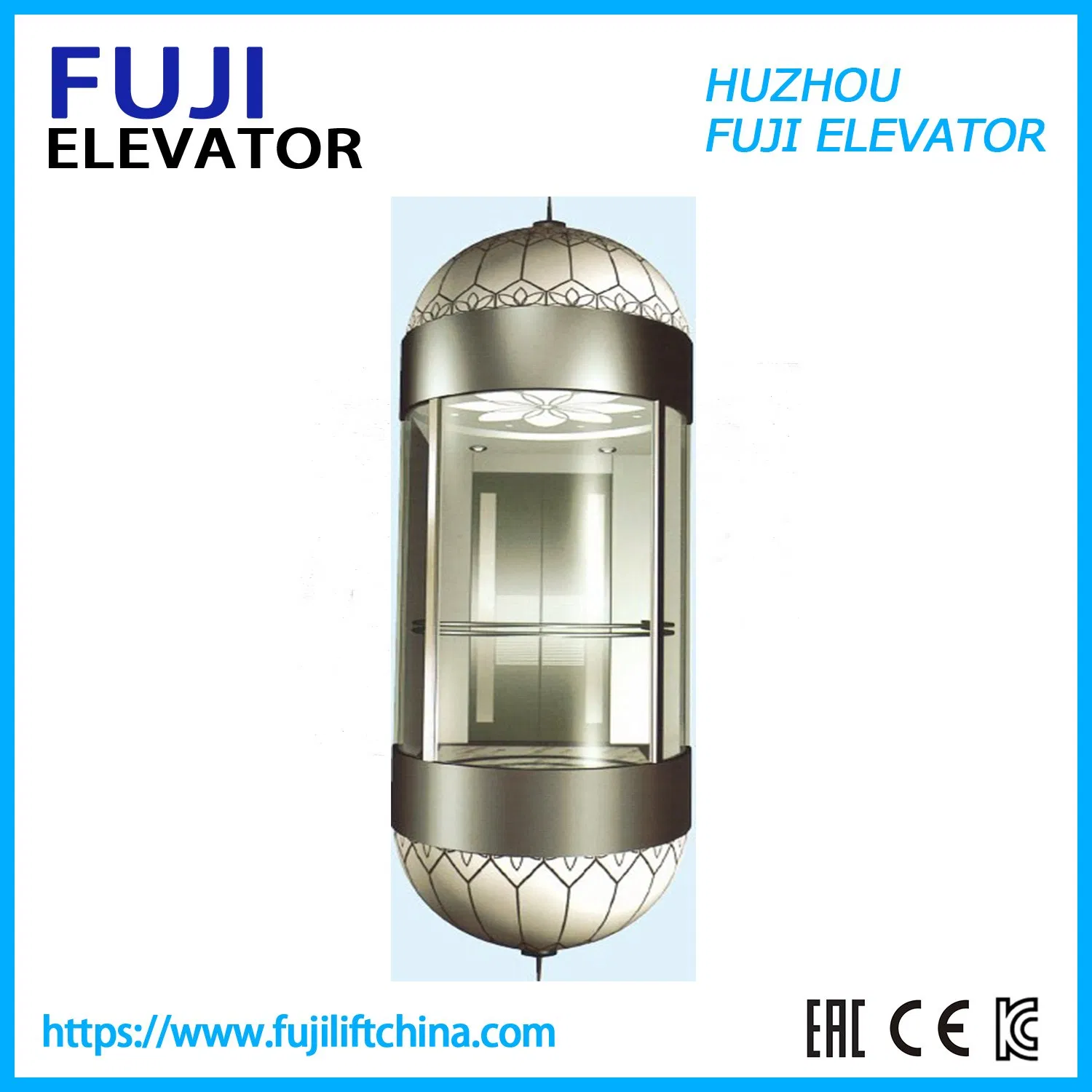

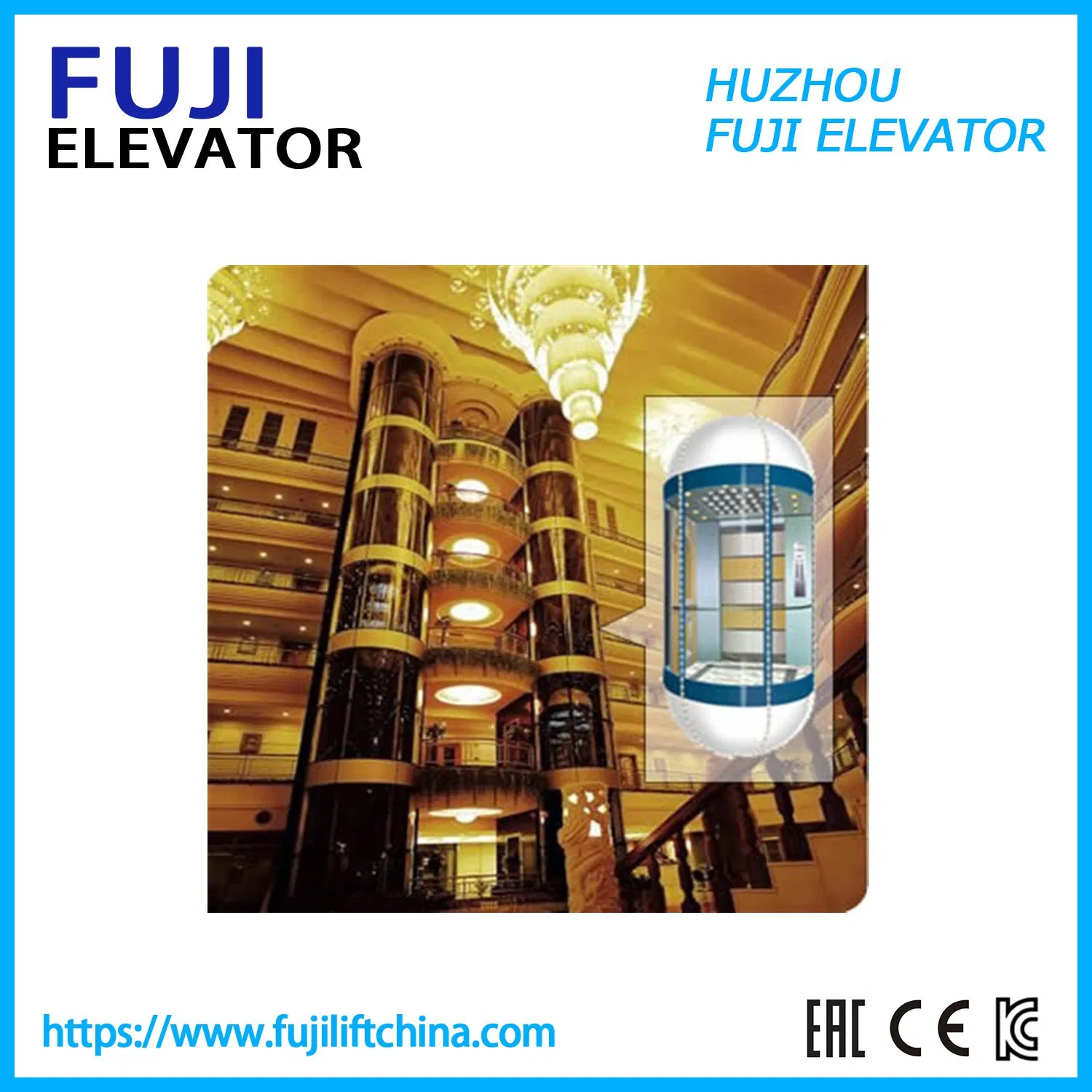

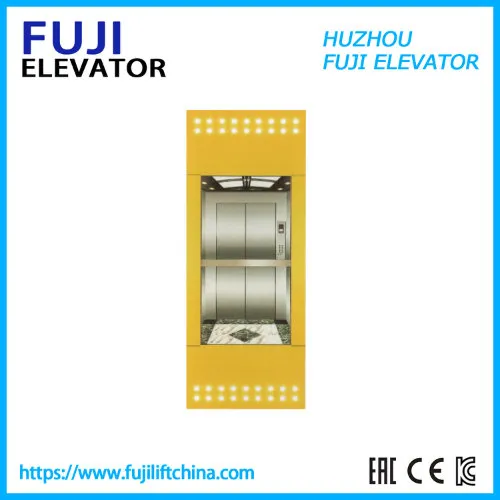

The glass exterior of the sightseeing elevator:
| Loading capacity | Rated speed | Door open type | Door opening size(WxH)mm | Car size(AxB) mm | Hoist way size(AHxBH) mm | PIT | OH | Machine room size |
|---|---|---|---|---|---|---|---|---|
| 450kg | 1.0/1.5/1.75 | Center | 800x2100 | 1400x850 | 2000x1550 | 1500/1600 | 4500 | 2500x3200x2500 |
| 630kg | 1.0/1.5/1.75 | Center | 800x2100 | 1400x1100 | 2000x1750 | 1500/1600 | 4500 | 2500x3600x2500 |
| 800kg | 1.0/1.5/1.75 | Center | 800x2100 | 1400x1350 | 2000x2000 | 1500/1600 | 4500 | 2500x3800x2600 |
| 1000kg | 1.0/1.5/1.75 | Center | 900x2100 | 1600x1400 | 2200x2150 | 1500/1600 | 4500 | 3000x4000x2600 |
| 1250kg | 1.0/1.5/1.75 | Center | 1100x2100 | 2000x1400 | 2600x2150 | 1500/1600 | 4500/4700 | 4000x4500x3000 |

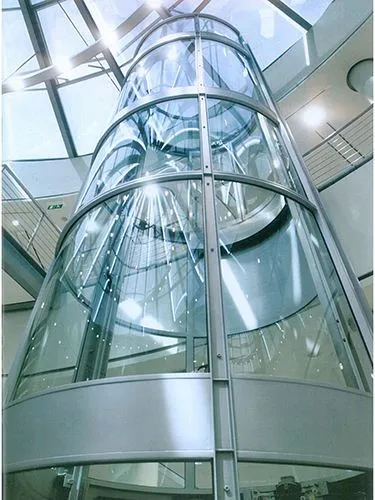

Fine and exquisite observation elevator enhances building grade. It highlights the whole building. It has fine and exquisite visual aesthetics, perfect and comfortable travel. It applies modern new material and new fully computerized, vector type variable frequency speed regulation (VVVF) control technology.
| No. | Description name | Safety Details | No. | Description name | Safety Details |
|---|---|---|---|---|---|
| 1 | Static electricity protection | Eliminate static electricity raised from running of steps. | 11 | Over-load protection | Protection against risk of motor continually over-load. |
| 2 | Emergency stop button | Push to stop the elevator against emergency raise. | 12 | Step sagging protection | Protection against risk of breakage and sagging. |
| 3 | Skirting protection | Protection against risk of foreign bodies being jammed. | 13 | Broken step chain protection | Protection against risk of steps being breakage. |
| 4 | Handrail entry protection | Protection against foreign bodies at entry point. | 14 | Comb teeth safety protection | Protection at the point where step enters the comb. |
| 6 | Over-speed protection | Protection against speed being over 20% of rated speed. | 17 | Step missing detection | It detects the step missing in the stairway. |
Passenger elevator can offer you a pleasant ambience, special inverter system control the running position, upgrading the comfort feeling all-sided. Low noise, easy installation, accomplish you perfect living condition. Small occupying space, safe and durable.
