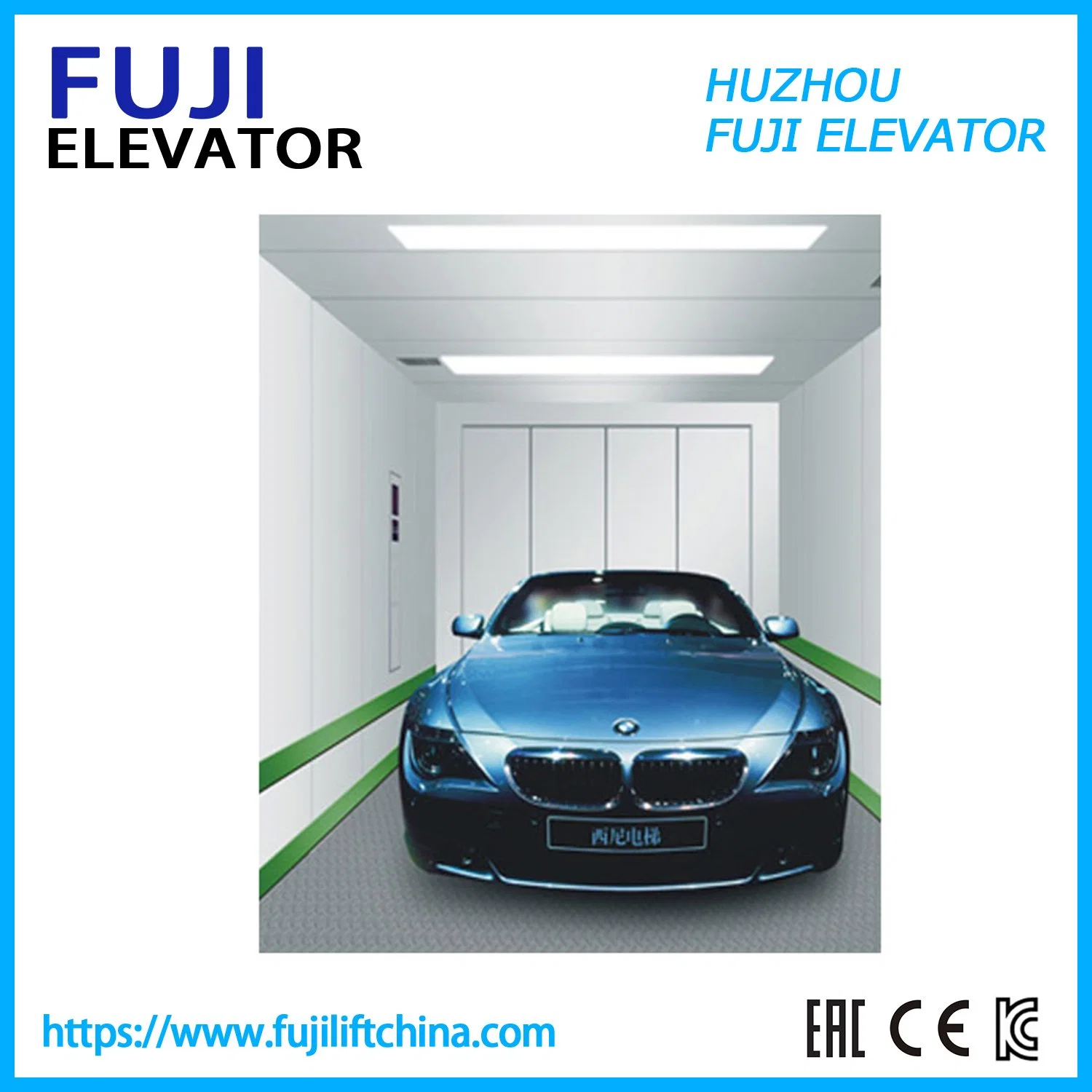

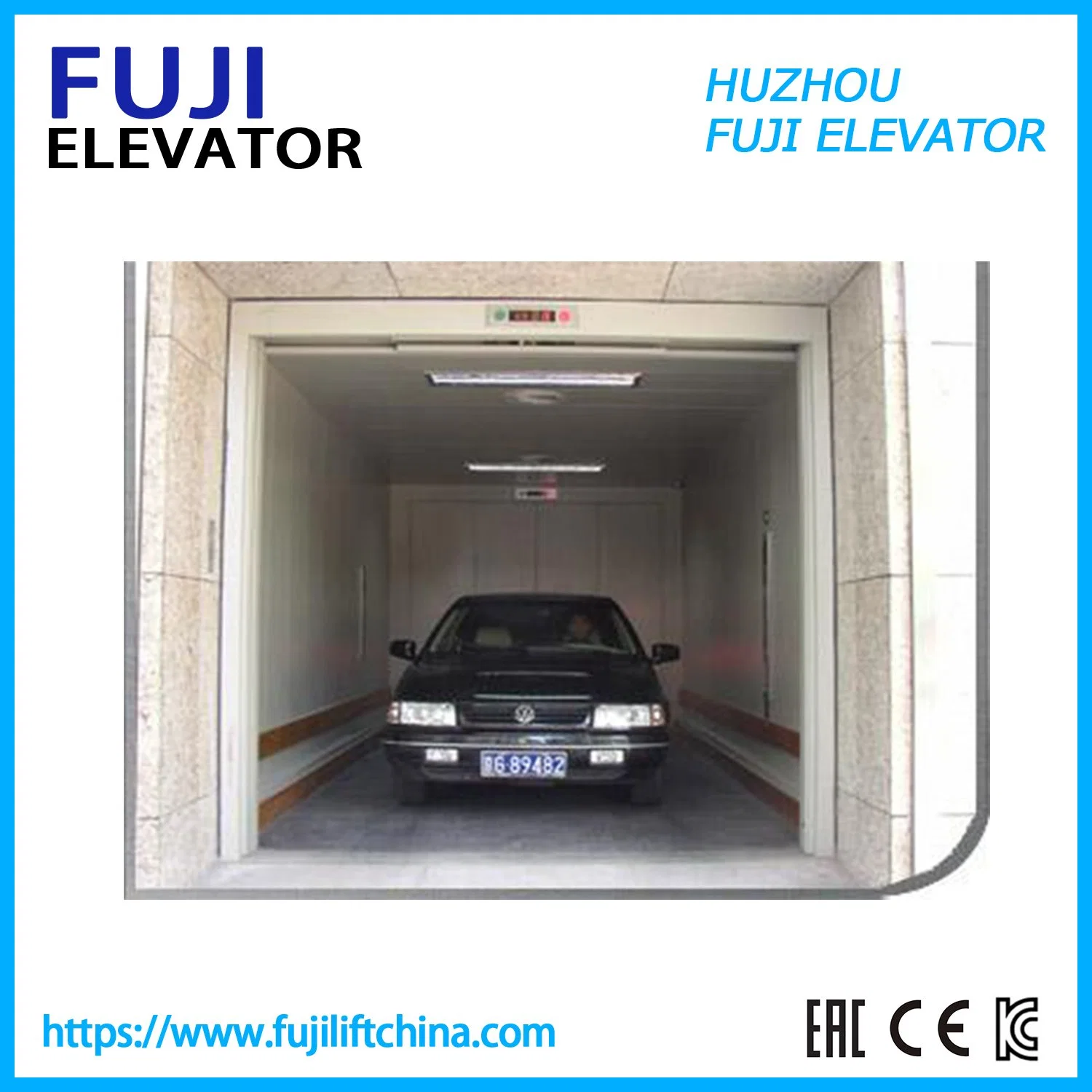

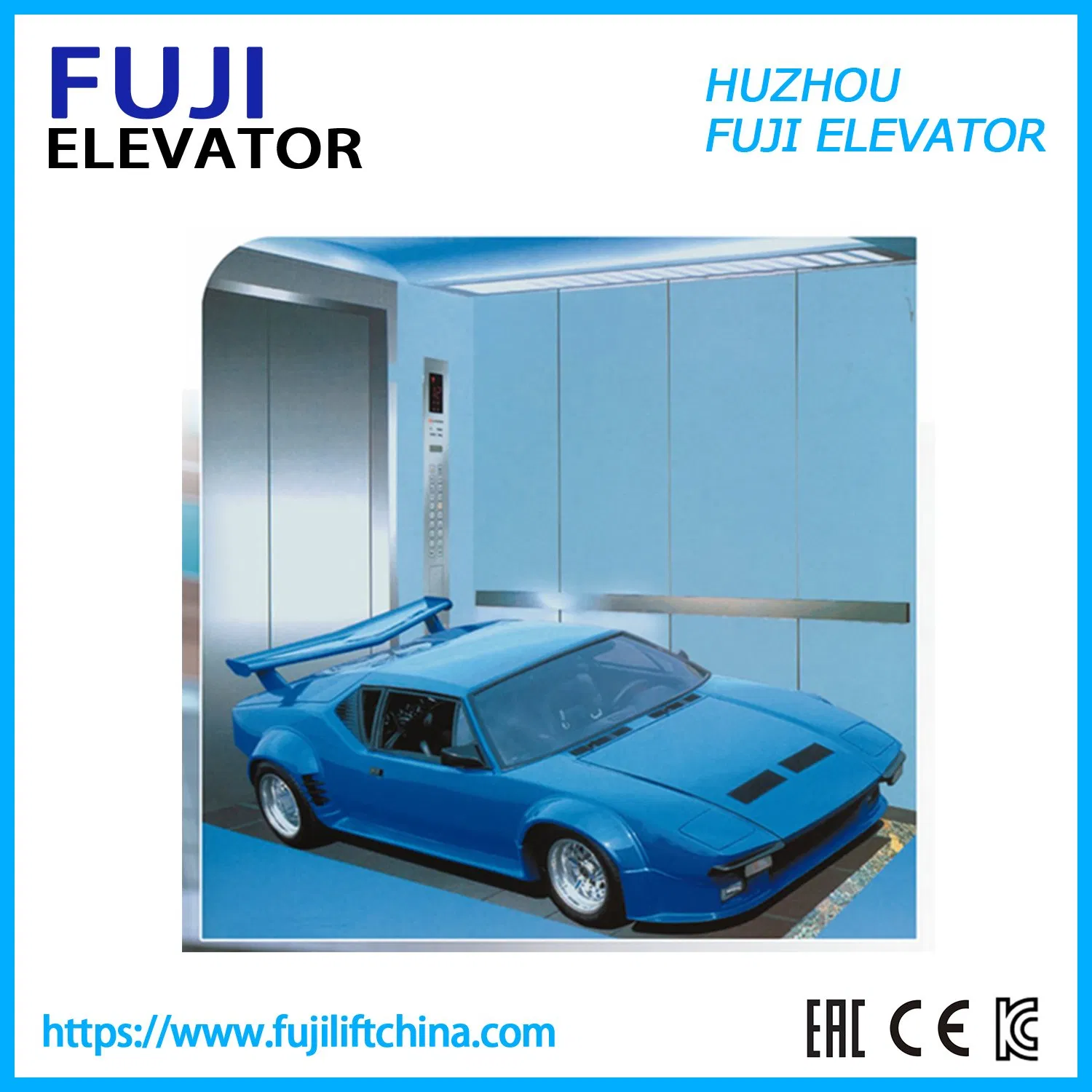

FUJI Car Lift Freight Elevator Goods Elevator Car Elevator with Good Price From China Factory Manufacturer Vvvf Control

Customization: Available
After-sales Service: 24 Hours Service
Warranty: 12-18 Months

Product Description

Technical Specifications

Model NO.
FUJI-D
Type
Wellhole
Load Capacity
3000kg
Speed
0.25-0.5 M/S
Drive Mode
AC
Open & Close Type
Automatic
Lift Mechanism
Lift Chain
Guide Rail
T Guide
Elevator Door
Center Opening Door
Production Time
Within 25-30 Days
Origin
China
Transport Package
High Quality Export Wooden Case

About FUJI Car Elevator

FUJI intelligent automobile elevator introduced the well-developed international automobile elevation technology. Developed and manufactured through absorption, conversion, and enhancement, our advanced technology removes the shaking factors common in car lifts. It eliminates noise from burdened traction systems and uneven force, optimizing product performance for various environments.

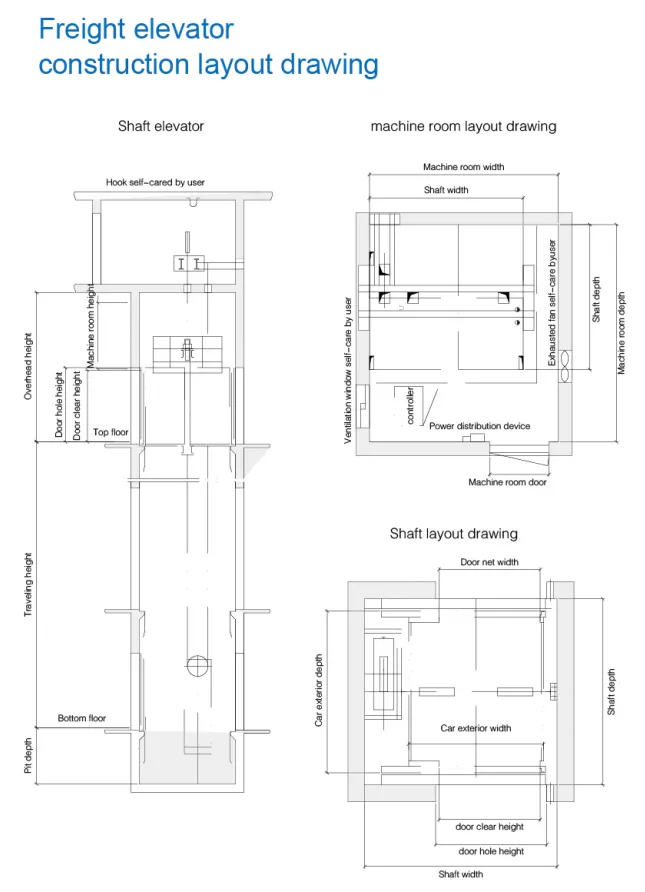

FUJI Car Lift

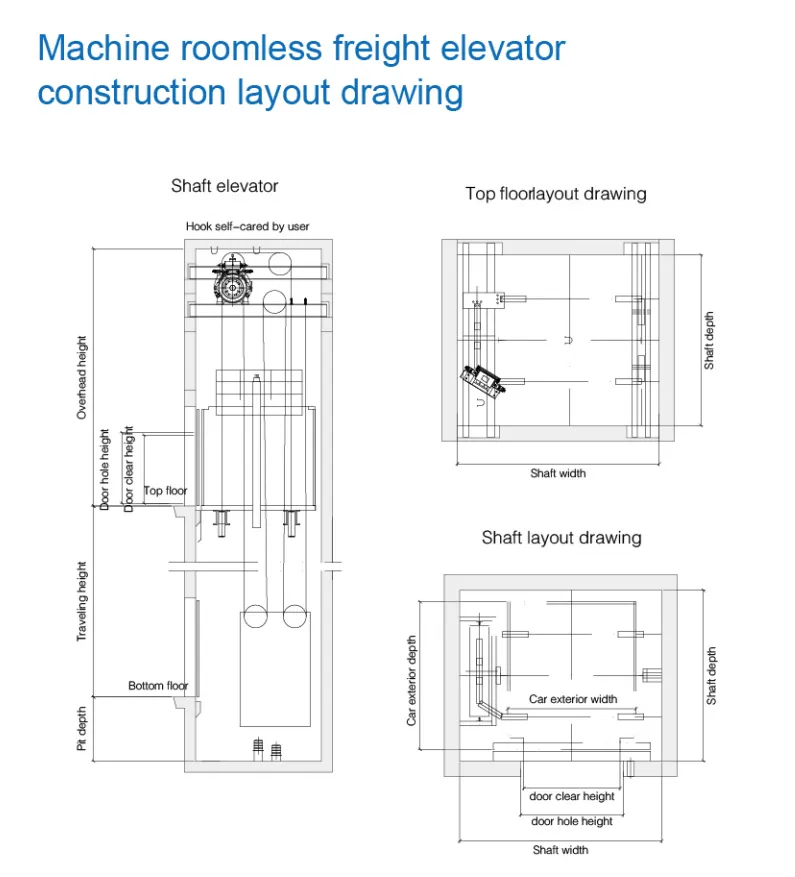

FUJI Elevator Interior

Service & Support

After-sales Service System

  • Detailed installation manuals provided for technical staff.
  • Remote guidance available for accurate commissioning.
  • Engineer dispatch available for site-specific installation guidance.
  • Agent training programs at the manufacturing facility.

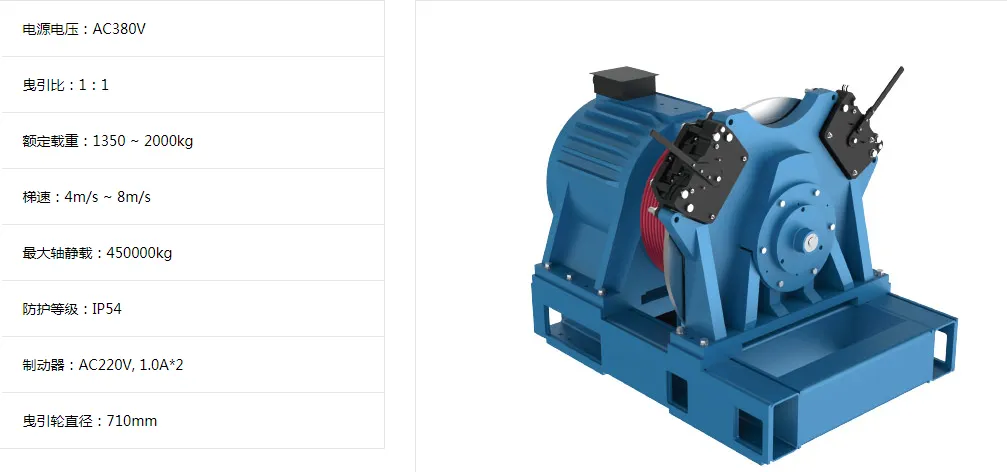

Service Support

Key Features

  • Rapid Load Adaptation: Designed to handle rapid increases and decreases in load stress.
  • Dual Control: Equipped with two button boxes for driver operation without leaving the vehicle.
  • High Capacity: Rated load over 3 tons with ample space for various vehicle types.
  • Through-Door Design: Front and rear door settings facilitate easy entry and exit.

Technical Parameters

Capacity(KG) Speed(m/s) Car Size (WxDxH)mm Door Opening(WxD)mm Shaft Size(WxD) OH(mm) Pit Depth(mm)
3000 0.25/0.5 2700x5800 2400x2200 4100x6160 4800 1600
5000 0.25/0.5 3500x7200 2600x2200 4750x7560 4800 1600

Standard Functions

No. Function Name No. Function Name
1Automatic stop16Anti-mischief function
2Self-diagnostic of call button17Auto-running of full-load
3Auto ventilation/light shut off18Hall button re-opening
4Repeat open/close door19Door load sensor
5Infrared light curtain protection20Arrival tip
6Fire running function21Self-diagnostic of fault
11Overload voice-light alarm26High speed protection
15Running signal fault protection30Five-party interphone

Safety & Stability

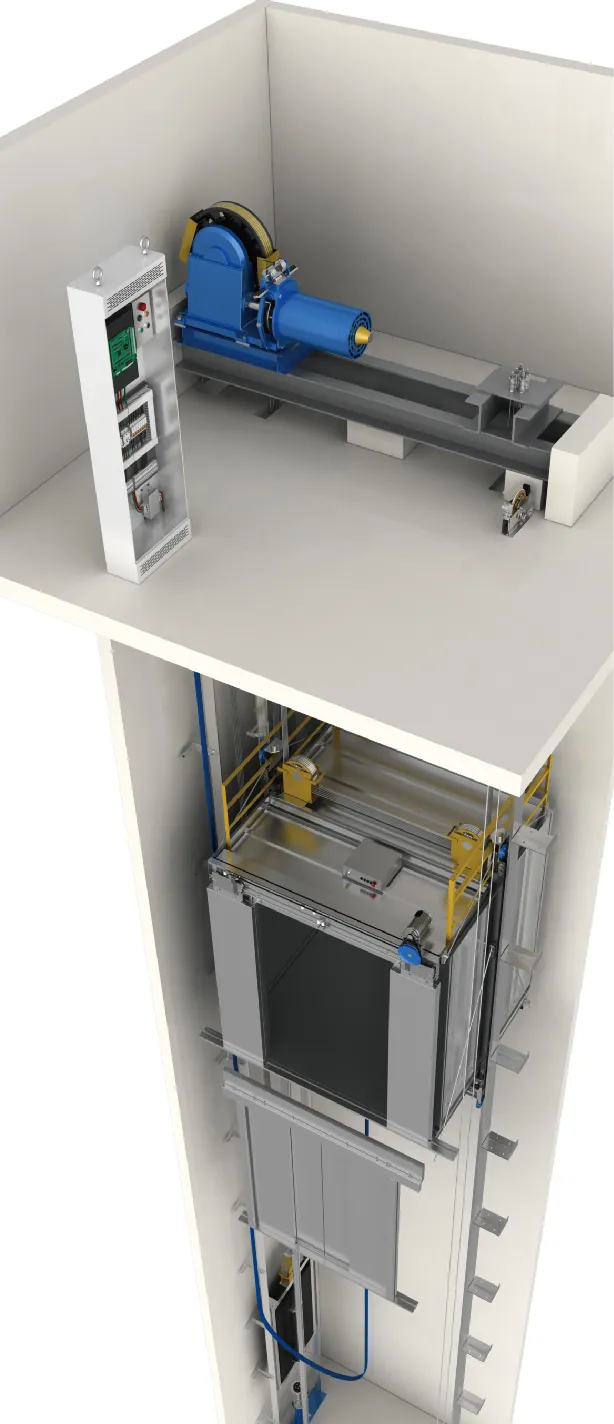

Structure Design
Heavy Load

FUJI freight elevators utilize high-strength section materials for car manufacture, capable of bearing heavy loads without deformation. The car bottom applies a doubled consolidation design to withstand various weights, ensuring safe and effective transport from warehouses to shopping centers.

Frequently Asked Questions

What is the standard production time for a car elevator?
The typical production time is within 25 to 30 days, ensuring quality manufacturing and testing before dispatch.
How does the elevator handle heavy vehicle loads?
The elevator uses high-strength section materials and a doubled consolidation design at the bottom to bear heavy loads without deformation.
Can the driver operate the lift without leaving the car?
Yes, the car is equipped with two independent control button boxes, allowing the driver to operate the elevator from inside the vehicle.
What safety features are included for passengers and vehicles?
Standard safety features include infrared light curtain protection, overload voice-light alarms, door load sensors, and an emergency five-party interphone.
What kind of after-sales support is available?
We provide comprehensive installation manuals, remote technical guidance, and the option to send engineers to the site for complex installations.
What is the loading capacity of these lifts?
Our standard car elevators are designed for heavy-duty use with common capacities ranging from 3000kg to 5000kg.
