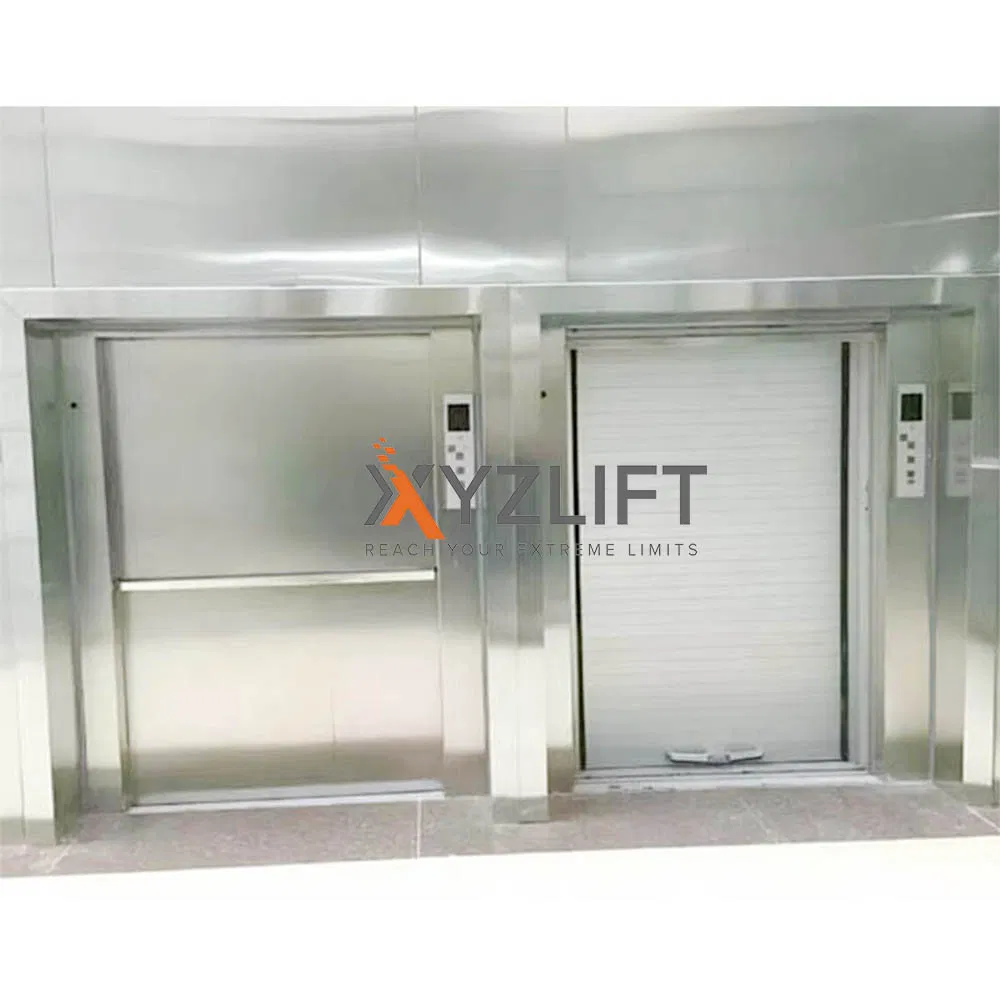

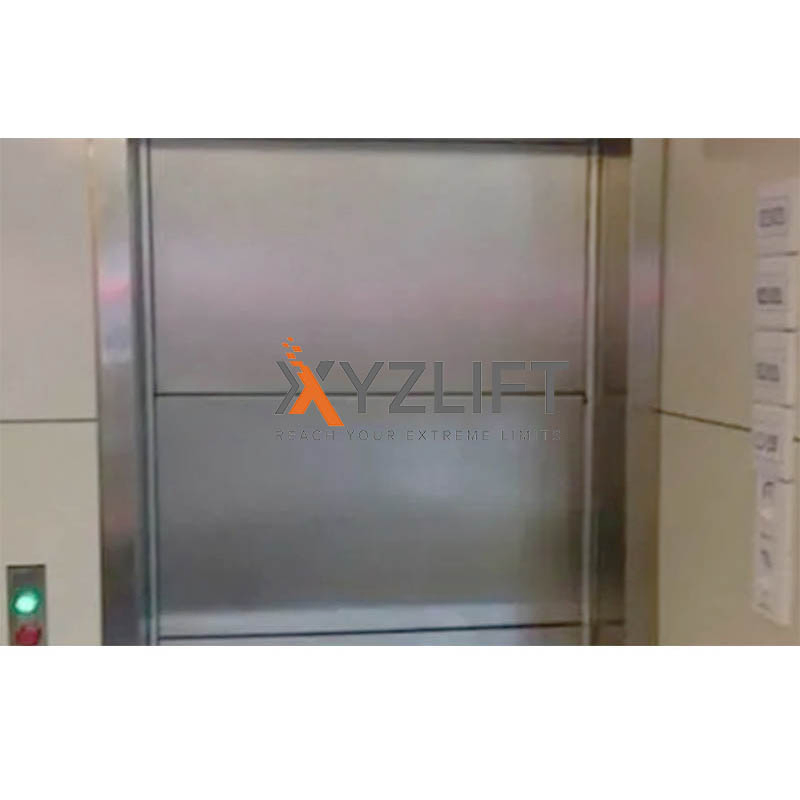

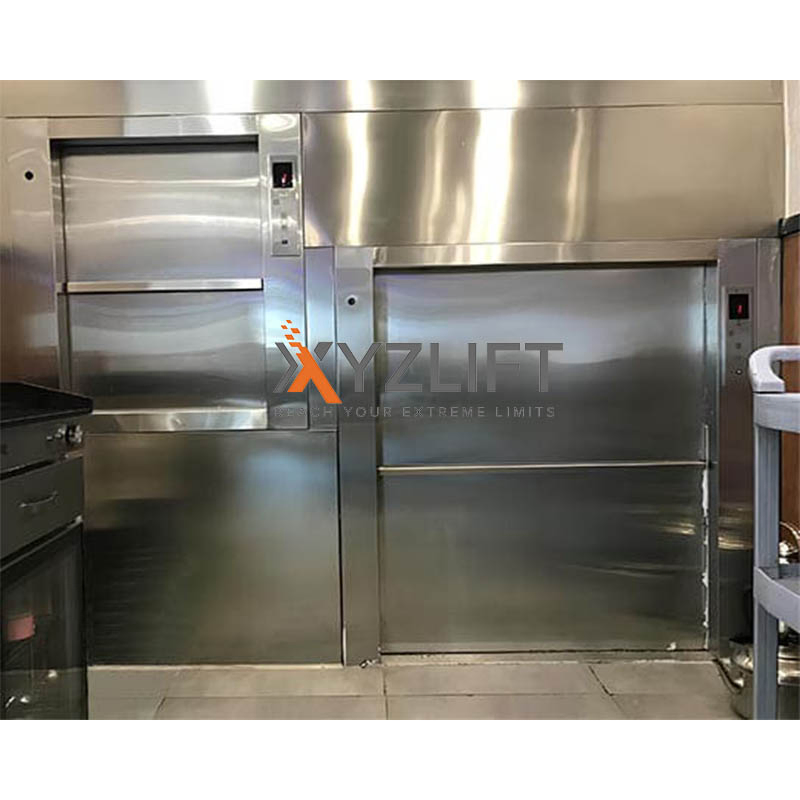

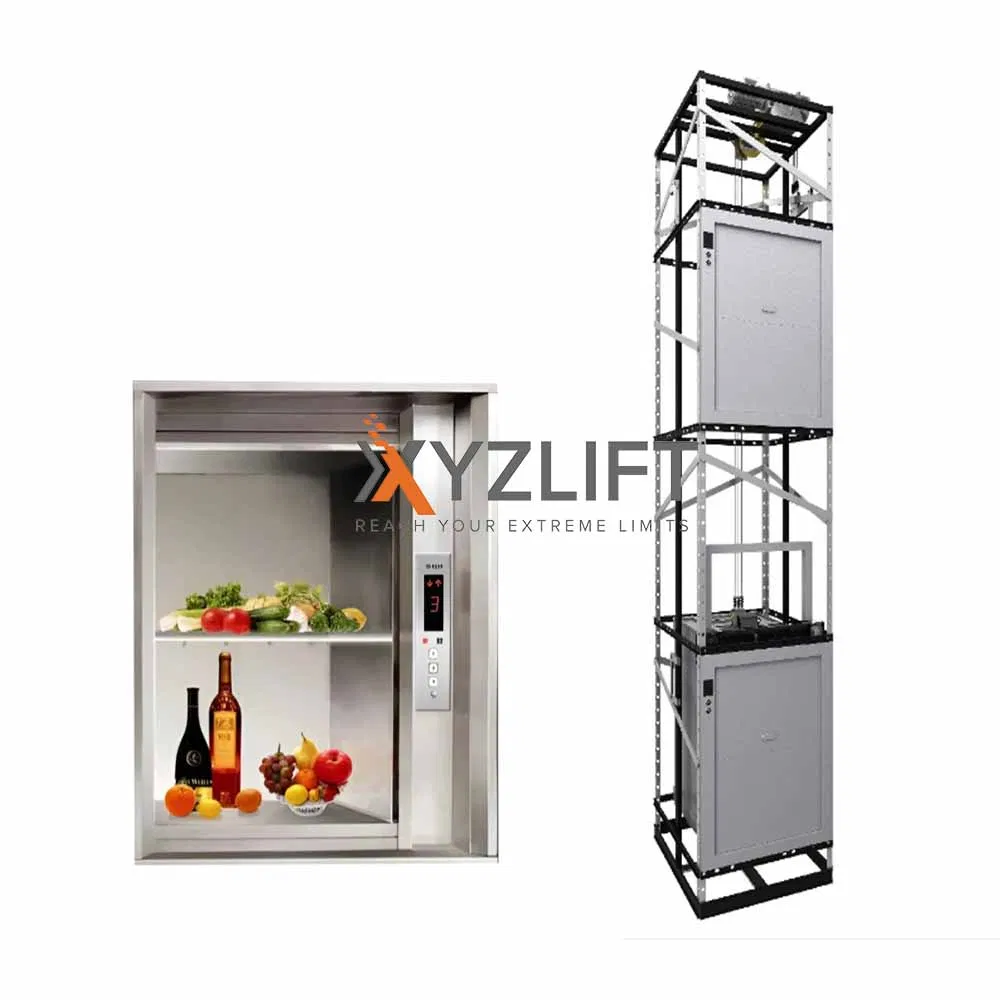

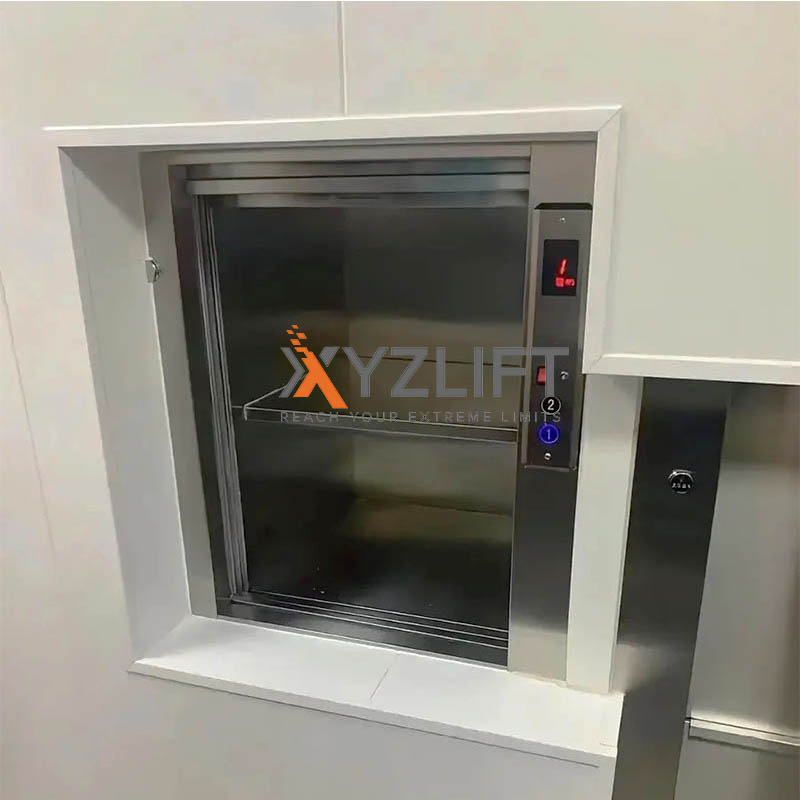

EN81-31 Approved Convenient 200kgs Dumbwaiter Elevator
The dumbwaiter is the perfect partner for transporting small items between floors safely, easily, and silently. It represents an excellent investment for both commercial and residential properties, being affordable in price and simple to install. Settings such as hotels, restaurants, pubs, clubs, care homes, hospitals, banks, schools, and airports benefit from this efficiency enhancer.
| MODEL | XYZD-2 |
| Installation site size | 1200*1200mm |
| Car size | 800*800*800mm |
| Door opening | Single opening |
| Doors | Bi-parting Stainless Steel |
| Floor height | 3000mm |
| Sill height | 800mm |
| Speed | 0.4m/s |
| Controls | Automatic push buttons, call & send. Complete with car position indicator, in use indicator, door open signal & Lift arrival buzzer |
| Customize service | Lifting height, cabin size, and door orientation can all be customized. |

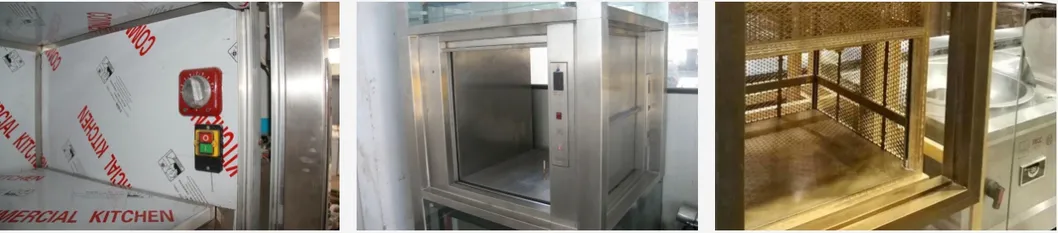

We understand that each customer has unique needs. Landing door options include: Automatic landing door, swing door, roller door.

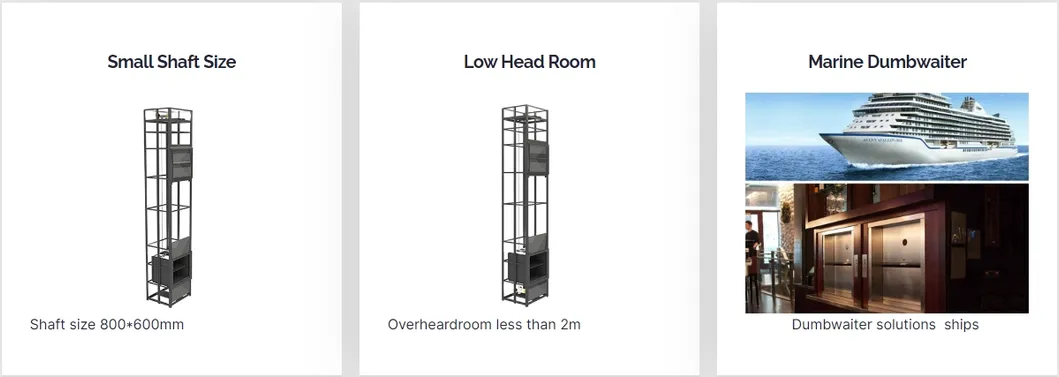

No matter what challenging issues you encounter: no pit, small hoistway, limited overhead space, or the need for highly stable marine dumbwaiters, our experienced technical team provides satisfying solutions.
Every dumbwaiter comes with an installation manual and video. Our technical team is committed to providing resolutions within 2 hours for any setup challenges.
Our dumbwaiter is suitable for houses, villas, child centers, banks, factories, or warehouses, solving transportation problems between floors.

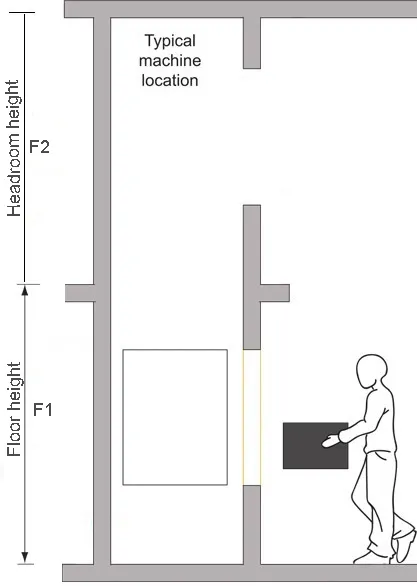

Please provide the main details as follows:
