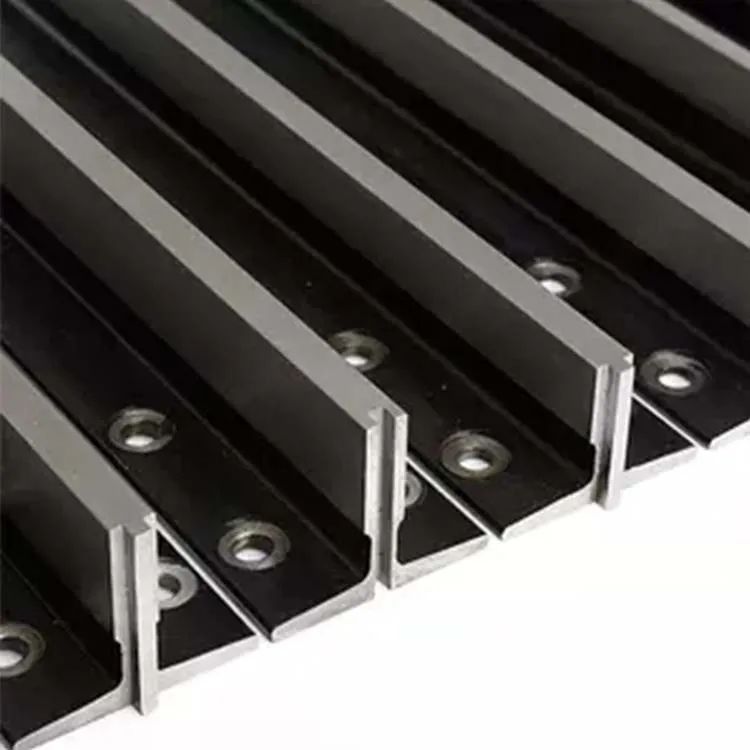

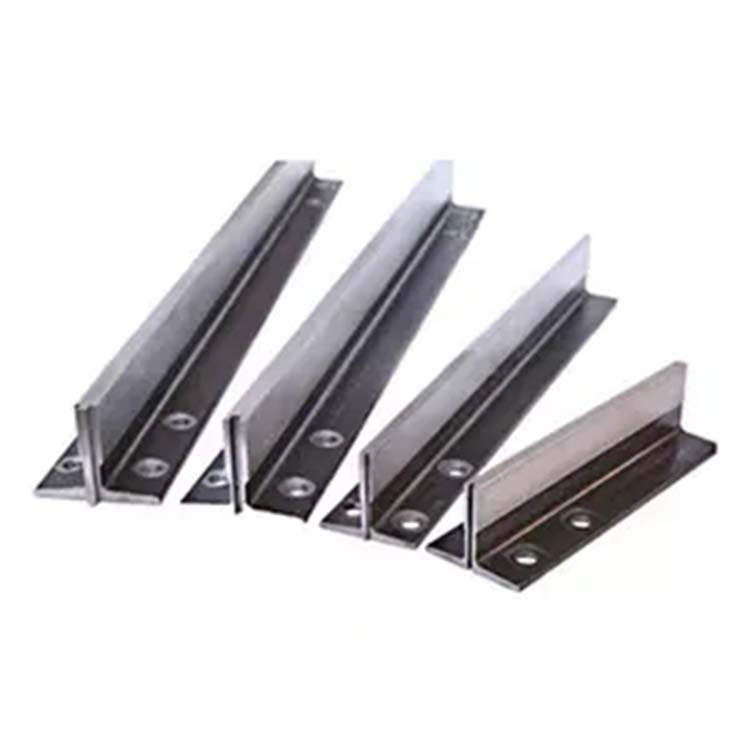

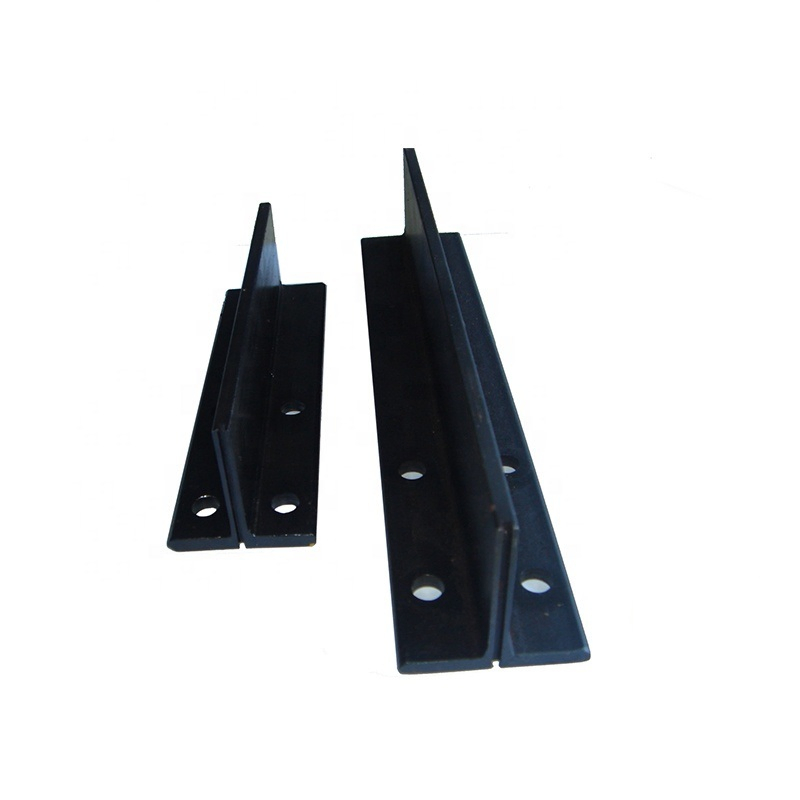

Expert manufacturing of high-quality elevator guide rails including T-Type, Machined, Cold Drawn, and Hollow types. Our production strictly follows ISO7465/2007 and GB-T22562/2008 standards.

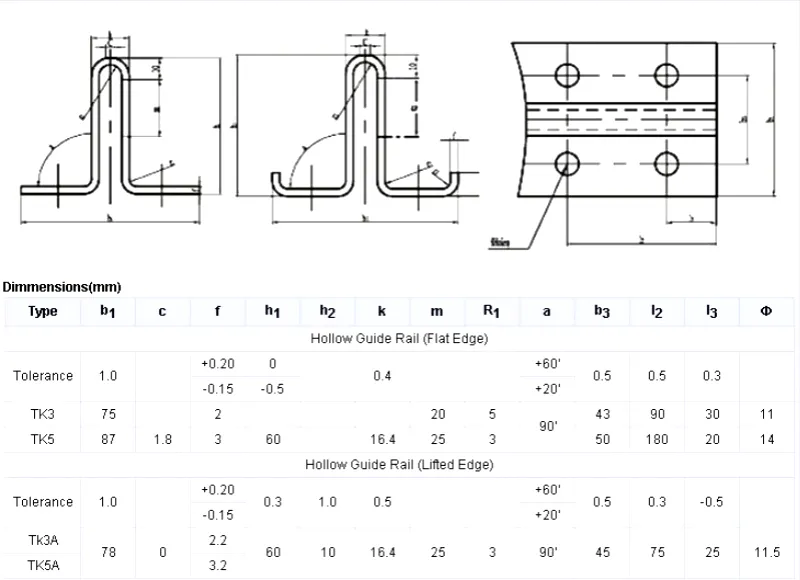

| Processing Model | Type | Dimension |
|---|---|---|
| Hollow Guide Rail | TK3 | 70*55*10MM |
| TK5 | 87*60*16MM | |
| TK3A | 78*60*16MM | |
| TK5A | 78*60*16MM |

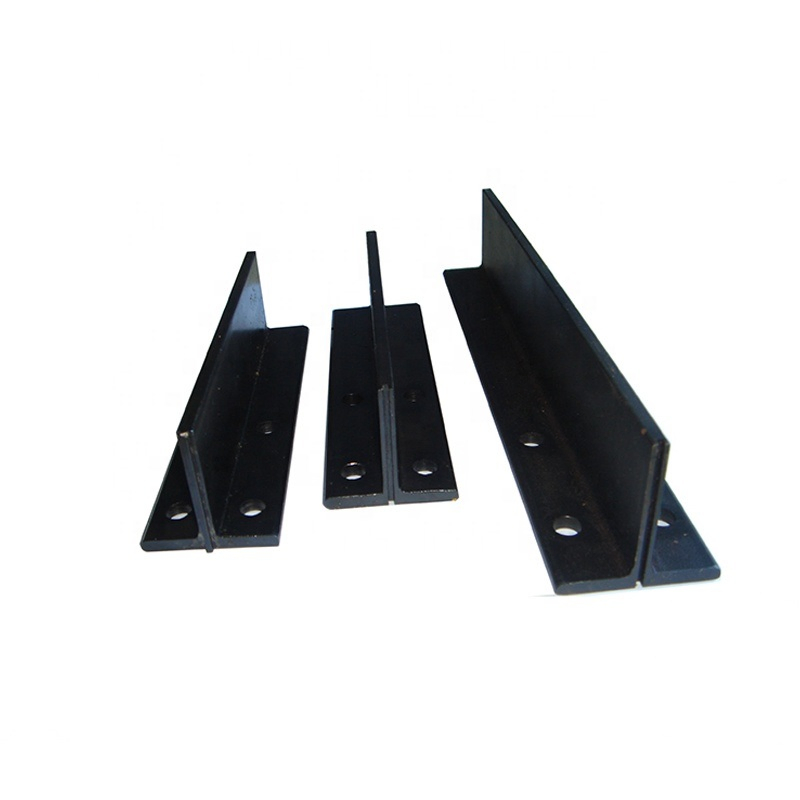

| Type | Dimension |
|---|---|
| T70-1/B | 70*65*9MM |
| T75-3/B | 75*62*10MM |
| T78/B | 78*56*10MM |
| T82/B | 82*68*9MM |
| T89/B | 89*62*16MM |
| T90/B | 90*75*16MM |
| T114/B | 114*89*16MM |
| T127-1/B | 127*89*16MM |
| T140-1/B | 140*108*19MM |
| Type | Dimension |
|---|---|
| T45/A | 45*45*5MM |
| T50/A | 50*50*5MM |
| T70/A | 70*65*9MM |

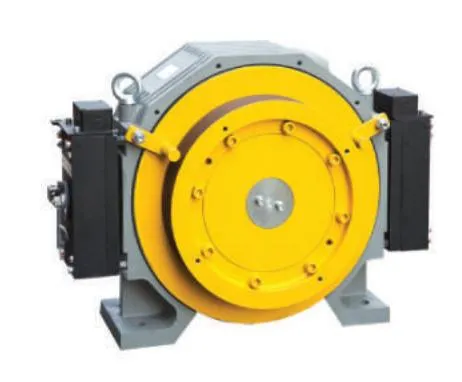

Advanced Traction Technology: Utilizing permanent magnet synchronous gearless traction machines as the power source. Compact in size and structure, meeting modern architectural design requirements for small machine rooms.

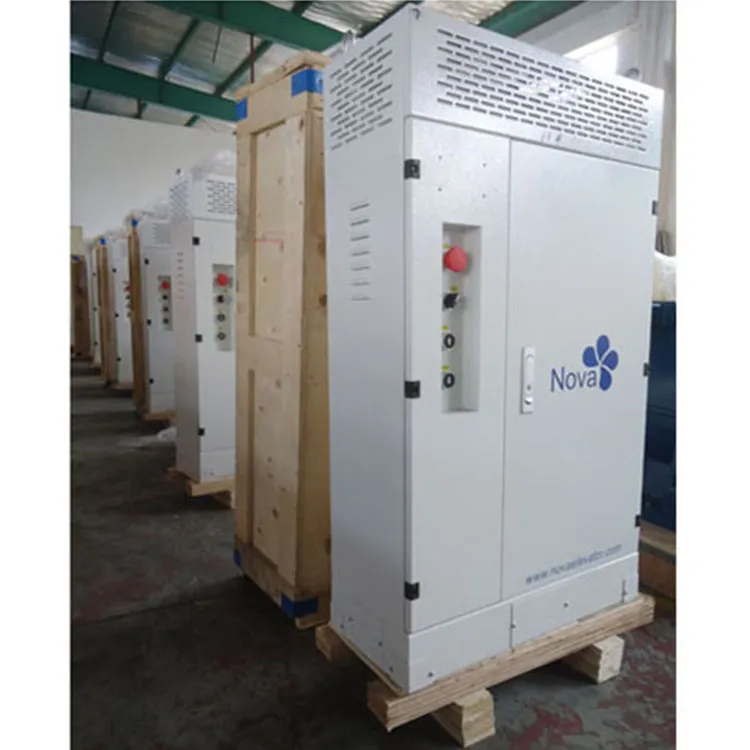

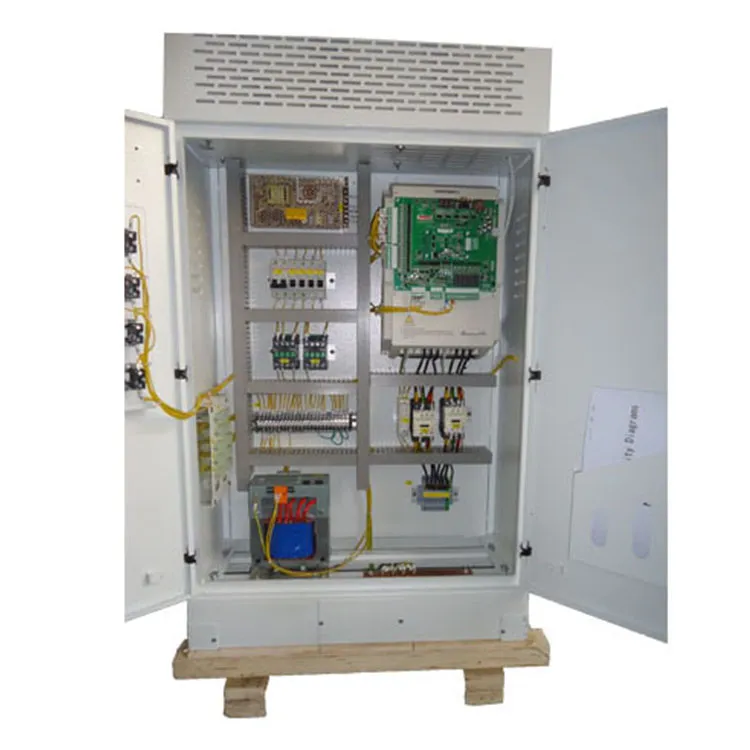

Next-Gen Control Systems: Integrated drive and control systems offer smaller volumes, more convenient operation, and superior cost performance.

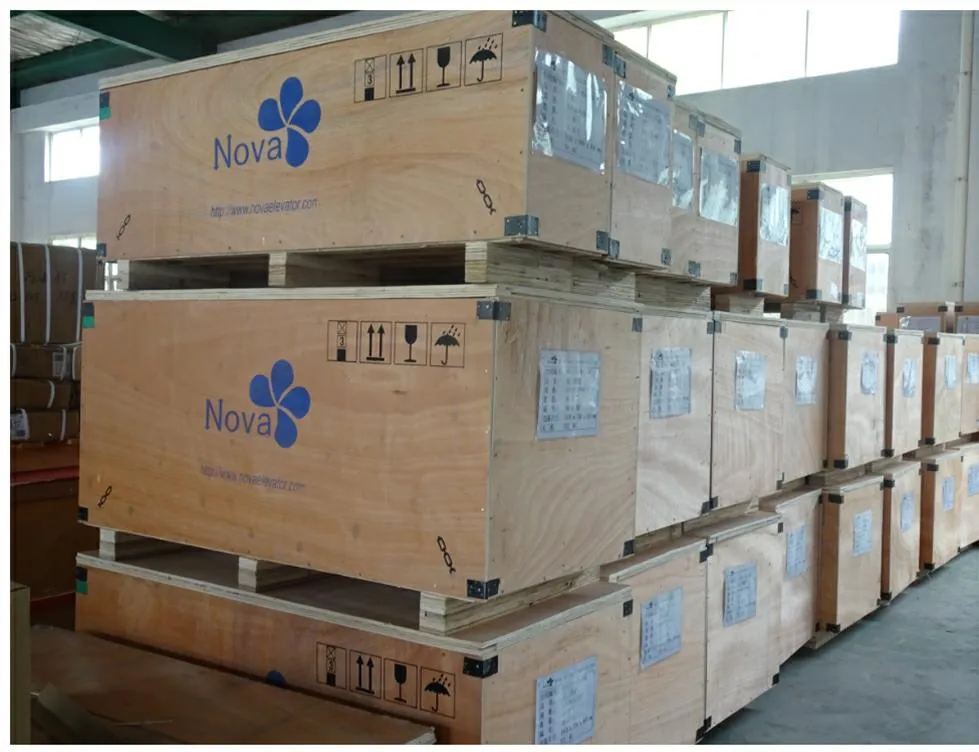

Packing Material: Standard export packing using plywood boxes and bundles. Each elevator consists of 12-20 packages depending on parameters.
Loading Capacity: 1 set fits in a 20FT container; 2-3 sets fit in a 40FT/40HQ container.
Delivery Time: 20-28 working days upon confirmed documents and deposit.
