Ascom Elevator
1 / 5
| Model NO. | Door | Driving Type | AC Elevator |
| Capacity | 500-1000kg | Persons | 6 - 10 |
| Speed | 1.00 - 2.00m/s | Control Mode | Signal Control |
| Position of Computer Room | Without Computer Room | Elevator Door | Center Opening Door |
| Dimension | Standard / Customizable Size | Feature | Safer, Smooth, Quiet Less Noisy; Durable |
| Product Name | Elevator Home Lift | Lifting Height | 2000mm-12000mm |
| Origin | China | Production Capacity | 5000pieces/Year |
| Package Size | 300.00cm * 200.00cm * 50.00cm |
| Package Gross Weight | 300.000kg |
Our villa elevator transfers individuality and pragmatic properties with unique styles. A life with intelligent household appliances is not just about art & high-tech. It is back to life. It is creative. lt expresses a life attitude through creation.
Our villa elevator realizes perfect connection between elevator and home furnishing, satisfying people's demand for life with superior quality, making your return to beauty of home, and enjoy good time of comfortable life.

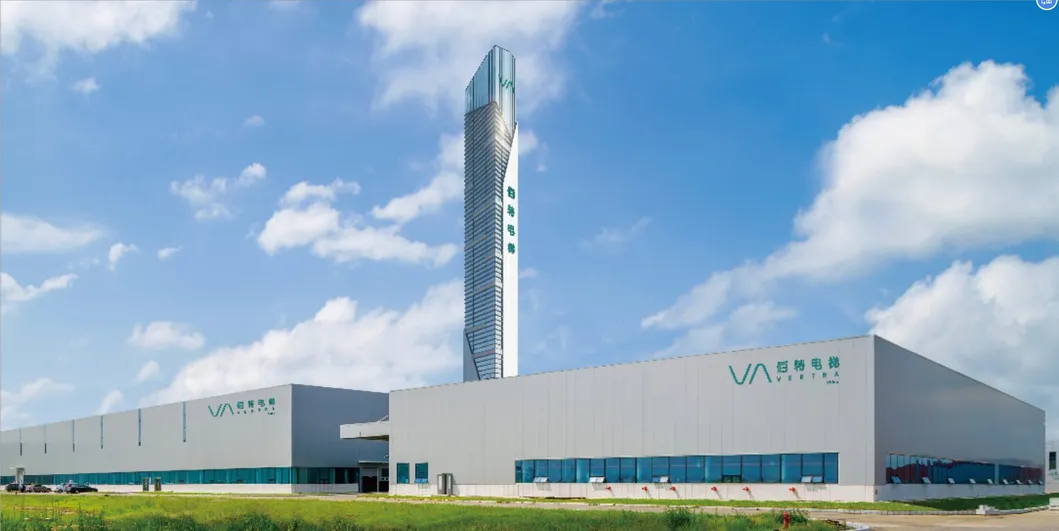

The elevator is equipped with the world's first-class production equipments, the internationalized production workshops and the large-scale assembly flow including the advanced laser cutter.
| Persons | Rated Capacity (kg) | Rated Speed (m/s) | Car Size (CWxCD) | Door Size (2P Central) | Shaft Size (HWxHD) | HR.H | PIT |
|---|---|---|---|---|---|---|---|
| 5 | 450 | 1.0 | 1100x1100 | 700x2100 | 1950x1750 | 4500 | 1500 |
| 8 | 630 | 1.0/1.5/1.75 | 1400x1100 | 800x2100 | 2250x1850 | 4500-4700 | 1500-1700 |
| 10 | 800 | 1.0/1.5/1.75 | 1450x1600 | 800x2100 | 2250x1950 | 4500-4700 | 1500-1700 |
| 13 | 1000 | 1.0/1.5/1.75 | 1450x1600 | 900x2100 | 2350x2150 | 4500-4700 | 1500-1700 |
We put safety first to ensure each passenger's safe delivery to their destination with high-standard security systems.
From the view of space saving, our elevator design improves space availability within your home layout.
Customers can choose their favorite and customized appearance from car finish, design, ceiling, and floor materials.
Adopts a low noise execution unit to avoid traditional contactor noise, allowing users to enjoy a quiet, green, and graceful life.

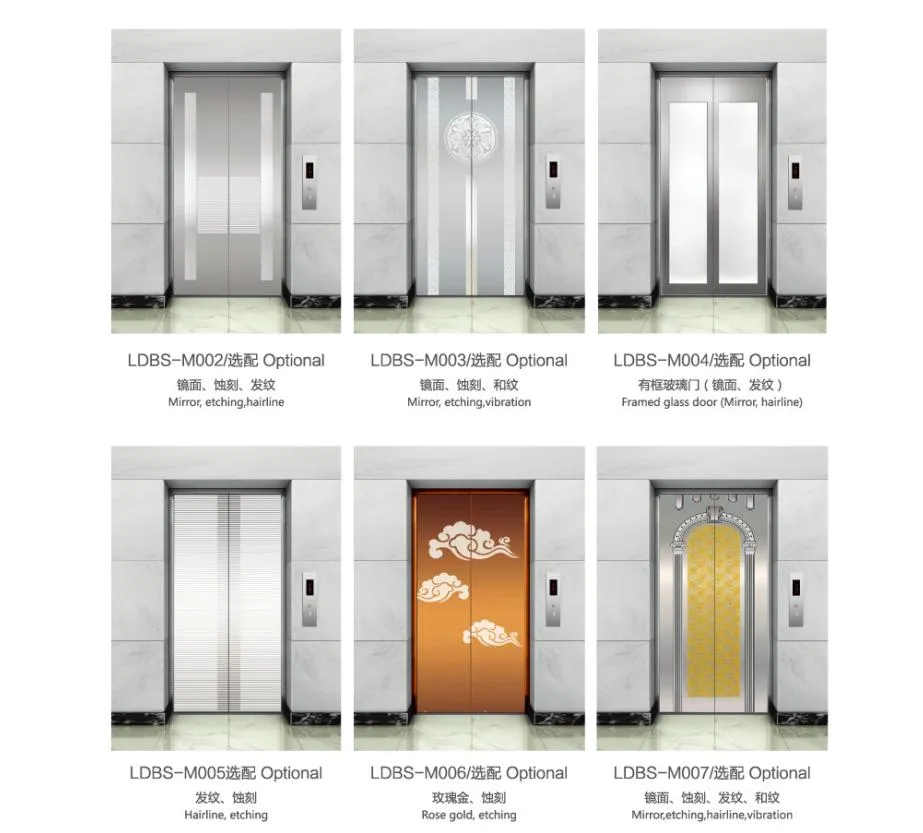

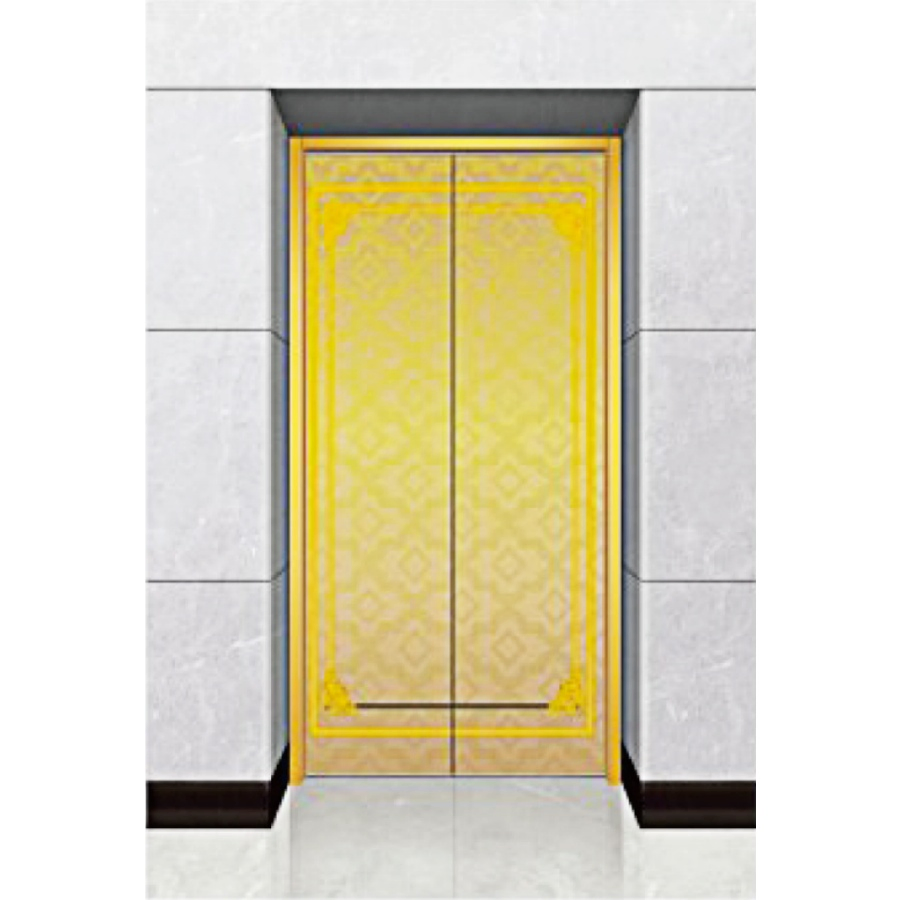

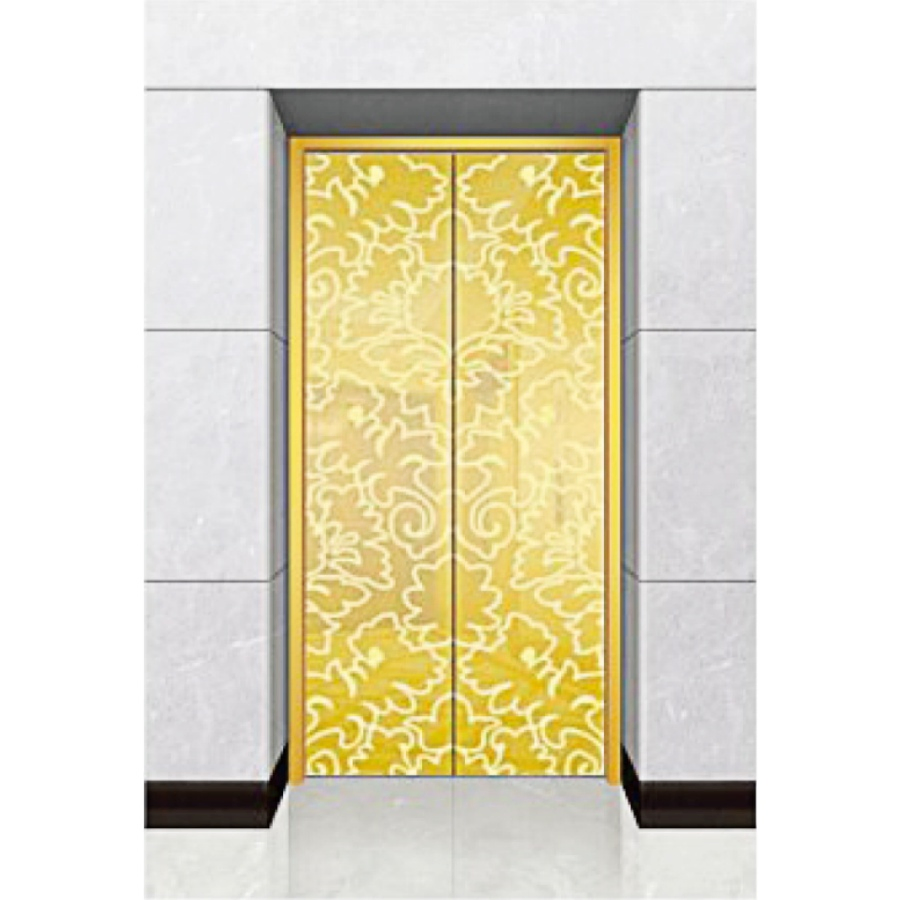

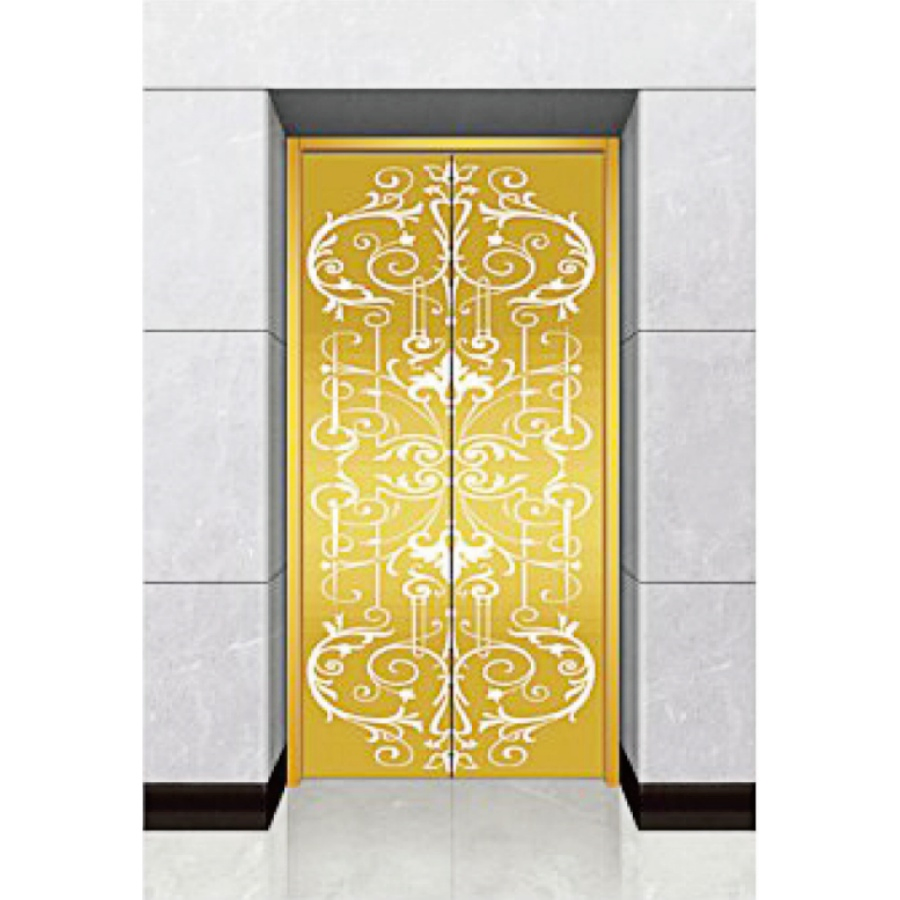

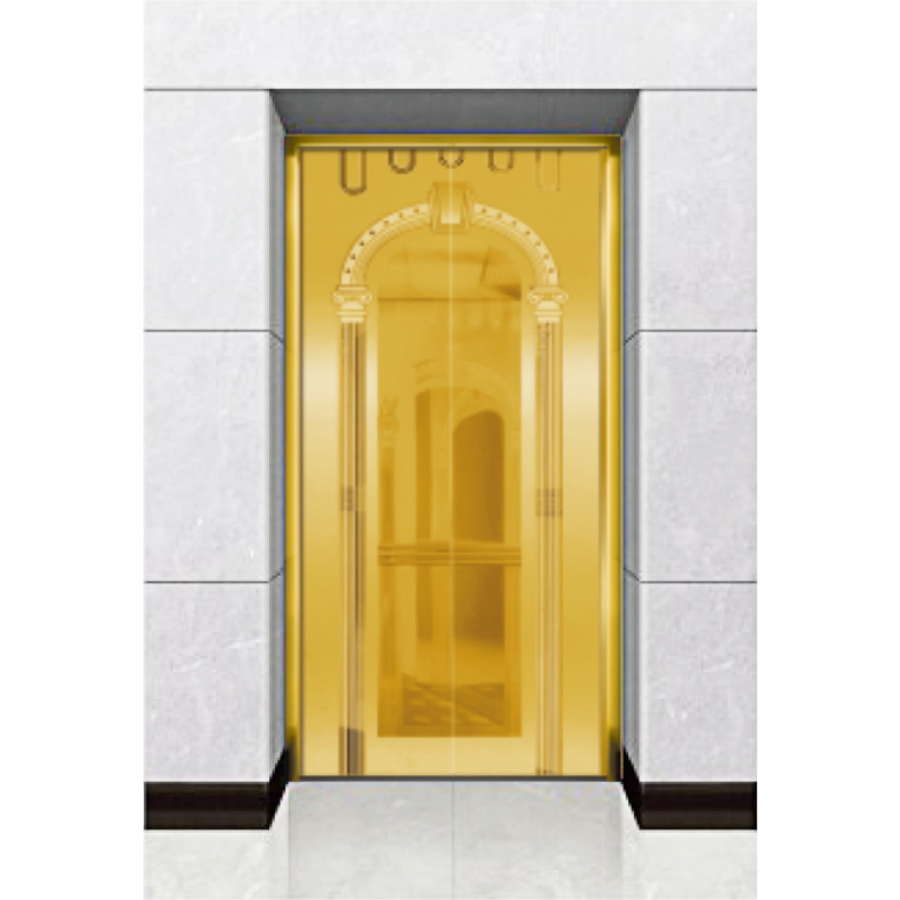

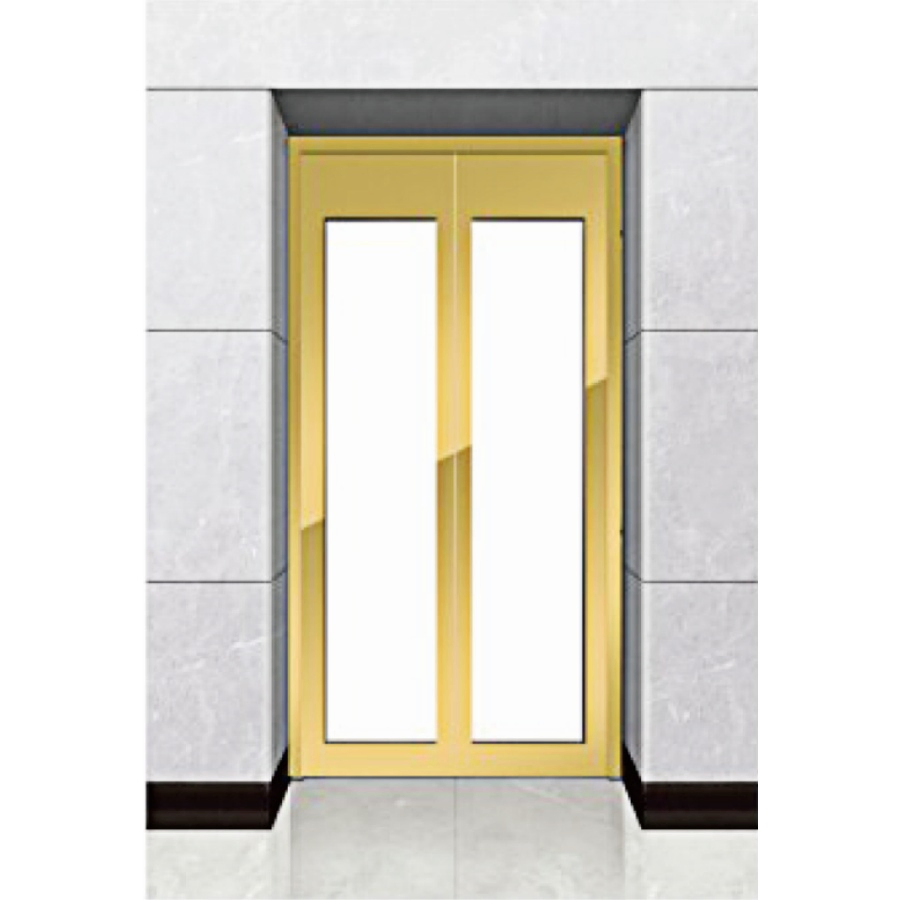

Selection of the Cabin

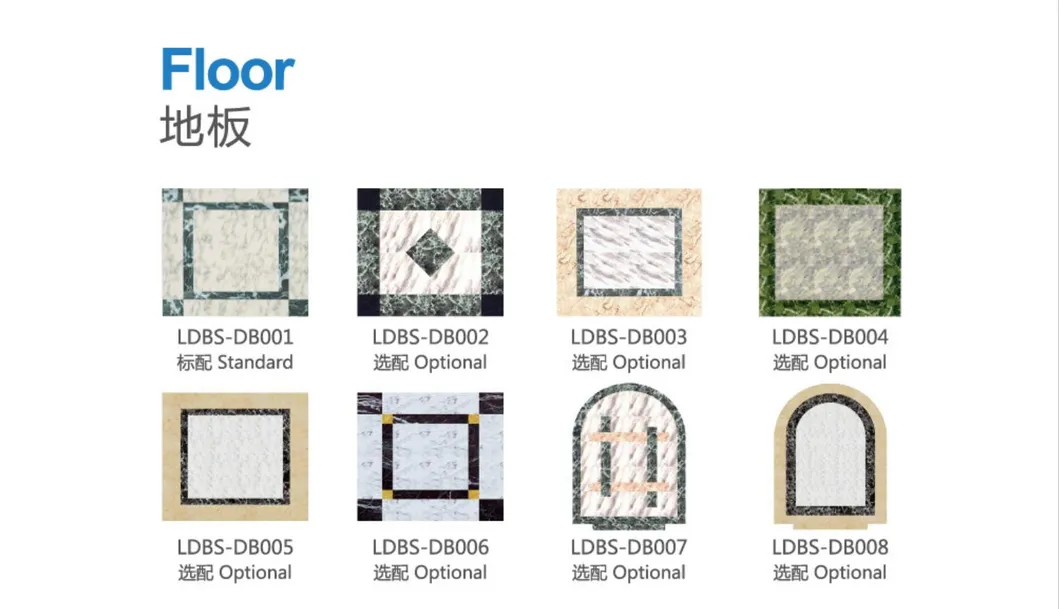

Selection of the Floor

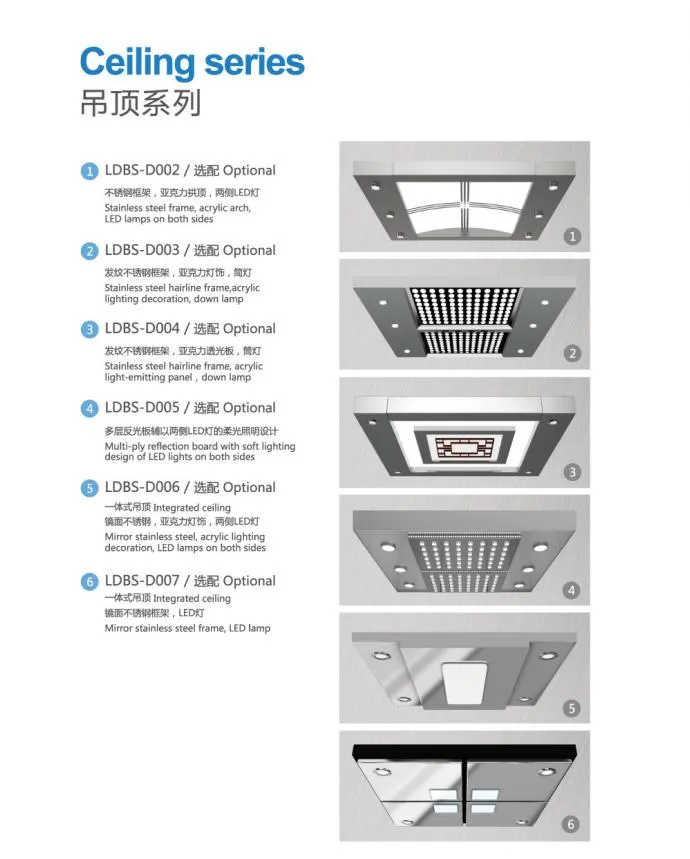

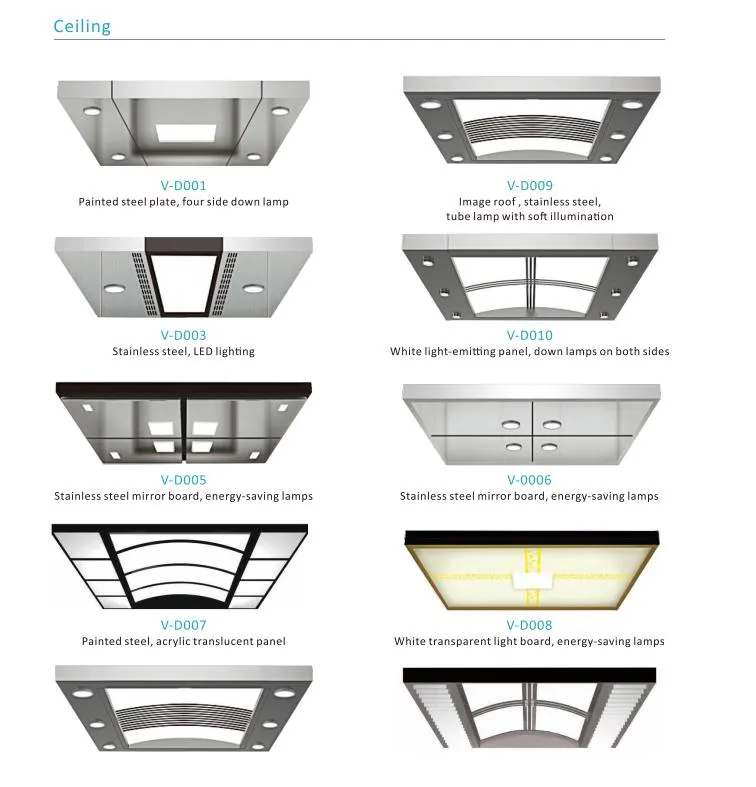

Selection of the Ceiling
