Convenient and Efficient Restaurant Electric Food Elevator Lift Dumbwaiter

Customization:	Available
After-sales Service:	7*24 Hours Via Phone/Whatsapp/Email
Warranty:	18months

Send Inquiry

Product Description

Basic Specifications

Model	XYZD-2
Type	Wellhole and Derrick
Load Capacity	200kgs
Speed	0.40m/s
Drive Mode	AC
Open & Close Type	Manual
Lift Mechanism	Traction
Deceleration Device	With Deceleration Device
Guide Rail	T Guide
Elevator Door	Sider Door
Door Knife	Single
Applicable Industries	Restaurant, Hotels, Warehouse, Bank, Childcenter
Certification	CE, ISO 9001
Transport Package	Plywood Case
Production Capacity	1000 Units/Year

Product Description

Convenient and Efficient Restaurant Electric Food Elevator Lift Dumbwaiter

The dumbwaiter is the perfect partner for transporting small items between floors safely, easily, and silently. It represents an excellent investment for both commercial and residential properties, being affordable in price and simple to install.

✔Key Performance Benefits

Our dumbwaiter lifts are designed to enhance efficiency and service quality across diverse environments including hotels, restaurants, pubs, clubs, care homes, hospitals, banks, and educational institutions.

Lifts up to 500 kg.
Reaches up to 19 floors.
Speed: 0.4-1.0 m/s.
Reverse and ground load options.

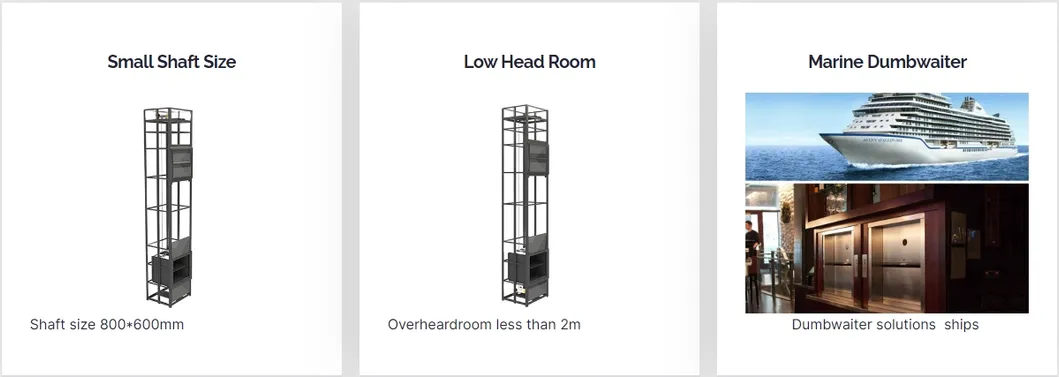

Designed for tight spaces.
Customizable to your specific needs.

Technical Parameters

Installation Site Size	1200*1200mm
Car Size	800800800mm
Door Opening	Single opening
Doors	Bi-parting Stainless Steel
Floor Height	3000mm
Sill Height	800mm
Controls	Automatic push buttons, car position indicator, arrival buzzer
Customization	Lifting height, cabin size, and door orientation available

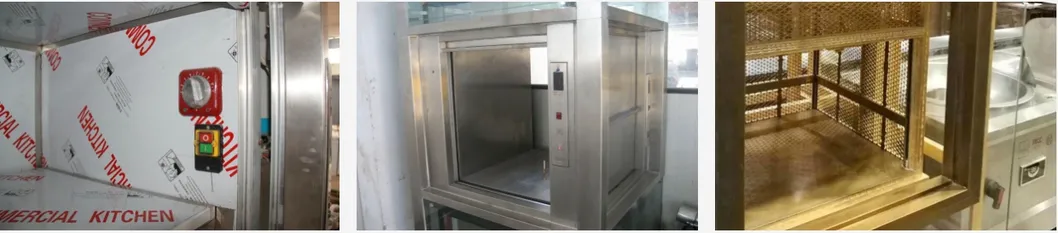

Options for Better Experience

We provide tailored solutions to meet unique operational requirements:

Thermal insulation for cold environment usage.
Double door configurations at a single floor level.
Luxury finishes such as copper plating.

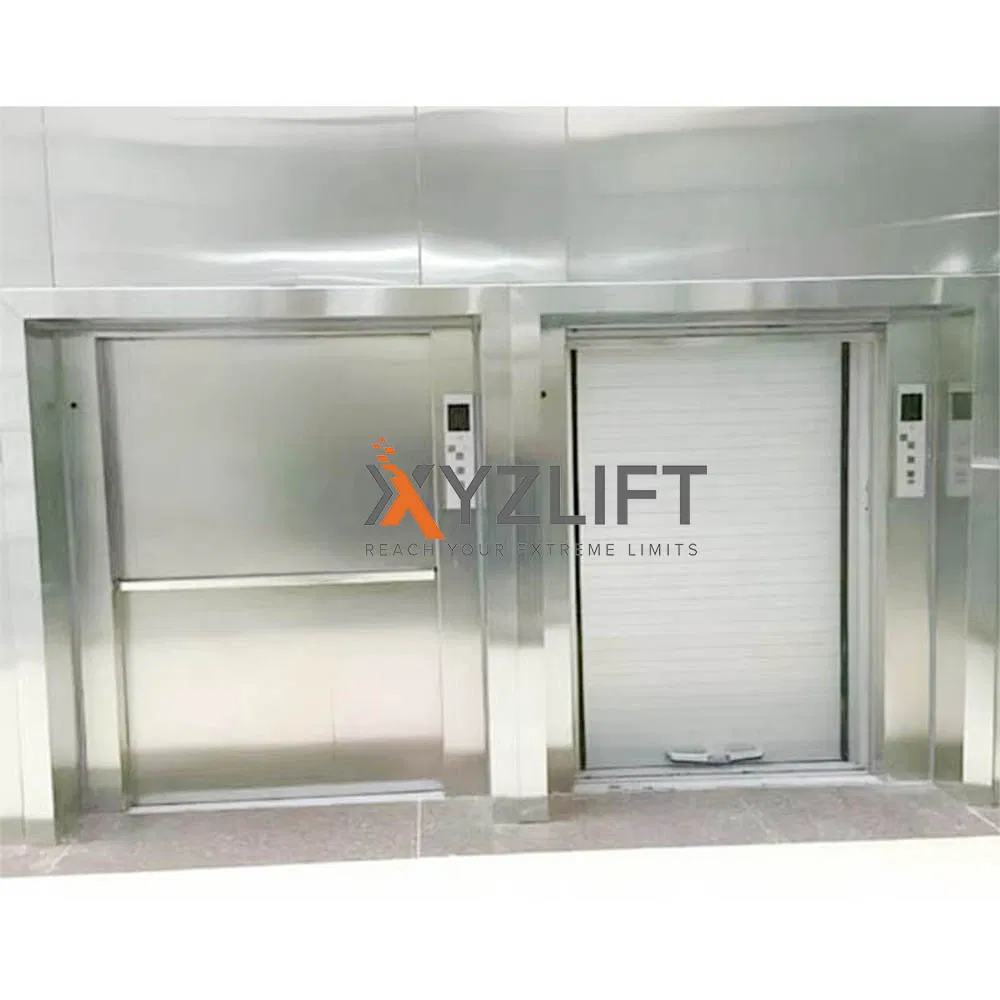

Landing door options: Automatic, swing, or roller doors.

10-Step Installation Guide

1Columns & Beams: Secure stand columns and shaft beams on a level foundation.

2Guide Rails: Attach guide rails inside shaft beams; ensure vertical alignment.

3Motor: Install motor at the top or in a dedicated motor room.

4Counterweight: Set up frame, add weights, and connect to cabin via pulley.

5Cabin: Lower cabin into shaft and attach guide shoes.

6Cabin Door: Install and align the cabin door for smooth operation.

7Landing Doors: Secure landing doors with proper alignment and locking.

8Buffers: Place buffers at the bottom to absorb potential impacts.

9Safety Switches: Install leveling devices and limit switches for precise stops.

10Controller: Set up the electrical controller and finalize connections.

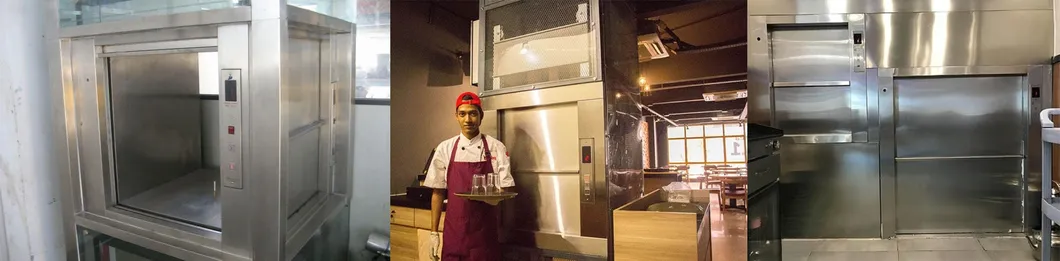

Project Show

Our dumbwaiters are versatile for homes, villas, childcare centers, banks, factories, and warehouses.

Request a Solution

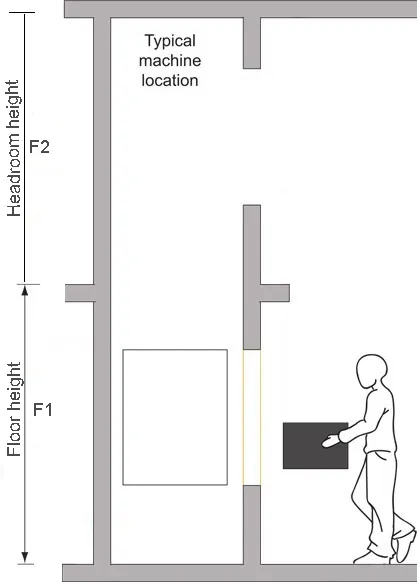

To receive an accurate lift solution within 24 hours, please provide:

➤ Installation / Shaft size
➤ Height of each floor
➤ Car door orientation
➤ Local voltage requirements

Frequently Asked Questions

Q1: What is the maximum load capacity for your dumbwaiters? A: Our standard models handle 200kg, but we offer upgraded versions that can lift up to 500kg depending on your needs.

Q2: Can the cabin dimensions be customized for tight spaces? A: Yes, we specialize in tailor-made services. We can customize the cabin size, lifting height, and door orientation to fit your specific site dimensions.

Q3: How difficult is the installation process? A: Every unit comes with a detailed manual and video. Most projects follow a 10-step process, and our technical team provides support within 2 hours if challenges arise.

Q4: What materials are used for the doors and cabin? A: We primarily use high-quality bi-parting stainless steel for durability and hygiene, which is ideal for restaurant and medical environments.

Q5: Is maintenance required frequently? A: Our traction-driven systems are designed for low maintenance. Regular inspection of guide rails and safety switches ensures long-term reliable operation.

Q6: Do you provide certification for international standards? A: Yes, our dumbwaiter lifts are CE and ISO 9001 certified, meeting rigorous safety and quality standards.
