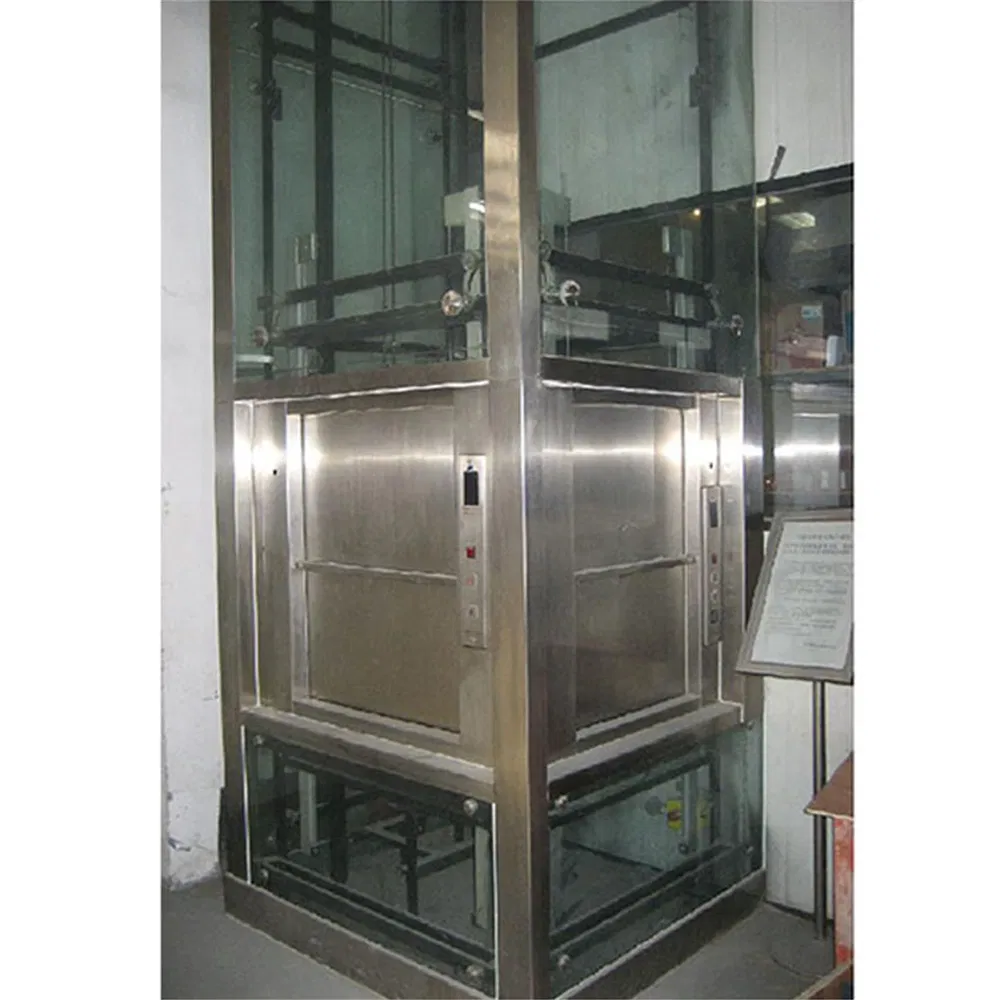

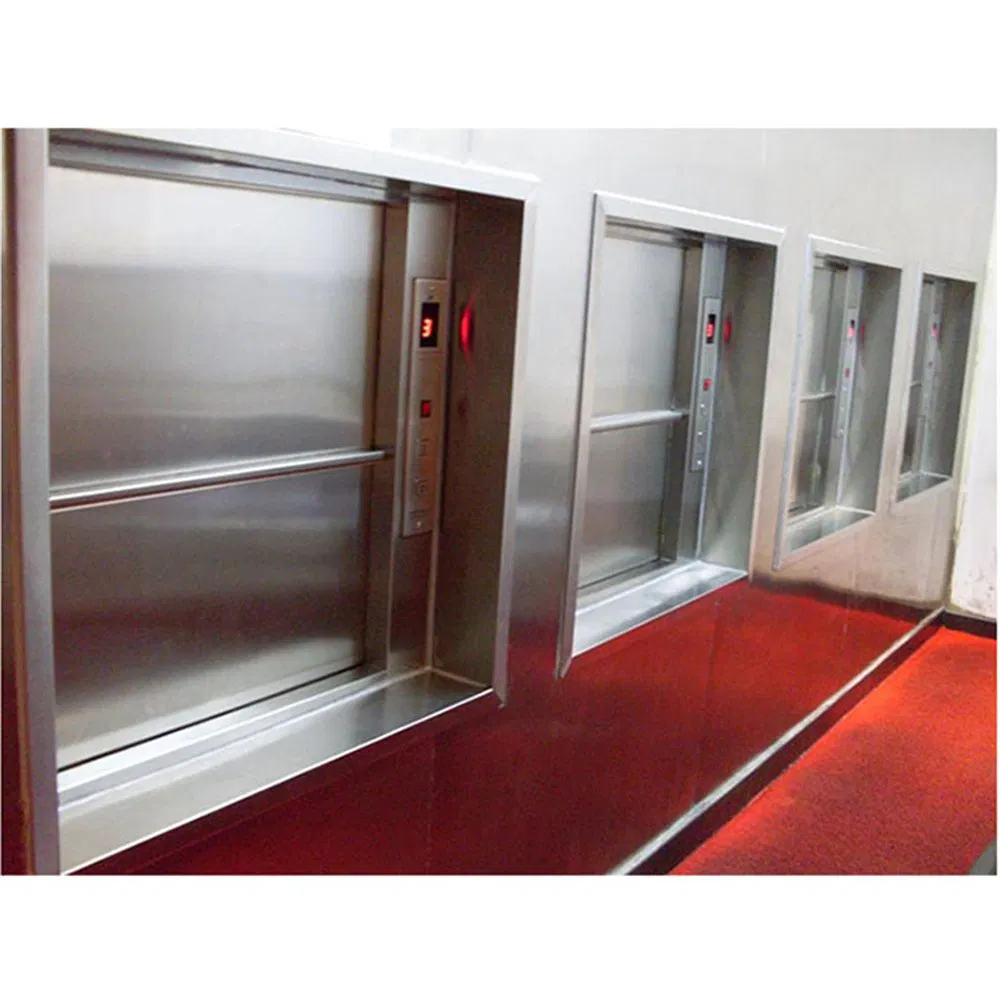

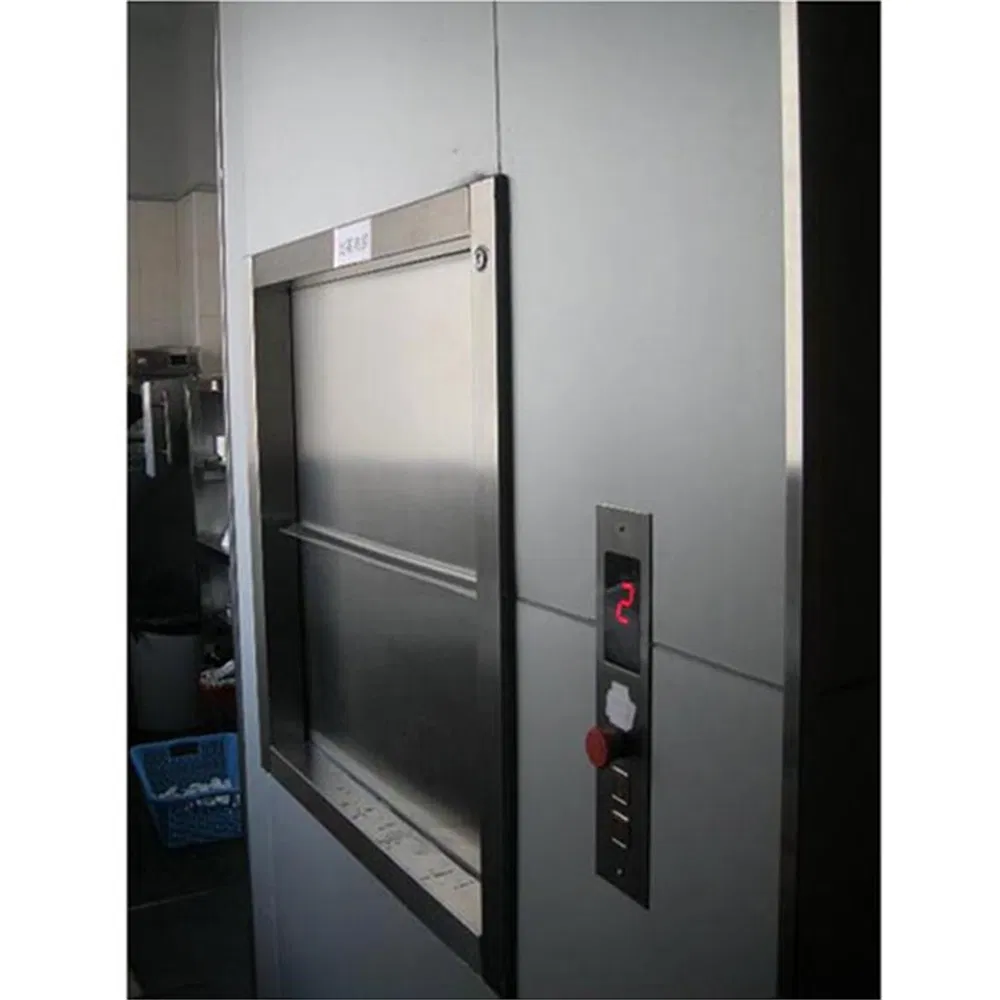

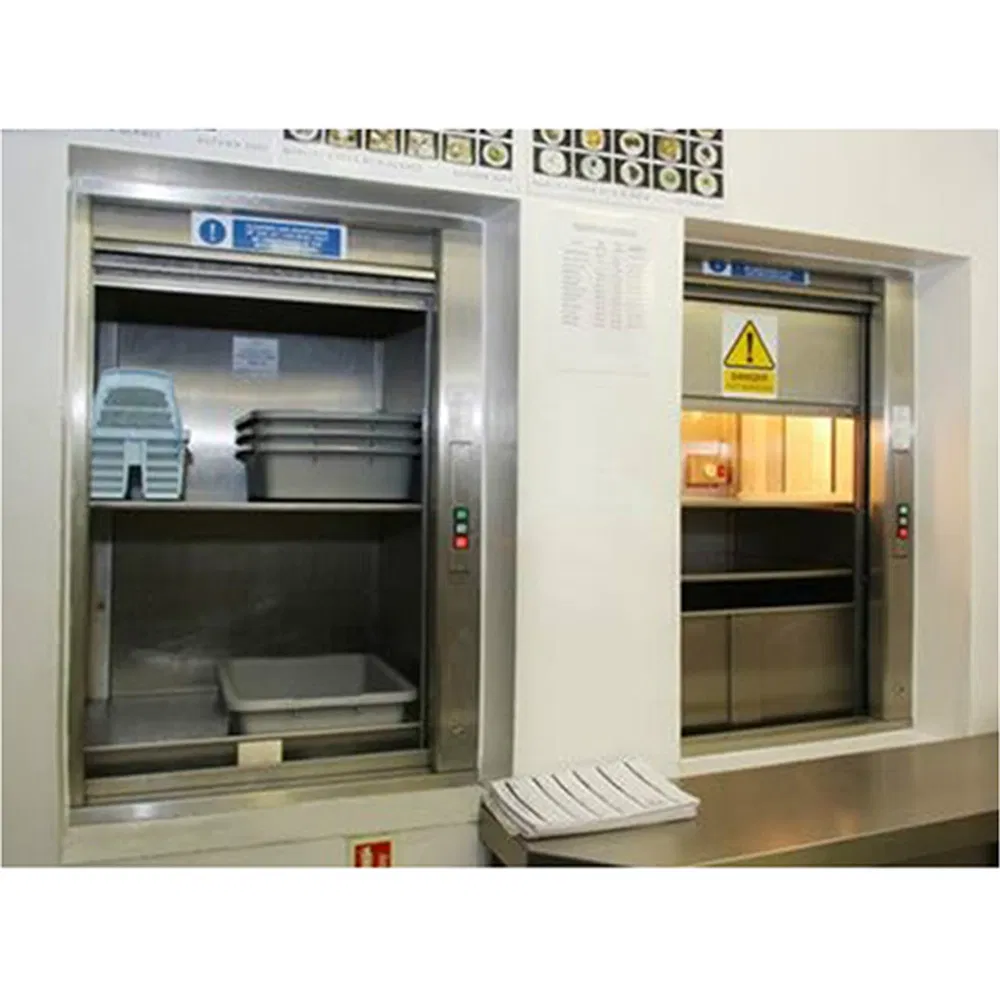

Ascom Elevator
1 / 4
Specification:
| Load(KGS) | Type | Cabin Clear Size (WxDxH) | Shaft Clear Size (WxD) | Overhead | Pit Depth | Entrance Reserved Size | Power(KW) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | Window Type | 750 | 750 | 900 | 1250 | 900 | >=3600 | - | 750 | 1000 | 600 | 1.1 |
| 100 | Trolley Type | 750 | 750 | 900 | 1250 | 900 | >=3600 | 600 | 750 | 1000 | - | 1.1 |
| 200 | Window Type | 900 | 900 | 1000 | 1400 | 1100 | >=3600 | - | 900 | 1100 | 800 | 1.5 |
| 250 | Trolley Type | 950 | 950 | 1000 | 1450 | 1150 | >=3600 | 800 | 950 | 1100 | - | 2.2 |
| 500 | Trolley Type | 1100 | 1100 | 1200 | 1600 | 1300 | >=3600 | 1200 | 1100 | 1300 | - | 4 |
