Load 100~300kg and Speed 0.4m/S for Dumbwaiter Elevator

Customization:	Available
After-sales Service:	with
Warranty:	6 Months

Basic Specifications

Model NO.

dumbwaiter elevator

Type

Wellhole

Load Capacity

100-300kg

Speed

0.40m/s

Drive Mode

AC

Open & Close Type

Manual

Lift Mechanism

Lift Chain

Guide Rail

Hollow Guide

Elevator Door

up and Down Directly Separated

Car Size

700*725mm

Production Capacity

500 Set/ Year

Origin

China

Product Description

📦Load 100~300kg and Speed 0.4m/S Dumbwaiter Elevator

Dumbwaiter elevator is small, flexible, and features a simple structure that can be easily integrated into various buildings. It is ideal for hotels, restaurants, banks, houses, hospitals, and libraries, providing a fast, economic, and practical vertical transportation service for goods.

Our service lifts adhere to high safety standards, offering excellent quality and a novel appearance. With diversified designs, they enhance efficiency across all kinds of buildings.

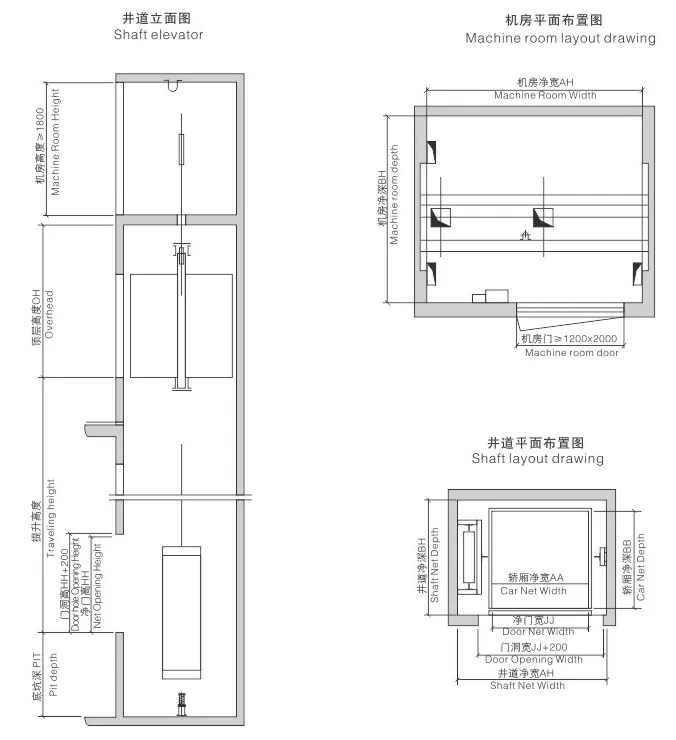

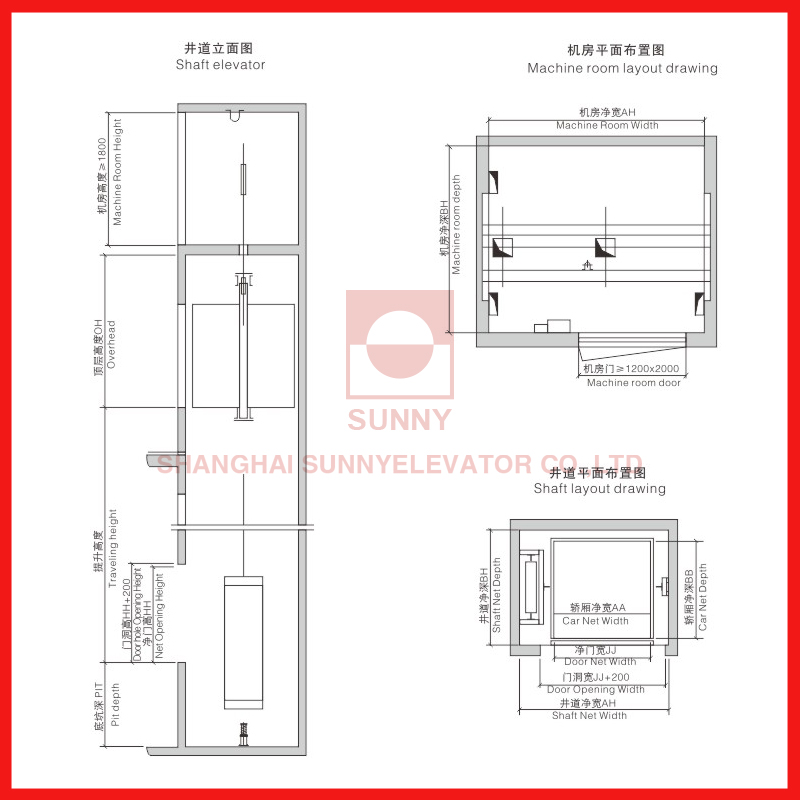

📐Construction Layout Diagram

📊Technical Parameters

Load (kg)	Speed (m/s)	Door Open Type	Car Size (AAxBB)mm	Shaft Size (mm)
Load (kg)	Speed (m/s)	Door Open Type	Car Size (AAxBB)mm	AHxBH	PIT	OH
100	0.4	Up/Down Straight	700x725	1250x925	1000	2500
200		Up/Down Straight	950x975	1500x1175	1000	2500
250		Up/Down Straight	1000x1000	1550x1200	1000	2500
300		Up/Down Straight	1000x1000	1550x1200	1000	2500

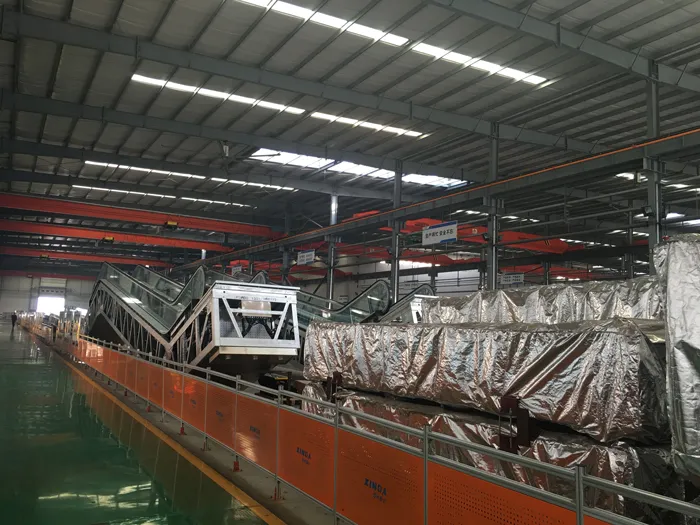

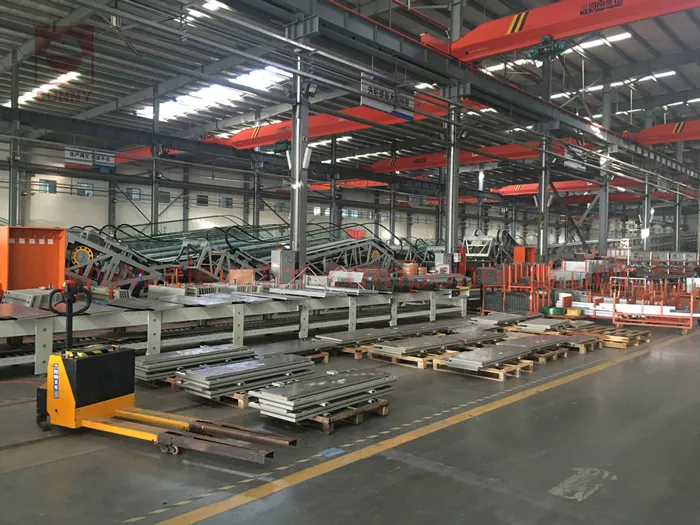

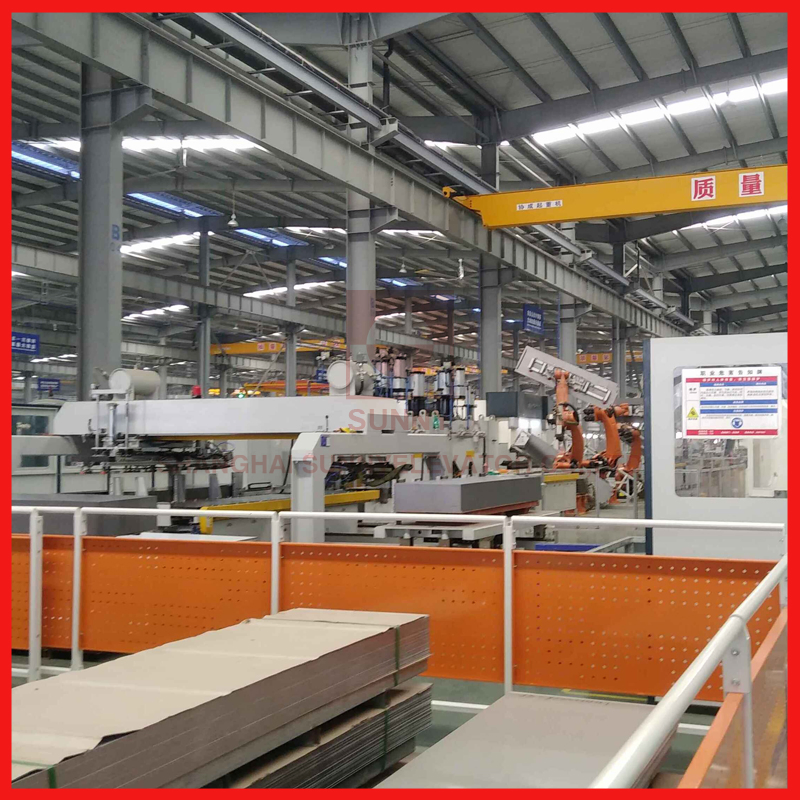

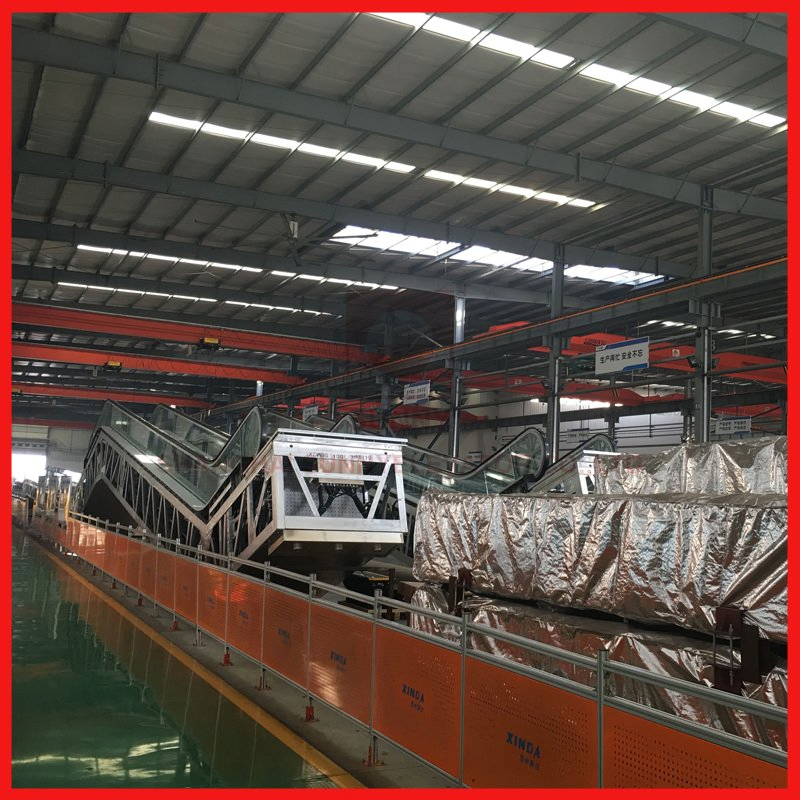

Factory Display

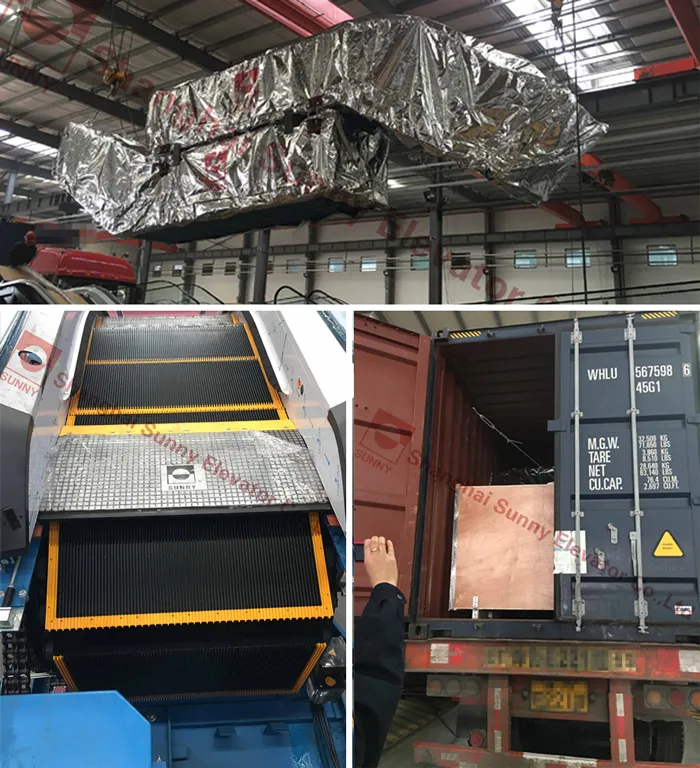

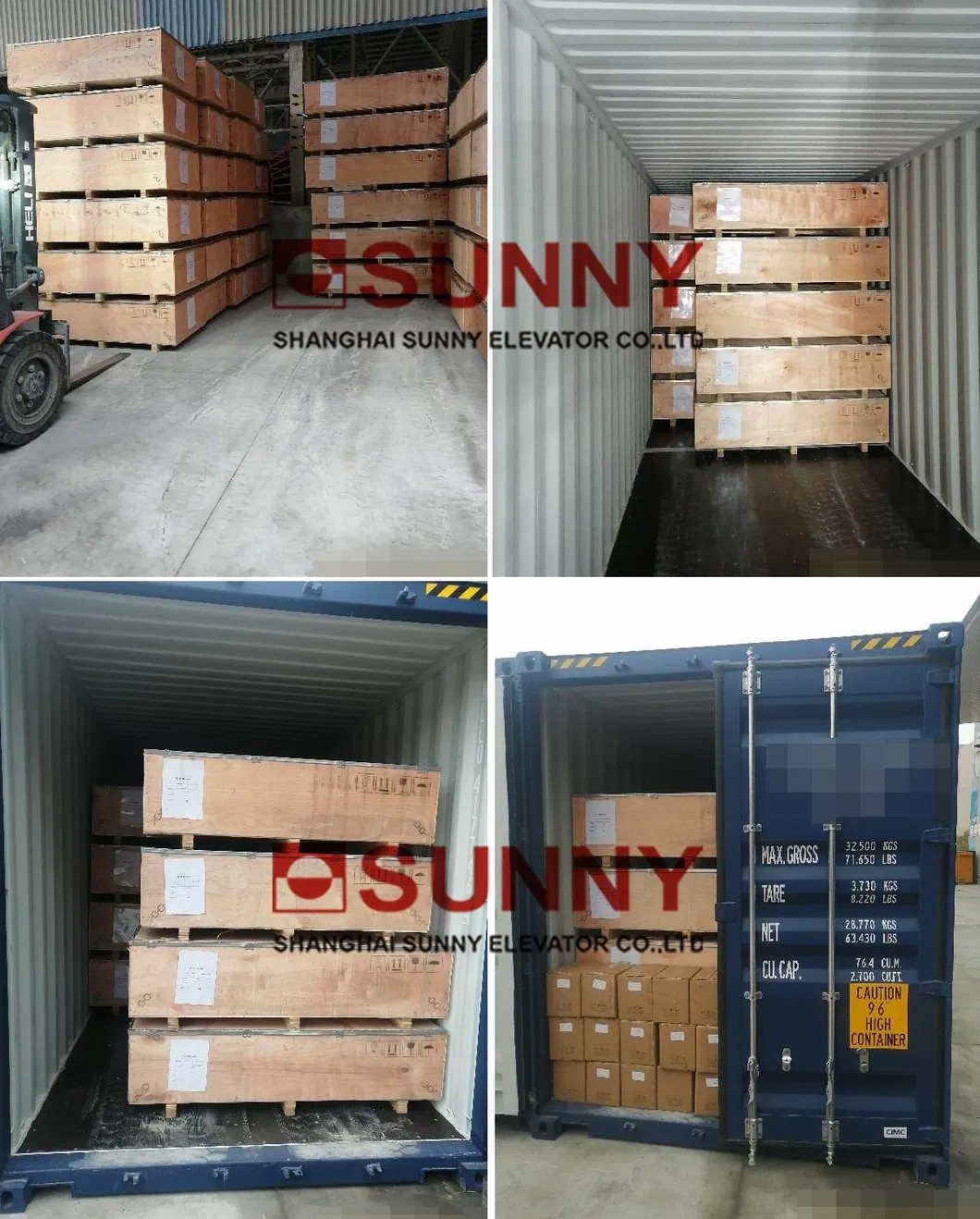

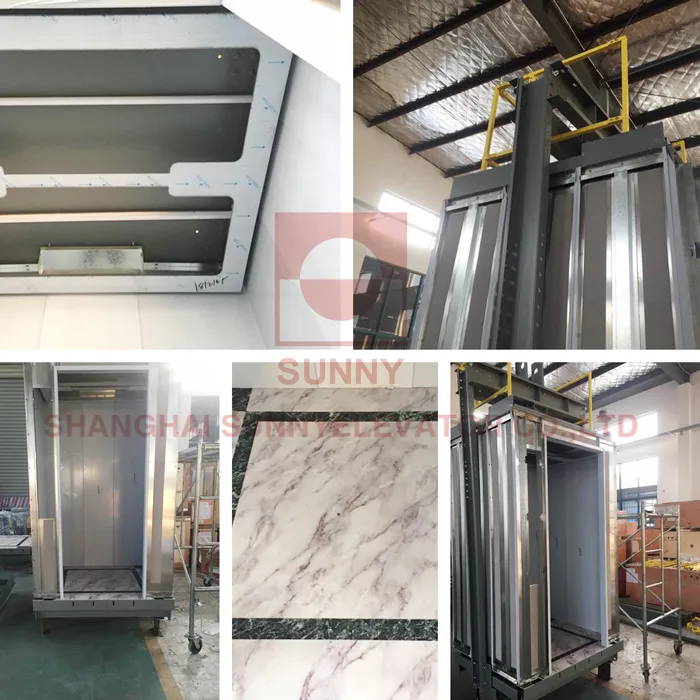

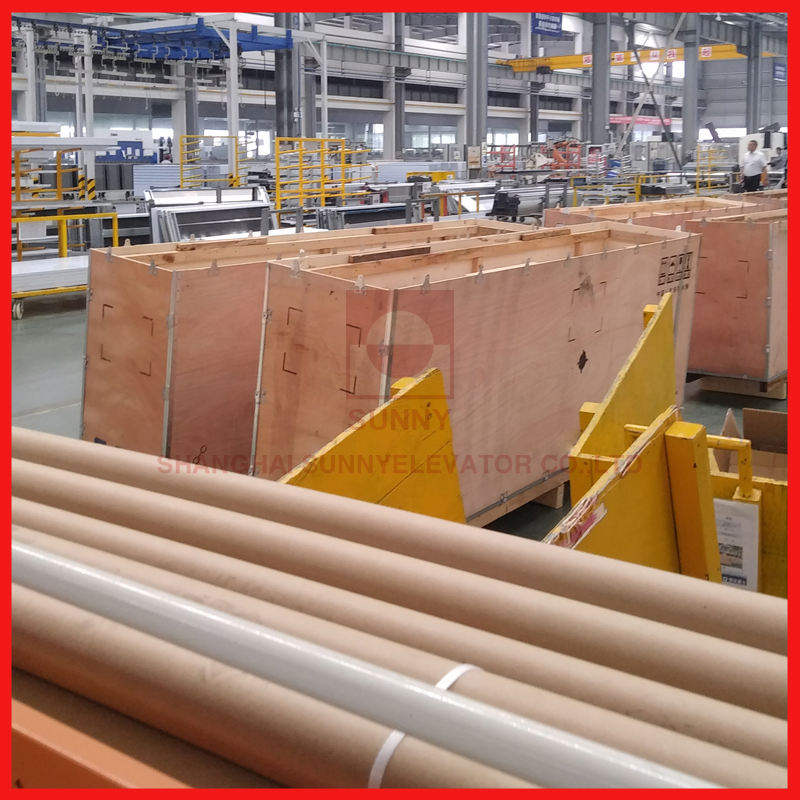

Packaging & Delivery

Professional Manufacturer

Over 30 years of professional experience in designing and producing Opto-Electro-Mechanical products. We have successfully exported a wide range of elevator parts and complete elevator systems to 80 countries worldwide, ensuring global standards and reliable quality.

Frequently Asked Questions

Are the elevator wire ropes durable?

Yes. The wire rope configuration considers both the rated load and traction size. The tensile strength of the wire rope is greater than the weight of the lift, and the safety factor is equipped with more than four ropes to ensure they won't break simultaneously.

Is it dangerous if power failure occurs during operation?

No. In case of a power failure, the elevator will automatically stop due to electrical and mechanical safety devices. The brakes are automatically applied to secure the car.

Will passengers be hurt if the door closes suddenly?

The doors are equipped with anti-clamping switches. If someone touches the door during closing, it will automatically restart and reopen without causing danger.

How does the elevator operate?

Elevators operate using a counterweight wire rope through a traction drive system, moving up and down along the guide rails precisely.

Is the installation process complicated?

We design our equipment with an integrated structure. This makes the equipment more precise and efficient, allowing for easier and more convenient commissioning and installation.

What certifications do your products have?

Our products are manufactured under strict quality controls and hold certifications such as ISO9001, CCC, and CE.
