Small while delicate, promising future
Our dumbwaiter elevator adopts reliable core control system and multiple security protection. They are applicable to hotels, restaurants, residential, office buildings, hospitals, commercial buildings, factories, libraries, laboratories, and other places and can flexibly deliver foods, tableware, daily necessities, currency, documents, medicines, books, instruments, and letters.
Beautiful, efficient, economic and durable

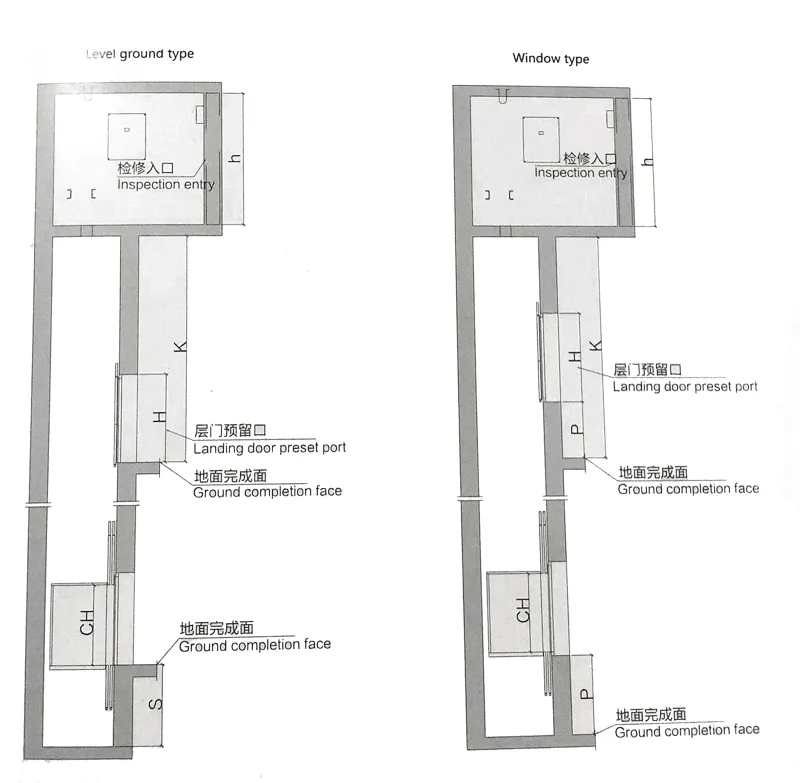

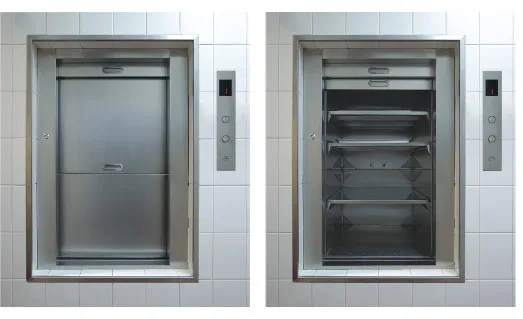

Window type

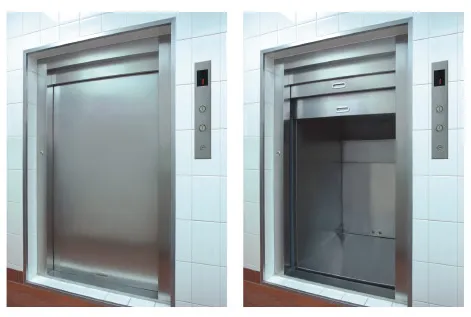

Ground type
| Load(kg) | Speed(m/s) | Door opening size(mm) | Car size(mm) | Hoistway size(mm) | Top floor height(mm) | Pit depth(mm) |
| 100 | 0.4 | 700*1000 | 700*725*1000 | 1250*900 | 3000 | 1000 |
| 200 | 0.4 | 950*1200 | 950*975*1200 | 1500*1150 | 3000 | 1000 |
| 250 | 0.4 | 1000*1200 | 1000*1000*1200 | 1600*1350 | 3000 | 1000 |

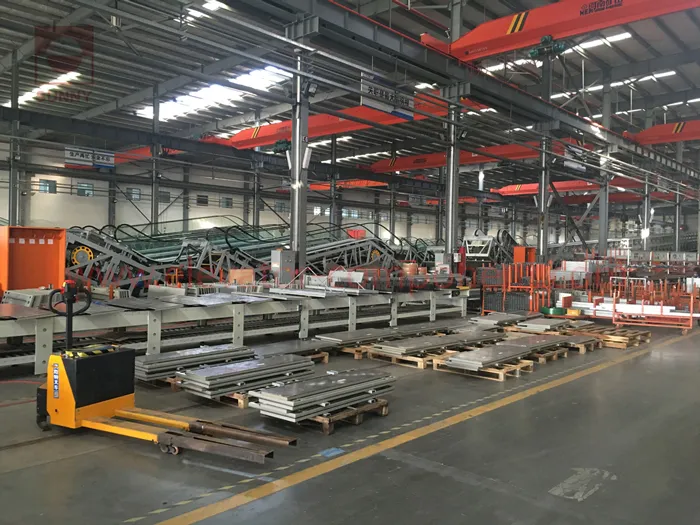

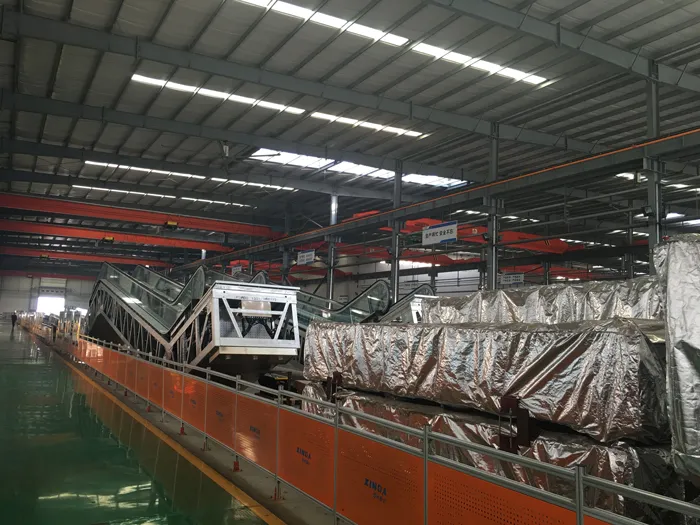

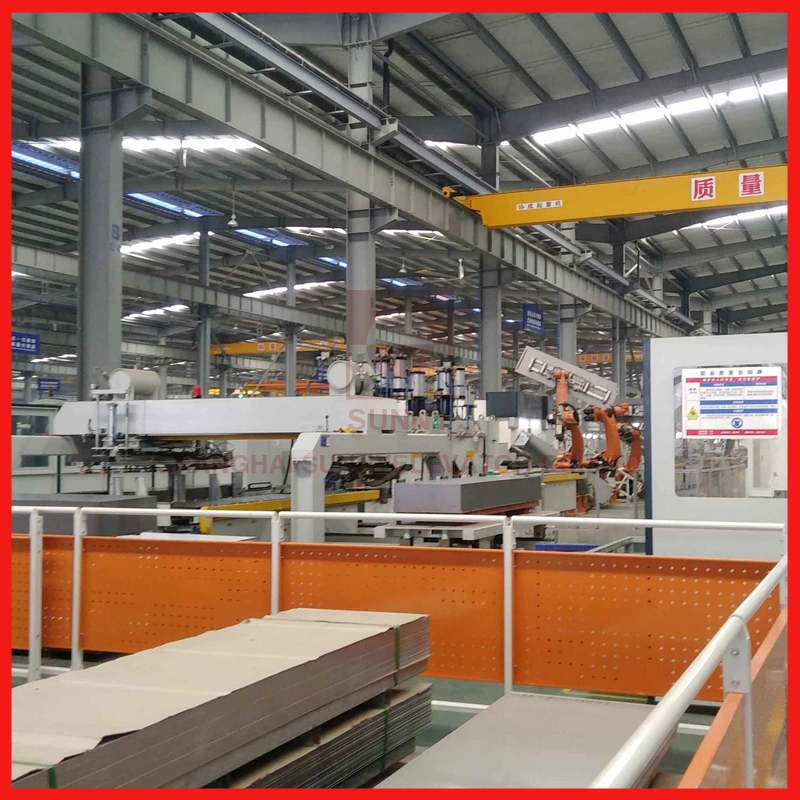

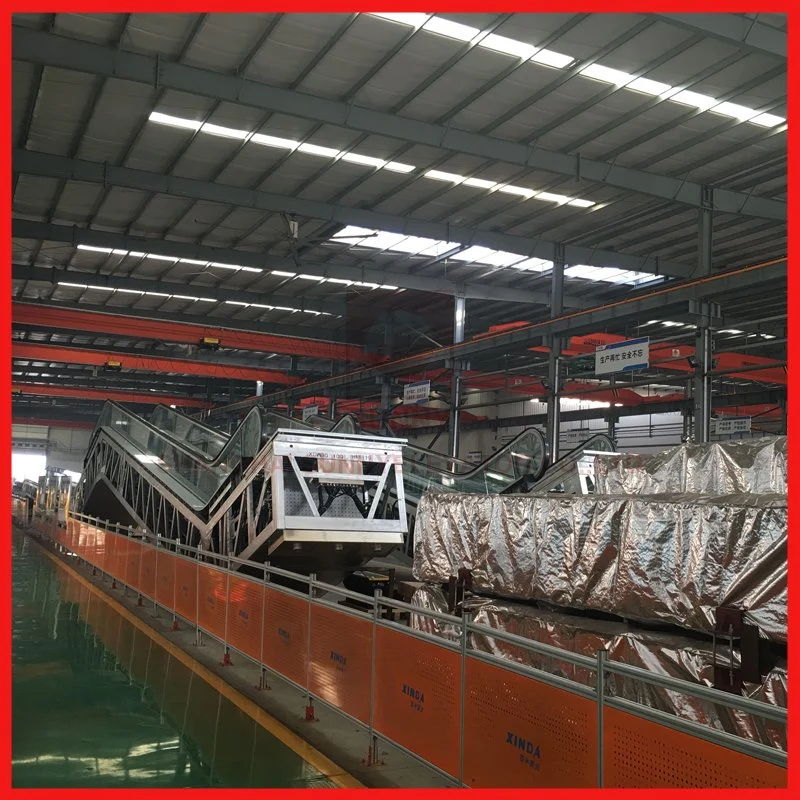

Founded in 1992, we are a 33-year professional manufacturer specializing in designing and producing Opto-Electro-Mechanical products. We have started import and export since 2012 and have extensive experience in exporting all kinds of elevator parts and complete elevators to 80 countries worldwide.
