Ascom Elevator
1 / 5
| Model NO. | 21H002 | Type | Wellhole |
|---|---|---|---|
| Load Capacity | 2000kg | Speed | 0.5m/S |
| Drive Mode | AC | Open & Close Type | Automatic |
| Lift Mechanism | Telescoping Lift | Deceleration Device | With Deceleration Device |
| Guide Rail | T Guide | Elevator Door | Sider Door |
| Door Knife | Double | Attendant | Without Attendant |
| Door Open Size | 1200~2400mm | Main Power | AC 380V, 3 Phase 50Hz |

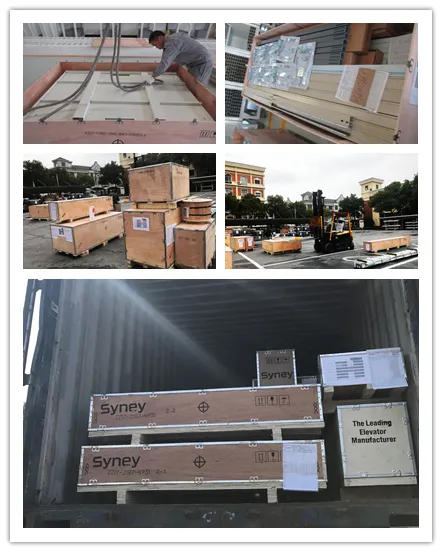

| Production Time | 30 Days | Packing | Plywood Box |

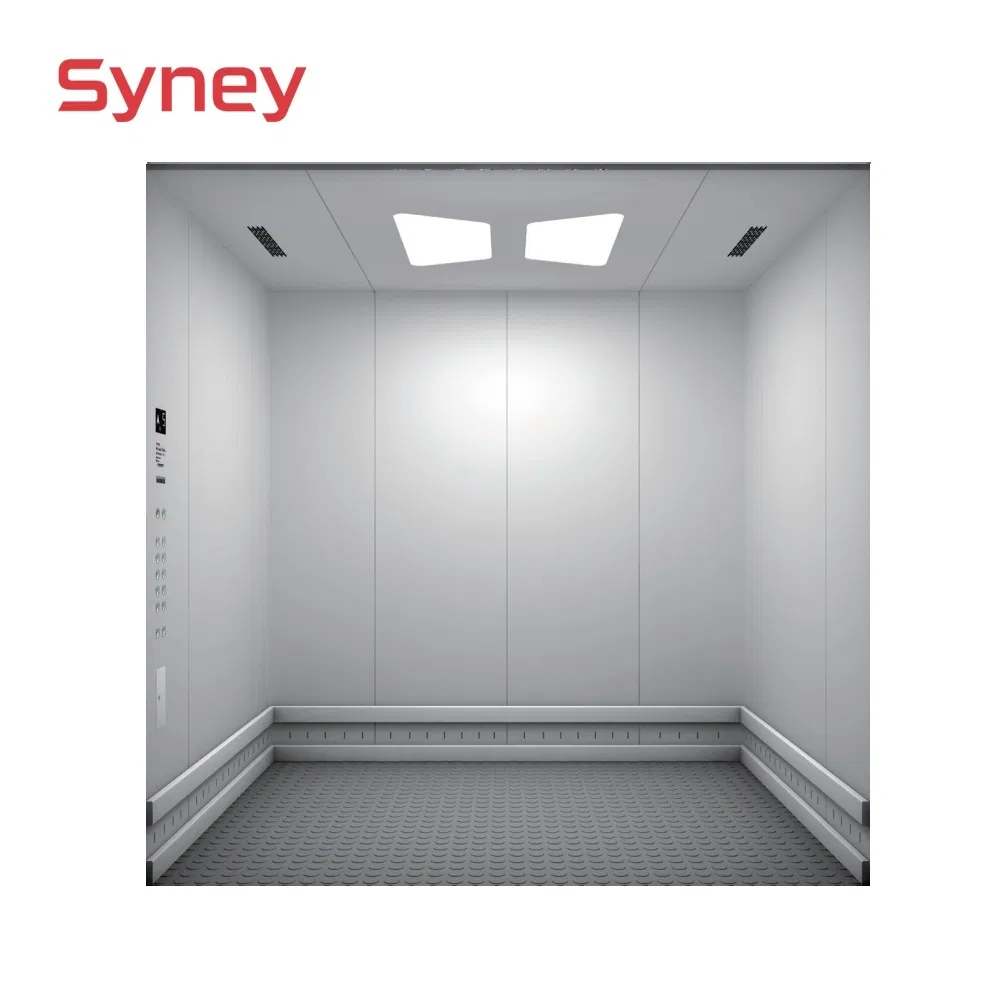

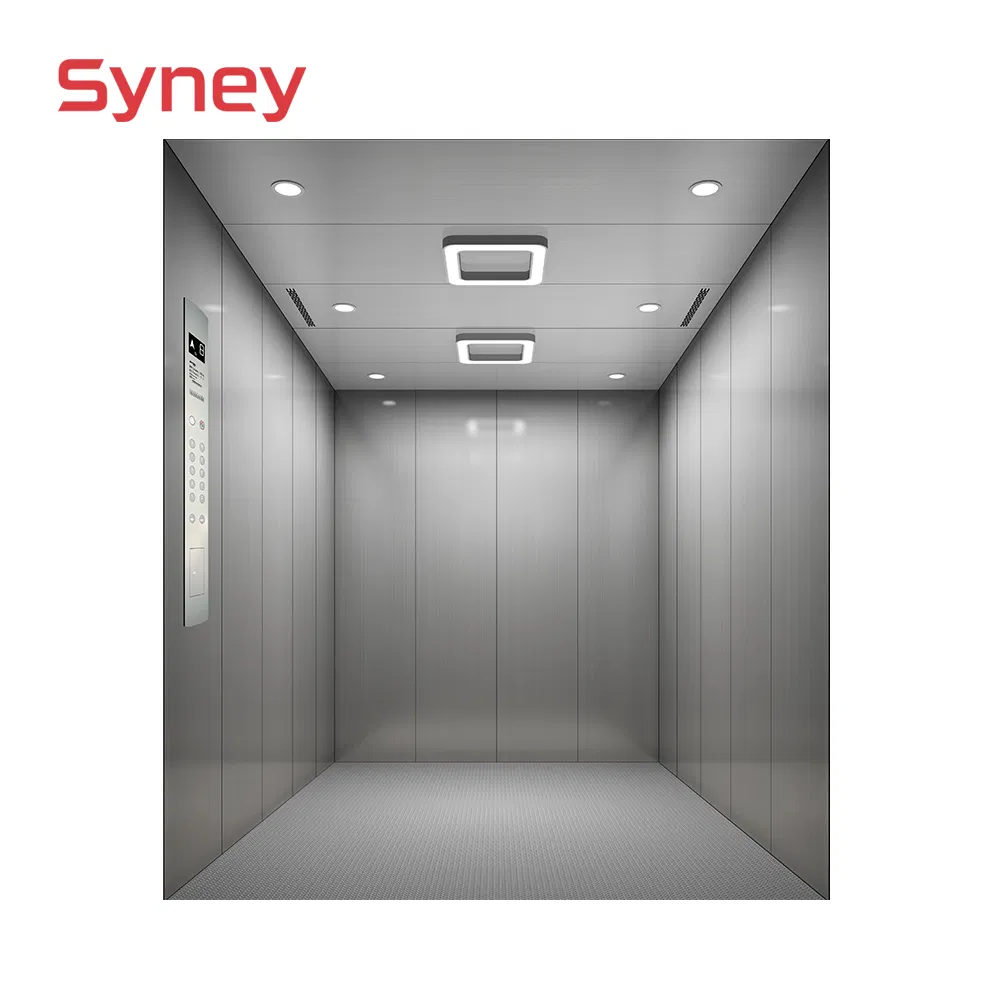

Our cargo lift creates a new concept of goods moving and ensures the best loading capacity with wide open space. Safe and reliable, with high structural strength, endurable and smooth running, this freight lift is the ideal choice for supermarkets, shopping malls, logistics centers, exhibition centers, factories, and warehouses, performing reliably under strict working conditions.
Multi infrared light covers the whole door height to ensure safety. When a light beam is blocked, the closing car door will rapidly open.

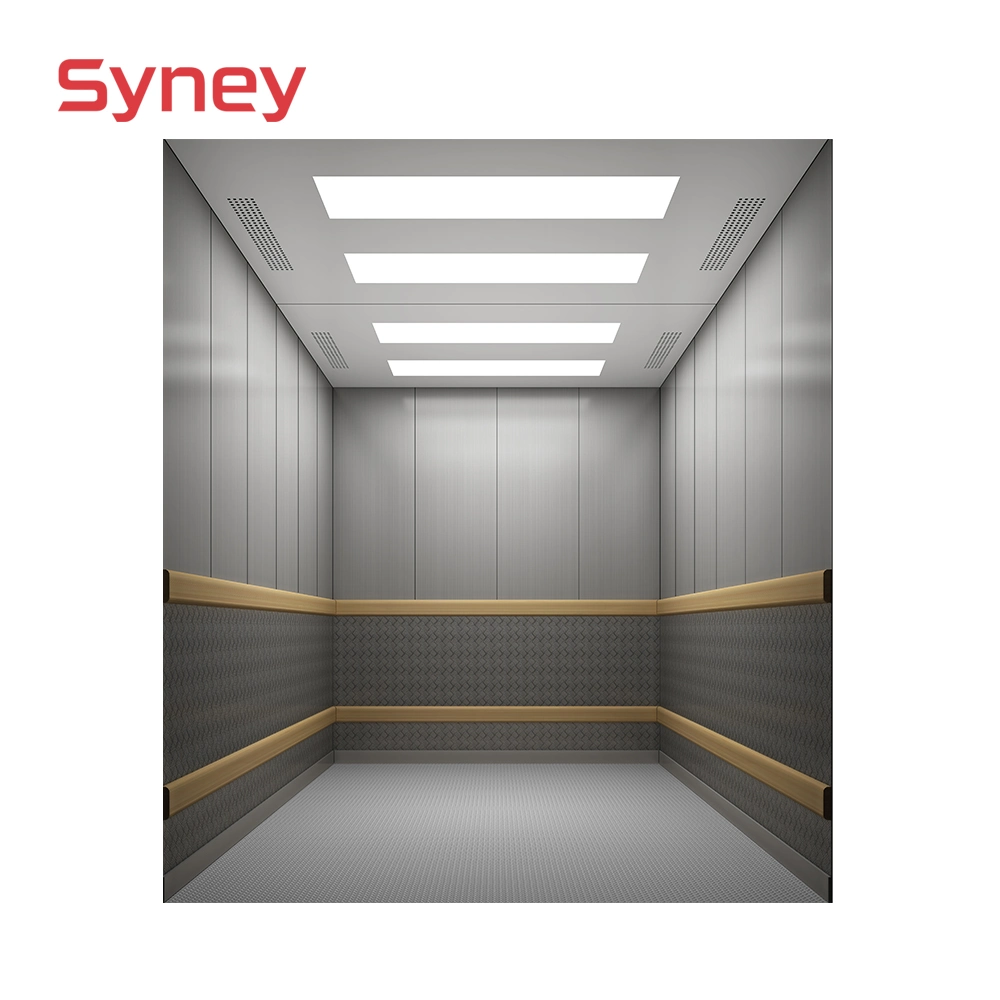

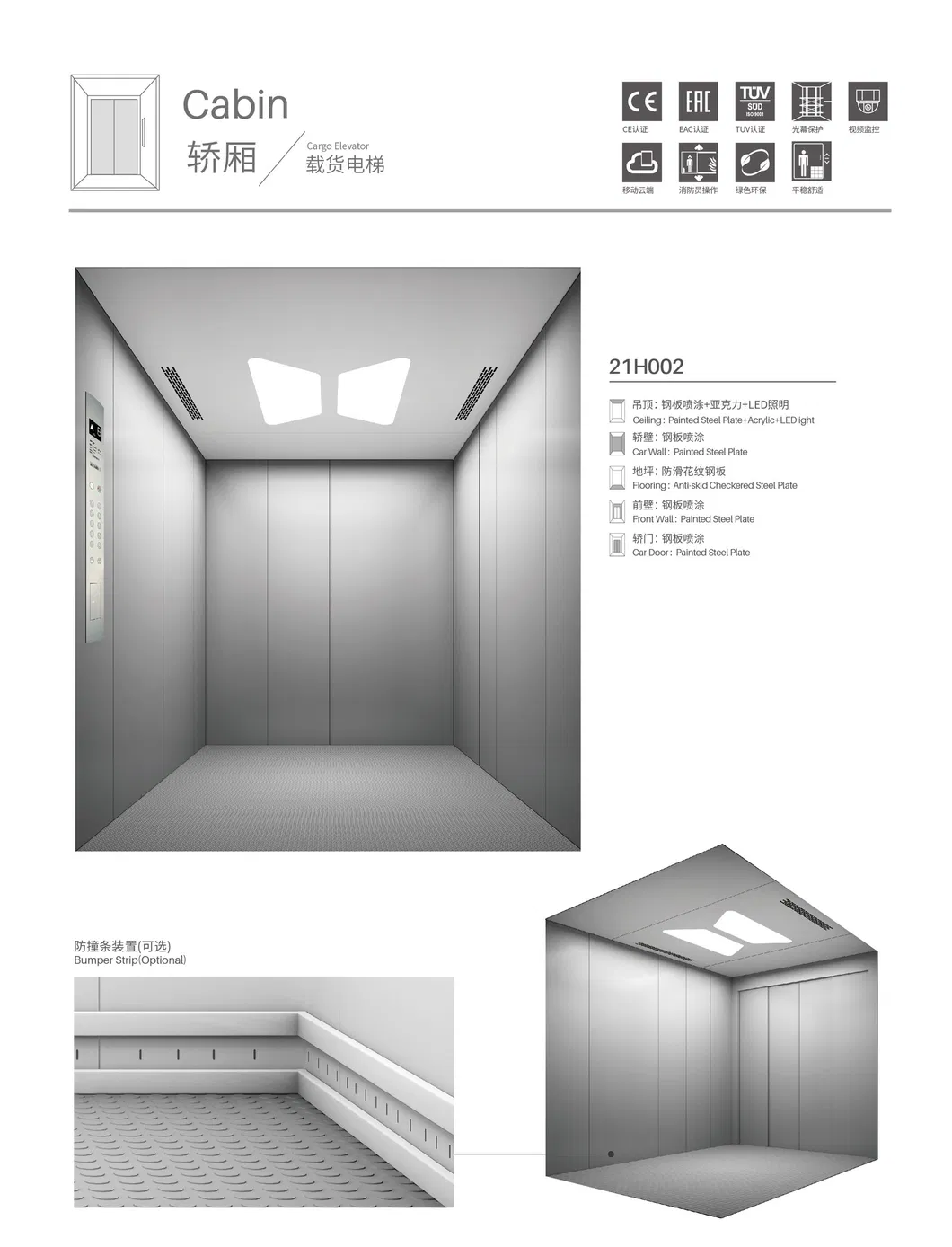

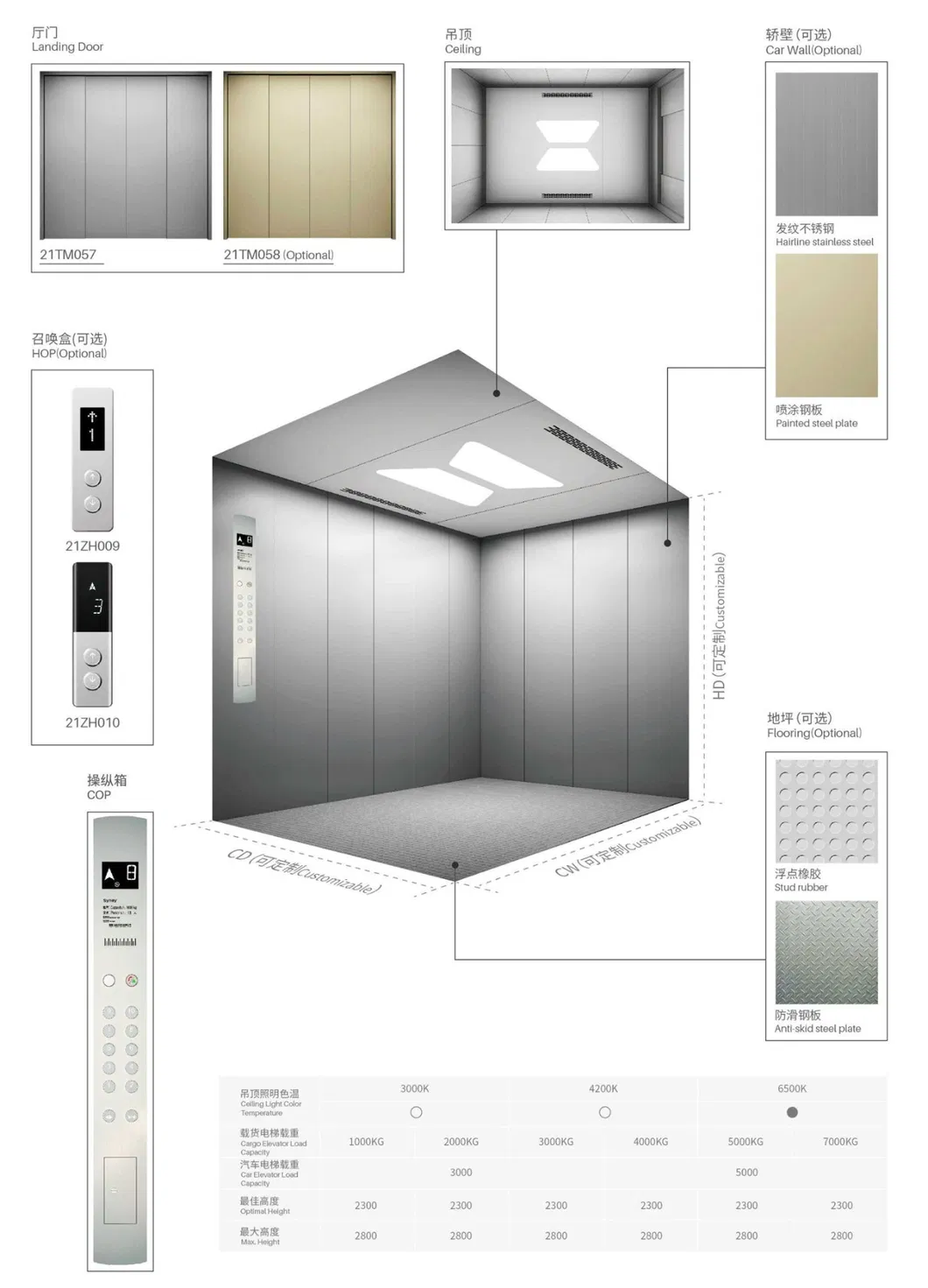

Designed with a steel structure and bumper panels on cabin walls to protect against impact and increase service life.
Adopts floating-point rubber, which is skidproof and durable for heavy industrial use.
Equipped with a VVVF technology drive system, ensuring high reliability and a low failure rate.
| Capacity (kg) | Speed (m/s) | Cabin Size (mm) | Shaft Size (mm) | Pit Depth (mm) |
|---|---|---|---|---|
| 1000 | 0.5 / 0.63 | 1500 * 1500 | 2400 * 2100 | 1500 |
| 1600 | 0.5 / 0.63 | 1700 * 2000 | 2700 * 2600 | 1500 |
| 2000 | 0.5 / 0.63 | 2000 * 2000 | 3000 * 2700 | 1500 |
| 3000 | 0.5 / 0.63 | 2000 * 2800 | 3100 * 3400 | 1500 |
| 5000 | 0.25 / 0.5 | 2400 * 3700 | 3600 * 4300 | 1500 |
* Note: Standard specifications are for reference. Custom designs are available based on jobsite shaft sizes.

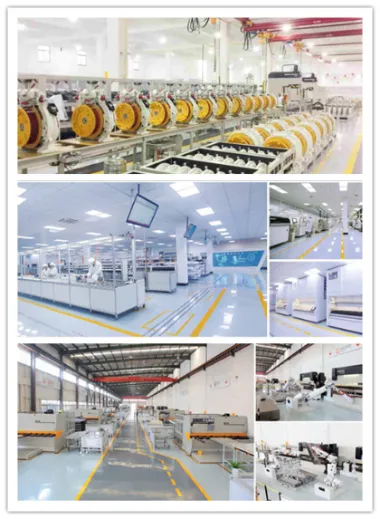

We are a professional enterprise integrating R&D, design, manufacture, marketing, installation, and customer service. Our network expands to over 50 countries in Europe, Asia, Africa, and America. We specialize in passenger lifts, sightseeing elevators, bed elevators, cargo elevators, villa elevators, and escalators.

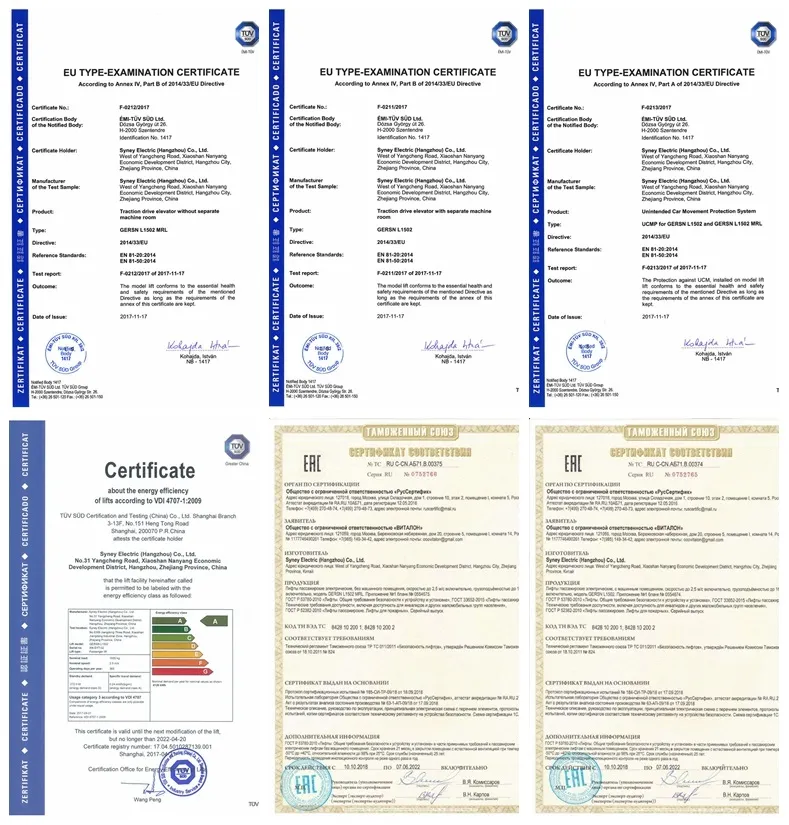

Our products hold the Germany TÜV SÜD mark, one of the strictest certificates worldwide. This indicates our quality certification system meets international requirements, including CE Certificates for elevators with and without machine rooms, and EAC Certificates.
