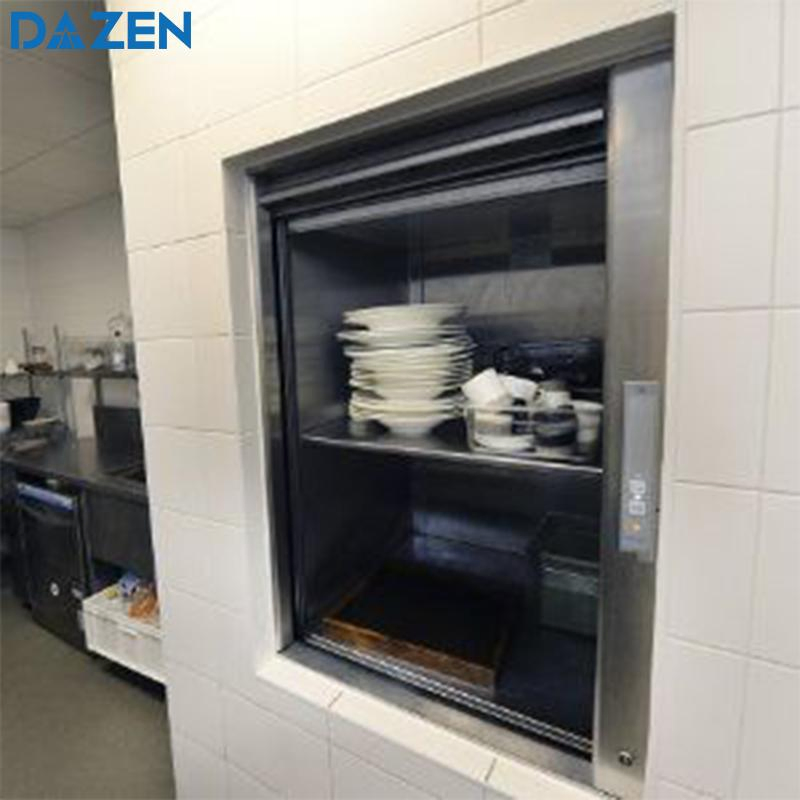

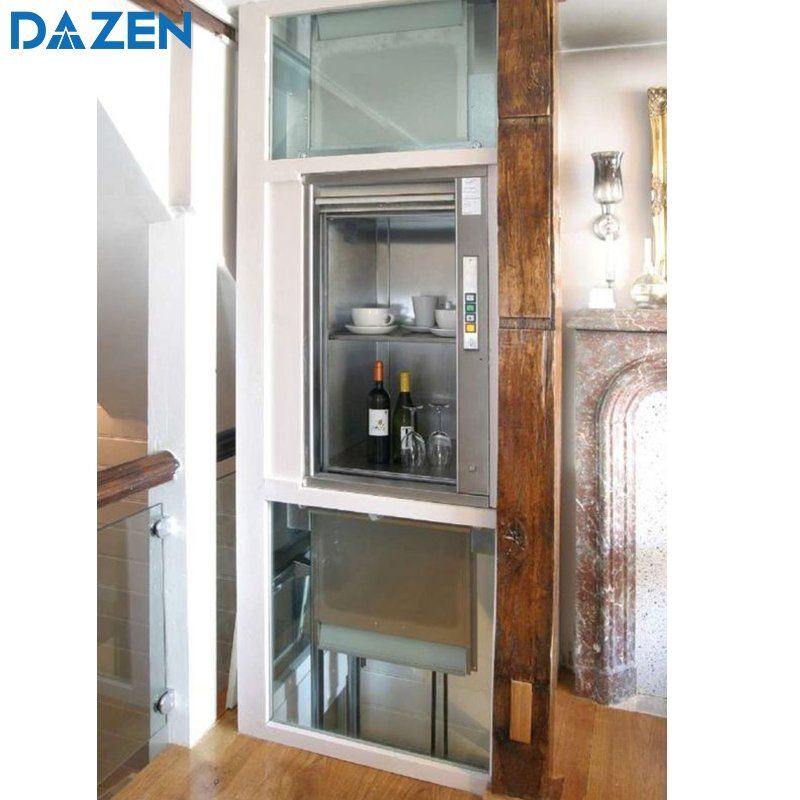

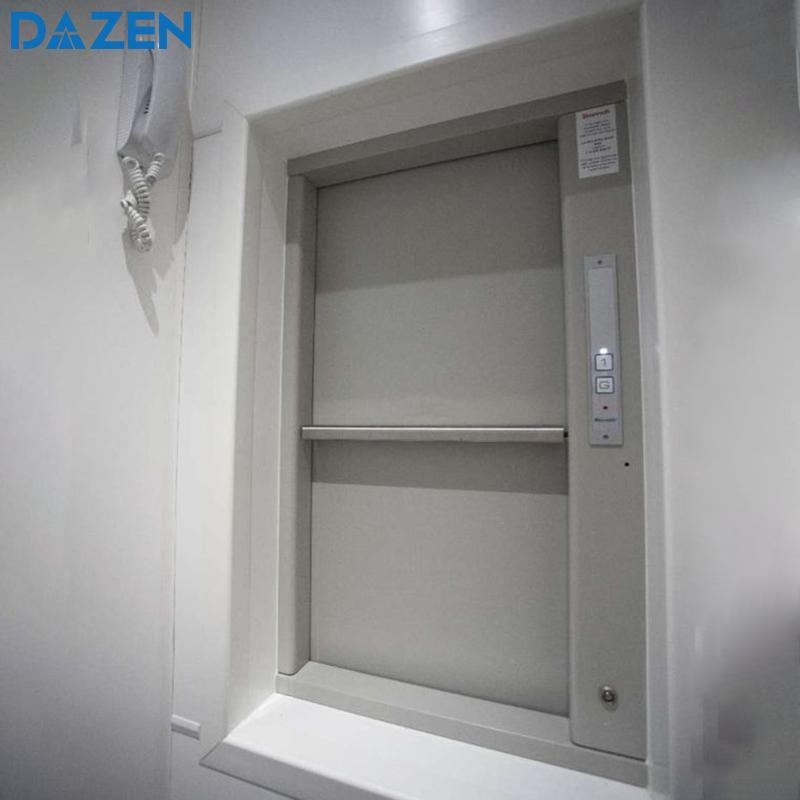

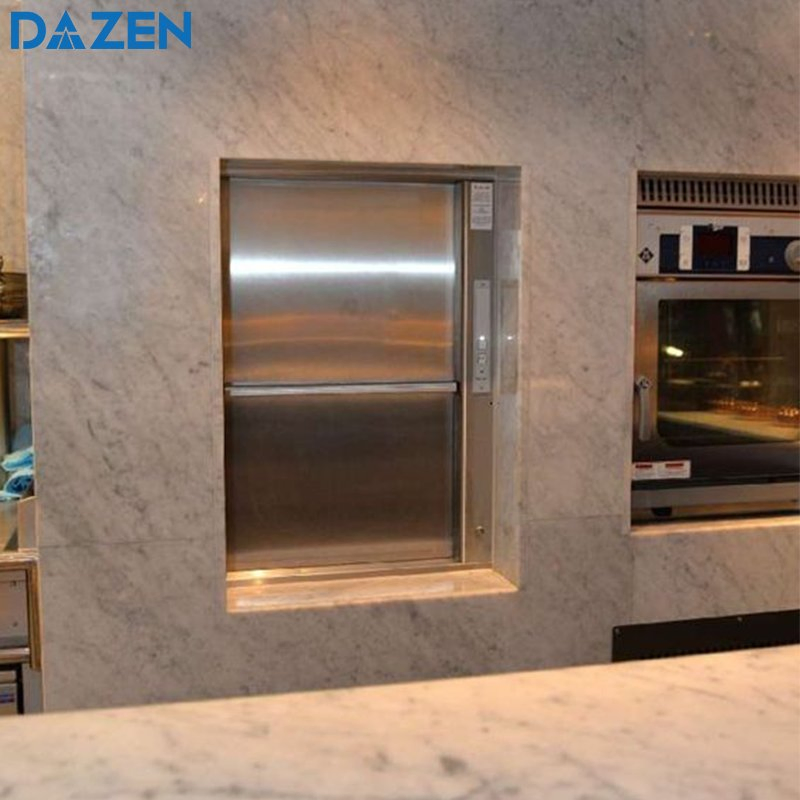

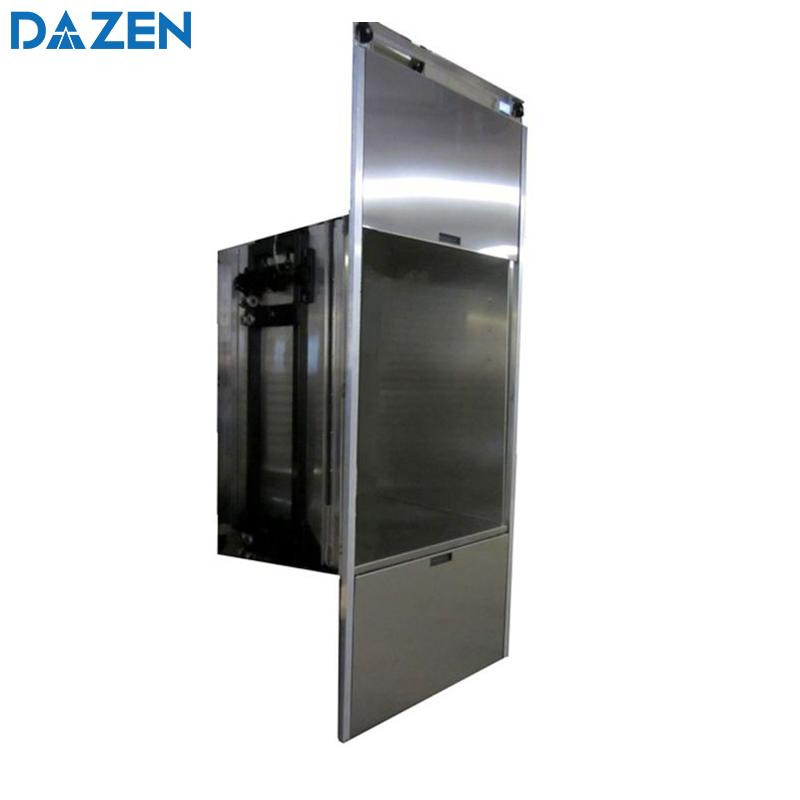

China Wholesale Hyundai Elevator Price Food Dumbwaiter Kitchen Elevator

Customization:	Available
After-sales Service:	2years
Warranty:	2years

Basic Information

Model NO.:Dumbwaiter

Driving Type:AC Elevator

Capacity:450~1600kg

Persons:8~16persons

Speed:1.0~3.0m/S

Control Mode:Monarch Nice3000

Computer Room:up or No

Elevator Door:Center Opening Door

Guarantee:2 years

Certification:CE/En81

Package Size:500.00cm * 500.00cm * 500.00cm

Gross Weight:200.000kg

Product Description

★ 2 Years Free Guarantee

★ Local Installation Team and After Service

★ Engineers with Practical English Speaking Experience

★ Specialist in Small Shaft for Overseas Markets

★ European Brand Motor with CE Certification

★ International Standard SS304 1.5mm Stainless Steel

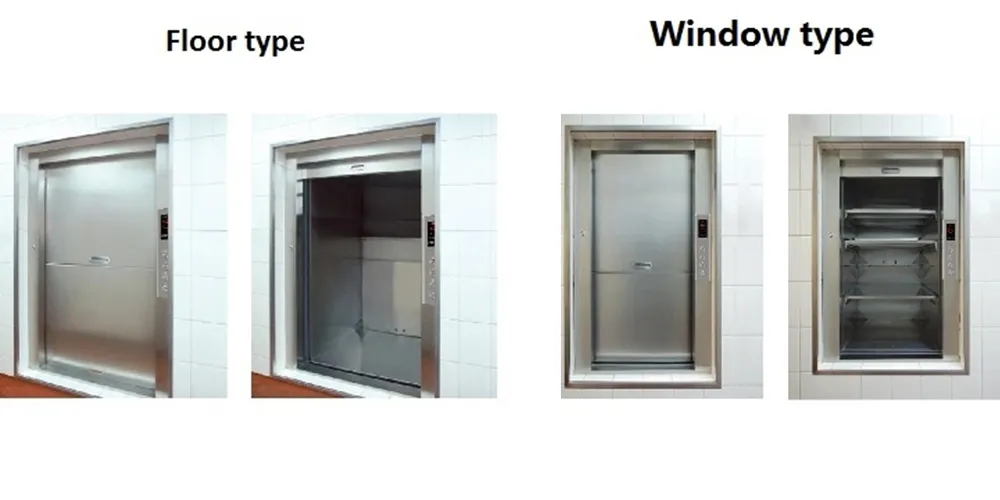

Technical Specification (Without Machine Room)

Load (kg)	Speed (m/s)	Cabin Size (WXDXH)mm	Door Size (WxH)mm	Shaft Size (WxD)mm	Pit (mm)	OH (mm)	Working Mode
100	0.4	500x500x900	500x900	1000x800	700	4500	Window Type
200	0.4	600x600x900	600x900	1100x900	700	4500	Window Type
250	0.4	800x800x900	800x900	1300x1100	700	4500	Window Type
300	0.4	900x900x900	900x900	1400x1200	700	4500	Window Type
100	0.4	500x500x1000	500x1000	1000x800	1000	4000	Floor Type
200	0.4	600x600x1000	600x1000	1100x900	1000	4000	Floor Type
250	0.4	800x800x1000	800x1000	1500x1100	1000	4000	Floor Type
300	0.4	900x900x1000	900x1000	1400x1200	1000	4000	Floor Type

Note: Above standard specification is only for reference. If shaft size at jobsite is different, factory will design suitable one according to your parameters.

Safety Functions

1. Motor overheat protect	2. Power phase fault detect	3. Drive running time detect	4. Inspection running
5. Emergency door opening key	6. Car door contact	7. Shaft emergency stop	8. Car top emergency stop
9. Safety gear contact	10. Main fuse (controller)	11. Main power switch	12. Car lighting switch
13. Hall calling display	14. Car position indicator	15. Running direction indicator	16. Cabin position indicator

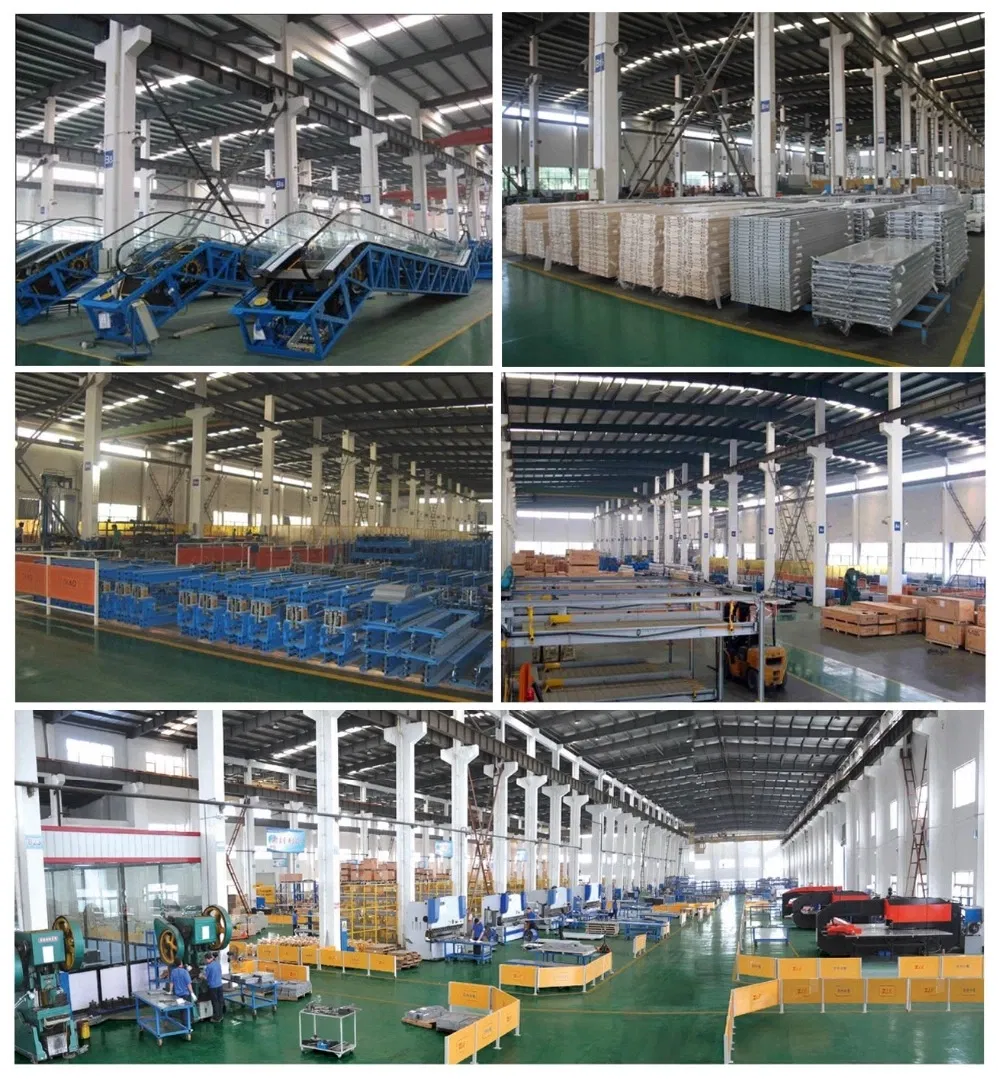

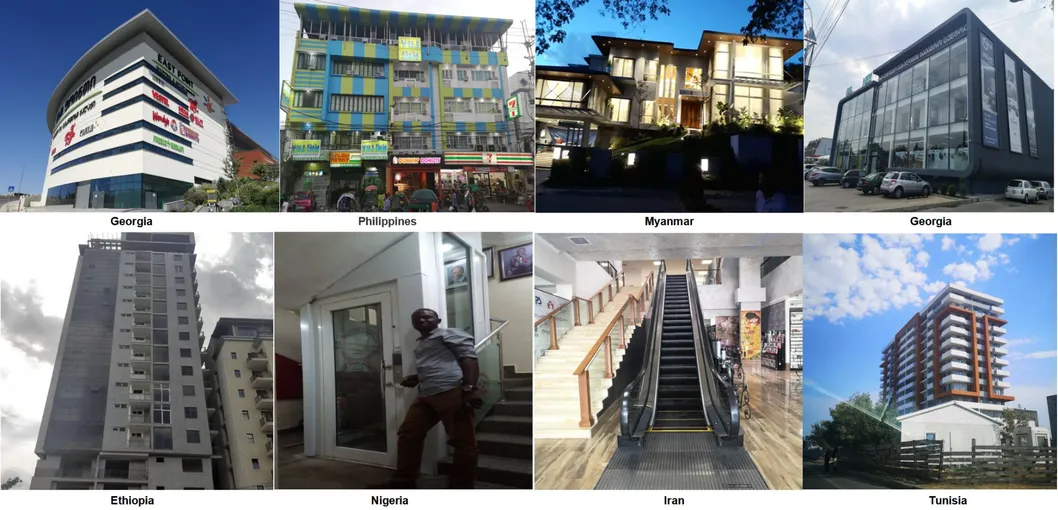

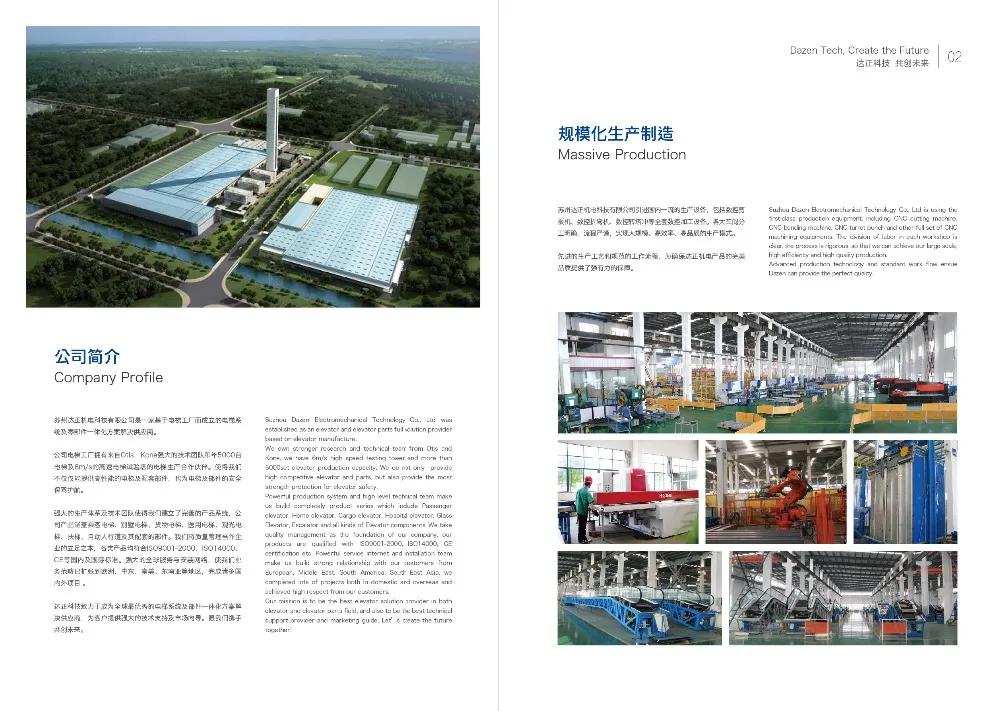

Production & Projects

Frequently Asked Questions

Is the elevator stable and safe?

We have more than 10 years of production experience and work with customers in over 20 countries. Our products are qualified with ISO9001, CE/EN81, EAC, and KC. All main parts are from internationally famous brands to ensure premium quality.

How do I handle installation and maintenance?

We cooperate with elevator installation companies in more than 20 countries and are constantly expanding our partner network. This ensures our customers receive both high-quality products and reliable after-sales service.

Will the elevator drop or clamp people suddenly?

No. Our elevators feature 6 lines of protection located in the machine room, doors, and the bottom of the shaft. The system automatically enters protection mode if any issue is detected. With proper maintenance, such situations are prevented.

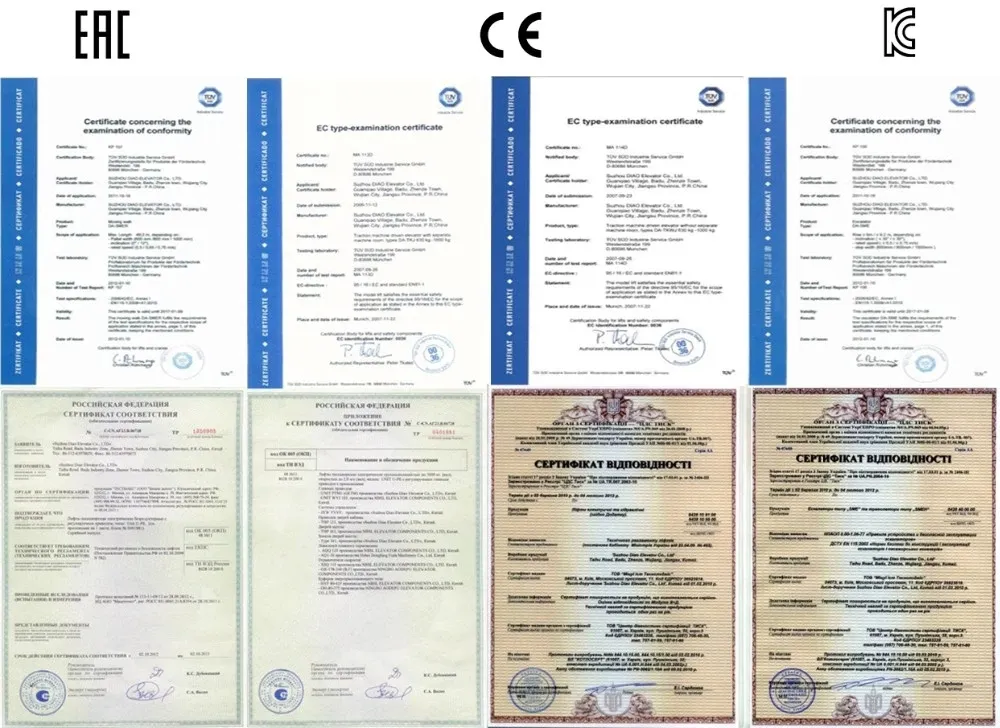

What certifications do your products have?

We are fully qualified with CE/EN81, EAC/CU-TR, KC, and TUV certificates, ensuring you are fully protected and compliant with international standards.

Can the shaft dimensions be customized?

Yes. While we have standard specifications, the factory can design a suitable elevator based on your specific jobsite parameters if your shaft size is different.

What is the warranty period for this elevator?

We provide a 2-year free guarantee along with access to local installation teams and professional after-sales support.
