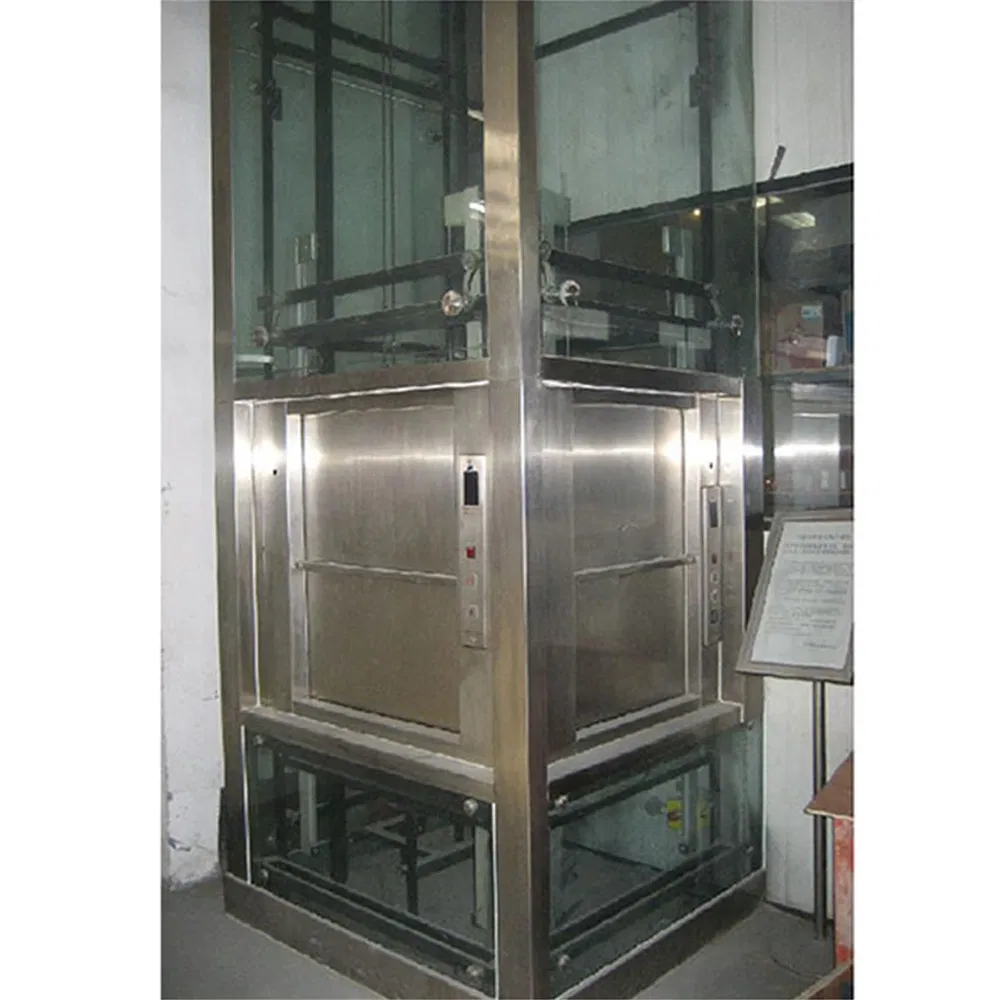

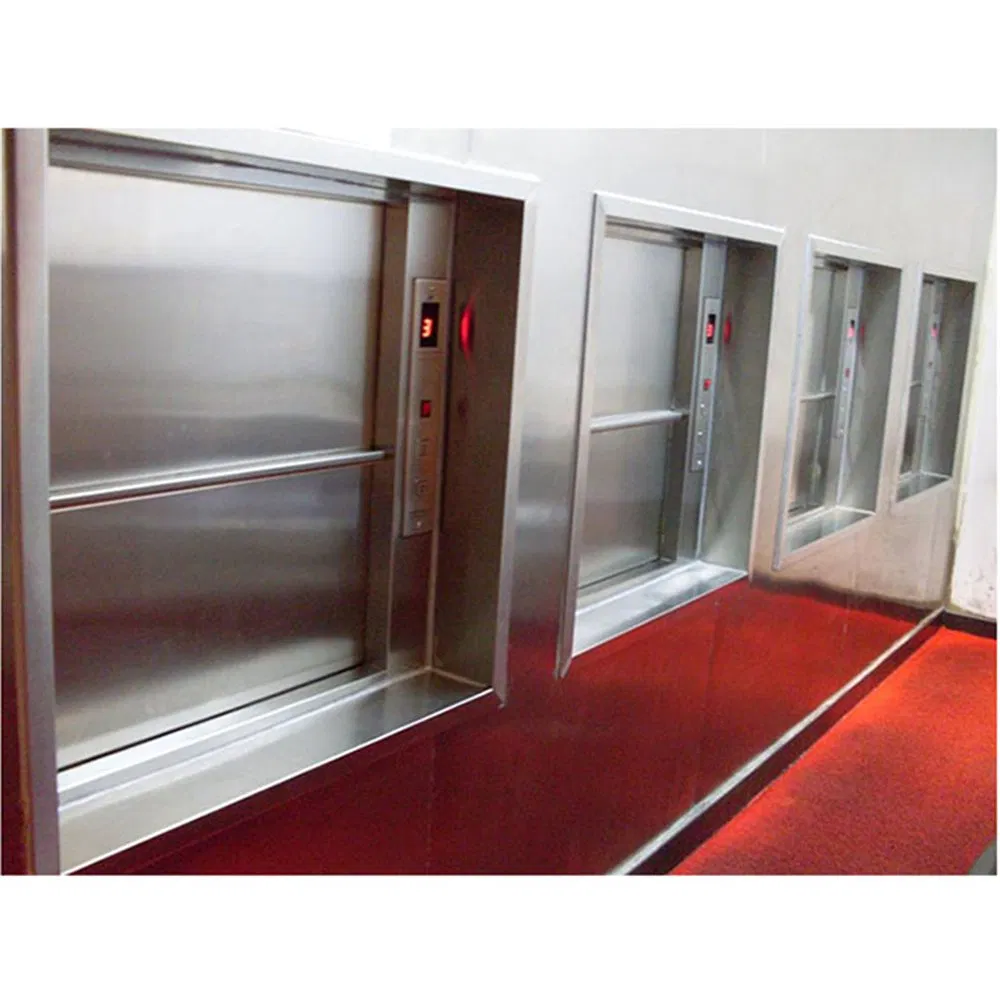

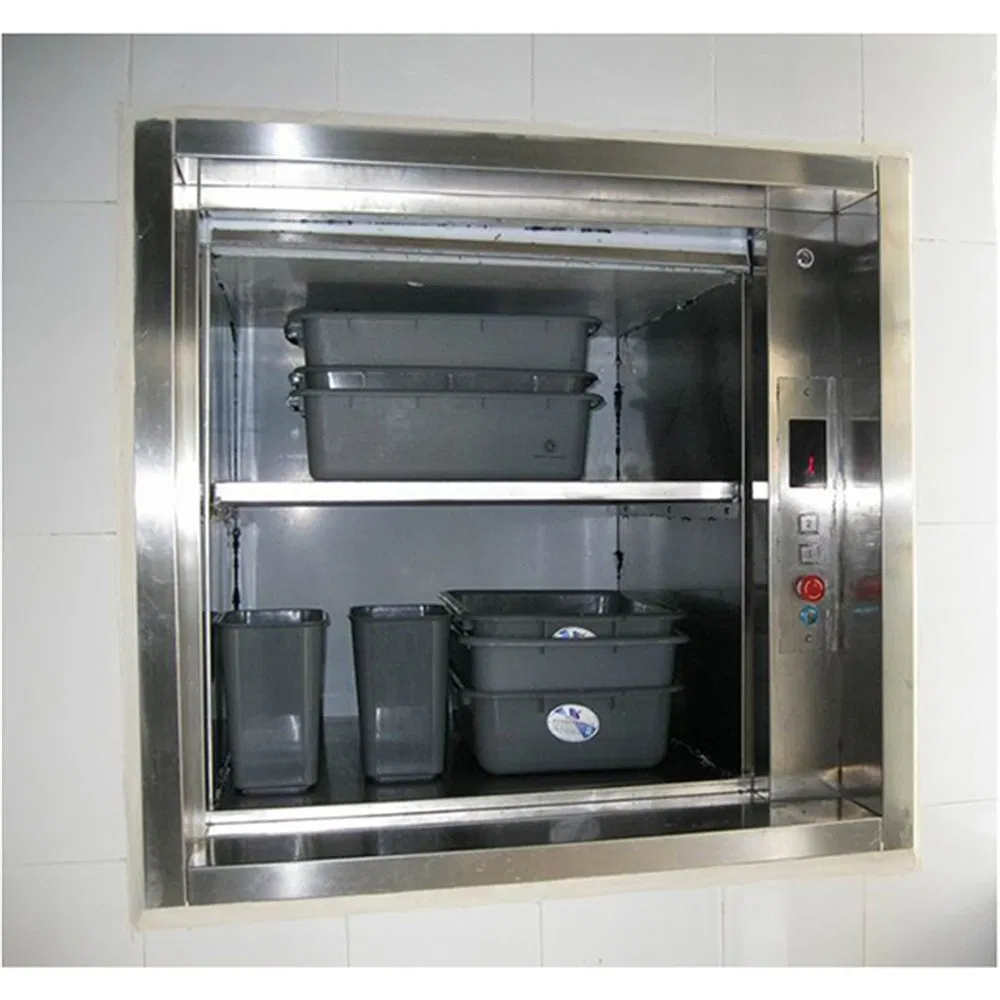

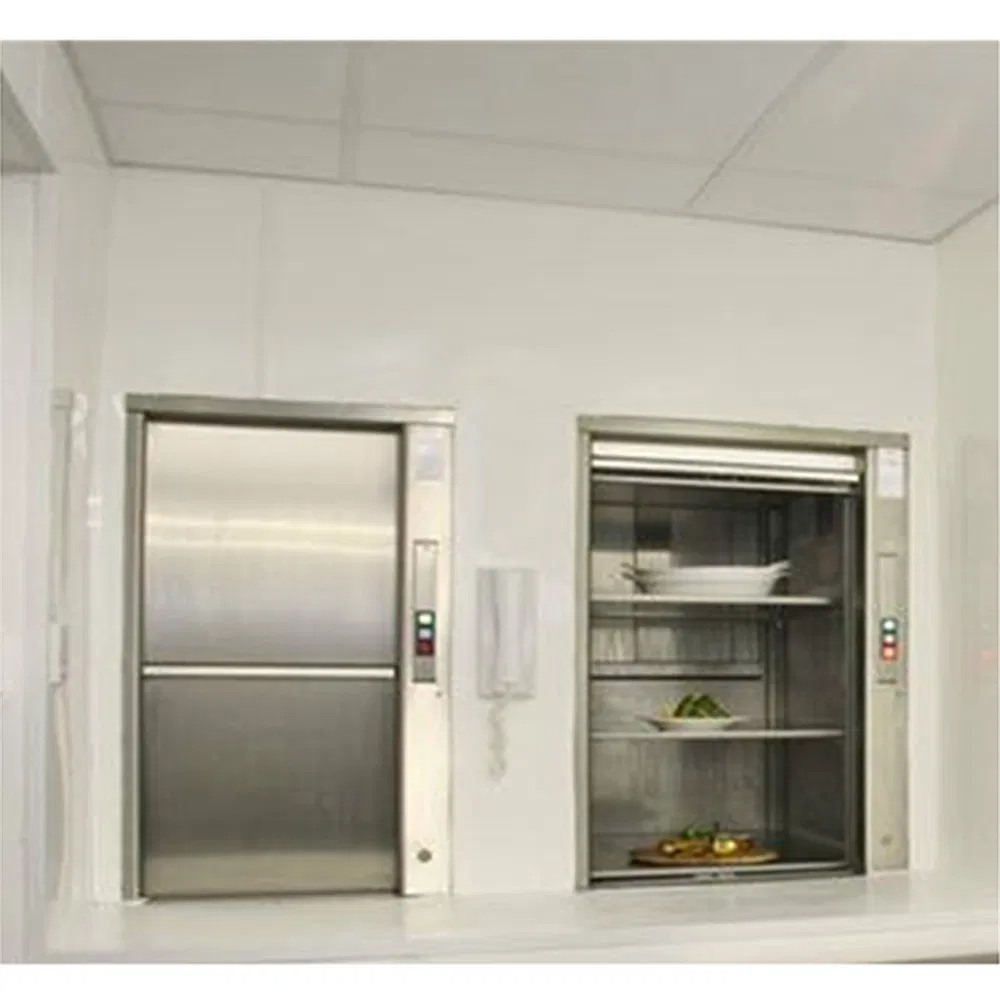

New Design 5 Floors Kitchen Dumbwaiter Food Elevator for Home Use
This high-quality dumbwaiter is designed specifically for kitchens, restaurants, and residential use to transport food, laundry, or other small goods between floors efficiently.
| Load (KGS) | Type | Cabin Size (WxDxH) | Shaft Size (WxD) | Overhead Height | Pit Depth | Motor Power |
|---|---|---|---|---|---|---|
| 100 | Window Type | 750 x 750 x 900 | 1250 x 900 | >=3600 | - | 1.1 KW |
| 100 | Trolley Type | 750 x 750 x 900 | 1250 x 900 | >=3600 | 600 | 1.1 KW |
| 200 | Window Type | 900 x 900 x 1000 | 1400 x 1100 | >=3600 | - | 1.5 KW |
| 200 | Trolley Type | 900 x 900 x 1000 | 1400 x 1100 | >=3600 | 800 | 1.5 KW |
| 300 | Trolley Type | 1000 x 1000 x 1100 | 1500 x 1200 | >=3600 | 1200 | 3 KW |
| 500 | Trolley Type | 1100 x 1100 x 1200 | 1600 x 1300 | >=3600 | 1200 | 4 KW |
